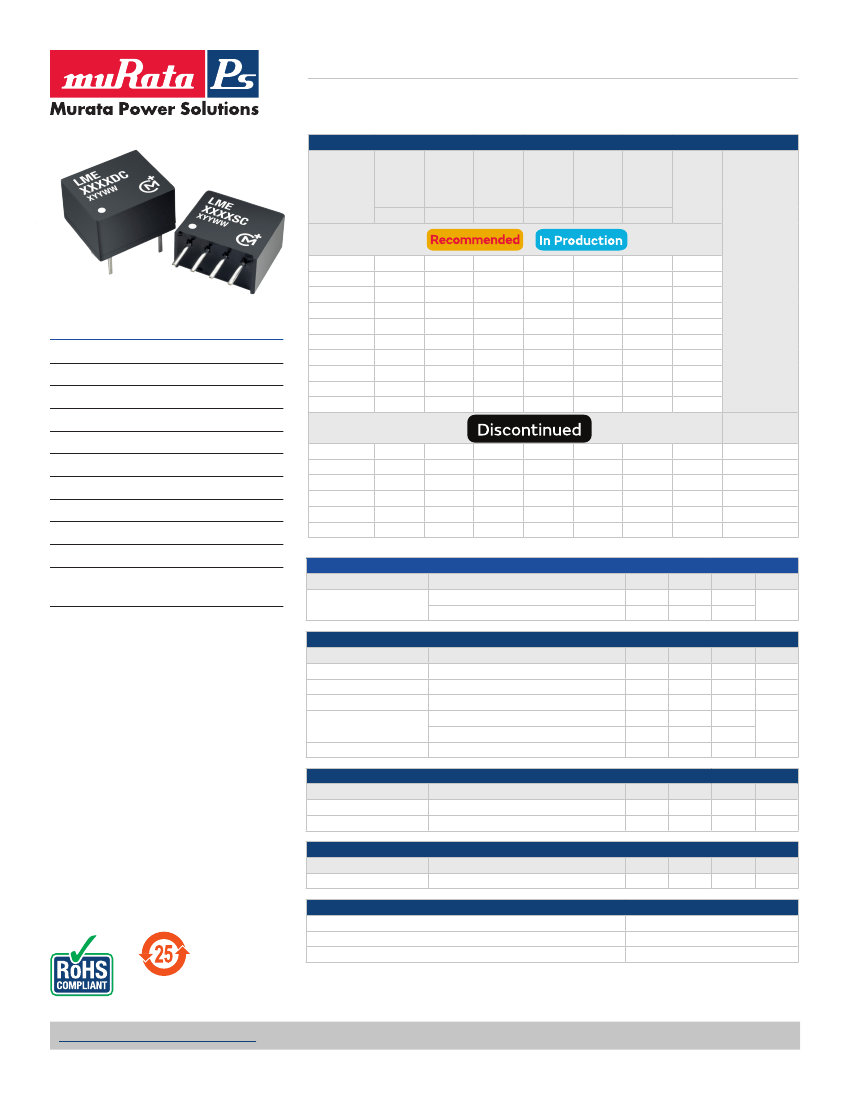

1. Calculated using MIL-HDBK-217F with nominal input voltage at full load.
All specifications typical at T
A
=25°C, nominal input voltage and rated output current unless otherwise specified.
www.murata-ps.com/support
KDC_LMEC.G01
Page 1 of 4
LME Series
Isolated 250mW Single Output DC-DC Converters
TEMPERATURE CHARACTERISTICS
Parameter
Specification
Storage
Cooling
Conditions
All output types
Free air convection
Min.
0
-50
Typ.
Max.
70
130
Units
°C
TEMPERATURE DERATING GRAPH
0.375
TOLERANCE ENVELOPE
+10%
+5%
V
NOM
Typical
L
Output Power (W)
Output Voltage
0.250
0.125
0
70°C
Safe Operating
Area
125°C
0
50
100
Ambient Temperature (°C)
150
oad Line
+2.5%
-2.5%
-7.5%
10
75
50
25
Output Load Current (%)
100
The voltage tolerance envelope shows typical load regulation characteristics for this product series. The toler-
ance envelope is the maximum output voltage variation due to changes in output loading.
TECHNICAL NOTES
ISOLATION VOLTAGE
‘Hi Pot Test’, ‘Flash Tested’, ‘Withstand Voltage’, ‘Proof Voltage’, ‘Dielectric Withstand Voltage’ & ‘Isolation Test Voltage’ are all terms that relate to the same thing, a test voltage,
applied for a specified time, across a component designed to provide electrical isolation, to verify the integrity of that isolation.
Murata Power Solutions LME series of DC-DC converters are all 100% production tested at their stated isolation voltage. This is 1kVDC for 1 second.
A question commonly asked is, “What is the continuous voltage that can be applied across the part in normal operation?”
For a part holding no specific agency approvals, such as the LME series, both input and output should normally be maintained within SELV limits i.e. less than 42.4V peak, or
60VDC. The isolation test voltage represents a measure of immunity to transient voltages and the part should never be used as an element of a safety isolation system. The part
could be expected to function correctly with several hundred volts offset applied continuously across the isolation barrier; but then the circuitry on both sides of the barrier must
be regarded as operating at an unsafe voltage and further isolation/insulation systems must form a barrier between these circuits and any user-accessible circuitry according to
safety standard requirements.
REPEATED HIGH-VOLTAGE ISOLATION TESTING
It is well known that repeated high-voltage isolation testing of a barrier component can actually degrade isolation capability, to a lesser or greater degree depending on materials,
construction and environment. The LME series has toroidal isolation transformers, with no additional insulation between primary and secondary windings of enameled wire. While
parts can be expected to withstand several times the stated test voltage, the isolation capability does depend on the wire insulation. Any material, including this enamel (typically
polyurethane) is susceptible to eventual chemical degradation when subject to very high applied voltages thus implying that the number of tests should be strictly limited. We
therefore strongly advise against repeated high voltage isolation testing, but if it is absolutely required, that the voltage be reduced by 20% from specified test voltage.
This consideration equally applies to agency recognized parts rated for better than functional isolation where the wire enamel insulation is always supplemented by a further
insulation system of physical spacing or barriers.
RoHS COMPLIANT INFORMATION
This series is compatible with RoHS soldering systems with a peak wave solder temperature of
260°C for 10 seconds. The pin termination finish on the SIP package type is Tin Plate, Hot Dipped
over Matte Tin with Nickel Preplate. The DIP types are Matte Tin over Nickel Preplate. Both types in
this series are backward compatible with Sn/Pb soldering systems.
For further information, please visit www.murata-ps.com/rohs
APPLICATION NOTES
Minimum Load
The minimum load to meet datasheet specification is 10% of the full rated load across the specified input voltage range. Lower than 10% minimum loading will result in an
increase in output voltage, which may rise to typically double the specified output voltage if the output load falls to less than 5%.
www.murata-ps.com/support
KDC_LMEC.G01
Page 2 of 4
LME Series
Isolated 250mW Single Output DC-DC Converters
PACKAGE SPECIFICATIONS
MECHANICAL DIMENSIONS
DIP Package
11.6±0.15 [0.457±0.006]
PIN CONNECTIONS - 8 PIN DIP
SIP Package
Pin
1
4
5
7
Function
-V
IN
+V
IN
+V
OUT
-V
OUT
LME
XXXXDC
XYYWW
9.9±0.15 [0.390±0.006]
11.53±0.2 [0 .454±0.008]
PIN CONNECTIONS - 4 PIN SIP
Pin
Function
-V
IN
+V
IN
-V
OUT
+V
OUT
6.9±0.15 [0.272±0.006]
10.00±0.25 [0 .394±0.010]
XYYWW
0.40 [0.016] MIN
LME
XXXXSC
S
4.10±0.5 [0.161±0.020]
1
2
3
4
0.5±0.05 [0.020±0.002]
1.99±0.25 [0.078±0.010]
4.10±0.5 [0 .161±0.020]
1
2
3
4
2.54 [0.100]
1
1.14±0.25 [0.045±0.010]
7.62 [0.300]
0.50±0.05 [0 .020±0.002]
0.25±0.05 [0 .010±0.002]
4
(2.21 [0.087])
7
0.25±0.05 [0.010±0.002]
5
5.08 [0.200]
7.62 [0.300]
(1.13 [0.044])
+0.15
6.10 -0.20
[
0.240 +0.006
-0.008
]
All dimensions in mm (inches) Controlling dimension is mm.
SIP: All pins on a 2.54 (0.100) pitch and within ±0.1 (0.004) of true position from pin 1 at seating plane ‘S’
DIP: All pins on a 2.54 (0.100) pitch and within ±0.25 (0.010) of true position
Weight: 1.30g (SIP) 1.48g (DIP)
www.murata-ps.com/support
KDC_LMEC.G01
Page 3 of 4
LME Series
Isolated 250mW Single Output DC-DC Converters
PACKAGE SPECIFICATIONS (continued)
RECOMMENDED FOOTPRINT DETAILS
8 Pin DIP Package
2.54 (0.100)
4 Pin SIP Package
4 HOLES
0.1 (0.00394)
1.15 (0.0453)
Ø
1.00 (0.0394)
x4 HOLES
1.15 0.045
Ø
Ø
1.00 0.039
[
]
2.54
(0.1)
2.54 (0.100)
All dimensions in mm (inches) Controlling dimension is mm.
2.54
(0.1)
TUBE OUTLINE DIMENSIONS
8 Pin DIP Tube
12.0 [0.472]
4 Pin SIP Tube
9.3 [0.366]
12.43 [0.489]
14.5 [0.571]
18.0 [0.709]
5.07±0.80 [0.200±0.03]
5.05 [0.199]
5.0 [0.197]
Unless otherwise stated all dimensions in inches (mm ±0.5mm).
