20-30 Watt Universal 3-Wire Input Adapter
PSC30U Adapter Series Meets CEC and EISA Requirements
Features
Low Cost
EISA Energy Efficiency Compliance
Class B EMI
Applications
Portable Equipment
Peripherals
Safety Approvals
cUL/UL
Meeting Cal. Prop. 65
Mechanical Characteristics
Length: 98.5mm (3.88in)
Width: 55mm (2.17in)
Output Specifications
Model
PSC30U-050
PSC30U-120
PSC30U-240
PSC30U-480
DC Output
Voltage
+5V
+12V
+24V
+48V
Non-Vented/Spill-proof Case
Low Profile Design
Networking
Gaming Machines
C-Tick
SAA
Height: 31.5mm (1.24in)
Weight: 243g (8.57oz.)
Load
Min.
0A
0A
0A
0A
Max.
4.0A
2.5A
1.25A
0.625A
Efficiency
Level
(1)
(1) Level IV efficient products do not qualify for CE marking and therefore cannot be sold to countries in the EU
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at
www.phihong.com for the most up-to-date specifications and contact information.
Revised 11/8/2013
PSC30U Characteristics
Input:
AC Input Voltage Rating
100 to 240V AC
WWW.PHIHONG.COM
Emissions
FCC Class B
EN55022 Class B
Immunity
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11
EN61000-3-2
AC Input Voltage Range
90 to 264V AC
AC Input Frequency
47 to 63Hz
Input Current
0.8A (RMS) maximum at 115V AC
0.5A (RMS) maximum at 240V AC
Leakage Current
3.5mA maximum
Hold-up Time
16mS minimum at 120V AC and maximum load
Inrush Current
60A for 240V AC at maximum load
(Cold start at ambient 25°C)
Over-Voltage Protection
By Zener Clamping, Adapter will be shut down
Over-Current Protection
Output equipped with short circuit protection - auto restart
Input Power Saving
0.5W maximum at no load at 115V AC
Short-Circuit Protection
Output can be shorted without damage
Output:
Power
20W for 5V
30W for 12V, 24V, 48V
Insulation
Input to Output: DC 500V 7M ohm
Ripple
5V
12V
24V
48V
50mV
120mV
240mV
480mV
Dielectric Withstand (Hi-pot) Test
Input to Output: 1500V AC for 1 min., 10mA
MTBF
50K hours minimum at full load and 25°C
(Measured after 10 minutes warm up at 25°C with 12-inch
twisted pair terminated with a 10uF capacitor and 0.1uF
ceramic in parallel.)
DC Output Connector
2.1 x 5.5 x 10mm Center Positive Standard
Regulation Line & Load
±5%
DC Cord Length
12V, 24V & 48V Models – 1850mm (72.8in)
5V model – 1500mm (59.1in)
Efficiency
Level IV Compliant
For level V compliance see model PSC30U-V

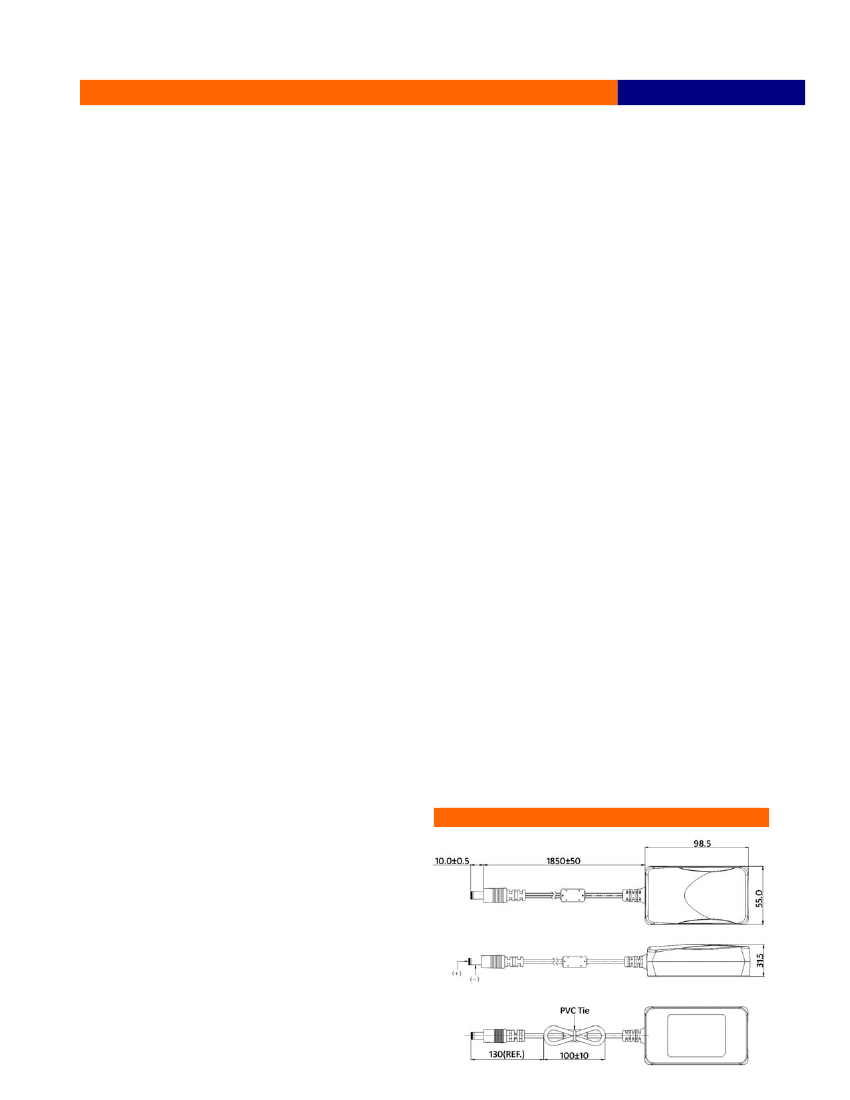

Dimension Diagram Unit: mm
Environmental:
Temperature
Operation
Non-operation
Relative Humidity
0 to +40°C
-30 to +85°C
20 to 90%
