PLC-050S045 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> PLC-050S045

PLC-050S045: DescriptionLED Power Supplies LED DRIVER 50W C/C .45A 199X42.5X34; CategoryPower/power management; File Size1020KB，2 Pages; ManufacturerQualtek Electronics Corporation; Websitehttp://www.qualtekusa.com/

Download Datasheet Parametric Compare View All

PLC-050S045 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLC-050S045	-	-	View	Buy Now

PLC-050S045 Overview

LED Power Supplies LED DRIVER 50W C/C .45A 199X42.5X34

PLC-050S045 Parametric

Parameter Name	Attribute value
Product Category	LED Power Supplies
Manufacturer	Qualtek Electronics Corporation
RoHS	Details
Operation Mode	Constant Current (CC)
Output Current-Channel 1	0.45 A
Output Voltage-Channel 1	37 V to 110 V
Output Power	50 W
Input Voltage	90 VAC to 305 VAC
Dimming	Without Dimming
Number of Outputs	1 Output
Mounting Style	Chassis
Length	199 mm
Width	42.5 mm
Height	34 mm
Product	LED Power Supplies

Preview

Download Datasheet

View All

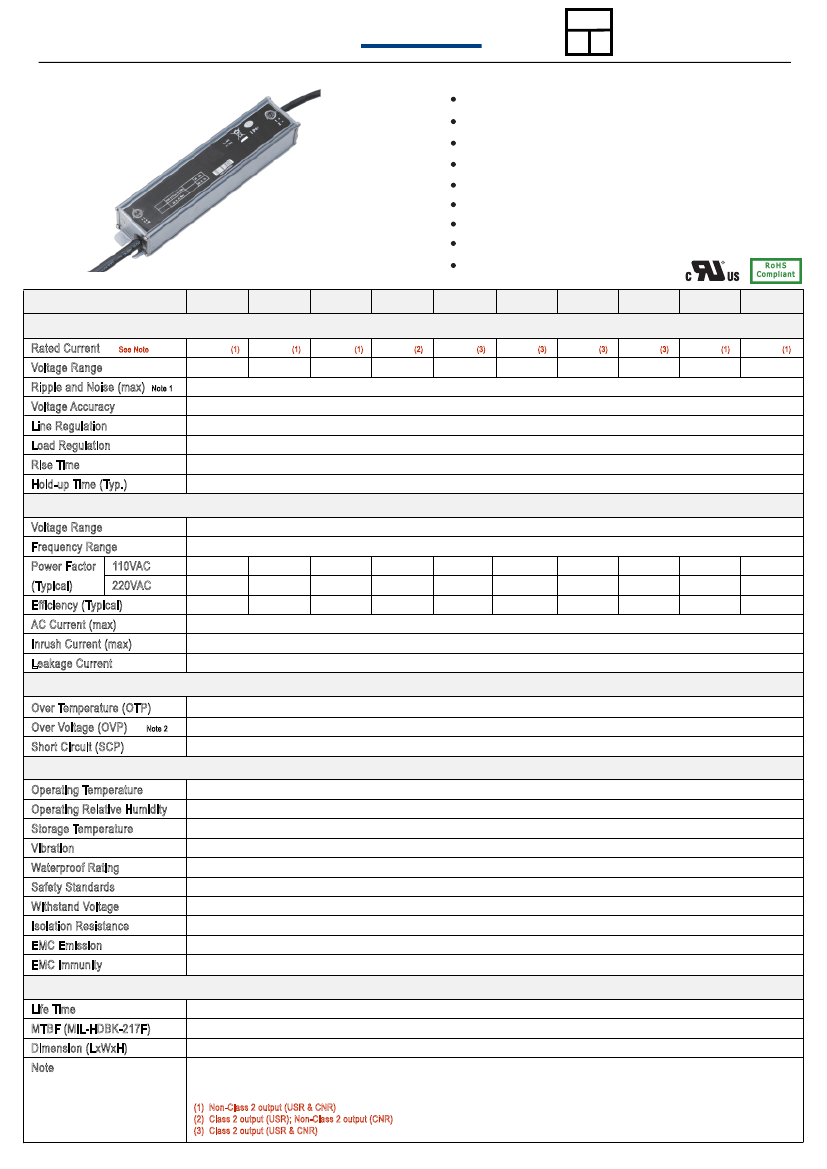

50Watts Single Output LED Driver

ualtek

P C

Electronics Corporation

PLC-050 Series

Features:

Constant Current Design

Universal AC input/ Full Range

Built-in Active PFC function, PF 0.98 Typical

High Efficiency (Up to 89%)

Output Protections: OVP/SCP/OTP

Lightning Protection

Class 2 Power Unit

Waterproof (IP67)

5 Year Warranty

(See Note)

Model

Rated Current

Voltage Range

Ripple and Noise (max)

Voltage Accuracy

Line Regulation

Load Regulation

Rise Time

Hold-up Time (Typ.)

Note 1

See Note

PLC-050S035 PLC-050S045 PLC-050S070 PLC-050S110 PLC-050S140 PLC-050S175 PLC-050S210 PLC-050S280 PLC-050S330 PLC-050S420

Output Characteristics

0.35A

(1)

0.45A

(1)

0.70A

24~72V

(1)

1.10A

16~48V

(2)

1.40A

12~36V

(3)

1.75A

10~29V

(3)

2.10A

8~24V

(3)

2.80A

6~18V

(3)

3.30A

5~15V

(1)

4.20A

4~12V

(1)

47~142V

±10% Vo

±5% Vo

±1% Vo

±3% Vo

37~110V

20mS Max @ Rated Load

8.5mS Min (110VAC input, full load), 10mS Min (220VAC input, full load)

90VAC~305VAC

47Hz-63Hz

>0.98

>0.92

89%

>0.98

>0.92

88%

>0.98

>0.92

87%

>0.98

>0.92

87%

>0.98

>0.92

87%

>0.98

>0.92

87%

>0.98

>0.92

86%

>0.98

>0.92

84%

>0.98

>0.92

84%

>0.98

>0.92

83%

110VAC

220VAC

Input Characteristics

Voltage Range

Frequency Range

Power Factor

(Typical)

Efficiency (Typical)

AC Current (max)

Inrush Current (max)

Leakage Current

0.8A @ 100-277VAC Input Full Load

65A @ 230VAC, 25°C

0.5mA max @ 277VAC

110°C (Temperature of internal components); shut down, auto recover after the temperature decreases

1.2~1.4Vo

Long-term mode, auto recovery

-35°C~70°C

10% RH to 100% RH

-40°C~85°C, 5% to 100% RH non-condensing

10 to 300Hz sweep at constant acceleration of 1.0G(Breadth: 3.5mm) for 1 Hour for each of the perpendicular axes X, Y, Z

IP67

UL8750, Compliance to UL1012 UL935, IEC61347

L/N-GND: 4kV, L-N: 2kV

I/P-O/P: >100M Ohms / 500VDC / 25°C / 70% RH

Compliance to EN55022(CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3

Compliance to EN61000-3-2, 3 EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547

More than 50,000Hrs (25°C, 80% Load)

More than 490,000Hrs (25°C, 80% Load)

199x42.5x34mm

1. Ripple & Noise: Measured by 20 MHz bandwidth oscilloscope and the output paralleled with a 0.1 uF ceramic capacitor and a 10 uF electrolytic capacitor.

2. Latch Mode: The power supply shall return to normal operation only after the power is turned on again

(1) Non-Class 2 output (USR & CNR)

(2) Class 2 output (USR); Non-Class 2 output (CNR)

(3) Class 2 output (USR & CNR)

Page 1 of 2

Protection

Over Temperature (OTP)

Over Voltage (OVP)

Short Circuit (SCP)

Operating Temperature

Operating Relative Humidity

Storage Temperature

Vibration

Waterproof Rating

Safety Standards

Withstand Voltage

Isolation Resistance

EMC Emission

EMC Immunity

Note 2

Environmental Characteristics

Characteristics

Life Time

MTBF (MIL-HDBK-217F)

Dimension (LxWxH)

Note

PLC-050S045 Related Products

	PLC-050S045	PLC-050S280	PLC-050S175
Description	LED Power Supplies LED DRIVER 50W C/C .45A 199X42.5X34	LED Power Supplies LED DRIVER 50W C/C 2.80A 199X42.5X34	LED Power Supplies LED DRIVER 50W C/C 1.75A 199X42.5X34
Product Category	LED Power Supplies	LED Power Supplies	LED Power Supplies
Manufacturer	Qualtek Electronics Corporation	Qualtek Electronics Corporation	Qualtek Electronics Corporation
RoHS	Details	Details	Details
Operation Mode	Constant Current (CC)	Constant Current (CC)	Constant Current (CC)
Output Current-Channel 1	0.45 A	2.8 A	1.75 A
Output Voltage-Channel 1	37 V to 110 V	6 V to 18 V	10 V to 29 V
Output Power	50 W	50 W	50 W
Input Voltage	90 VAC to 305 VAC	90 VAC to 305 VAC	90 VAC to 305 VAC
Dimming	Without Dimming	Without Dimming	Without Dimming
Number of Outputs	1 Output	1 Output	1 Output
Mounting Style	Chassis	Chassis	Chassis
Length	199 mm	199 mm	199 mm
Width	42.5 mm	42.5 mm	42.5 mm
Height	34 mm	34 mm	34 mm
Product	LED Power Supplies	LED Power Supplies	LED Power Supplies
