HWS600-48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> HWS600-48

HWS600-48: DescriptionProgrammer Accessories USB Program Cable FPGA CPLD u0026 Ser Conf; CategoryPower/power management; File Size84KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

HWS600-48 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HWS600-48	-	-	View	Buy Now

HWS600-48 Overview

Programmer Accessories USB Program Cable FPGA CPLD u0026 Ser Conf

HWS600-48 Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	48 V
Number of Outputs	1 Output
Output Power	624 W
Open Frame/Enclosed	Enclosed
Input Voltage	115 VAC to 230 VAC
Output Current-Channel 1	13 A
Commercial/Medical	Commercial
Mounting Style	Chassis
Length	9.5 in
Width	5.9 in
Height	2.4 in
Approvals	EN60950-1, UL60950-1
Factory Pack Quantity	1
Unit Weight	4.850 lbs

Preview

Download Datasheet

View All

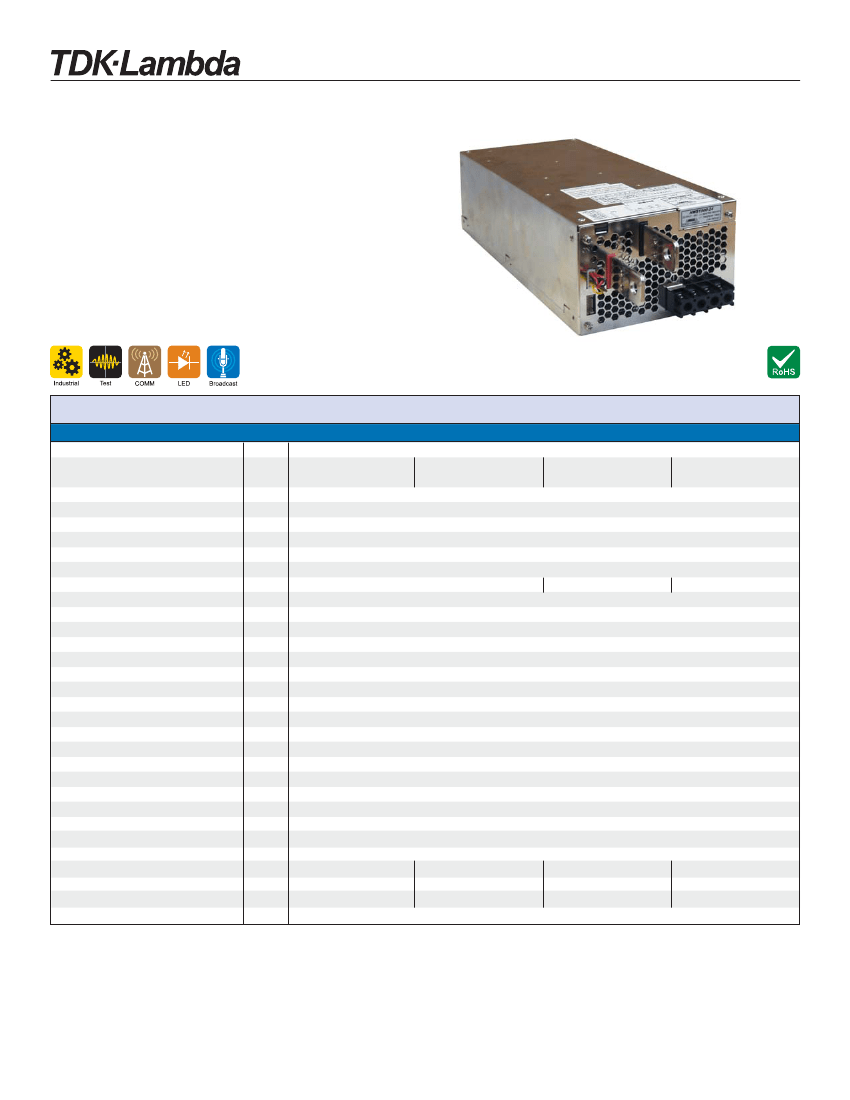

HWS300-1500 Series

300-1500W Single Output Industrial Power Supplies

Features



Limited Lifetime Warranty



UL508 approved



SEMI F47 Compliant (high line AC)



Universal Input (85 - 265VAC)



High Efﬁciency



Class 1 Div 2 option (/RY sufﬁx)



Wide Range AC Input

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range (47-63Hz)

Input Current (Typ)

(1)

HWS600

HWS1000

HWS1500

85 - 265VAC or 120 - 330VDC (6)**

5V: 3.8/1.9;

5V: 7.5/3.6;

3.3V: 9.6/5.0;

3.3V: 15.0/8.0;

12-48V: 4.2/2.1

12-48V: 8.1/3.9

5-60V: 13.5/7.0

5-60V: 19.5/10.0

20 / 40

Meets EN61000-3-2

<0.02%/°C

>105% (>101% of peak current for peak current capable models)

See table on page 2 (Recycle AC or remote on/off to reset)

<0.75mA

<1.2mA

<1.5mA

Yes

Green LED = ON

Yes (Isolated from output)

Single wire connection (up to 5 units)

Yes

External voltage adjusts output, see options table

-10°C to +70°C, derate linearly to 50% load from 50C to 70C (2, 3)

-30 to +85°C

Operating: 10 - 90%RH, Non operating 10 - 95%RH

Internal fan

Input to Ground 2.5kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178, UL508, CE Mark

Complies with SEMI F47 (200VAC line only)

EN55011 / EN55022, FCC VCCI (HWS300, 600 & 1000: Class B, HWS1500: Class A)

IEC61000-4-2, -3, -4, -6 (Level 3), -5, -8 (Level 4), -11

1,000

1,600

3,200

3.3-7.5V: 4000; 12V+: 3800

2.4 x 3.23 x 6.5”

3.94 x 3.23 x 6.5”

5 x 3.25 x 9.45”

5 x 3.25 x 11”

2,145,809

1,998,996

1,087,031

1,152,309

Limited lifetime warranty (See TDK-Lambda’s terms and conditions)

(5) UL60601-1, EN60601-1, see options.

UL508; HWS300/600 5V, 12V, 24V & 48V models

(6) Not on HWS1500/ME, /HD or /RY versions

(*) Class 1 Div 2 option (/RY sufﬁx)

(**) Safety certiﬁed for AC input only

(***) 24V output model, 25°C ambient, full load, 230VAC input

HWS300

Inrush Current

(1)

Power Factor

Temperature Coefﬁcient

Overcurrent Protection

Overvoltage Protection

Hold Up Time (Typ)

Leakage Curr. (at 240VAC, 60Hz) mA

Remote Sense

Indicator

Remote on/off

Parallel operation

DC Good

Remote Adjust (PV)

Operating Temperature

Storage Temperature

°C

Humidity (non condensing)

Cooling

Withstand Voltage

(4)

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations (5)

Line Dip

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

MTBF - Telcordia SR-332 issue 3*** hours

Warranty

yrs

(1) 100/200VAC

(2) HWS start up -20°C. (-40°C see options table)

(3) HWS1000/1500 with 85VAC input: See installation manual

(4) 2kVAC HWS1000/1500 Input to ground

HWS1000: -10 to +71°C. HWS1000-5, HWS1500-3, -5 derate linearly above 40°C

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
