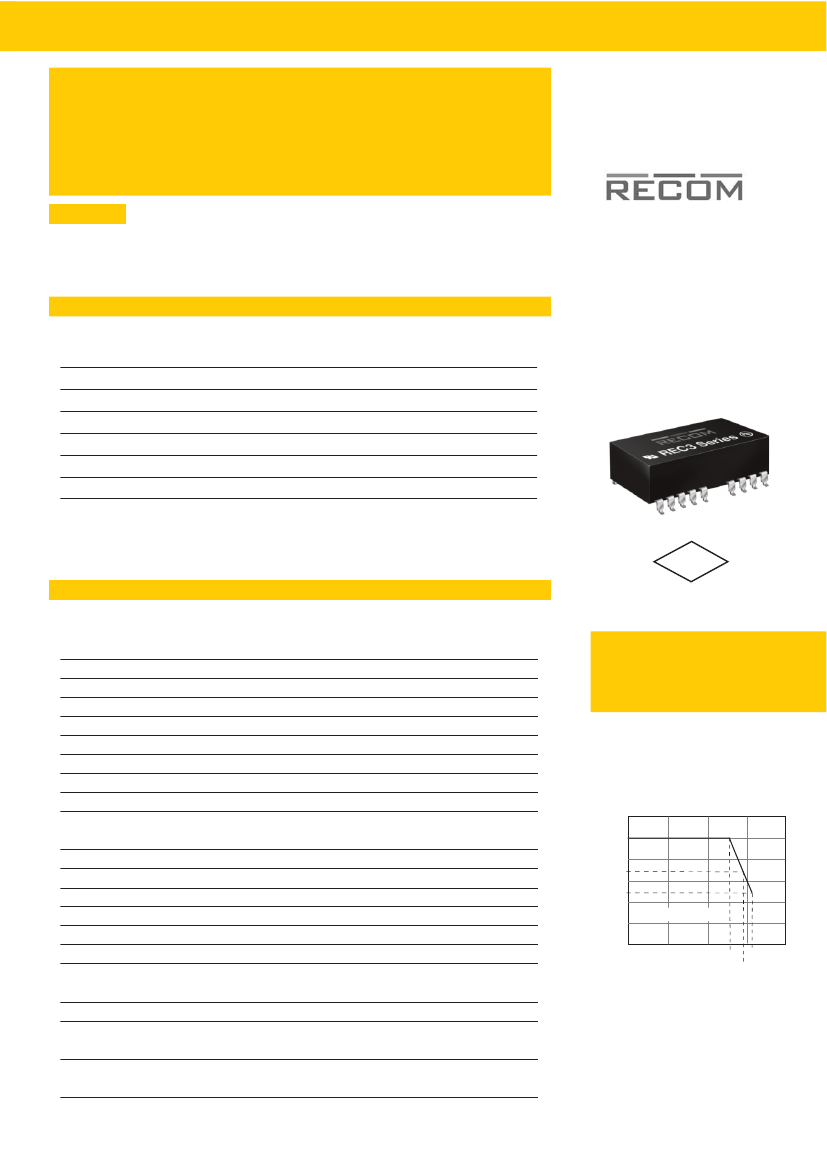

Features
Regulated
Converters
Description
●
●
●
●
●
●
●
Low Cost 3W converter in DIP24 Package
1kVDC Isolation
Regulated Output
Continuous Short Circuit Protection
Internal SMD design
3 Pinout Options, 3 Case Styles.
Efficiency to 75 %
ECONOLINE
DC/DC-Converter
with 3 year Warranty
The REC3-SR/DR series is a low cost converter containing a built in linear regulator to
give a regulated, load independent constant voltage output. The converter is designed to
run from a regulated supply and is typically used to provide an isolated output or to
generate dual rails from a single rail supply. The converters can deliver 140% rated power
for short periods of time to cope with applications with large capacitive loads or high start
up currents.
Selection Guide
Part
Number
DIP24 (SMD)
REC3-xx05SR/H1
REC3-xx12SR/H1
REC3-xx15SR/H1
REC3-xx05DR/H1
REC3-xx12DR/H1
REC3-xx15DR/H1
Input
Voltage
(VDC)
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
Output
Voltage
(VDC)
5
12
15
±5
±12
±15
Output
Current
(mA)
600
250
200
±300
±125
±100
Max
Capacitive
Load
(1)
4700µF
2200µF
2200µF
±2200µF
±1000µF
±1000µF
3 Watt
DIP24
&
SMD
Single
&
Dual
Output
xx = Input Voltage. Other input and output voltage combinations available on request.
* add suffix "/SMD" for SMD package, e.g. REC3-0505SR/H1/SMD
* add suffix "/M" for Metal Case, e.g. REC3-0505SR/H1/M
* add suffix -R for Tape and Reel packaging, e.g. REC3-0505SR/H1/SMD-R
2011/65/EU
6/6
RoHS
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
5V
12V
24V
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation (10% to 100% full load )
Minimum Load
Output Ripple and Noise (at 20MHz BW)
Operating Frequency
Efficiency at Full Load
No Load Power Consumption
Isolation Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
Thermal Impedance
Package Weight
Packing Quantity
MTBF (+25°C)
(+80°C)
Natural convection
(tested for 1 second)
(rated for 1 minute**)
4.5V - 5.75V
10.2V - 13.8V
20.4V - 27.6V
±3% typ.
±0.5% max
±1% max.
10%
(2)
100mVp-p max.
75kHz min.
65% min.
300mW max.
1000VDC
500VAC / 60Hz
30pF typ.
1 GΩ min.
Continuous
-40°C to +80°C (see Graph)
-55°C to +125°C
95% RH
20°C/W for plastic case
12°C/W for metal case
12g
15 pcs per Tube
100 pcs per Reel
Detailed Information see
Application Notes chapter "MTBF"
**Any data referred to in this datasheet are of indicative nature
and based on our practical experience only. For further details,
please refer to our Application Notes.
EN-60950-1 Certified
REC3-S_DR
Derating-Graph
(Ambient Temperature)
100
80
(2W) 67
60
(1.5W) 50
40
Output Power (%)
20
0
Safe Operating Area
0
50
150
80 105
96
Operating Temperature °C
-40
}
using MIL-HDBK 217F
using MIL-HDBK 217F
950 x 10
3
hours
145 x 10
3
hours
continued on next page
Refer to Application Notes
E-139
www.recom-power.com
REV: 0/2015
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Certifications
EN General Safety
Notes
Note 1:
Note 2:
Report: SPCLVD1212007
REC3-S_DR/H1
Series
EN60950-1:2006 + A11:2009+A1:2010+A12:2011
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter
The REC3-R series requires a minimum of 10% load on the output to maintain specified regulation. Operating under no-load
conditions will not damage these devices; however, they may not meet all listed specifications.
Package Style and Pinning (mm)
24 PIN DIP Package
32.00
10.20
3.8
+0.5 /-0.25
2.06
0.51
20.30
Pin Connections
Pin #
1
2
3
10
15.24
11
12
13
14
15
22
1 2 3
Bottom View
24 23 22
15 14 13
Top View
10 11 12
Single
+Vin
No Pin
No Pin
–Vout
+Vout
–Vin
–Vin
+Vout
–Vout
No Pin
No Pin
+Vin
Dual
+Vin
–Vout
Com
Com
+Vout
–Vin
–Vin
+Vout
Com
Com
–Vout
+Vin
Recommended Footprint Details
1.00 ø+0.15/0
23
24
2.54
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
2.54
REC3-R
24 PIN DIP SMD Package
Pin Connections
Pin #
1
2
Single
+Vin
NC
NC
NC
NC
NC
-Vout
+Vout
-Vin
-Vin
+Vout
-Vout
NC
NC
NC
NC
NC
+Vin
Dual
+Vin
–Vout
Com
NC
NC
NC
Com
+Vout
-Vin
-Vin
+Vout
Com
NC
NC
NC
Com
-Vout
+Vin
32.00
20.32
3
4
5
11.20
10.90
1.50
25.40
9
10
11
12
13
14
15
16
2.40
20
21
22
Top View
23
24
2.54
Recommended Footprint Details
Pin area
0.1 x 0.50
1 2 3 4 5
0.50
9 10 11 12
1.60
SMD pin
connections
follow standard
package
pinning.
All unused pins
are NC (No
Connection).
23.40
Bottom View
24 23 22 21 20
16 15 14 13
26.54
24.14
1
25.40
27.94
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit
written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer
shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.
E-140
REV: 0/2015
www.recom-power.com
