SmartOnline 120V 1.5kVA 1.2kW Double-
Conversion UPS, 2U Rack/Tower, Extended Run,
Network Card Options, USB, DB9 Serial
MODEL NUMBER:
SU1500RTXL2UA
Highlights
q
1500VA / 1.5kVA / 1200 watt
on-line double-conversion 2U
rack/tower UPS
q
100/110/120V +/-2% output at
50/60Hz, high efficiency
economy mode option
q
Expandable runtime, Hot-swap
batteries; 19 in / 48.3cm
installed depth
q
USB, RS232 & EPO ports;
support for network card options
q
Front panel status LEDs with
detailed load and battery
metering
q
2 independently switchable
output load banks
Description

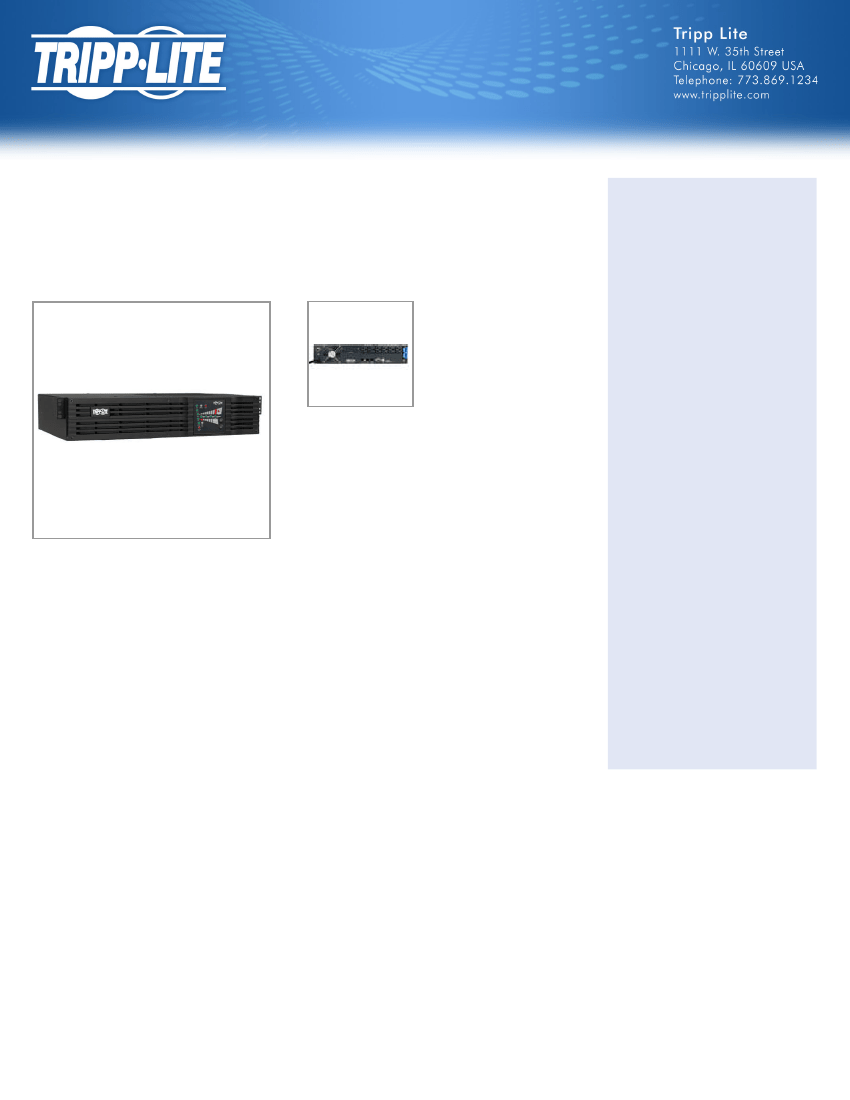

Requiring only two rack spaces (2U) in a standard rack enclosure, Tripp Lite's SU1500RTXL2Ua
SmartOnline UPS System protects connected equipment against data loss, downtime and equipment
damage due to power outages, voltage fluctuations and transient surges. Featuring true on-line operation
with pure sine wave output and zero transfer time to battery, it provides the highest level of power
protection for mission-critical equipment. Internal batteries support connected equipment during blackouts,
and runtime is expandable with optional external battery packs. The SU1500RTXL2Ua has six outlets
arranged in two individually controllable load banks that can be used to reboot select equipment on
demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports
support messaging of detailed UPS operational parameters and line power status. Included PowerAlert
UPS monitoring and unattended shutdown software provides management support for an unlimited
number of network UPS systems.
q
NEMA 5-15P input; 5-15R
outlets
Package Includes
q
SU1500RTXL2Ua UPS System
1 x 6-ft. USB Cable
1 x 6-ft. DB9 Cable
4-Post Rackmounting Hardware
Owner's Manual
q
q
q
q
Features
q
SmartOnline high-performance UPS system is ideal for critical voice, data, medical and industrial
network applications
q
True on-line, double-conversion UPS provides perfectly regulated sine wave output within 2% of
100/110/120V (user selectable) under all usage conditions
q
Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer
time
q
Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs
Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve
power problems not addressed by other UPS types
q
q
Corrects line voltage conditions as low as 65V and as high as 150V back to selectable 100/110/120V
1/6
(+/-2%) values
q
Standard internal battery set offers 14 min. runtime at half load (600W) and 5 min. at full load (1200W)
Extended runtime available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible)
and BP48V27-2US (multi-pack compatible) external battery packs
q
q
Some external battery configurations require the use of Tripp Lite's External Battery Configuration
Software (see manual)
q
Intelligent battery management system extends battery life
Compact rackmount form factor installs using only 2 rack spaces (2U) with a maximum installed depth
of only 19 in.
q
q
Ships with all mounting accessories for 4-post rackmount installation
Optional 2POSTRMKITWM enables 2-post rackmount or wallmount installation
Optional 2-9USTAND accessory enables small-footprint upright tower placement
Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
Network interfaces support simultaneous communications via built-in USB, DB9 serial / contact-closure
and slot for network management card options
q
q
q
q
q
Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX,
SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
q
HID-compliant USB interface enables integration with built-in power management and auto shutdown
features of Windows and Mac OS X
q
Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and
control via local connected servers, plus any number of additional servers over IP
q
UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current
monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate
self-test, load bank output power control and remote reboot, UPS nominal voltage adjustment and UPS
line to battery power voltage setpoints
q
Built-in Emergency Power Off (EPO) interface with cable
NEMA 5-15P input plug; NEMA 5-15R output receptacles
Integrated 2-bank switched PDU enables remote outlet management for load shedding or remote reboot
of individual load banks (bank one has 2 outlets, bank two has 4 outlets)
q
q
q
Front panel LEDs offer current monitoring and battery charge level information
UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of
internal batteries by user required
q
q
Single-line tel/DSL or network Ethernet surge suppression
$250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
q
Specifications
OVERVIEW
2/6
UPC Code
037332125972
OUTPUT
Output Volt Amp Capacity (VA)
Output kVA Capacity (kVA)
Output Watt Capacity (Watts)
Output kW Capacity (kW)
Output Capacity Details
1500
1.5
1200
1.2
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150%
load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and
frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE
bypass limits)
0.8
3:1
100V; 110V; 120V
120V default
50 / 60 Hz
Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
+/- 2%
+/- 10%
+/- 2%
(6) 5-15R
Two switchable 5-15R load banks (bank 1 - two outlets, bank 2 - four outlets)
Sine wave
Pure Sine wave
Yes
Power Factor
Crest Factor
Nominal Output Voltage(s)
Supported
Nominal Voltage Details
Frequency Compatibility
Frequency Compatibility Details
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles
Load Management Receptacles
Output AC Waveform (AC Mode)
Output AC Waveform (Battery
Mode)
Individually Controllable Load Banks
INPUT
Rated input current (Maximum Load)
Nominal Input Voltage(s) Supported
UPS Input Connection Type
Input Circuit Breakers
UPS Input Cord Length (ft.)
UPS Input Cord Length (m)
Recommended Electrical Service
Input Phase
12A
100V AC; 110V AC; 120V AC
5-15P
20A
10
3.1
15A 120V
Single-Phase
3/6
Input Frequency
50/60Hz +/-5%
BATTERY
Full Load Runtime (min.)
Half Load Runtime (min.)
Expandable Battery Runtime
External Battery Pack Compatibility
5 min. (1200w)
14 min. (600w)
Extended runtime supported via optional external battery packs
<a class="productLink" href="//www.tripplite.com/External-48V-2U-Rack-Tower-Battery-Pack-Enclosure-DC-
Cabling-select-UPS-Systems-BP48V24-2U~BP48V24-2U">BP48V24-2U</a> (limit 1); <a
class="productLink" href="//www.tripplite.com/External-48V-3U-Rack-Tower-Battery-Pack-Enclosure-DC-Cabling-
select-UPS-Systems-BP48V60RT-3U~BP48V60RT-3U">BP48V60RT-3U</a> (multi-pack compatible);
<a class="productLink" href="//www.tripplite.com/External-48V-2U-Rack-Tower-Battery-Pack-for-UPS-
Systems-BP48V27-2US~BP48V27-2US">BP48V27-2US</a> (multi-pack compatible)
48
Less than 6 hours from 10% to 80% (typical, full load discharge)
<a class="productLink" href="//www.tripplite.com/2U-UPS-Replacement-48VDC-Battery-Cartridge-1-set-4-
select-Tripp-Lite-SmartPro-UPS~RBC94-2U">RBC94-2U</a>
Front panel battery access door
Hot-swappable, user replaceable batteries
Yes
DC System Voltage (VDC)
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Battery Access
Battery Replacement Description
Expandable Runtime
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction
Undervoltage Correction
Severe Undervoltage Correction
Online, double-conversion power conditioning
2% output voltage regulation during overvoltages to 150
2% output voltage regulation during undervoltages to 80
2% output voltage regulation during undervoltages to 65 (under 70% load only)
USER INTERFACE, ALERTS & CONTROLS
Switches
Alarm Cancel Operation
Audible Alarm
LED Indicators
2 switches control off/on power status and alarm-cancel/self-test operation
Power-fail alarm can be silenced using alarm-cancel switch
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown
conditions
14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery
and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in
rack/tower formats
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating
UPS AC Suppression Response
Time
UPS Dataline Suppression
EMI / RFI AC Noise Suppression
600
Instantaneous
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Yes
4/6
PHYSICAL
Installation Form Factors Supported
with Included Accessories
Installation Form Factors Supported
with Optional Accessories
Primary Form Factor
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
Rack Height (U Spaces)
Minimum Required Rack Depth
without External Battery Pack (cm)
Minimum Required Rack Depth with
External Battery Pack (cm)
Minimum Required Rack Depth
without External Battery Pack (in.)
Minimum Required Rack Depth with
External Battery Pack (in.)
UPS Power Module Weight (lbs.)
UPS Power Module Weight (kg)
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Cooling Method
UPS Housing Material
Primary UPS Height (mm)
Primary UPS Width (mm)
Primary UPS Depth (mm)
4 post 19 inch rackmount
2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
Rackmount
3.5 x 17.5 x 19
8.89 x 44.45 x 48.26
2
56
66
22
26
44.1
20.00
9.200 x 23.400 x 19.500
23.37 x 59.44 x 49.53
65.4000
29.66
Fan
Steel
89
445
483
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
AC Mode BTU / Hr. (Full Load)
AC Economy Mode BTU / Hr. (Full
Load)
Battery Mode BTU / Hr. (Full Load)
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
0 to 95%, non-condensing
612
216
667
5/6
