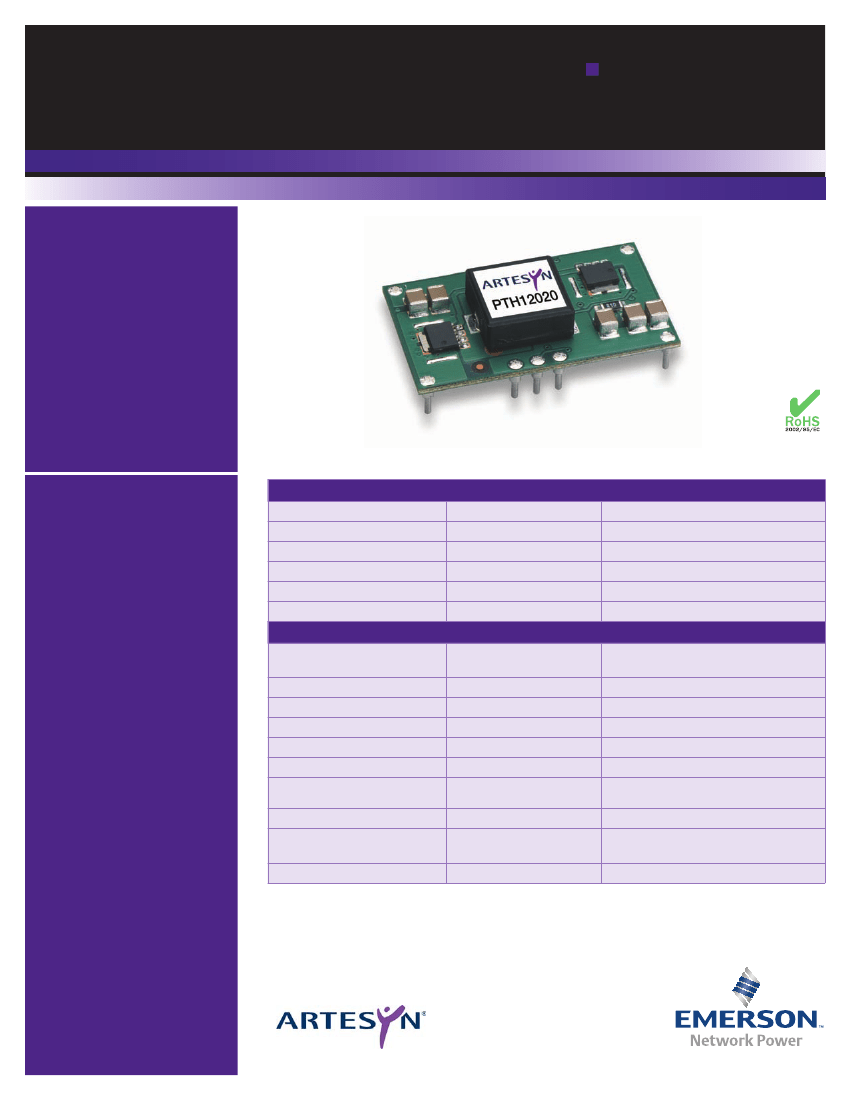

PTH12020
12 Vin
Total Power:
# of Outputs:
99 Watts
Single
Rev. 08.11.11_166
PTH12020 Series
1 of 6
Specifications
Special Features
• 18 A output current
• 12 V input voltage
• Wide-output voltage adjust
• 1.2 Vdc to 5.5 Vdc for
suffix ‘W’ and 0.8 Vdc
to 1.8 Vdc for suffix ‘L’
• Auto-track™ sequencing*
• Margin up/down controls
• Efficiencies up to 95%
• Output ON/OFF inhibit
• Output voltage sense
• Point-of-Load-Alliance (POLA)
compatible
• Available RoHS compliant
• 2 Year Warranty
Input
Input voltage range:
Input current:
Remote ON/OFF:
Start-up time:
Undervoltage lockout:
Track input voltage:
Pin 8 (See Note 6, page 3)
Suffix ‘-W’
Suffix ‘-L’
(See Note 3, page 3)
No load
(See Note 1, page 3)
10.8 - 13.2 Vdc
10 mA typ.
Positive logic
1 V/ms
9.2 - 9.7 V typ.
± 0.3 Vin
1.2 - 5.5 Vdc
0.8 - 1.8 Vdc
± 2.0% Vo
± 5 mV typ.
± 5 mV typ.
± 3.0% Vo
Suffix ‘-W’
Suffix ‘-L’
-40 °C to +85 °C
0 A
32 mV pk-pk
1% Vo
± 0.5% Vo
70 µs recovery time
Overshoot/undershoot 130 mV
± 5.0% Vo
Output
Voltage adjustability:
(See Note 4, page 3)
Setpoint accuracy:
Line regulation:
Load regulation:
Total regulation:
Minimum load:
Ripple and noise:
20 MHz bandwidth
Temperature co-efficient:
Safety
• UL/cUL CAN/CSA-C22.2
No. 60950-1-03/UL 60950-1
• TÜV Product Service
(EN60950)
to IEC60950
Transient response:
(See Note 5, page 3)
Margin adjustment:
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
Cin = 560 µF, Cout = 0 µF
*Auto-track™ is a trade mark of
Texas Instruments
• CB Report and Certificate
Embedded Power for
Business-Critical Continuity
Specifications Continued
EMC Characteristics
Electrostatic discharge:
Conducted immunity:
Radiated immunity:
EN61000-4-2, IEC801-2
EN61000-4-6
EN61000-4-3
Rev. 08.11.11_166
PTH12020 Series
2 of 6
General Specifications
Efficiency:
Insulation voltage:
Switching frequency:
Approvals and standards:
Material flammability:
Dimensions:
Weight:
MTBF:
Telcordia SR-332
(L x W x H)
Suffix ‘-W’
Suffix ‘-L’
See efficiency table on page 3
Non-Isolated
260 kHz to 380 kHz
200 kHz to 300 kHz
EN60950, UL/cUL60950
UL94V-0
37.97 x 22.10 x 9.00 mm
1.495 x 0.870 x 0.354 in
7g (0.25 oz)
5,236,000 hours
Environmental Specifications
Thermal performance:
(See Note 2, page 3)
MSL (‘Z’ suffix only):
Operating ambient, temperature
Non-operating
JEDEC J-STD-020C
-40° C to +85 °C
-40° C to +125 °C
Level 3
Protection
Short circuit:
Thermal:
Auto reset
30 A typ.
Auto recovery
Embedded Power for
Business-Critical Continuity
Rev. 08.11.11_166
PTH12020 Series
3 of 6
Ordering Information
Output Power
(max)
99 W
99 W
Input
Voltage
10.8 - 13.2 Vdc
10.8 - 13.2 Vdc
Output
Voltage
0.8 - 1.8 Vdc
1.2 - 5.5 Vdc
Output Currents
Min
0 A
0 A
Max
18 A
18 A
Efficiency
(max)
89%
95%
Regulation
Line
± 5 mV
± 5 mV
Load
± 5 mV
± 5 mV
Model Numbers
(8, 9)
PTH12020L
PTH12020W
Part Number System with Options
PTH12020WAST
Packaging Options
No Suffix = Trays
T = Tape and Reel
(7)
Product Family
Point of Load Alliance
Compatible
Input Voltage
12 = 12 V
Output Current
02 = 18 A
Mechanical Package
Always 0
Mounting Option
(8)
D = Horizontal Through-Hole (RoHS 6/6)
H = Horizontal Through-Hole (RoHS 5/6)
S = Surface-Mount Solder Ball (RoHS 5/6)
Z = Surface-Mount Solder Ball (RoHS 6/6)
Pin Option
A = Through-Hole Std. Pin Length (0.140”)
A = Surface-Mount Tin/Lead Solder Ball
Output Voltage Code
W = Wide, L = Low Voltage
Output Voltage Adjustment of the PTH12020 Series
The ultra-wide output voltage trim range offers major advantages to users who
select the PTH12020. It is no longer necessary to purchase a variety of modules in
order to cover different output voltages. The output voltage can be trimmed in a
range of 1.2 Vdc to 5.5 Vdc. When the PTH12020 converter leaves the factory the
output has been adjusted to the default voltage of 1.2 V.
Efficiency Table - PTH12020W
(IO = 18 A)
Output Voltage
Vo = 5.0 V
Vo = 3.3 V
Vo = 2.5 V
Vo = 1.8 V
Vo = 1.5 V
Vo = 1.2 V
Efficiency
95%
93%
92%
90%
88%
86%
Notes
1
2
3
4
5
6
7
8
Remote ON/OFF. Positive Logic
ON:
Pin 3 open; or V > Vin - 0.5 V
OFF: Pin 3 GND; or V < 0.8 V (min - 0.2 V).
See Figures 1, 2 and 3 for safe operating curves.
A 560 µF electrolytic input capacitor is required for proper operation. The
capacitor must be rated for a minimum of 800 mA rms of ripple current.
An external output capacitor is not required for basic operation. Adding 330
µF of distributed capacitance at the load will improve the transient response.
1 A/µs load step, 50 to 100% I
omax
, C
out
= 330 µF.
If utilized Vout will track applied voltage by ±0.3 V (up to Vo set point).
Tape and reel packaging only available on the surface-mount versions.
To order Pb-free (RoHS compatible) surface-mount parts replace the
mounting option ‘S’ with ‘Z’, e.g. PTH12020WAZ. To order Pb-free (RoHS
compatible) through-hole parts replace the mounting option ‘H’ with ‘D’, e.g.
PTH12020WAD.
NOTICE: Some models do not support all options. Please contact your local
Emerson Network Power representative or use the on-line model number search
tool at http://www.Emerson.com/EmbeddedPower to find a suitable alternative.
Efficiency Table - PTH12020L
(IO = 18 A)
Output Voltage
Vo = 1.8 V
Vo = 1.5 V
Vo = 1.2 V
Vo = 1.0 V
Vo = 0.8 V
Efficiency
89%
87%
85%
83%
80%
9
Embedded Power for
Business-Critical Continuity
PTH12020W Characteristic Data
90
80
TEMPERATURE (ºC)
TEMPERATURE (ºC)
70
60
50
40
30
20
0
2
4
6
8
10 12 14 16 18
OUTPUT CURRENT (A)

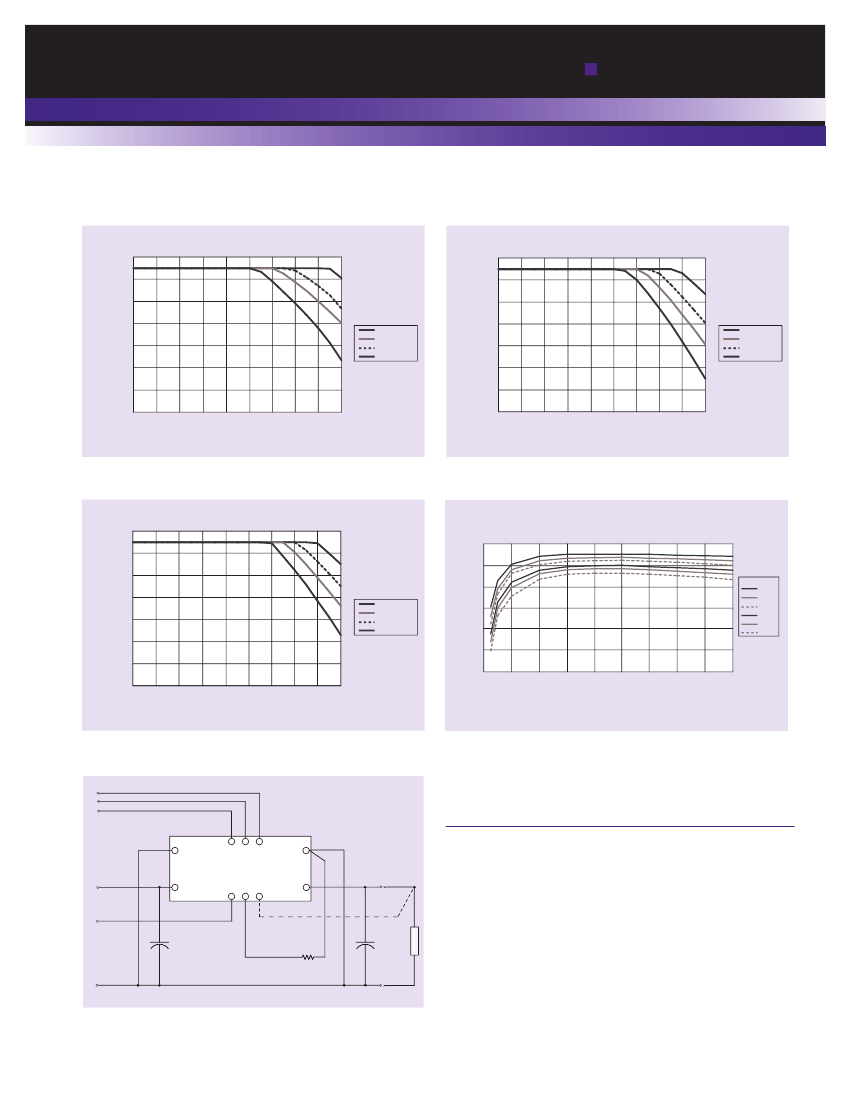

Figure 1 - Safe Operating Area
Vin = 12 V, Output Voltage = 5 V (See Note A)
Nat Conv
100 LFM
200 LFM
400 LFM
Rev. 08.11.11_166
PTH12020 Series
4 of 6
90
80
70
60
50
40
30
20
0
2
4
6
8
10 12 14 16 18
OUTPUT CURRENT (A)
Figure 2 - Safe Operating Area
Vin = 12 V, Output Voltage = 3.3 V (See Note A)
Nat Conv
100 LFM
200 LFM
400 LFM
90
80
TEMPERATURE (ºC)
EFFICIENCY (%)
70
60
50
40
30
20
0
2
4
6
8
10 12 14 16 18
OUTPUT CURRENT (A)
Figure 3 - Safe Operating Area
Vin = 12 V, Output Voltage ≤ 1.8 V (See Note A)
Track
Margin Down
Margin Up
Nat Conv
100 LFM
200 LFM
400 LFM
100
90
80
70
60
50
40
0
2
4
6
8
10
12
14
16
18
Vout
5.0V
3.3V
2.5V
1.8V
1.5V
1.2V
OUTPUT CURRENT (A)
Figure 4 - Efficiency vs Load Current
Vin = 12 V (See Note B)
Notes
10
1
9
8
7
V
in
PTH12020
(Top View)
2
3
4
5
6
V
out
A SOA curves represent the conditions at which internal components are within
the Emerson Network Power derating guidelines.
B Characteristic data has been developed from actual products tested at 25 °C.
This data is considered typical data for the converter.
Inhibit
V
o
Sense
L
O
A
D
+
C
in
560F
(Required)
R
SET
1%, 0.1W
(Required)
+
C
out
330F
(Optional)
GND
GND
Figure 5 - Standard Application
Embedded Power for
Business-Critical Continuity
PTH12020L Characteristic Data
90
TEMPERATURE (ºC)
80
EFFICIENCY (%)
70
60
50
40
30
20
0
3
6
9
12
15
18
Nat Conv
100 LFM
200 LFM
400 LFM
Rev. 08.11.11_166
Rev.mm.dd.yy
short title of product
PTH12020 Series
5 of 6
5 of x
100
90
80
70
60
50
0
3
6
9
12
15
18
Vout
1.8V
1.5V
1.2V
1.0V
0.8V
OUTPUT CURRENT (A)
Figure 6 - Safe Operating Area for PTH12020L
Vin = 12 V, Output Voltage = 1.8 V (See Note A)
Track
Margin Down
Margin Up
OUTPUT CURRENT (A)
Figure 7 - Efficiency vs Load Current for PTH12020L
Vin = 12 V (See Note B)
10
1
9
8
7
V
in
PTH12020
(Top View)
2
3
4
5
6
V
out
Inhibit
V
o
Sense
L
O
A
D
+
C
in
560F
(Required)
R
SET
1%, 0.1W
(Required)
+
C
out
330F
(Optional)
GND
GND
Figure 8 - Standard Application
Notes
A SOA curves represent the conditions at which internal components are within
the Emerson Network Power derating guidelines.
