ALTECH DIN-Rail Power Supplies
ENERGY
SAVER
Choose your product from a wide range of features
and options, suitable for almost all applications.
Slimline
• Small in size - narrow footprint
• Powerful with generous power reserves
• Simple usage
• 10W to 100W
Single Phase Low Profile
• Installs in seconds
• Simple usage
• Robust plastic case
• 15W to 100W
Industrial Metal Case Single Phase
• Single Phase Power Supply (75 to 480W)
• Rugged metal case
Industrial Metal Case Three Phase
• Three Phase Power Supply (240 to 960 W)
• Rugged metal case
High Efficiency Compact Housing
Universal input voltage
• Rugged metal case
• 150% peak load capacity
Wide input voltage
• Rugged metal case
• 120W to 480W
Accessories
• Redundancy Buffer Module
• UPS Module
82-91
72-81
60-71
44-59
34-43
20-33
6-19
Frequently Asked Questions
Selection Guide
Index
Terms and Conditions
92-94
95
94-97
98
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822 • Phone (908)806-9400
3
DIN Rail Power Supplies
ENERGY
SAVER
•

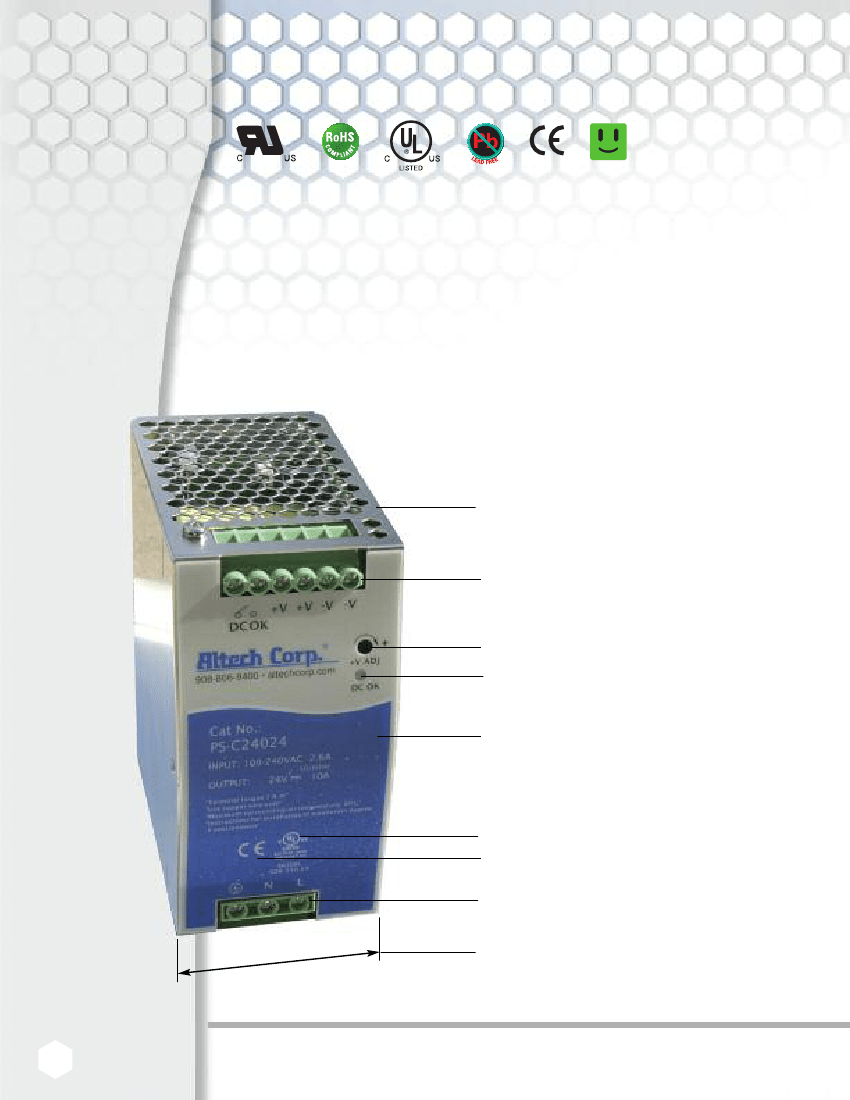

Din Rail mount,
•
Wide Power Range
(10W-960W)
•
Wide Adjustment Range
•
Rugged for Industrial Use
•
High Efficiency
•
Lightweight and
compact Design
•
3 year warranty
•
Short circuit Protection
•
Overvoltage Protection
•
Overload Protection
•
Overtemperature Protection
•
Cooling by free air convection
•
Worldwide approvals
•
UL508 Listed and/or
UL60950-1 recognized
Rugged Metal Case
Multiple output connector
for easy wiring
Adjustable DC output voltage
DC (on) LED indicator
Easy to understand layout panel
UL508 Listed
CE compliance
Universal Input
Narrow for maximized panel space
4
For the latest on Altech Power Supply specifications please visit www.altechcorp.com/power.
Altech Power Supplies ...
...Easy to Use & Reliable!
SPECIFICATIONS
Input
•
Input Voltage
• 90-264V AC for single phase
• 100-550V AC for wide input
• 340-550V AC for three phase
•
Input Frequency: 47-63 Hz
•
Input Current: 0.6 A to 8A
•
Inrush Current: cold start up to 60 A max
•
Power Factor: All units are
EN61000-3-2 compliant
Output
•
Output Voltage: 5V; 12V; 15V; 24V; 48V
•
Output Voltage Adjustment Range: ±10%
•
Initial Set Accuracy: ±2% max
•
Ripple & Noise: See data sheet
•
Over-voltage Protection: 115-135%
•
Overload Protection: 105-150%,
constant current with auto recovery
EMC & Safety
•
Emissions: EN55022/55011, Class B
•
EN61000-3-2, -3
•
Voltage Flicker: EN61000-3-3
•
ESD Immunity: EN61000-4-2, level 3
•
Radiated Immunity: EN61000-4-3, 10 V/m
•
EFT/Burst: EN61000-4-4, level 3
•
Surge: EN61000-4-5, level 3
•
Conducted Immunity:
EN61000-4-6, 10 V rms,
•
Safety Approvals:
EN60950
UL508
UL60950
CE marked
•
Military Standard
MIL-HDBK-217F
General
•
Efficiency: 72-94% (see data sheets)
•
Isolation: 3000V AC Input to Output
1500V AC Input to Ground
500V AC Output to Ground
Environmental
Power supplies can run at 100% capacity
inside the panel, there is no need for
oversizing. See derating curves for more
information.
•
Operating Temperature:
-20 to +60°C (-4° to +140°F)
•
Operating Humidity:
90% RH, non-condensing
•
Storage Temperature:
-20 °C to +85 °C (-4° to +185°F)
•
Vibration: 2G, 10 Hz to 500 kHz,
10 min/cycle for 60 minutes each axis
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490
5
Slim line Single Phase Power Supply
ALTECH’s slim type DIN rail switching power supply, PS-S Series designed for the fast
growing demand of low wattage DIN rail applications. These 10W to 100W models are
enclosed with fully isolated plastic case to prevent users from hazardous shock. The design
complies with the slim trend that the precious space on the industrial rail can be saved
effectively. Featuring up to 84% of efficiency, this series is cooled by only free air
convection up to 70°C that significantly increase the reliability and lifetime of the power
supply. Another important feature of PS-S Series is its low power consumption (<0.75W).
This unique characteristic can significantly expand the application of PS-S series beyond
just heavy industrial field, but can also be implied to datacom or IT applications that
require green power to save the energy and to obey the anticipated government laws in
the near future!
Short circuit protection, overload protection, over voltage protection, and the DC OK signal
for monitoring the status of power supply are standard functions for the PS-S Series.
Typical applications includes factory automation, process control, electro-mechanical
industry, datacom and IT.
• Input voltage range:
• AC inrush current (max): Cold start:
• DC adjustment range:
• Overload protection:
• Over-voltage protection:
• Setup, rise, time (max):
• Withstand voltage:
• Working temperature:
• Safety standards:
• EMC standards:
• Military Standard
85-264V AC; 120-370V DC
20A at 115V AC,; 40A at 230V DC
±10% rated output voltage
105%-160% constant current limiting (auto- recovery)
115%-135% rated output voltage
500ms, 30ms/230V AC
1000ms, 30ms/115V AC, at full load
I/P-O/P: 3KV AC, I/P-FG:1.5KV AC, O/P-FG:0.5KV AC
-20 to +70°C (-4° to +158°F), refer to output
derating curve
UL508, EN60950-1
EN55022 class B
EN61000-4-2,3,4,5,6,8,11
ENV50204; EN55024; EN61000-6-1; EN61204-3;
Light Industry Level criteria A
MIL-HDBK-217F
6
For the latest on Altech Power Supply specifications please visit www.altechcorp.com/power.
PS-S Series
ENERGY
SAVER
Features:
• Universal AC input/Full range
• Protections: Short circuit / Overload / Overvoltage
• Cooling by free air convection
• DIN rail mountable
• NEC class 2 / LPS compliant (12V,24V,48V only)
• LED indicator for power on
• DC OK relay contact
• No load power consumption<0.75W
• 100% full load burn-in test
• 3 year warranty

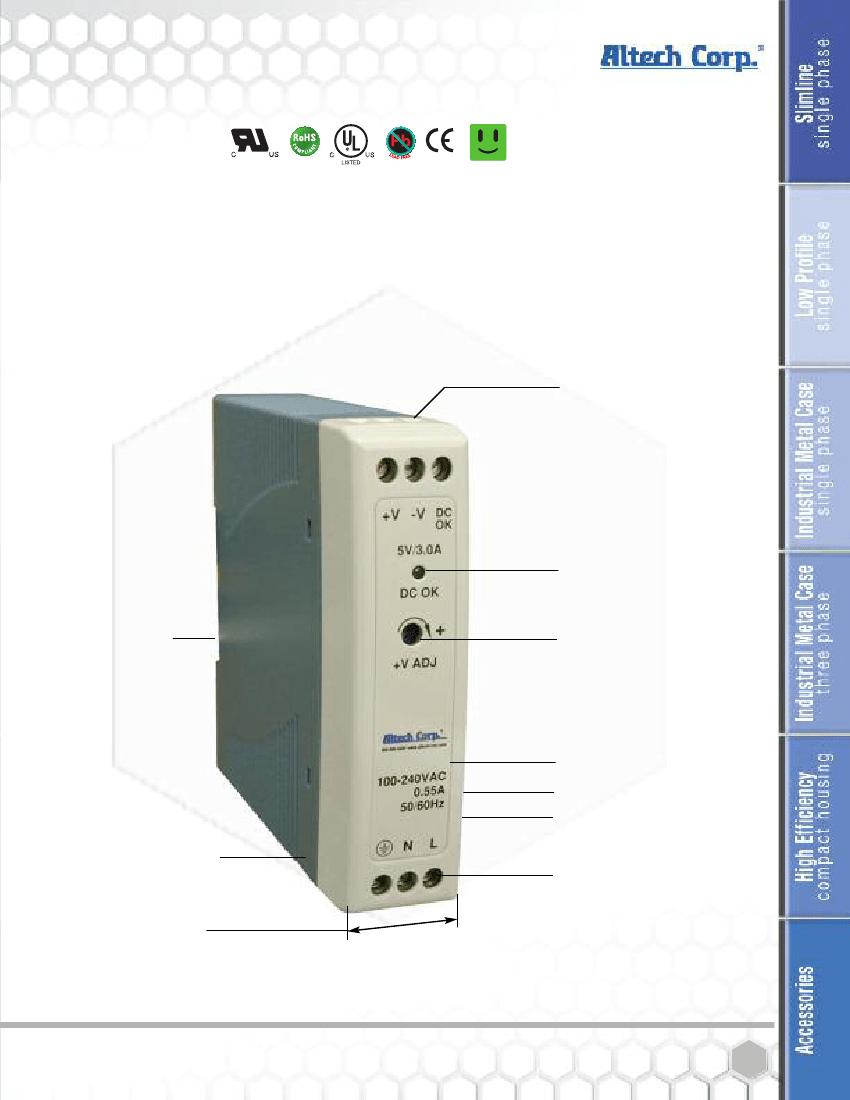

Multiple output connector
for easy wiring on PS-S40,
PS-S60 and PS-S100 models
DC on LED signal
35mm DIN Rail
Mounting
Adjustable DC output voltage
Easy to understand layout panel
CE Compliance
UL508 Listed
Robust plastic housing
Universal Input
Slim Series - narrow
for maximized panel space
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490
