Industrial Control Transformers
The SBE - Encapsulated, Copper Wound Series
The SBE Encapsulated industrial control transformers
are epoxy encapsulated to seal the transformer windings
against moisture, dirt and industrial contaminants. Extra
deep, molded terminal barriers reduce the chance of
electrical failure as the result of arcing or frayed lead wires.
The rugged construction and proven reliability of the SBE
design is uniquely suited for all industrial environments.
Features
• 50 - 1000 VA, 50/60 Hz – suitable for worldwide
applications.
• Interleaved copper windings reduce I
2
R losses
and maximize efficiency.
• 55°C
Rise, 105°C insulation system to minimize heat
• Epoxy encapsulated to protect cores and coils against
moisture, dirt, and other contaminants.
• Meets or exceeds NEMA Standard ST-1 and ANSI C89.1
for load inrush capability.
• Integrally molded, flame retardant (IEC 707/ISO Class
1210) Terminal Blocks provide greater terminal contact
area and improved conductivity.
• Heavy gauge steel mounting plate
• Mounting dimensions are compatible with similar
control transformers.
• Secondary fuse holders (FB2X) included for 13/32 x 1½
cartridges (fuses not included).
• Factory-installed fuse holders are available
(See W, WA & WB options).
• Ten year limited warranty
Certifications and Compliances
Listed: E77014 - Type SBE
- UL 5085-1, UL 5085-2
- CSA C22.2 No. 66.1, No. 66.2
•
RoHS Compliant
Related Products
• Linear Power Supplies
• DIN Rail DC Power Supplies
• Constant Voltage Transformers
• See SBE Accessories
•
Design Style
E77014

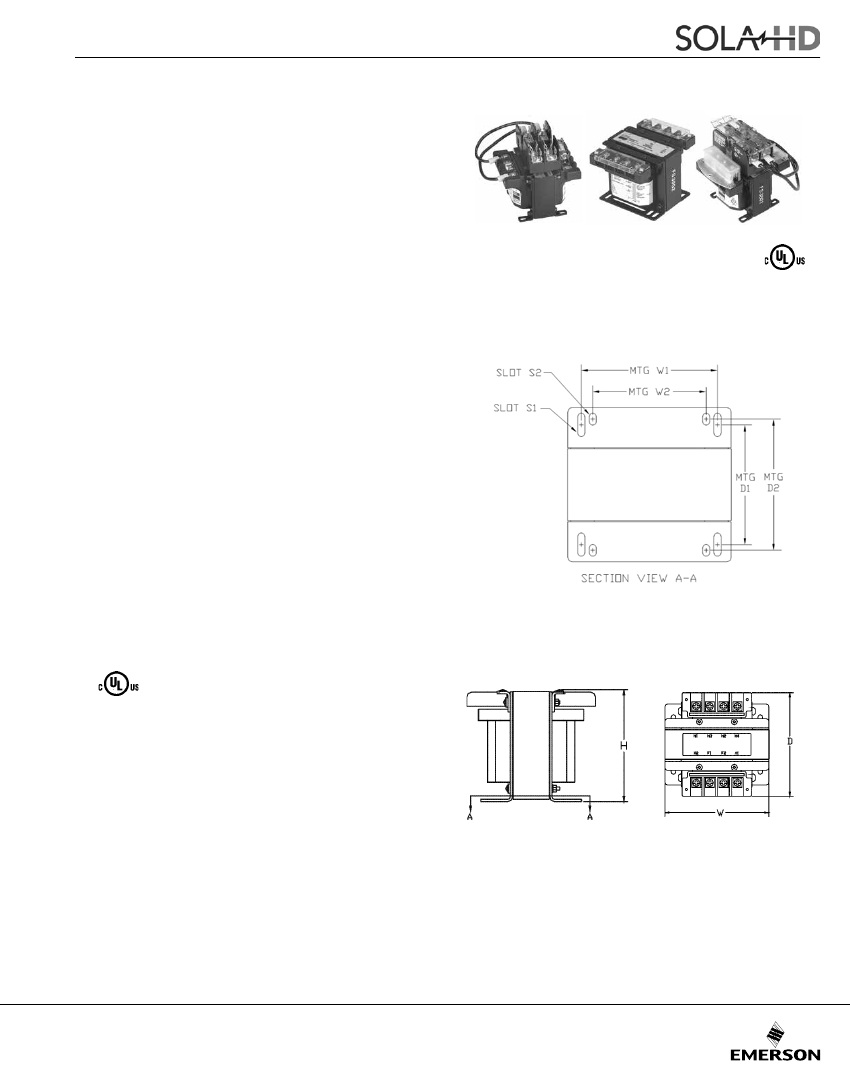

Mounting Profiles
Profile
Top View
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
187
Industrial Control Transformers
SBE Encapsulated Series Selection Tables
Group 1 – 120 x 240 Volt Primary, 24 Volt Secondary, 60 Hz
VA
50
75
100
150
200
250
300
350
500
750
Catalog
Number
E050E
E075E
E100E
E150E
E200E
E250E
E300E
E350E
E500E
E750E
Height
in (mm)
Width
in (mm)
Depth
in (mm)
Mtg Width
Mtg Depth
W1 / W2 - in (mm) D1 / D2 - in (mm)
2.51 / N/A
(63.8 / N/A)
2.81 / 2.50
(71.4 / 63.5)
2.81 / 2.50
(71.4 / 63.5)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
4.38 / 3.75
(111.3 / 95.3)
4.38 / 3.75
(111.3 / 95.3)
4.38 / 3.75
(111.3 / 95.3)
5.32 / 4.37
(135.1 / 111.0)
2.02 / N/A
(51.3 / N/A)
2.10 / N/A
(53.3 / N/A)
2.37 / N/A
(60.2 / N/A)
2.56 / 2.87
(65.0 / 72.9)
2.87 / 3.18
(72.9 / 80.8)
3.29 / 3.61
(83.6 / 91.7)
3.10 / N/A
(78.7 / N/A)
3.54 / N/A
(89.9 / N/A)
4.33 / N/A
(110.0 / N/A)
4.25 / 5.75
(108.0 / 146.1)
Slot Size
S1 / S2 - in (mm)
.20 x .33 /.20 x .33
(5.1 x 8.4 / 5.1 x 8.4)
.20 x .50 /.20 x .50
(5.1 x 12.7 / 5.1 x 12.7)
.20 x .50 /.20 x .50
(5.1 x 12.7 / 5.1 x 12.7)
.20 x .65 /.20 x .33
(5.1 x 16.5 / 5.1 x 8.4)
.20 x .65 /.20 x .33
(5.1 x 16.5 / 5.1 x 8.4)
20 x .65 /.20 x .33
(5.1 x 16.5 / 5.1 x 8.4)
.31 x .71 /.31 x .71
(7.9 x 18.0 / 7.9 x 18.0)
.31 x .71 /.31 x .71
(7.9 x 18.0 / 7.9 x 18.0)
.31 x .85 /.31 x .85
(7.9 x 21.6 / 7.9 x 21.6)
.31 x .85 /.31 x .85
(7.9 x 21.6 / 7.9 x 21.6)
Approx. Ship
Weight lbs (kg)
3.0 (1.36)
4.0 (1.82)
5.0 (2.27)
8.0 (3.64)
10.0 (4.55)
11.0 (5.00)
12.0 (5.45)
15.0 (6.82)
19.0 (8.64)
31.0 (14.09)
2.72 (69.1) 3.01 (76.5) 3.99 (101.3)
2.96 (75.2) 3.39 (86.1) 4.36 (110.7)
2.96 (75.2) 3.39 (86.1) 4.61 (117.1)
3.89 (98.8) 4.50 (114.3) 4.48 (113.8)
3.89 (98.8) 4.50 (114.3) 4.79 (121.7)
3.89 (98.8) 4.50 (114.3) 5.21 (132.3)
4.53 (115.1) 5.25 (133.4) 4.66 (118.4)
4.53 (115.1) 5.25 (133.4) 5.07 (128.8)
4.53 (115.1) 5.25 (133.4) 5.75 (146.1)
5.56 (141.2) 6.38 (162.1) 6.93 (176.0)
Note: Includes FB2X Secondary fuse holder.
Group 1A – Factory Installed Primary Fuse Holder Class "CC" and:
W - Secondary Fuse Holder (Midget Cartridge, 13/32” x 1½” fuse) supplied, no covers
WA - Secondary Fuse Holder (Glass or Ceramic - Type 3AG, ¼” x 1¼” fuse type); WB - Secondary Fuse Holder (Midget Cartridge, 13/32” x 1½” fuse)
Primary Fuse Holder Class "CC"
VA
W Option -
Midget Type
Catalog Number
E050EW
E075EW
E100EW
E150EW
E200EW
E250EW
E300EW
E350EW
E500EW
E750EW
WA Option -
WB Option -
Type 3AG w/
Midget Type w/
Covers
Covers
Catalog Number Catalog Number
E050EWA
E075EWA
E100EWA
E150EWA
E200EWA
E250EWA
E300EWA
E350EWA
NA
NA
E050EWB
E075EWB
E100EWB
E150EWB
E200EWB
E250EWB
E300EWB
E350EWB
E500EWB
E750EWB
Height
in (mm)
Width
in (mm)
Depth
in (mm)
Dimensions
Mtg Width
W1 / W2
in (mm)
2.51 / N/A
(63.8 / N/A)
2.81 / 2.50
(71.4 / 63.5)
2.81 / 2.50
(71.4 / 63.5)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
4.38 / 3.75
(111.3 / 95.3)
4.38 / 3.75
(111.3 / 95.3)
4.38 / 3.75
(111.3 / 95.3)
Mtg Depth
D1 / D2
in (mm)
2.02 / N/A
(51.3 / N/A)
2.10 / N/A
(53.3 / N/A)
2.37 / N/A
(60.2 / N/A)
2.56 / 2.87
(65.0 / 72.9)
2.87 / 3.18
(72.9 / 80.8)
3.29 / 3.61
(83.6 / 91.7)
3.10 / N/A
(78.7 / N/A)
3.54 / N/A
(89.9 / N/A)
Slot Size
S1 / S2
in (mm)
.20 x .33 / .20 x .33
(5.1 x 8.4 / 5.1 x 8.4)
Approx.
Ship Weight
lbs (kg)
3.0 (1.36)
50
75
100
150
200
250
300
350
500
750
4.18 (106.2) 3.01 (76.5) 3.99 (101.3)
4.41 (112.0) 3.39 (86.1) 4.36 (110.7)
4.41 (112.0) 3.39 (86.1) 4.61 (117.1)
5.36 (136.1) 4.50 (114.3) 4.48 (113.8)
5.36 (136.1) 4.50 (114.3) 4.79 (121.7)
5.36 (136.1) 4.50 (114.3) 5.21 (132.3)
5.99 (152.1) 5.25 (133.4) 4.66 (118.4)
5.99 (152.1) 5.25 (133.4) 5.07 (128.8)
5.99 (152.1) 5.25 (133.4) 5.75 (146.1)
7.01 (178.1) 6.38 (162.1) 6.93 (176.0)
.20 x .50 / .20 x .50
4.0 (1.82)
(5.1 x 12.7 / 5.1 x 12.7)
20 x .50 / .20 x .50
5.0 (2.27)
(5.1 x 12.7 / 5.1 x 12.7)
.20 x .65 / .20 x .33
(5.1 x 16.5 / 5.1 x 8.4)
8.0 (3.64)
.20 x .65 / .20 x .33
10.0 (4.55)
(5.1 x 16.5 / 5.1 x 8.4)
.20 x .65 / .20 x .33
11.0 (5.00)
(5.1 x 16.5 / 5.1 x 8.4)
.31 x .71 / .31 x .71
12.0 (5.45)
(7.9 x 18.0 / 7.9 x 18.0)
.31 x .71 / .31 x .71
15.0 (6.82)
(7.9 x 18.0 / 7.9 x 18.0)
4.33 / N/A
.31 x .85 / .31 x .85
19.0 (8.64)
(110.0 / N/A) (7.9 x 21.6 / 7.9 x 21.6)
5.32 / 4.37
4.25 / 5.75
.31 x .85 / .31 x .85
31.0 (14.09)
(135.1 / 111.0) (108.0 / 146.1) (7.9 x 21.6 / 7.9 x 21.6)
Notes: WA and WB suffix include finger safe covers. Fuses not included. FB2 sold separately for W option. Secondary fusing assembly required.
188
Visit our website at
www.emerson.com
or contact Technical Services at
(800) 377-4384
with any questions.
© January 2017
Industrial Control Transformers
SBE Encapsulated Series Selection Tables
Group 2 – 220 x 440 Volt Primary, 110 Volt Secondary, 50/60 Hz, 230 x 460 Volt Primary, 115 Volt Secondary, 50/60 Hz
240 x 480 Volt Primary, 120 Volt Secondary, 60 Hz
VA
50
75
100
150
200
250
300
350
500
750
Catalog
Number
E050
E075
E100
E150
E200
E250
E300
E350
E500
E750
Mtg Width
Mtg Depth
W1 / W2 - in (mm) D1 / D2 - in (mm)
2.51 / N/A
2.02 / N/A
2.72 (69.1) 3.01 (76.5) 3.99 (101.3)
(63.8 / N/A)
(51.3 / N/A)
Height
in (mm)
Width
in (mm)
Depth
in (mm)
2.96 (75.2) 3.39 (86.1) 4.36 (110.7)
2.96 (75.2) 3.39 (86.1) 4.61 (117.1)
3.89 (98.8) 4.50 (114.3) 4.48 (113.8)
3.89 (98.8) 4.50 (114.3) 4.79 (121.7)
3.89 (98.8) 4.50 (114.3) 5.21 (132.3)
4.53 (115.1) 5.25 (133.4) 4.66 (118.4)
4.53 (115.1) 5.25 (133.4) 5.07 (128.8)
4.53 (115.1) 5.25 (133.4) 5.75 (146.1)
5.56 (141.2) 6.38 (162.1) 6.93 (176.0)
5.56 (141.2) 6.38 (162.1) 7.36 (186.9)
2.81 / 2.50
(71.4 / 63.5)
2.81 / 2.50
(71.4 / 63.5)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
4.38 / 3.75
(111.3 / 95.3)
4.38 / 3.75
(111.3 / 95.3)
4.38 / 3.75
(111.3 / 95.3)
5.32 / 4.37
(135.1 / 111.0)
5.32 / 4.37
(135.1 / 111.0)
2.10 / N/A
(53.3 / N/A)
2.37 / N/A
(60.2 / N/A)
2.56 / 2.87
(65.0 / 72.9)
2.87 / 3.18
(72.9 / 80.8)
3.29 / 3.61
(83.6 / 91.7)
3.10 / N/A
(78.7 / N/A)
3.54 / N/A
(89.9 / N/A)
4.33 / N/A
(110.0 / N/A)
4.25 / 5.75
(108.0 / 146.1)
4.68 / 6.18
(118.9 / 157.0)
Slot Size
S1 / S2 - in (mm)
.20 x .33 /.20 x .33
(5.1 x 8.4 / 5.1 x 8.4)
.20 x .50 /.20 x .50
(5.1 x 12.7 / 5.1 x 12.7)
.20 x .50 /.20 x .50
(5.1 x 12.7 / 5.1 x 12.7)
.20 x .65 /.20 x .33
(5.1 x 16.5 / 5.1 x 8.4)
.20 x .65 /.20 x .33
(5.1 x 16.5 / 5.1 x 8.4)
.20 x .65 /.20 x .33
(5.1 x 16.5 / 5.1 x 8.4)
.31 x .71 /.31 x .71
(7.9 x 18.0 / 7.9 x 18.0)
.31 x .71 /.31 x .71
(7.9 x 18.0 / 7.9 x 18.0)
.31 x .85 /.31 x .85
(7.9 x 21.6 / 7.9 x 21.6)
31 x .85 /.31 x .85
(7.9 x 21.6 / 7.9 x 21.6)
31 x .85 /.31 x .85
(7.9 x 21.6 / 7.9 x 21.6)
Approx. Ship
Weight lbs (kg)
3.0 (1.36)
4.0 (1.82)
5.0 (2.27)
8.0 (3.64)
10.0 (4.55)
11.0 (5.00)
12.0 (5.45)
15.0 (6.82)
19.0 (8.64)
31.0 (14.09)
36.0 (16.36)
1000
E1000
Note: Includes FB2X Secondary fuse holder.
Group 2A – Factory Installed Primary Fuse Holder Class "CC" and:
W - Secondary Fuse Holder (Midget Cartridge, 13/32” x 1½” fuse)
supplied, no covers; WA - Secondary Fuse Holder (Glass or Ceramic - Type 3AG, ¼” x 1¼” fuse type); WB - Secondary Fuse Holder
(Midget Cartridge, 13/32” x 1½” fuse)
Primary Fuse Holder Class "CC"
VA
W Option - WA Option - Type WB Option - Midget
Midget Type
3AG w/ Covers
Type w/ Covers
Catalog Number Catalog Number Catalog Number
E050W
E075W
E100W
E150W
E200W
E250W
E300W
E350W
E500W
E750W
E1000W
E050WA
E075WA
E100WA
E150WA
E200WA
E250WA
E300WA
E350WA
E500WA
E750WA
E1000WA
E050WB
E075WB
E100WB
E150WB
E200WB
E250WB
E300WB
E350WB
E500WB
E750WB
E1000WB
Height
in (mm)
Width
(in (mm)
Depth
in (mm)
Dimensions
Mtg Width
W1 / W2
in (mm)
2.51 / N/A
(63.8 / N/A)
2.81 / 2.50
(71.4 / 63.5)
2.81 / 2.50
(71.4 / 63.5)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
4.38 / 3.75
(111.3 / 95.3)
4.38 / 3.75
(111.3 / 95.3)
4.38 / 3.75
(111.3 / 95.3)
Mtg Depth
D1 / D2
in (mm)
2.02 / N/A
(51.3 / N/A)
2.10 / N/A
(53.3 / N/A)
2.37 / N/A
(60.2 / N/A)
2.56 / 2.87
(65.0 / 72.9)
2.87 / 3.18
(72.9 / 80.8)
3.29 / 3.61
(83.6 / 91.7)
3.10 / N/A
(78.7 / N/A)
3.54 / N/A
(89.9 / N/A)
Slot Size
S1 / S2
in (mm)
.20 x .33 / .20 x .33
(5.1 x 8.4 / 5.1 x 8.4)
Approx.
Ship Weight
lbs (kg)
3.0 (1.36)
50
75
100
150
200
250
300
350
500
750
1000
4.18 (106.2) 3.01 (76.5) 3.99 (101.3)
4.41 (112.0) 3.39 (86.1) 4.36 (110.7)
4.41 (112.0) 3.39 (86.1) 4.61 (117.1)
5.36 (136.1) 4.50 (114.3) 4.48 (113.8)
5.36 (136.1) 4.50 (114.3) 4.79 (121.7)
5.36 (136.1) 4.50 (114.3) 5.21 (132.3)
5.99 (152.1) 5.25 (133.4) 4.66 (118.4)
5.99 (152.1) 5.25 (133.4) 5.07 (128.8)
5.99 (152.1) 5.25 (133.4) 5.75 (146.1)
7.01 (178.1) 6.38 (162.1) 6.93 (176.0)
7.01 (178.1) 6.38 (162.1) 7.36 (186.9)
.20 x .50 / .20 x .50
4.0 (1.82)
(5.1 x 12.7 / 5.1 x 12.7)
.20 x .50 / .20 x .50
5.0 (2.27)
(5.1 x 12.7 / 5.1 x 12.7)
.20 x .65 / .20 x .33
8.0 (3.64)
(5.1 x 16.5 / 5.1 x 8.4)
.20 x .65 / .20 x .33
10.0 (4.55)
(5.1 x 16.5 / 5.1 x 8.4)
.20 x .65 / .20 x .33
11.0 (5.00)
(5.1 x 16.5 / 5.1 x 8.4)
.31 x .71 / .31 x .71
12.0 (5.45)
(7.9 x 18.0 / 7.9 x 18.0)
.31 x .71 / .31 x .71
15.0 (6.82)
(7.9 x 18.0 / 7.9 x 18.0)
4.33 / N/A
.31 x .85 / .31 x .85
19.0 (8.64)
(110.0 / N/A) (7.9 x 21.6 / 7.9 x 21.6)
5.32 / 4.37
4.25 / 5.75
.31 x .85 / .31 x .85
31.0 (14.09)
(135.1 / 111.0) (108.0 / 146.1) (7.9 x 21.6 / 7.9 x 21.6)
5.32 / 4.37
4.68 / 6.18
.31 x .85 / .31 x .85
36.0 (16.36)
(135.1 / 111.0) (118.9 / 157.0) (7.9 x 21.6 / 7.9 x 21.6)
Notes: WA and WB suffix include finger safe covers. Fuses not included. W option for secondary fusing requires assembly (FB2 sold separately).
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
189
Industrial Control Transformers
SBE Series Selection Tables -
continued

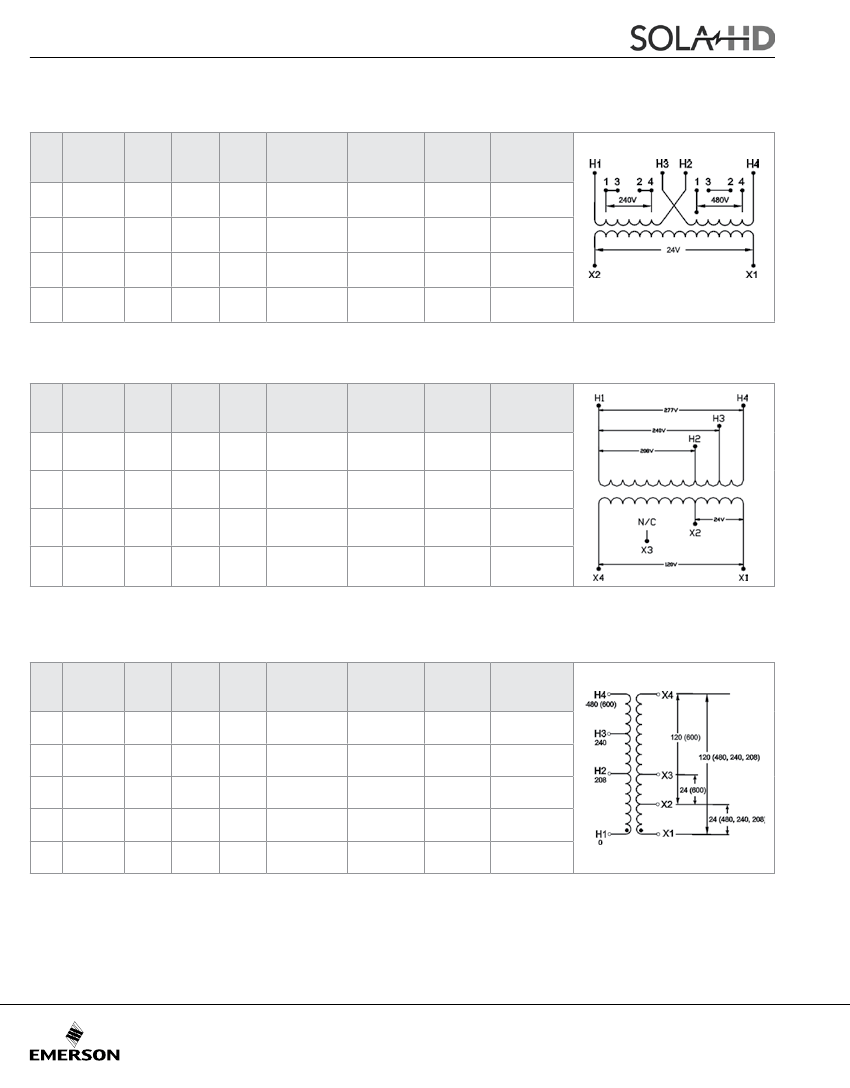

Group 3 – 240 x 480 Volt Primary, 24 Volt Secondary, 60 Hz
VA
50
100
250
500
Catalog
Number
E050D
E100D
E250D
E500D
Height
in (mm)
2.72
(69.1)
2.96
(75.2)
3.89
(98.8)
4.53
(115.1)
Width
in (mm)
3.01
(76.5)
3.39
(86.1)
4.50
(114.3)
5.25
(133.4)
Depth
in (mm)
3.99
(101.3)
4.61
(117.1)
5.21
(132.3)
5.75
(146.1)
Mtg Width
W1 / W2
in (mm)
2.51 / N/A
(63.8 / N/A)
2.81 / 2.50
(71.4 / 63.5)
3.74 / 3.12
(95.0 / 79.3)
4.38 / 3.75
(111.3 / 95.3)
Mtg Depth
D1 / D2
in (mm)
2.02 / N/A
(51.3 / N/A)
2.37 / N/A
(60.2 / N/A)
3.29 / 3.61
(83.6 / 91.7)
4.33 / N/A
(110.0 / N/A)
Slot Size
in (mm)
.20 x .33
(5.1 x 8.4)
.20 x .50
(5.1 x 12.7)
.20 x .65
(5.1 x 16.5)
.31 x .71
(7.9 x 18.0)
Approx.
Ship Weight
lbs (kg)
3.0 (1.36)
5.0 (2.27)
11.0 (5.00)
19.0 (8.64)
Note: Includes FB2X secondary fuse holder.
Group 4 – 208/240/277 Volt Primary, 120/24 Volt Secondary, 60 Hz
VA
Catalog
Number
E050JL
E100JL
E250JL
E500JL
Height
in (mm)
2.72
(69.1)
2.96
(75.2)
3.89
(98.8)
4.53
(115.1)
Width
in (mm)
3.01
(76.5)
3.39
(86.1)
4.50
(114.3)
5.25
(133.4)
Depth
in (mm)
3.99
(101.3)
4.61
(117.1)
5.21
(132.3)
5.75
(146.1)
Mtg Width
W1 / W2
in (mm)
2.51 / N/A
(63.8 / N/A)
2.81 / 2.50
(71.4 / 63.5)
3.74 / 3.12
(95.0 / 79.3)
4.38 / 3.75
(111.3 / 95.3)
Mtg Depth
D1 / D2
in (mm)
2.02 / N/A
(51.3 / N/A)
2.37 / N/A
(60.2 / N/A)
3.29 / 3.61
(83.6 / 91.7)
4.33 / N/A
(110.0 / N/A)
Slot Size
in (mm)
.20 x .33
(5.1 x 8.4)
.20 x .50
(5.1 x 12.7)
.20 x .65
(5.1 x 16.5)
.31 x .71
(7.9 x 18.0)
Approx.
Ship Weight
lbs (kg)
3.0 (1.36)
5.0 (2.27)
11.0 (5.00)
19.0 (8.64)
50
100
250
500
Note: Will only accept one FB2 secondary fuse holder. Will not accept FB2X secondary fuse holder.
Group 5 – 208/240/480/600 Volt Primary, 120/24 Volt Secondary, 60 Hz
200/230/460/575 Volt Primary, 115/23 Volt Secondary, 60 Hz
VA
50
100
150
250
500
Catalog
Number
E050JN
E100JN
E150JN
E250JN
E500JN
Height
in (mm)
2.96
(75.2)
3.89
(98.8)
3.89
(98.8)
4.53
(115.1)
5.56
(141.2)
Width
in (mm)
3.39
(86.1)
4.50
(114.3)
4.50
(114.3)
5.25
(133.4)
6.38
(162.1)
Depth
in (mm)
4.36
(110.7)
4.48
(113.8)
5.21
(132.3)
5.07
(128.8)
Mtg Width
W1 / W2
in (mm)
2.81 / 2.50
(71.4 / 63.5)
3.74 / 3.12
(95.0 / 79.3)
3.74 / 3.12
(95.0 / 79.3)
4.38 / 3.75
(111.3 / 95.3)
Mtg Depth
D1 / D2
in (mm)
2.10 / N/A
(53.3 / N/A)
2.56 / 2.87
(65.0 / 72.9)
3.29 / 3.61
(83.6 / 91.7)
3.54 / N/A
(89.9 / N/A)
Slot Size
in (mm)
.20 x .50
(5.1 x 12.7)
.20 x .65
(5.1 x 16.5)
.20 x .65
(5.1 x 16.5)
.31 x .71
(7.9 x 18.0)
Approx.
Ship Weight
lbs (kg)
4.0 (1.81)
8.0 (3.67)
11.0 (5.00)
15.0 (6.82)
30.0 (13.64)
6.93
5.32 / 4.37
4.25 / 5.75
.31 x .85
(176.0) (135.1 / 111.0) (108.0 / 146.1) (7.9 x 21.6)
Note: Will only accept one FB2 secondary fuse holder. Will not accept FB2X secondary fuse holder.
190
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
Industrial Control Transformers

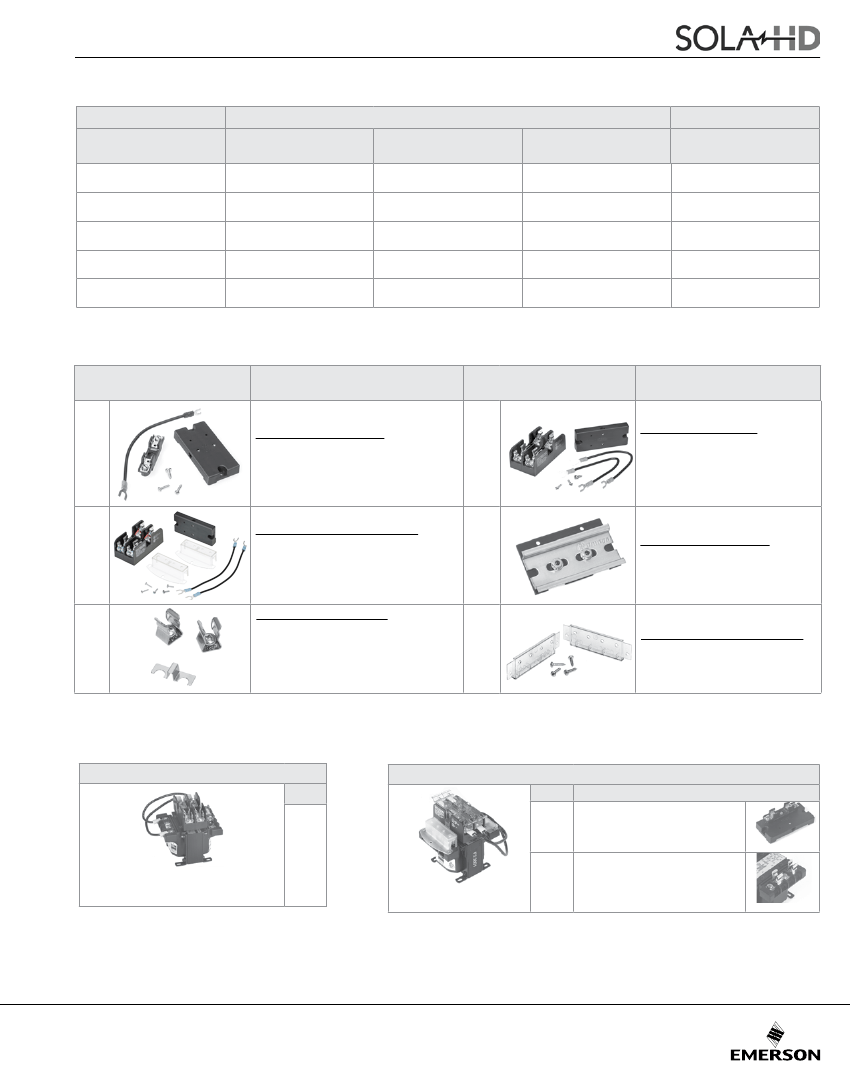

SBE Accessories
FIELD INSTALLED OPTIONS
Accessory Catalog Number
FB2
FB2 + FBPC1
FBPC1
FB2X *
FBP
Primary Fuse
(Class "CC" Rejection Type)
—
Yes
Yes
Yes
Yes
ACCESSORIES INCLUDED
Secondary Fuse
Type 3AG
Type 3AG
Midget Type
Midget Type
Midget Type
IP20 Covers
—
Yes
Yes
—
—
FACTORY INSTALLED OPTIONS
Suffix Codes
N/A
WA
(i.e. E500WA)
WB
(i.e. E500WB)
W
(i.e. E500W)
N/A
* Supplied with applicable SBE models. Refer to the note at the bottom of the product selection tables.
CATALOG NUMBER
FIELD INSTALLED OPTIONS
DESCRIPTIONS
CATALOG NUMBER
FIELD INSTALLED OPTIONS
DESCRIPTIONS
Fuse Block - Primary Side
Field installed primary fuse holder kit
designed to accommodate two class
“CC” rejection type fuse. Finger safe
covers not available.
Fuse Block - Secondary Side
FB2
Field installed secondary fuse holder kit
designed to accommodate one glass or
ceramic, ¼” x 1¼” fuse.
FBP
Fuse Block and Finger Safe Cover Kit
FBPC1
Field installed primary fuse holder designed
to accommodate two class “CC” rejection
SBEDIN
type fuses with primary and secondary.
Finger safe covers kit.
Fuse Block - Secondary Side
FB2X
Field installed secondary fuse holder
designed to accommodate one 13/32"
x 1-1/2" (Midget type) cartridge fuse
(included with applicable transformer
purchase only).
DIN Circuit Breaker Mounting
Field installed IEC fuse holder adaptor
kit
Terminal Covers (Two Covers Per Kit)
IP20
Field installed primary and secondary
IEC Touch Proof Cover Kit.
FACTORY INSTALLED OPTIONS
Option
FACTORY INSTALLED OPTIONS
Option
Secondary Fusing
WA
W
SBE Control Transformer
without Covers - W Option
(FB2X not installed)
Glass/Ceramic - Type 3AG
(FB2 kit not installed)
SBE Control Transformer with
Covers - WA & WB Option
WB
Midget Type
(FB2X installed)
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
191
京公网安备 11010802033920号
EEWORLD
