ESTW015A0F641Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> ESTW015A0F641Z

ESTW015A0F641Z: DescriptionIsolated DC/DC Converters 36-75Vin 3.3Vout 15A Neg TH Pin 3.68mm; Categorysemiconductor Power management; File Size1MB，17 Pages; ManufacturerGE; Websitehttp://www.ge.com

Download Datasheet Parametric Compare View All

ESTW015A0F641Z Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ESTW015A0F641Z	-	-	View	Buy Now

ESTW015A0F641Z Overview

Isolated DC/DC Converters 36-75Vin 3.3Vout 15A Neg TH Pin 3.68mm

ESTW015A0F641Z Parametric

Parameter Name	Attribute value
Product Category	Isolated DC/DC Converters
Manufacturer	GE
RoHS	Details
Number of Outputs	1 Output
Output Power	75 W
Input Voltage	36 VDC to 75 VDC
Output Voltage-Channel 1	3.3 V
Output Current-Channel 1	15 A
Isolation Voltage	2.25 kV
Mounting Style	Through Hole
Package / Case Size	1/8 Brick
Length	2.28 in
Width	0.9 in
Height	0.33 in
Operating Temperature Range	- 40 C to + 85 C
Product	Isolated
Factory Pack Quantity	36
Unit Weight	0.670205 oz

Preview

Download Datasheet

View All

Data Sheet

May 6, 2011

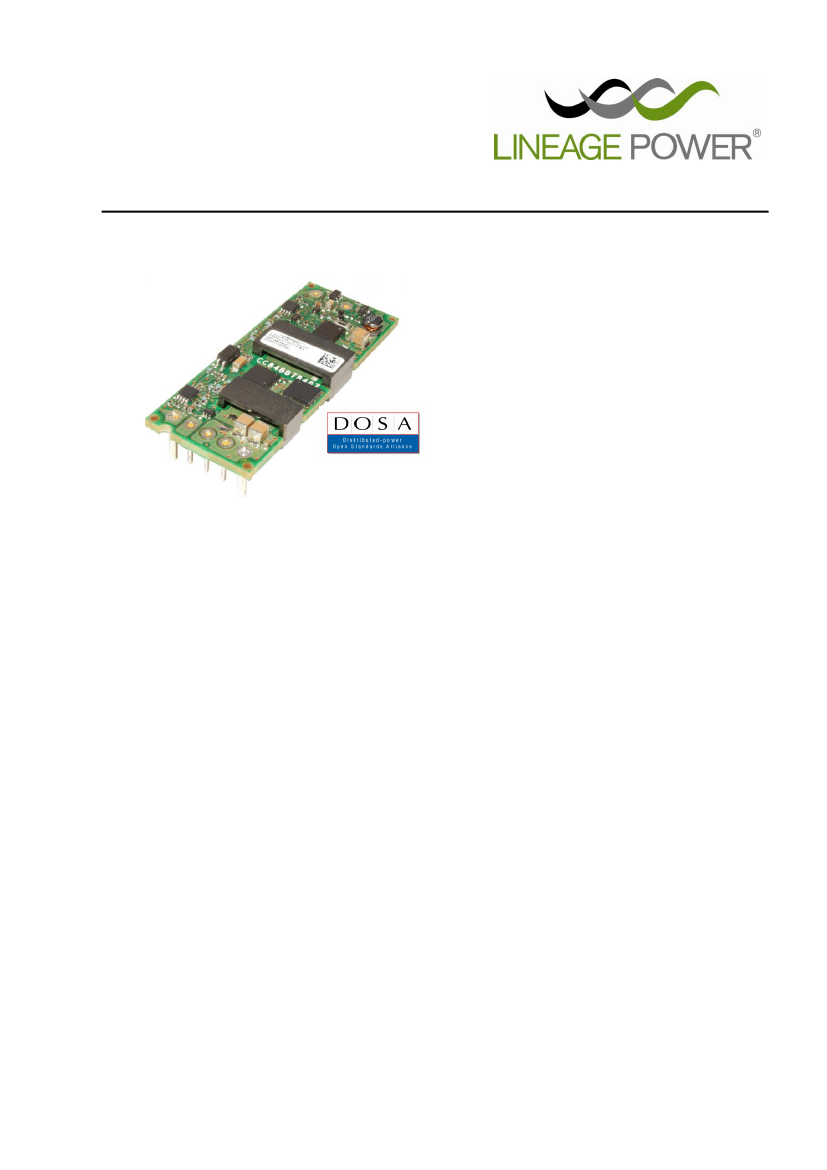

ESTW015A0F Series (Eighth-Brick) DC-DC Converter Power Modules

36–75Vdc Input; 3.3Vdc Output; 15A Output Current

STINGRAY™ SERIES

Features



Compliant to RoHS EU Directive 2002/95/EC (-Z

versions)

Compliant to ROHS EU Directive 2002/95/EC with

lead solder exemption (non-Z versions)

Delivers up to 15A Output current

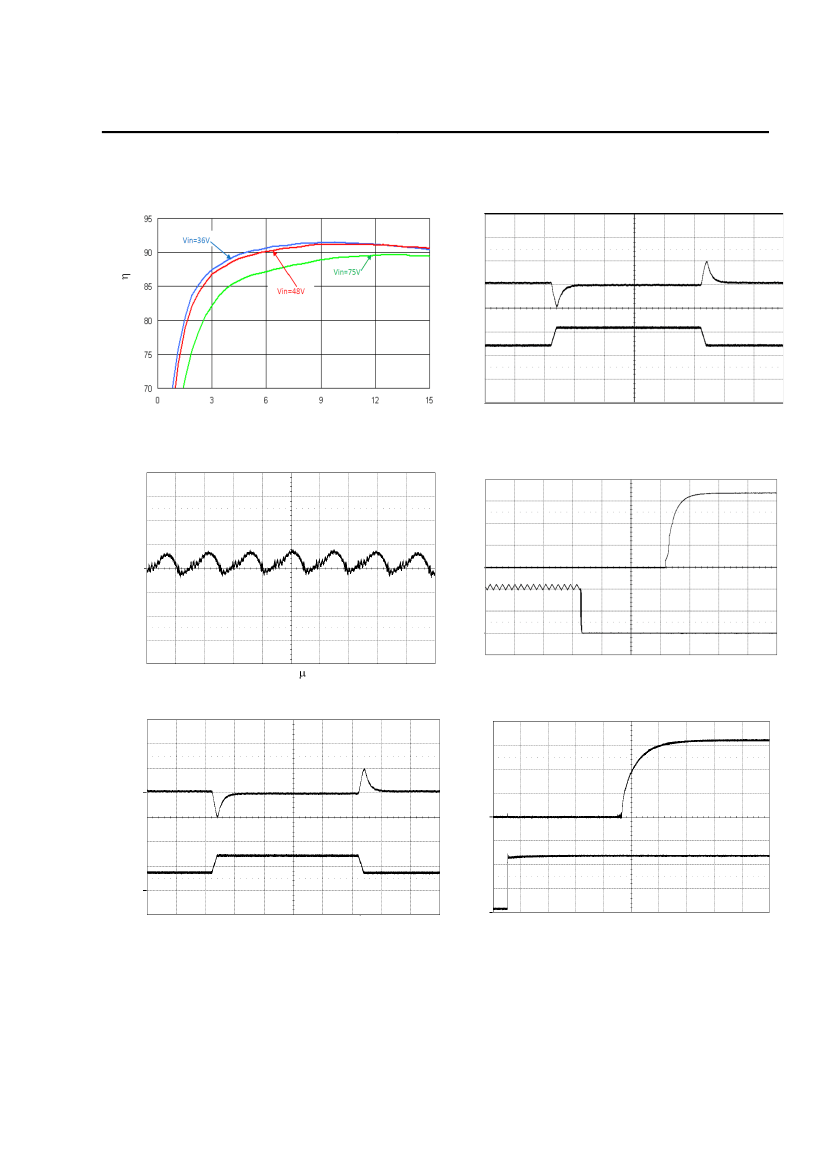

High efficiency 91% at full load (Vin=48V

)

Full load at T

=85 C for airflow of 1 m/s(200 LFM)

or greater

Industry standard, DOSA compliant footprint

57.9mm x 22.8mm x 8.5mm

(2.28 in x 0.9 in x 0.335 in)

Wide input voltage range: 36-75 V

Tightly regulated output

Constant switching frequency

Positive remote On/Off logic

Input under voltage protection

Output overcurrent and overvoltage protection

Over-temperature protection

Remote sense

Output Voltage adjust: 80% to 110% of V

o,nom

Wide operating temperature range (-40°C to 85°C)

UL*

60950-1, 2 Ed. Recognized,

CSA

C22.2 No.

‡

60950-1-07 Certified, and

VDE

(EN60950-1, 2

Ed.) Licensed

CE mark meets 2006/95/EC directive

†

RoHS Compliant

Applications



Distributed power architectures

Wireless networks

Access and optical network Equipment

Enterprise Networks including Power over Ethernet

(PoE)

Latest generation IC’s (DSP, FPGA, ASIC) and

Microprocessor powered applications



Options



Negative Remote On/Off logic (-1 option,

preferred/standard)

Surface Mount version (-S option)

Auto-restart (-4 option, preferred/standard)

Trimmed leads (-6 or -8 options)



Meets the voltage and current requirements for

ETSI 300-132-2 and complies with and licensed for

Basic insulation rating per EN60950-1

2250 V

Isolation tested in compliance with IEEE

802.3 PoE standards

ISO 9001 and ISO 14001 certified manufacturing

facilities



Description

The Lineage Power

Stingray™ Series, ESTW015A0F, Eighth-brick power modules are cost optimized isolated dc-dc

converters that can deliver up to 15A of output current and provide a precisely regulated output voltage over a wide range of

input voltages (Vin = 36 -75V

). The module achieves full load efficiency of 91% at 3.3V

output voltage. The open frame

modules construction, available in both surface-mount and through-hole packaging, enable designers to develop cost- and

space-efficient solutions. Standard features include remote On/Off, remote sense, output voltage adjustment, overvoltage,

overcurrent and overtemperature protection.

is a registered trademark of Underwriters Laboratories, Inc.

†

CSA

is a registered trademark of Canadian Standards Association.

‡

VDE

is a trademark of Verband Deutscher Elektrotechniker e.V.

This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be followed.

¤ IEEE and 802 are registered trademarks of the

Institute of Electrical and Electronics Engineers, Incorporated.

** ISO is a registered trademark of the International Organization of Standards

Document No: DS09-004 ver.1.03

PDF name: ESTW015A0F.pdf
