PSC15A-050: CategoryPower/power management; File Size114KB，2 Pages; ManufacturerPHIHONG; Websitehttp://phihong.com/

Download Datasheet Parametric Compare View All

PSC15A-050 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSC15A-050	-	-	View	Buy Now

PSC15A-050 Parametric

Parameter Name	Attribute value
Product Category	Wall Mount AC Adapters
Manufacturer	PHIHONG
RoHS	Details
Region	North America
Product	Fixed Plug
Input Voltage	90 VAC to 132 VAC
Number of Outputs	1 Output
Output Power	15 W
Output Voltage-Channel 1	5 V
Output Current-Channel 1	3 A
Commercial/Medical	Commercial
DC Output Connector	2.1 mm Barrel Plug
DC Output Cord Length	1.5 m
Efficiency	Level VI
AC Plug included/required	Included
Load Regulation	Regulated
Mounting Style	Wall Mount
Factory Pack Quantity	1
Unit Weight	5.120016 oz

Preview

Download Datasheet

View All

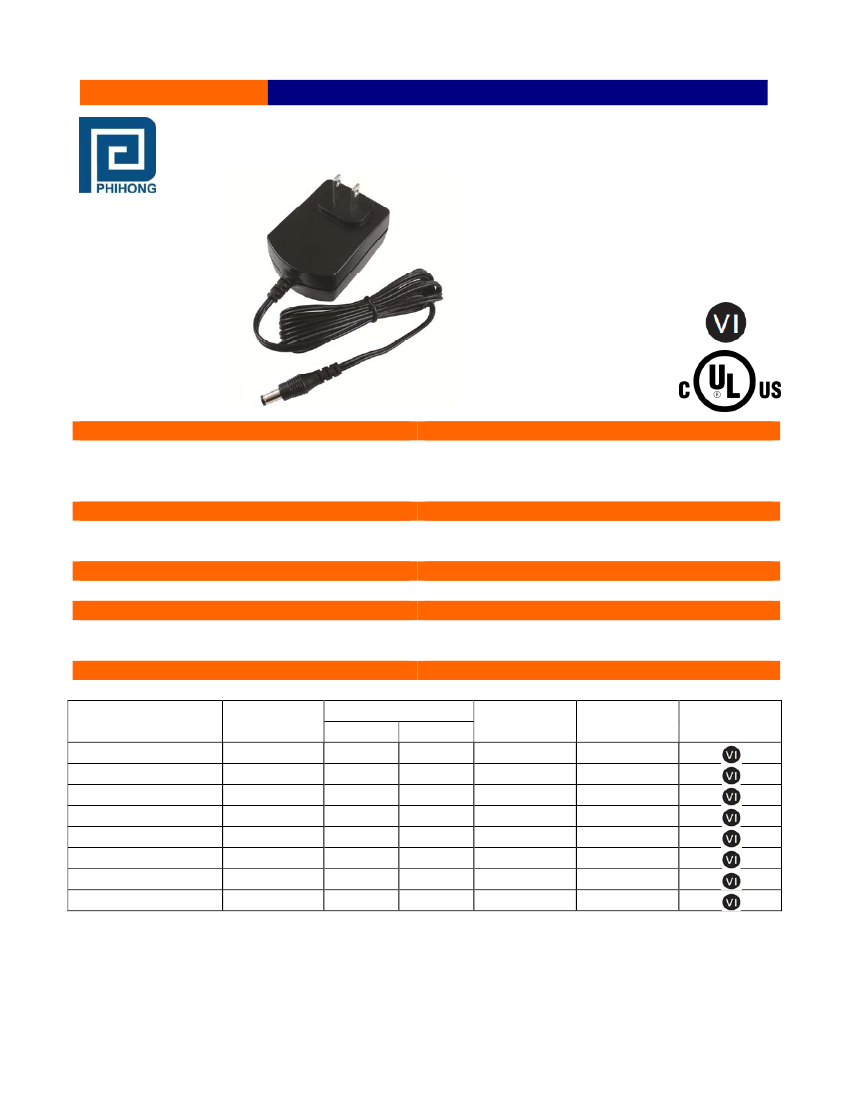

WWW.PHIHONG.COM

15 Watt Fixed Wall Plug Series

Adapter Meets Level VI Requirements

Features



Limited Power Source (LPS)



Class B EMI



Level VI Compliant

Applications



Wireless Communications



Peripherals

Safety Approvals



cUL/UL

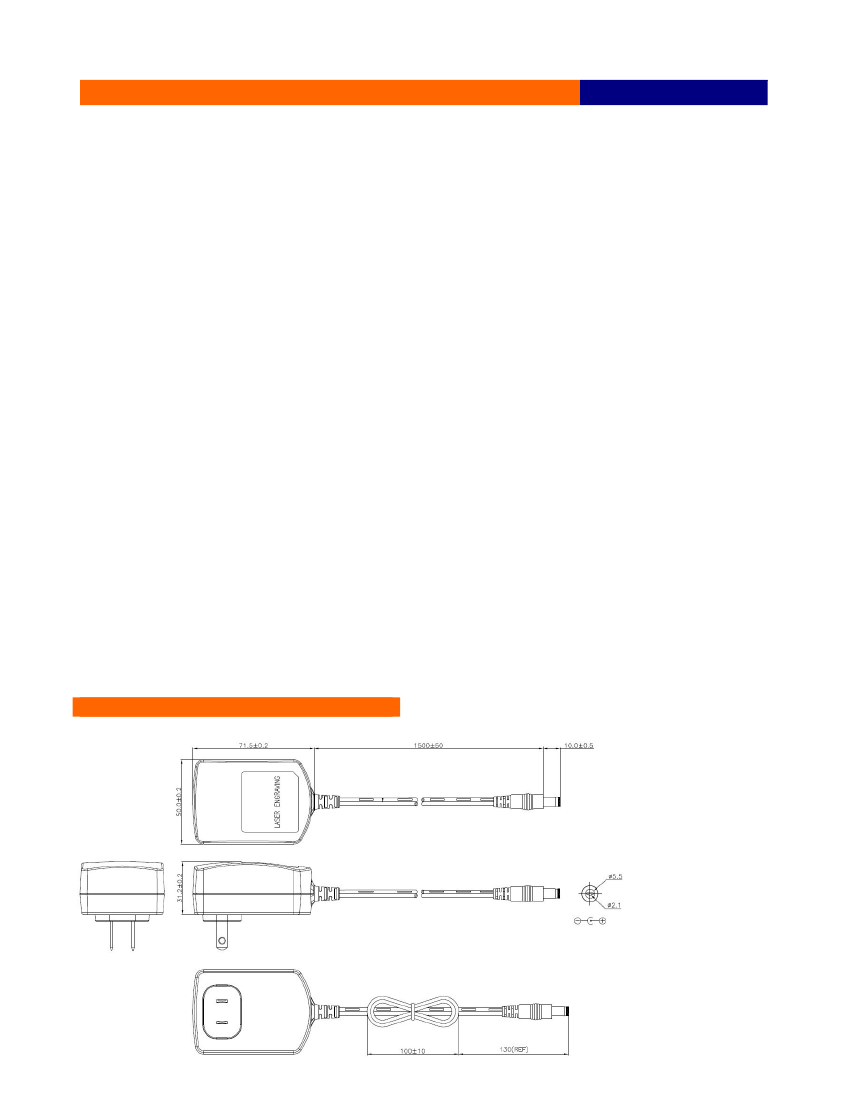

Mechanical Characteristics



Length: 71.7mm (2.82in)



Width: 50mm (1.97in)

Output Specifications

Model

PSC15A-050

PSC15A-060

PSC15A-075

PSC15A-090

PSA15A-120P6

PSA15A-150P6

PSA15A-240P6

PSA15A-480P6

DC Output

Voltage

5.9V

7.5V

12V

15V

24V

48V

Load

Min.



Class II Double Insulated

High Efficiency

Low Cost

Portable Equipment

PDA



Height: 33.2mm (1.31in)

Weight: 145g (5.12oz)

Ripple

(1)

P-P (max.)

100mV

120mV

100mV

200mV

400mV

Max.

3.0A

2.5A

2.0A

1.67A

1.25A

1.0A

0.65A

0.31A

Regulation

Line & Load

±5%

Efficiency

Level

(1)

Measured after 30 minutes with by-pass capacitors o.1uF/10uF at output connector terminal and oscilloscope set at 20Mhz.

Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the

most up-to-date specifications and contact information.

Revision 8/21/2015
