PSA15R-480 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> PSA15R-480

PSA15R-480: CategoryPower/power management; File Size296KB，2 Pages; ManufacturerPHIHONG; Websitehttp://phihong.com/

Download Datasheet Parametric Compare View All

PSA15R-480 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSA15R-480	-	-	View	Buy Now

PSA15R-480 Parametric

Parameter Name	Attribute value
Product Category	Wall Mount AC Adapters
Manufacturer	PHIHONG
RoHS	No
Region	Universal
Product	Interchangeable Plug
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	15 W
Output Voltage-Channel 1	48 V
Output Current-Channel 1	310 mA
Commercial/Medical	Commercial
DC Output Connector	2.1 mm Barrel Plug
DC Output Cord Length	1.8 m
Efficiency	Level IV
AC Plug included/required	Required
Height	31 mm
Length	71.6 mm
Load Regulation	Regulated
Mounting Style	Wall Mount
Factory Pack Quantity	90
Width	50 mm
Unit Weight	5.326368 oz

Preview

Download Datasheet

View All

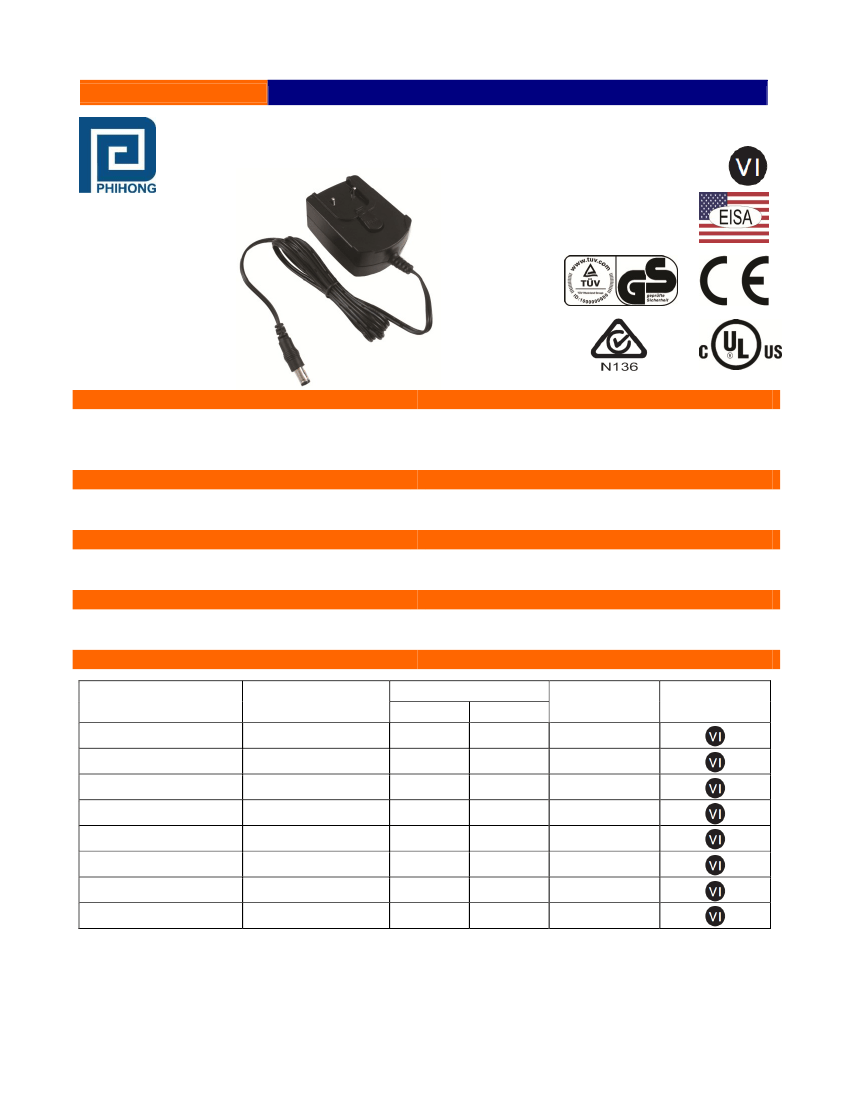

WWW.PHIHONG.COM

15 Watt Interchangeable Plug Series

PSX15R Series meets Level VI Efficiency Requirements

Features



Double Insulated



Class B EMI



Limited Power Source (LPS)

Applications



Wireless Communications



Network Equipment

Safety Approvals



RCM

Mechanical Characteristics



Length: 71.6mm (2.82in)



Width: 50mm (1.97in)

Output Specifications

Model

PSC15R-050

PSC15R-060

PSC15R-075

PSC15R-090

PSA15R-120P6

PSA15R-150P6

PSA15R-240P6

PSA15R-480P6

DC Output Voltage

5.9V

7.5V

12V

15V

24V

48V

Min.



Level VI Efficiency Compliant

EISA Compliant

Peripherals

Gaming

cUL/UL

Height: 31mm (1.22in)

Weight: 151g (5.32oz)

Ripple

(1)

P-P (max.)

100mV

120mV

100mV

200mV

400mV

Efficiency

Level

Load

Max.

3.000A

2.500A

2.000A

1.67A

1.250A

1.000A

0.65A

0.313A

Note (1): Ripple measured by using a 12-inch twisted pair terminated with 10uF capacitor and 0.1uF ceramic in parallel with oscilloscope set to 20Mhz

measured after a warm-up of 10minutes.

Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the

most up-to-date specifications and contact information.

Revision 4/3/2015

PSA15R-480 Related Products

	PSA15R-480	PSA15R-150P-R	PSA15R-240P-R	PSA15R-050	PSA15R-060P-R	PSA15R-075P-R
Description		Wall Mount AC Adapters USA PLUG FOR ADAPTER	Wall Mount AC Adapters 15W 24VDC 0.62A	Wall Mount AC Adapters 15W 5VDC 3.0A	Wall Mount AC Adapters 15W 6V 2.5A	Wall Mount AC Adapters 15W 7.5V 2.14A
Product Category	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters
Manufacturer	PHIHONG	PHIHONG	PHIHONG	PHIHONG	PHIHONG	PHIHONG
RoHS	No	Details	Details	No	Details	Details
Region	Universal	Universal	Universal	Universal	Universal	Universal
Product	Interchangeable Plug	Interchangeable Plug	Interchangeable Plug	Interchangeable Plug	Interchangeable Plug	Interchangeable Plug
Input Voltage	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC
Number of Outputs	1 Output	1 Output	1 Output	1 Output	1 Output	1 Output
Output Power	15 W	15 W	15 W	15 W	15 W	15 W
Output Voltage-Channel 1	48 V	15 V	24 V	5 V	6 V	7.5 V
Output Current-Channel 1	310 mA	1 A	620 mA	3 A	2.5 A	2.14 A
Commercial/Medical	Commercial	Commercial	Commercial	Commercial	Commercial	Commercial
DC Output Connector	2.1 mm Barrel Plug	2.1 mm Barrel Plug	2.1 mm Barrel Plug	2.1 mm Barrel Plug	2.1 mm Barrel Plug	2.1 mm Barrel Plug
DC Output Cord Length	1.8 m	1.8 m	1.8 m	1.8 m	1.8 m	1.8 m
Efficiency	Level IV	Level IV	Level IV	Level VI	Level IV	Level IV
AC Plug included/required	Required	Required	Required	Required	Required	Required
Height	31 mm	31 mm	31 mm	31 mm	31 mm	31 mm
Length	71.6 mm	71.6 mm	71.6 mm	71.6 mm	71.6 mm	71.6 mm
Load Regulation	Regulated	Regulated	Regulated	Regulated	Regulated	Regulated
Mounting Style	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount
Width	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Unit Weight	5.326368 oz	5.326368 oz	5.326368 oz	5.326368 oz	5.326368 oz	5.326368 oz
Factory Pack Quantity	90	-	1	-	1	1
