PSA-10R-180: CategoryPower/power management; File Size128KB，3 Pages; ManufacturerPHIHONG; Websitehttp://phihong.com/

Download Datasheet Parametric Compare View All

PSA-10R-180 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSA-10R-180	-	-	View	Buy Now

PSA-10R-180 Parametric

Parameter Name	Attribute value
Product Category	Wall Mount AC Adapters
Manufacturer	PHIHONG
RoHS	No
Region	Universal
Product	Interchangeable Plug
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	10 W
Output Voltage-Channel 1	18 V
Output Current-Channel 1	560 mA
Commercial/Medical	Commercial
DC Output Connector	2.1 mm Barrel Plug
DC Output Cord Length	1.8 m
AC Plug included/required	Included
Height	36 mm
Length	86 mm
Load Regulation	Regulated
Mounting Style	Wall Mount
Width	53 mm
Unit Weight	4.232875 oz

Preview

Download Datasheet

View All

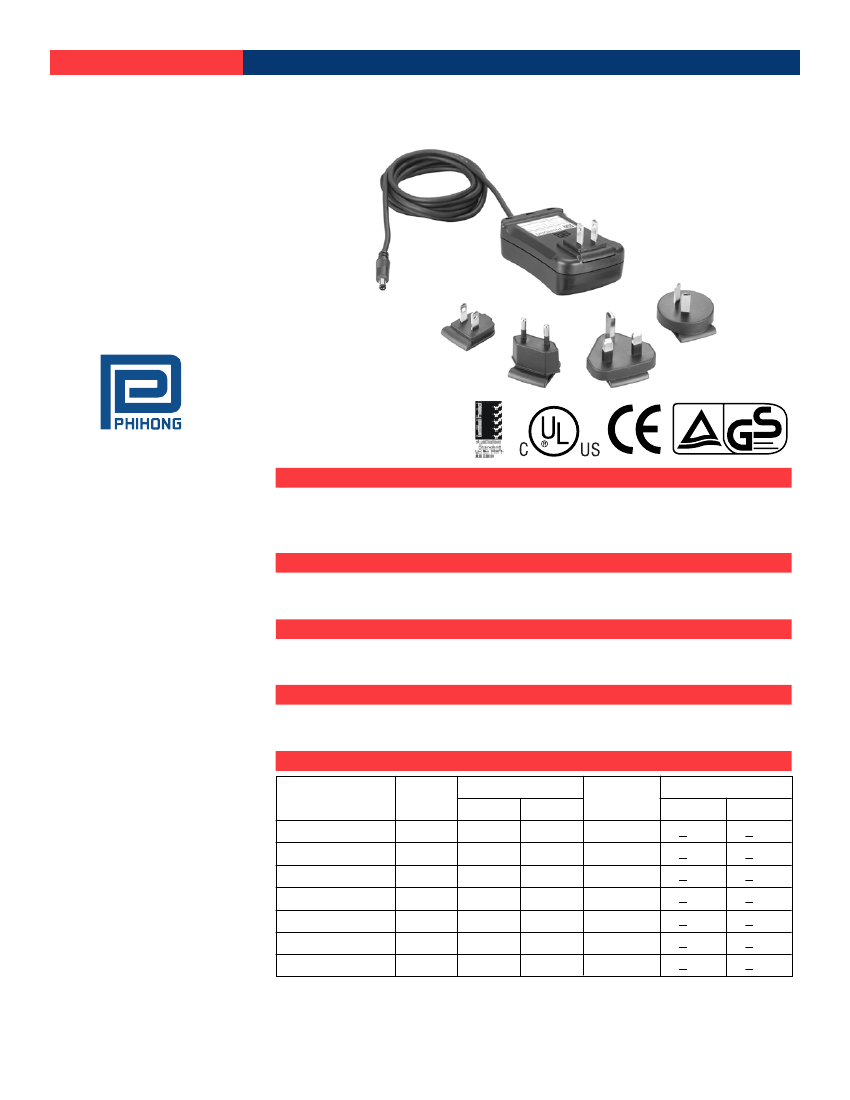

10 Watt Interchangeable Plug Series

PSA10R Adapter with Loadsense™

PHIHONG

USA - Fremont

Tel: 1-510-445-0100

Fax: 1-510-445-1678

E-mail:usasales@phihongusa.com

www.phihong.com

PHIHONG

Taiwan - Taipei:

Tel: 886-2-29882126

886-2-29805255

Fax: 886-2-29817086

886-2-29833222

E-mail:phsales@phihong.com.tw

www.phihong.com.tw

PHIHONG

China - Tianjin:

Tel: 86-22-66880040

Fax: 86-22-66880038

E-mail: eva_liu@phihong.com.tw

Features

• Double Insulated

• Field Changeable AC Plugs

• Class B EMI

• Power On LED

• Loadsense™ at DC Plug

• 2% NL-FL Regulation

Applications

• Wireless Communications

• Peripherals

• Portable Equipment

• Networking

Safety Approvals

• cUL 1950 Class II

• TUV EN60950

• CE

• CSA 22.2 M950 (CUL)

• AS/NZS 3260

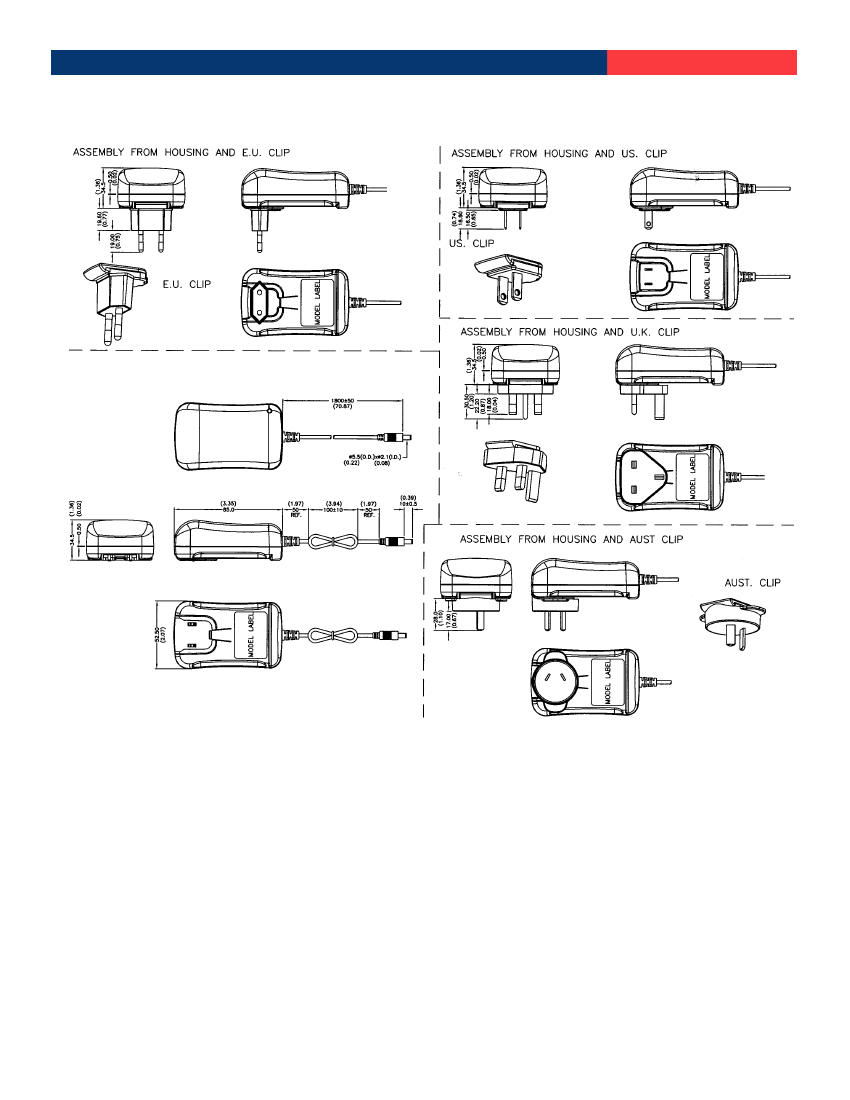

Mechanical Characteristics

Dimensions:• Length: 86mm (3.4in)

• Height: 36mm (1.4in)

• Width: 53mm (2.1in)

• Weight:120gm (4oz)

Output Specifications

Model

DC Output

Voltage

Min.

Load

Max.

Ripple(1)

P-P (max)

Regulation

Line

Load

PHIHONG

Japan - Tokyo:

Tel: 81-3-5447-5001

Fax: 81-3-5447-5002

PHIHONG

Europe - Glasgow, UK:

Tel: 44-1698-816773

Fax: 44-1698-802290

E-mail:iaian@mariam.co.uk

PHIHONG

Brazil - Minas Gerais:

Tel: 55-35-34715566

Fax: 55-35-34713577

E-mail:

commercial@phihong–pwm.com.br

www.phihong–pwm.com.br

PSA10R-033

PSA10R-050

PSA10R-090

PSA10R-120

PSA10R-150

PSA10R-180

PSA10R-240

3.3V

5.0V

9.0V

12V

15V

18V

24V

0A

2.0A

1.1A

0.8A

0.67A

0.56A

0.42A

50mV

90mV

120mV

150mV

180mV

240mV

+1%

+3%

+2%

Clip ordered separately. US Plug: RPA; UK Plug: RPK; Europe Plug: RPE; Australia Plug: RPS; All 4

Plugs: RPKit.

(1) Measured at full load by using a 12 inch twisted pair terminated with a 10mfd capacitor and a 0.1mfd

ceramic in parallel.

(2) No load to Full Load, 1.8 meter (6ft) DC cord, measured at the plug.

www.phihong.com
