89450222 Overview

Switching Power Supplies PWR SPLY 100-240VACu003e 24VDC 4.2A 100W PFC

89450222 Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	Crouzet
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	24 V
Number of Outputs	1 Output
Output Power	100 W
Input Voltage	100 V to 240 V
Output Current-Channel 1	4.2 A
Commercial/Medical	Commercial
Mounting Style	Chassis
Length	200 mm
Width	98 mm
Height	50 mm
Input Frequency	50 Hz, 60 Hz
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

27/05/2013

www.crouzet.com

Millenium Supply switch mode power supply 89450 with PFC Part number 89450222

Switching power supply, electronic regulated

Wide range of input circuit

Conformity to global standards

Thermal protection

PFC filter

Adjustment of the output voltage (adjustable from -10 / +10 % of Un)

Part numbers

Type

89450222

89450 with PFC

Input voltage (V)

100 →240 V AC

Output voltage (V)

24 V DC

Nominal power

100 W

Nominal current

4,2 A

Specifications

Certifications

Conformity to standards

CE, UL, CSA, TüV

Safety : IEC/EN 60950-1

EMC : EN 61000-6-3, EN 61000-6-2, 61000-3-2

LF harmonic currents : IEC/EN 61000-3-2

Output circuit

Status indication

Operating voltage (Ue)

Nominal output current (A)

Output voltage accuracy

Line and load regulation

Residual ripple

Protection against short circuits

Protection against voltage surges

Thermal protection

Green LED

24 V

4.2 at 24 V

± 10 %

±3%

< 200 mV

Continuous, automatic restart

U > 1,2 Ue

Yes

Input circuit

Nominal voltage (V)

Current consumption (mA)

100 →240 VAC (-15

%/+10 %)

Ue = 240 V - 0,7 A

Ue = 100 V - 1,4 A

Operating characteristics

Connection capacity

Ambient storage temperature

Relative humidity

Vibrations

Operating temperature

MTBF

Immunity to electrostatic discharges

Immunity to electromagnetic discharges

Immunity to conducted disturbances

Immunity to mains supply disturbances

Incorporated input fuse

Emission

Connections

Dielectric strength

Input : 2 x 4 mm

+ earth

Output : 4 x 4 mm

-25 →+85 °C

20→90 % RH

Conforming to IEC/EN 61131-2

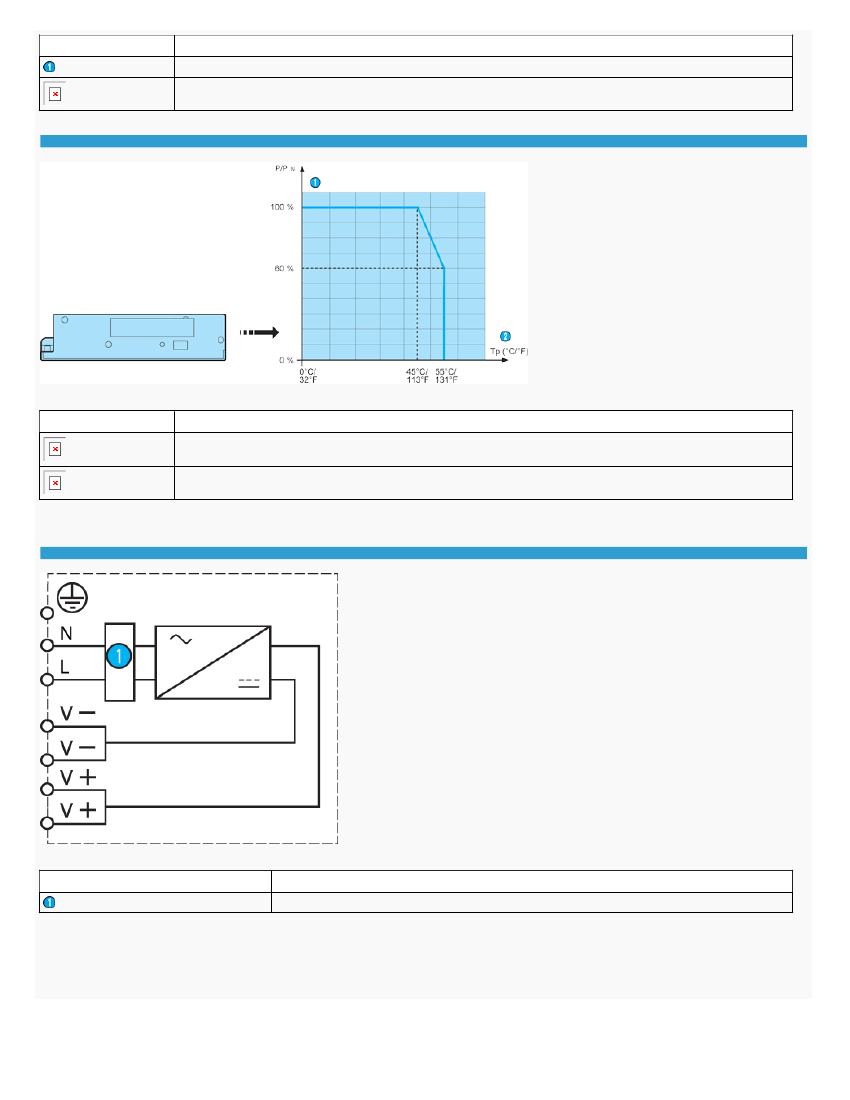

Voir courbes de déclassement

>100,000 hr at 100 % load (at 40°)

Conforming to IEC/EN 61000-4-2 level 3 (4 kV contact/8 kV air)

Conforming to IEC/EN 61000-4-3 level 3 (10V/m)

Conforming to IEC/EN 61000-4-4 level 3 (2 kV), IEC/EN 61000-4-5, IEC/EN 61000-4-6 level 3, IEC/EN 61000-4-8 level 4, IEC/EN 61000-4-

12 level 3

Conforming to IEC/EN 61000-4-11 (voltage dips and interruptions)

Yes

Conducted/radiated conforming EN 55022 (CISPR22), EN 55011 (CISPR11)

Input/output : 3000AC 50/60 Hz 1 min

Input/earth : 1500AC 50/60 Hz 1 min

Output/earth : 500AC 50/60 Hz 1 min

640

Automatic

Weight (g)

Reset on protection

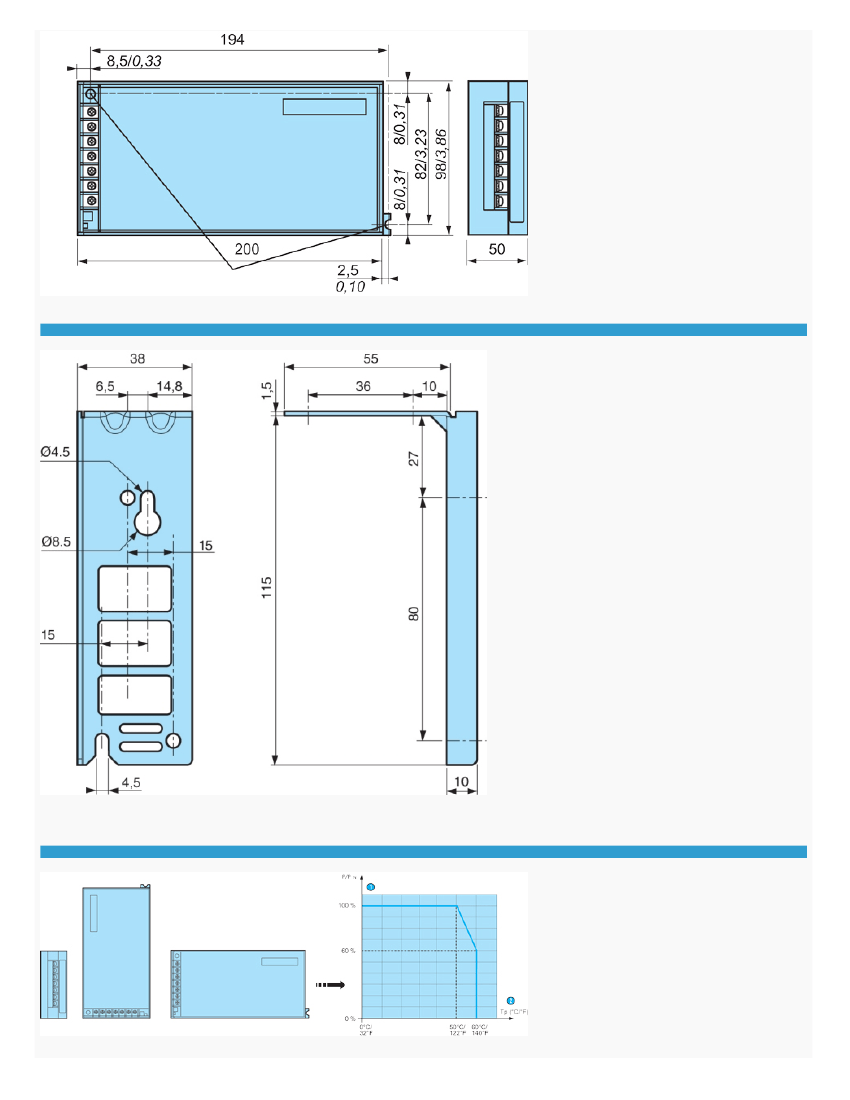

Dimensions (mm)

89450 power supplies

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
