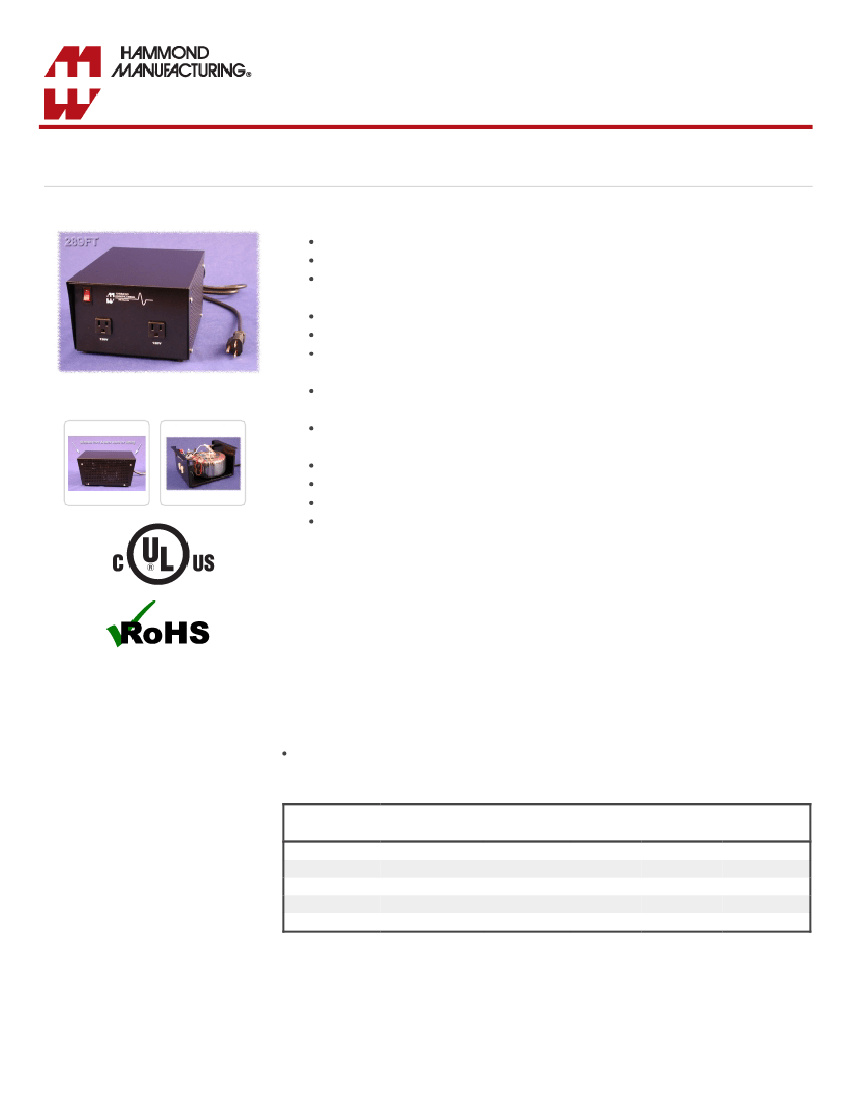

Isolation - Step Down (240VAC to 120VAC)
289 Series
Plug-In
Features
Primary 240VAC, 50/60 Hz., Secondary 120VAC.
Provides circuit isolation.
Toroidal transformer for high isolation, low noise, light weight, cool operation and low
profile.
World wide applications, 50 or 60 Hz. operation, step down (240VAC to 120 VAC).
Standard 3-wire, grounded plug (for use with
adaptors
for proper grounding).
Input (primary) connected to a 5 foot long cord & standard 250V 2 pole, 3 wire - North
American plug (NEMA 6-15P).
Output (secondary) connected to two standard - 3 wire grounded receptacles (NEMA 5-
15R).
Features include ventilated black steel case, rocker lighted on-off switch & circuit breaker
protected output.
North American Mark of Safety - C UL & UL listed (File #E211544).
Indoor use only.
Remember
- These units do NOT convert line frequency.
Note about Inrush Current:
Due to the superior magnetic properties of Toroidal transformers they will be susceptible
to high magnetizing current when initially energized, only limited by the low DC resistance
of the primary winding. Depending on where you are in the AC cycle when the
transformer is energized dictates the chances of overloading the supply circuit. This is
why the transformer may sometimes energize without a problem and other times it will
blow the fuse or trip the circuit breaker. The duration of this overload is rarely longer than
a half of a cycle. Therefore, you should consider using a slow-blow fuse, time delayed
circuit breaker or other form of soft start circuitry for the supply line when using these high
efficient Toroidal transformers.
Accessories
International Grounded Adaptor Plugs
Capacity
Part No.
289CT
289DT
289ET
289FT
289GT
(VA)
250
500
750
1000
1500
# of
Outlets
2
2
2
2
2
Width
6.00
6.00
7.50
7.50
9.00
Dimensions
Height
4.00
4.00
5.00
5.00
5.00
Length
8.25
9.00
10.25
10.25
12.50
Data subject to change without notice
