18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs, 10 W and 15 W
Features
n
Low profile: 10.2 mm x 25.4 mm x 50.8 mm
(0.4 in. x 1.0 in. x 2.0 in.) with standoffs
(9.6 mm (0.38 in.) with standoffs recessed)
Wide input voltage range: 18 Vdc to 36 Vdc or
36 Vdc to 75 Vdc
Output current limiting, unlimited duration
Output overvoltage clamp
Undervoltage lockout
Input-to-output isolation: 1500 V
Operating case temperature range: –40 °C to
+105 °C
UL*
1950 Recognized,
CSA
†
22.2 No. 950-95
Certified, IEC950, and VDE0805 Licensed
CE mark meets 73/23/EEC and 93/68/EEC
directives
‡
Within FCC and VDE Class A radiated limits
n
n
n
n
n
n

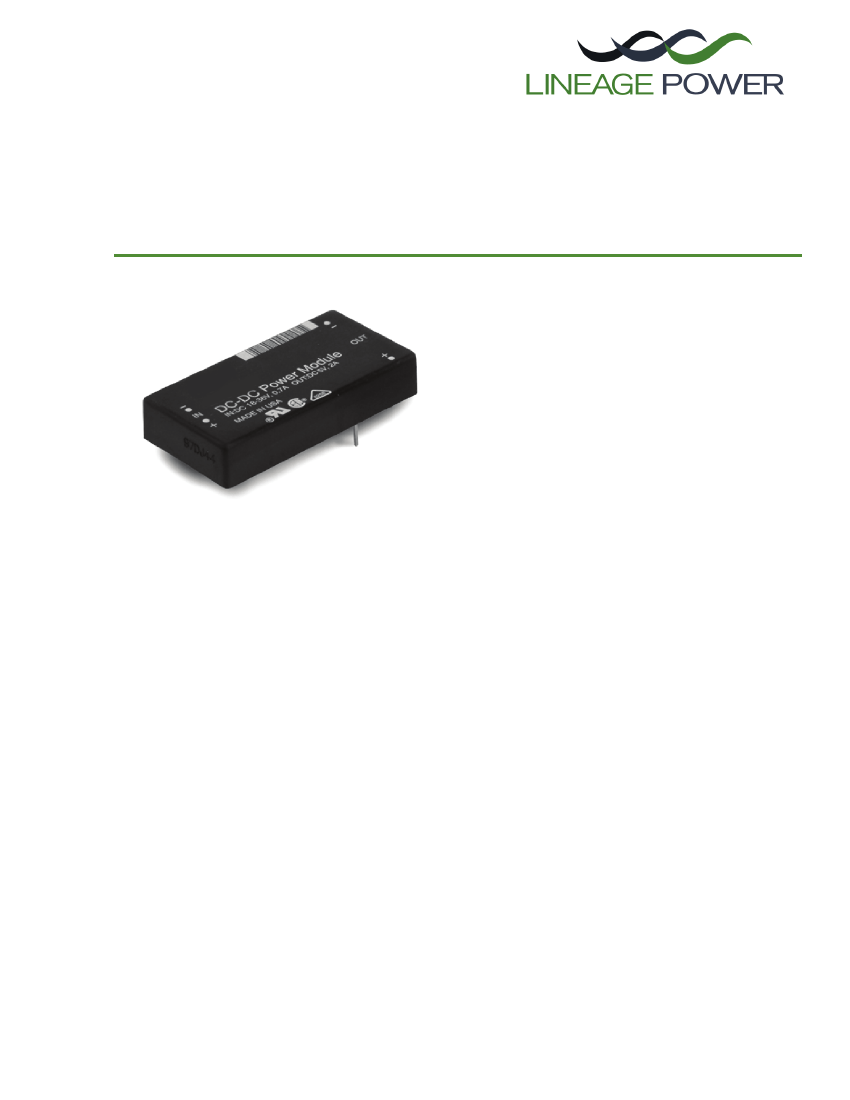

The LC/LW010- and LC/LW015-Series Power Modules use
advanced, surface-mount technology and deliver high-qual-
ity, compact, dc-dc conversion at an economical price.
n
n
Options
n
n
n
n
n
Remote on-off
Choice of on/off configuration
Short pin: 2.8 mm ± 0.25 mm (0.110 in. ± 0.010 in.)
Synchronization (cannot be ordered on units with
remote on/off)
Output voltage adjust: 90% to 110% of V
O, nom
(single outputs only)
Tight output voltage tolerance
Applications
n
n
n
n
Telecommunications
Distributed power architectures
Private branch exchange (PBX)
Voice and data multiplexing
n
n
Description
The L Single- and Dual-Output-Series Power Modules are low-profile, dc-dc converters that operate over an
input voltage range of 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc and provide one or two precisely regulated out-
puts. The outputs are isolated from the input, allowing versatile polarity configurations and grounding connec-
tions. The modules have a maximum power rating of 10 W to 15 W and efficiencies of up to 84% for a 5 V
output and 82% for a 3.3 V output. Built-in filtering for both input and output minimizes the need for external fil-
tering.
*
UL
is a registered trademark of Underwriters Laboratories, Inc.
†
CSA
is a registered trademark of Canadian Standards Association.
‡ This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should be followed. (The CE mark is placed on selected products.)
LC/LW010- and LC/LW015-Series Power Modules:
18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs, 10 W and 15 W
Data Sheet
March 27, 2008
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are abso-
lute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess
of those given in the operations sections of the data sheet. Exposure to absolute maximum ratings for extended
periods can adversely affect device reliability.
Parameter
Input Voltage:
Continuous
Transient (100 ms)
Operating Case Temperature
(See Derating Curves, Figures 43—45.)
Storage Temperature
I/O Isolation
Device
LC
LW
LW
All
All
All
Symbol
V
I
V
I
V
I, trans
T
C
T
stg
—
Min
0
0
0
–40
–55
—
Typ
—
—
—
—
—
—
Max
50
80
100
105*
125
1500
Unit
Vdc
Vdc
V
°C
°C
Vdc
* Maximum case temperature varies based on power dissipation. See derating curves, Figures 43—45, for details.
Electrical Specifications
Table 1. Input Specifications
Parameter
Operating Input Voltage
Maximum Input Current
(V
I
= 0 to V
I, max
; I
O
= I
O, max
; see Figures
1—4.)
Inrush Transient
Input Reflected-ripple Current
(5 Hz to 20 MHz; 12 µH source imped-
ance; T
A
= 25 °C; see Figure 33.)
Input Ripple Rejection (100 Hz—120 Hz)
Fusing Considerations
CAUTION: This power module is not internally fused. An input line fuse must always be used.
This encapsulated power module can be used in a wide variety of applications, ranging from simple stand-alone
operation to an integrated part of a sophisticated power architecture. To preserve maximum flexibility, internal fus-
ing is not included; however, to achieve maximum safety and system protection, always use an input line fuse. The
safety agencies require a normal-blow, dc fuse with a maximum rating of 5 A (see Safety Considerations section).
Based on the information provided in this data sheet on inrush energy and maximum dc input current, the same
type of fuse with a lower rating can be used. Refer to the fuse manufacturer’s data for further information.
Device
LC
LW
LC
LW
All
All
Symbol
V
I
V
I
I
I, max
I
I, max
I
2
t
I
I
Min
18
36
—
—
—
—
Typ
24
48
—
—
—
5
Max
36
75
1.6
800
0.2
—
Unit
Vdc
Vdc
A
mA
A
2
s
mAp-p
All
—
—
45
—
dB
2
Lineage Power
Data Sheet
March 27, 2008
LC/LW010- and LC/LW015-Series Power Modules:
18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs, 10 W and 15 W
Electrical Specifications
(continued)
Table 2. Output Specifications
Parameter
Output Voltage Set Point
(V
I
= V
I, nom
; I
O
= I
O, max
; T
A
= 25 °C)
Device Code
or Suffix
D
G*
F
A
B
C
AJ
BK
CL
Output Voltage
(Over all line, load, and temperature
conditions until end of life; see
Figures 35 and 37.)
D
G*
F
A
B
C
AJ
BK
CL
Output Regulation
(See Figures 5—11):
Line (V
I
= V
I, min
to V
I, max
)
Load (I
O
= I
O, min
to I
O, max
)
Load (I
O
= I
O, min
to I
O, max
)
Temperature
(T
C
= –40 °C to +85 °C)
Output Ripple and Noise
(Across 2 x 0.47 µF ceramic capaci-
tors; see Figures 34 and 36.):
RMS
Peak-to-peak (5 Hz to 20 MHz)
Symbol
V
O, set
V
O, set
V
O, set
V
O, set
V
O, set
V
O, set
V
O1, set
V
O2, set
V
O1, set
V
O2, set
V
O1, set
V
O2, set
V
O, set
V
O, set
V
O, set
V
O, set
V
O, set
V
O, set
V
O1, set
V
O2, set
V
O1, set
V
O2, set
V
O1, set
V
O2, set
Min
1.92
—
3.17
4.85
11.52
14.40
4.75
–4.75
11.40
–11.40
14.25
–14.25
1.90
—
3.13
4.80
11.40
14.25
4.5
–4.5
10.80
–10.80
13.50
–13.50
Typ
2.0
2.5
3.3
5.0
12.0
15.0
5.0
–5.0
12.0
–12.0
15.0
–15.0
—
2.5
—
—
—
—
—
—
—
—
—
—
Max
2.08
—
3.43
5.20
12.48
15.60
5.25
–5.25
12.60
–12.60
15.75
–15.75
2.10
—
3.47
5.25
12.60
15.75
5.5
–5.5
13.20
–13.20
16.50
–16.50
Unit
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
A, F, D, G*
B, C
Lx010 A, F, D, G*
B, C
Lx015 A, F, D, G*
B, C
A, F, D, G*
B, C
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
0.01
—
0.1
—
0.1
25
0.5
5
0.1
10
0.2
15
0.2
100
2.0
mV
%V
O
mV
%V
O
mV
%V
O
mV
%V
O
External Load Capacitance
A, D, F, G*
AJ, B, C
BK, CL
A, D, F, G*
AJ, B, C
BK, CL
A, F, D, G*
B, C
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
30
35
50
100
120
150
1000
200
mVrms
mVrms
mVrms
mVp-p
mVp-p
mVp-p
µF
µF
* For a 2.5 V output, use the 2 V output module (D code) with an output voltage trim pin (optional feature).
Lineage Power
3
LC/LW010- and LC/LW015-Series Power Modules:
18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs, 10 W and 15 W
Data Sheet
March 27, 2008
Electrical Specifications
(continued)
Table 2. Output Specifications
(continued)
Parameter
Output Current
(At I
O
< I
O, min
, the modules may
exceed output ripple specifications,
but operation is guaranteed.)
Note:
On the Lx01xF, the output
voltage may exceed
specifications when
I
O
< I
O, min
.
Device Code
or Suffix
Lx015D
Lx015F
Lx015A
Lx015B
Lx015C
Lx010D, G*
Lx010F
Lx010A
Lx010B
Lx010C
Lx010AJ
Lx010BK
Lx010CL
Lx015D
Lx015F
Lx015A
Lx015B
Lx015C
Lx010D, G*
Lx010F
Lx010A
Lx010B
Lx010C
Lx010AJ
Lx010BK
Lx010CL
Lx015D
Lx015F
Lx015A
Lx015B
Lx015C
Lx010D, G*
Lx010F
Lx010A
Lx010B
Lx010C
Lx010AJ
Lx010BK
Lx010CL
Symbol
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O1
, I
O2
I
O1
, I
O2
I
O1
, I
O2
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O1
, I
O2
I
O1
, I
O2
I
O1
, I
O2
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O
I
O1
, I
O2
I
O1
, I
O2
I
O1
, I
O2
Min
0.35
0.25
0.15
0.12
0.10
0.2
0.15
0.1
0.08
0.06
0.1
0.06
0.05
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Max
3.0
3.0
3.0
1.25
1.0
2.0
2.42
2.0
0.83
0.67
1.0
0.42
0.33
7.5
6.5
5
3.1
2.5
7.0
5
4
2.5
2
4.0
2.5
2.5
8.5
8.5
7.5
4.5
4.5
8
7.5
6
3.5
3.5
6.0
3.5
3.5
Unit
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Output Current-limit Inception
(V
O
= 90% V
O, set
; see Figures
12—14.)
Output Short-circuit Current
(V
O
= 0.25 V)
* For a 2.5 V output, use the 2 V output module (D code) with an output voltage trim pin (optional feature).
4
Lineage Power
Data Sheet
March 27, 2008
LC/LW010- and LC/LW015-Series Power Modules:
18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs, 10 W and 15 W
Electrical Specifications
(continued)
Table 2. Output Specifications
(continued)
Parameter
Efficiency
(V
I
= V
I, nom
; I
O
= I
O, max
; T
A
= 25 °C;
see Figures 15—28, 35, and 37.)
Device Code
or Suffix
LC015D
LC015F
LC015A
LC015B, C
LC010D, G*
LC010F
LC010A, B, C
LC010AJ, BK, CL
LW015D
LW015F
LW015A
LW015B, C
LW010D, G*
LW010F
LW010A, B, C
LW010AJ, BK, CL
LC015F
LC015A
LW015F
LW015A
All
Symbol
η
η
η
η
η
η
η
η
η
η
η
η
η
η
η
η
η
η
η
η
—
Min
64
74
77
73
65
71
75
75
66
76
79
75
67
73
77
77
—
—
—
—
—
Typ
67
77
80
76
68
75
79
78
69
79
82
78
70
76
81
80
79
82
82
84
265
Max
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Unit
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
kHz
Efficiency
(V
I
= V
I, nom
; I
O
= 2 A; T
A
= 25 °C;
see Figures 15, 18, 22, and 25.)
Switching Frequency
Dynamic Response
(for duals: I
O1
or I
O2
= I
O, max
;
ΔI
O
/Δt = 1A/10 µs; V
I
= V
I, nom
;
T
A
= 25 °C; see Figures 29 and 30.):
Load Change from I
O
= 50% to 75%
of I
O, max
:
Peak Deviation
Settling Time
(V
O
< 10% of peak deviation)
Load Change from I
O
= 50% to 25%
of I
O, max
:
Peak Deviation
Settling Time
(V
O
< 10% of peak deviation)
All
All
—
—
—
—
2
0.8
—
—
%V
O, set
ms
All
All
—
—
—
—
2
0.8
—
—
%V
O, set
ms
* For a 2.5 V output, use the 2 V output module (D code) with an output voltage trim pin (optional feature).
I just watched the second CD of the Guoqian video. It talked about loading the Linux system in the VMware virtual machine. In the CD rom options, there is a "Use ISO image" option. Then load the rhel-...
The cameras you buy on the market now are marked as 480 lines, but the actual effect is 420 lines. How can we distinguish them? This is some information I found on the Internet, and I hope you can sha...
Reflow soldering, a common soldering method in modern electronics manufacturing, primarily melts solder paste and pads to form solder joints. With technological advancements, soldering equipment ha...[Details]
To understand why car engines need gearboxes, we must first understand the characteristics of different types of engines. An engine refers to a machine that can convert a form of energy into kineti...[Details]
The most significant feature of IPS panels is that both electrodes are located on the same surface, unlike other LCD panels, which have electrodes arranged on top and bottom surfaces in a three-dim...[Details]
On August 25th, SK Hynix announced that it has completed development and entered mass production of its 321-layer, 2Tb QLC NAND flash memory product. This achievement marks the world's first applic...[Details]
Overview
As handheld voice communication devices become more and more popular, they are increasingly used in noisy environments, such as airports, busy roads, crowded bars, etc. In such noisy ...[Details]
Reflow soldering is one of the most commonly used methods in electronics manufacturing, allowing for the soldering of large numbers of components in a relatively short time. However, any experience...[Details]
A multilevel inverter converts a DC signal into a multilevel staircase waveform. Instead of a straight positive-negative output waveform, the output waveform of a multilevel inverter alternates in ...[Details]
Compared to cloud databases, minicomputers are purpose-built for decentralized, rugged computing at the edge of the network. By moving applications, analytics, and processing services closer to the...[Details]
"We have successfully launched the first version of our dedicated chip for EMB brake-by-wire. Second-generation samples have also been successfully completed, and we are actively planning a third-g...[Details]
Intel®
Xeon®
6
-
core processors now support the new Amazon EC2 R8i and R8i-flex instances on Amazon Web Services (AWS).
These new instances offer superior performance and fast...[Details]
A pure sine wave inverter has a good output waveform with very low distortion, and its output waveform is essentially the same as the AC waveform of the mains power grid. In fact, the AC power prov...[Details]
For new energy vehicles, the importance of batteries is unquestionable. Not only does it determine the performance of the vehicle, but the battery density also has a great relationship with the veh...[Details]
Puttshack's Trackaball uses the Nordic nRF54L15 system-on-chip (SoC) to monitor sensors and enable Bluetooth low energy connectivity, while the nPM2100 power management integrated circuit (PMIC) ...[Details]
The composition of the water heater
The water heater itself is divided into the following parts:
1. Water tank.
This is where the water heater is filled with water and where the wate...[Details]
"I want to ask why there are so many manufacturers making mobile phone CPUs, but only Intel and AMD make computer CPUs?"
The progress of domestic PC CPU production has disappointed many ...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
