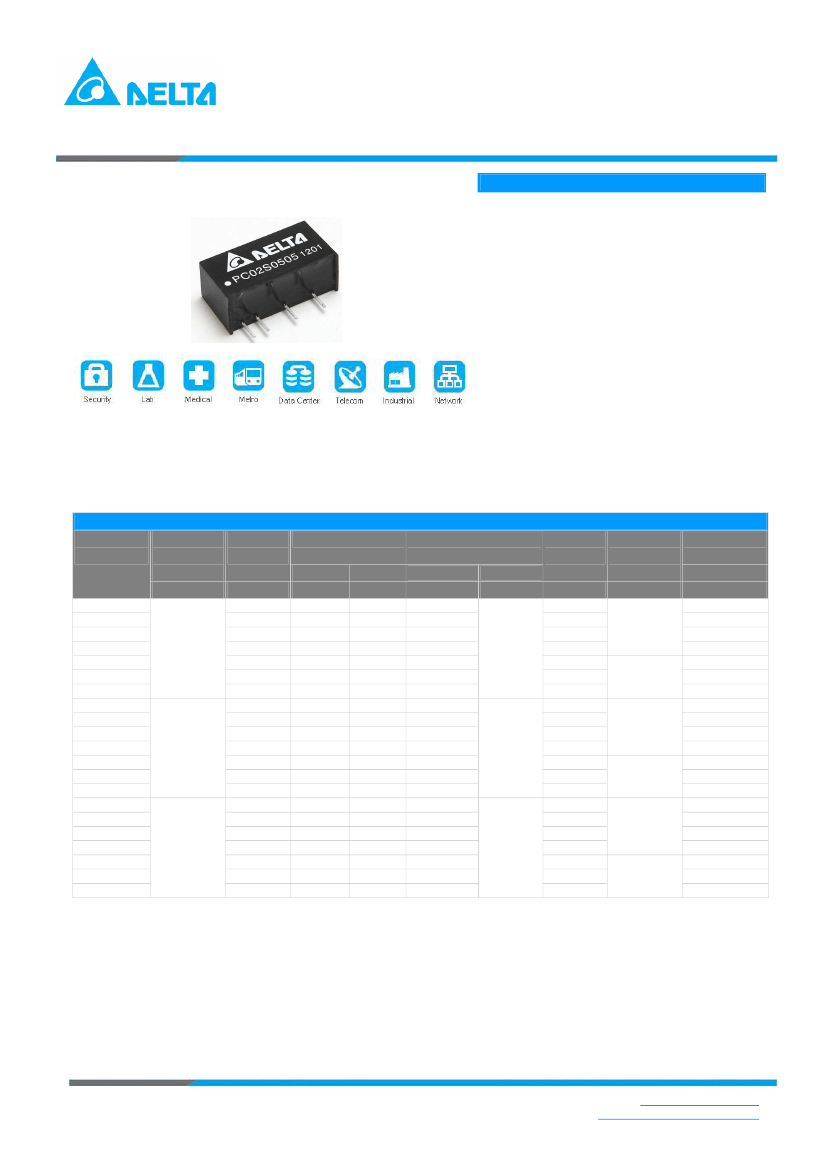

PC02S/D series
2W DC/DC CONVERTER, SIP-Package
FEATURES
Efficiency up to 83%
SIP Package with Industry Standard Pinout
Package Dimension :
19.5 x 10.2 x 7.6 mm (0.77”x 0.4”x 0.3”)
Isolation Voltage 1000 VDC
Operating Temperature Range -40°C to +85°C
Single and Dual Outputs
>2 MHours MTBF
Lead free, RoHs compliant
3 Years Product Warranty
The PC02S/D series are miniature, SIP Package, isolated 2W DC/DC converters with 1,000VDC isolation. It offers short circuit
protection and allows a wide operating temperature range of –40°C to +85°C. These isolated DC/DC converters are the latest
offering from a world leader in power systems technology and manufacturing
―
Delta Electronics, Inc
Model List
Model
Number
Input
Voltage
(Range)
VDC
PC02S0503A
PC02S0505A
PC02S0512A
5
PC02S0515A
(4.5 ~ 5.5)
PC02D0505A
PC02D0512A
PC02D0515A
PC02S1203A
PC02S1205A
PC02S1212A
12
PC02S1215A
(10.8 ~ 13.2)
PC02D1205A
PC02D1212A
PC02D1215A
PC02S2403A
PC02S2405A
PC02S2412A
24
PC02S2415A
(21.6 ~ 26.4)
PC02D2405A
PC02D2412A
PC02D2415A
Output
Voltage
VDC
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
Output Current
Max.
mA
500
400
165
133
±200
±83
±66
500
400
165
133
±200
±83
±66
500
400
165
133
±200
±83
±66
Min.
mA
10
8
3
2.5
±4
±1.5
±1
10
8
3
2.5
±4
±1.5
±1
10
8
3
2.5
±4
±1.5
±1
Input Current
@Max. Load @No Load
mA(typ.)
452
526
495
499
519
504
501
185
212
200
200
210
201
200
92
108
101
101
105
102
100
mA(typ.)
% (max.)
11
11
7
7
10
7
7
8
8
5
5
8
5
5
8
8
5
5
8
5
5
Load
Regulation
Max.
capacitive
Load
uF
470
Efficiency
(typ.)
@Max. Load
60
390*
470
30
390*
470
15
3908
%
73
76
80
80
77
79
79
74
78
82
83
79
82
82
74
77
81
82
79
81
82
* For each output
DS_PC02S/D_10082012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P1
Input Characteristics
Parameter
Input Voltage Range
Model
5V Input Models
12V Input Models
24V Input Models
5V Input Models
12V Input Models
24V Input Models
All Models
---
---
Min.
4.5
10.8
21.6
-0.7
-0.7
-0.7
---
Typ.
5
12
24
---
---
---
---
Pi Filter
650
mW
Max.
5.5
13.2
26.4
9
18
30
0.3
Unit
VDC
Input Surge Voltage (1 sec. max.)
Reverse Polarity Input Current
Input Filter
Internal Power Dissipation
A
Output Characteristics
Parameter
Output Voltage Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Temperature Coefficient
Short Circuit Protection
Conditions
Dual Output, Balanced Loads
For Vin Change of 1%
Io=20% to 100%
Over Line, Load & Temp.
Min.
---
---
---
---
---
---
---
Typ.
Max.
±1.0
±3.0
±0.1
±1.0
±1.2
±1.5
See Model Selection Guide
100
150
---
200
---
15
±0.01
±0.02
0.5 Second Max.
Unit
%
%
%
mV
P-P
mV
P-P
mV rms
%/℃
General Characteristics
Parameter
I/O Isolation Voltage (rated)
I/O Isolation Resistance
I/O Isolation Capacitance
Switching Frequency
MTBF (calculated)
MIL-HDBK-217F@25℃, Ground Benign
Conditions
60 Seconds
500 VDC
100KHz, 1V
Min.
1000
1000
---
50
2,000,000
Typ.
---
---
80
80
-----
Max.
---
---
120
100
-----
Unit
VDC
MΩ
pF
KHz
Hours
Recommended Outside Input Fuse
5V Input Models
1000mA Slow-Blow Type
12V Input Models
500mA Slow-Blow Type
24V Input Models
200mA Slow-Blow Type
Environmental Specifications
Parameter
Operating Temperature Range (with Derating)
Case Temperature
Storage Temperature Range
Humidity (non condensing)
Cooling
Lead Temperature (1.5mm from case for 10Sec.)
Conditions
Ambient
Min.
-40
---
-50
---
Free-Air convection
---
260
℃
Max.
+85
+90
+125
95
Unit
℃
℃
℃
% rel. H
DS_PC02S/D_10082012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P2
Power Derating Curve
Notes
1
2
3
4
5
Specifications typical at Ta=+25℃, resistive load, nominal input voltage and rated output current unless otherwise noted.
Ripple & Noise measurement bandwidth is 0-20MHz.
These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will
not damage these modules; however they may not meet all specifications listed.
All DC/DC converters should be externally fused at the front end for protection.
Specifications subject to change without notice.
Mechancial Drawing
Mechanical Dimensions
19.5 [0.77]
Output Power (%)
Pin Connections
Pin
1
10.2 [0.40]
0.5 [0.02]
Single Output
+Vin
-Vin
-Vout
No Pin
+Vout
Dual Output
+Vin
-Vin
-Vout
Common
+Vout
2
4
5
6
0.5
[0.02]
2.35
[0.09]
2.54 5.08
[0.10]
[0.20]
2X2.54
[2X0.10]
18.5 [0.73]
Bottom View
1
2
4
5
6
7.6 [0.30]
3.2
[0.13]
►All
dimensions in mm (inches)
►Tolerance:
X.X±0.25 (X.XX±0.01)
X.XX±0.13 ( X.XXX±0.005)
►
Pins ±0.05(±0.002)
0.50
[0.02]
Physical Outline
Case Size
Case Material
Weight
:
:
:
19.5x7.6x10.2mm (0.77x0.30x0.40 Inches)
Non-Conductive Black Plastic (flammability to UL 94V-0 rated)
2.7g
0.25 [0.01]
1.3 [0.05]
DS_PC02S/D_10082012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P3
Part Numbering System
P
Form factor
D-DIP
P-SIP
S-SMD
C
Family series
A~Z
02
Watt
01:1W
02:2W
03:3W
04:4W
06:6W
S
Number of
Outputs
S - Single
D- Dual
05
Input Voltage
03:3.3V
05: 5V
12:12V
24: 24V
48:48V
05
Output Voltage
03:3.3V
05: 5V
12:12V
15: 15V
24: 24V
A
Option Code
A - Std. Functions
WARRANTY
Delta offers a three(3) years limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any
infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under
any patent or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
DS_PC02S/D_10082012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P4
