WWW.PHIHONG.COM

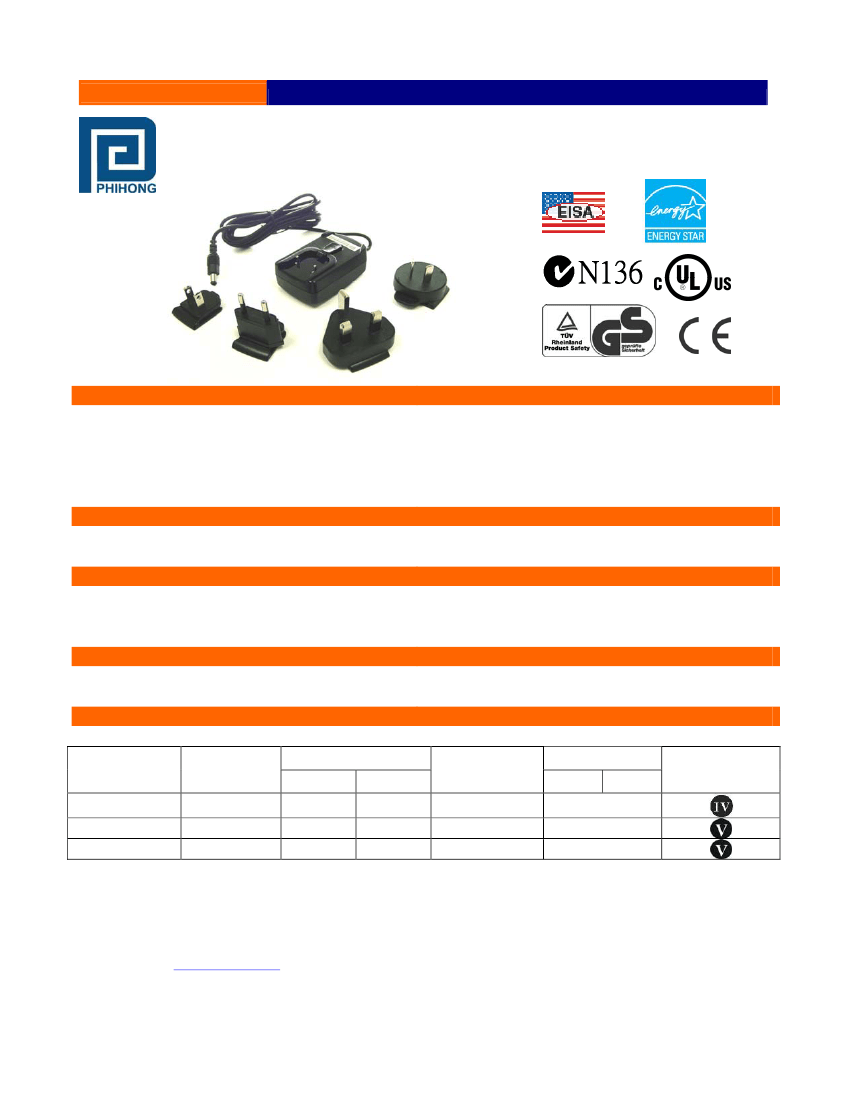

10W Interchangeable Plug Series
PSM11R Adapter Series Meets CEC and EISA Requirements
Features
•
Double Insulated
•
Field Changeable AC Plugs
•
ECOC Compliance
•
5% NL-FL Regulation
•
Class B EMI
Applications
•
Wireless Communications
•
Networking
Safety Approvals
•
cUL/UL
•
TUV
•
SAA
Mechanical Characteristics
•
Length: 71.7mm (2.82in)
•
Width: 45mm (1.77in)
Output Specifications
DC Output
Voltage
5V
•
•
•
•
•
•
•
•
•
•
Low Leakage Current
Low Cost
Energy Star EPS2.0 Compliance
(9V and 12V)
EISA Energy Efficiency Compliance
Portable Equipment
Peripherals
CE
C-Tick
Height: 29.79mm (1.17in)
Weight: 128g (4.52oz)
Load
Min.
0A
Model
PSM11R-050
Max.
2.0A
Ripple (1)
P-P (max)
100mV
Regulation
Line Load
±5%
Efficiency
Level
PSM11R-090
9V
0A
1.1A
100mV
±5%
PSM11R-120
12V
0A
0.83A
120mV
±5%
Note: (1) Measured with by-pass capacitors 0.1uf/10uf at output connector terminal and oscilloscope set at 20 mHz. (Tested
by oscilloscope after waiting 1 minute)
Interchangeable clips sold separately.
Phihong is not responsible for any error and change. Content is subject to change without notice. Please consult the
factory and visit
www.phihong.com
for the most up-to-date specifications.
PSM11R Characteristics
INPUT:
AC Input Voltage Rating
100 to 240VAC
WWW.PHIHONG.COM
ENVIRONMENTAL:
Temperature
Operation
Non-operation
0 to +50°C
-20 to +75°C
AC Input Voltage Range
90 to 264VAC
Humidity
AC Input Frequency
47 to 63 Hz
Operation
0 to 90%
AC Input Current
0.3A(RMS) max. @ 120VAC
0.15A(RMS) max. @ 240VAC
Emissions
FCC Class B
EN55022 Class B
Dielectric Withstand (Hi-pot) Test
Leakage Current
20uA max. @ 254VAC
Primary to Secondary: 3000VAC
DC Output Connector
Inrush Current (Cold)
40-60A for 120VAC at max. load (varies in voltage)
(Cold start @ ambient 25°C)
2.1x5.5mm Center Positive Standard
Mating Connector
Kycon KLD-0202-A or equivalent
Input Power Saving
0.3W maximum at no load
AC Input Clips (sold separately)
US: RPA
Europe: RPE
UK: RPK
Australia: RPS
OUTPUT:
Efficiency
>70.7% average efficiency for 5V model
>76.6% average efficiency for 9V and 12V models
Hold-up Time
10mS min. @ 120VAC and max. load
Short Circuit Protection
>120%, auto restart
Over Voltage Protection
>120%, Zener Clamp

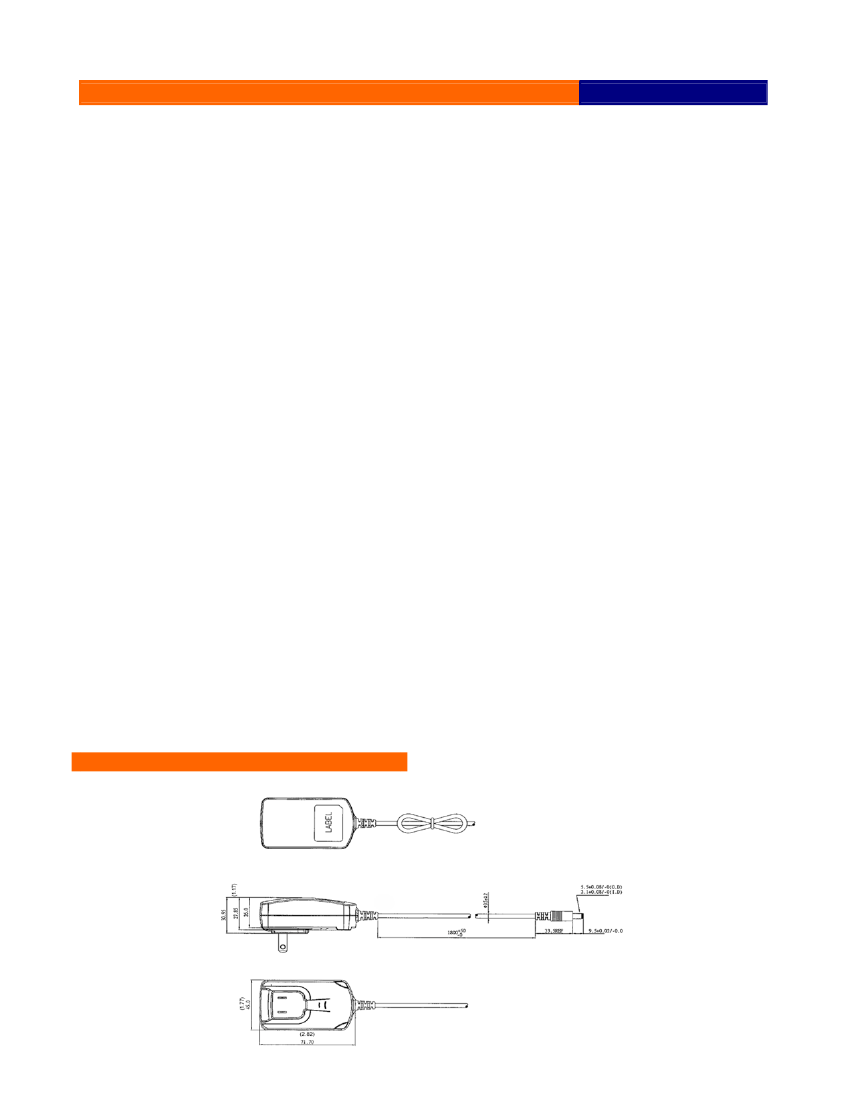

Dimension Diagram Unit: mm (inch)
