PSW-120 Series
Specifications
YGRENE
REVAS
Features:
• Single and two phase wide input range 180 ~ 550VAC
• Protections: Short Circuit / Overload / Over Voltage /
Overtemperature
• Cooling by free air convection
• Built-in constant current limiting circuit
• DIN rail mountable
• UL508 (industrial control equipment) approved
• EN61000-6-2 (EN50082-2) industrial immunity level
• 100% full load burn-in test
• Built-in DC OK relay contact
• 3 year warranty
ENERGY
SAVER
OUTPUT
Cat. No.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
RIPPLE & NOISE (max)
VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE
LINE REGULATION
LOAD REGULATION
SETUP, RISE HOLD UP TIME
PSW-12012
12V
10A
0 ~ 10A
120W
120mVp-p
12 ~ 15V
±1.5%
±0.5%
±0.5%
2000ms, 70ms, 50ms / 400VAC
PSW-12024
24V
5A
0 ~ 5A
120W
120mVp-p
24 ~ 29V
±1.0%
PSW-12048
48V
2.5A
0 ~ 2.5A
120W
150mVp-p
48 ~ 58V
±1.0%
CME & YTEFAS
TNEMNORIVNE
NOITCETORP
SREHTO
TUPTUO
TUPNI
Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1µF & 47µF parallel capacitor.
Tolerance: includes set up tolerance, line regulation and load regulation.
±0.5%
±0.5%
±0.5%
±0.5%
2000ms, 70ms, 10ms / 230VAC at full load
Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quick may lead to increase of the set up time.
INPUT
VOLTAGE RANGE
FREQUENCY RANGE
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
OVERVOLTAGE
OVERTEMPERATURE
PROTECTION
180 ~ 550VAC
254 ~ 780VDC
47 ~ 63Hz
89.5% / 400V
91% / 400V
0.55A / 400VAC
1.2A / 230VAC
COLD START 50A
≤
3.5 mA / 530VAC
105 ~ 130% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
92% / 400V
16 ~ 18V
31 ~ 37V
60 ~ 67V
Protection type: Shut down overvoltage, re-power on to recover
105˚C ± 5˚C (12V), 110˚C ± 5˚C (24V) (TSW1) detect on heat sink of power switch transistor;
100˚C ± 5˚C (48V) (TSW1) detect on heat sink of power diode
Protection type: Shut down overvoltage, re-power automatically after temperature goes down
ENVIRONMENT
DC OK SIGNNAL
WORKING TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
Relay contact rating (max.): 30V / 1A resistive

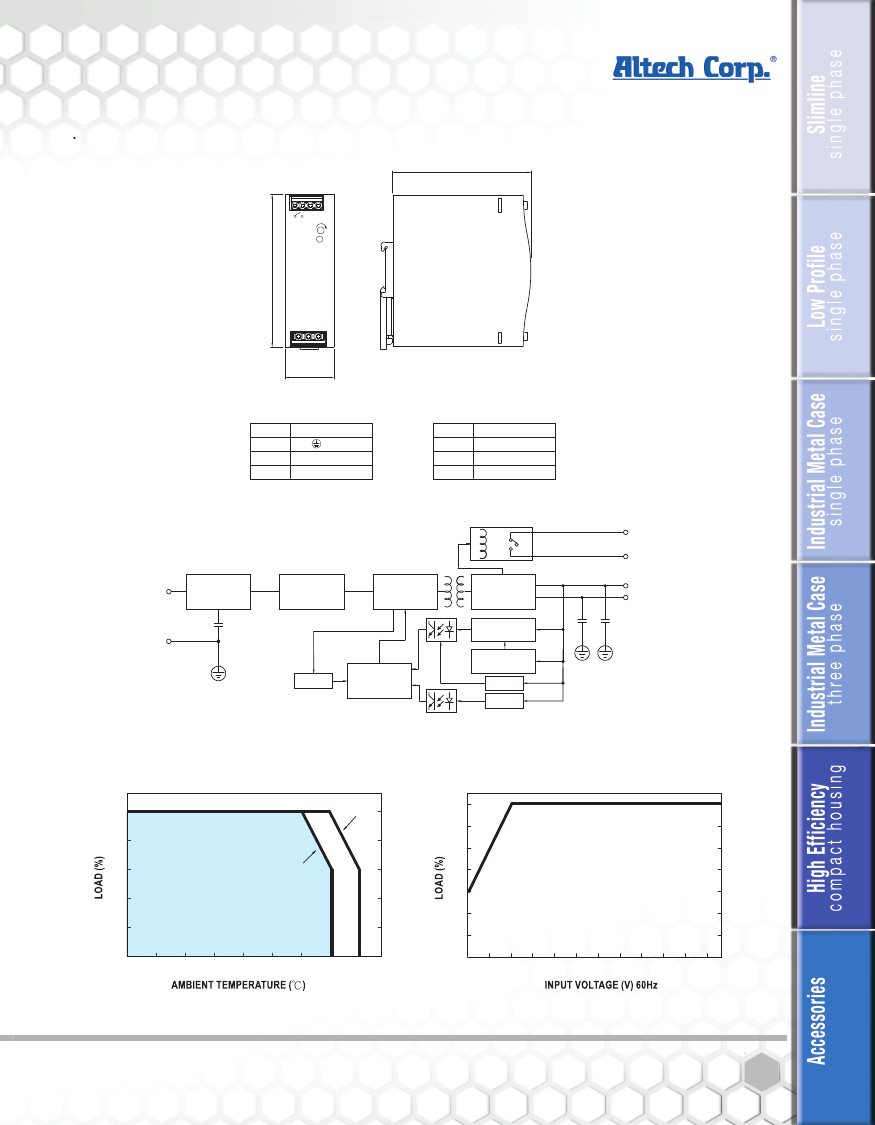

-25 ~ +70˚C (Refer to output load derating curve)
20 ~ 90% RH non-condensing
-40 ~ +85˚C, 10 ~ 95% RH
±0.03% / ˚C (0 ~ 50˚C)
10 ~ 500Hz, 2G 10min./1cycle, 60 min. each long X,Y, Z axes Mounting clip: Compliance to IEC60068-2-6
SAFETY & EMC
UL508 approved
IEC60950-1 compliant
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC (25˚C; 70% RH)
EMI CONDUCTION & RADIATION Compliance to EN55011 (CISPR11), EN55022 (CISPR22), EN61204-3 Class B
EMS IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204; EN61204-3; EN61000-6-2; (EN50082-2),
heavy industry level; criteria A,
The power supply is considered a component which will installed into a final equipment. The final equipment must be
re-confirmed that it still meets EMC directives.
OTHERS
MTBF
DIMENSION
PACKING
268K hrs min. MIL-HDBK-217K (25˚C)
40x125.2x113.5mm (WxHxD)
0.65Kg; 20pcs / 14Kg / 1.16CUFT
All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25˚C of ambient temperature.
For the latest on Altech Power Supply specifications please visit www.altechcorp.com/power.
