Datasheet> All Categories > Power/power management> PSAC60M-240-R

Preview

PSAC60M-240-R: DescriptionD-Sub Contacts SOCKET CONTACT 24-20 gold over copper; CategoryPower/power management; File Size186KB，2 Pages; ManufacturerPHIHONG; Websitehttp://phihong.com/

Download Datasheet Parametric Compare View All

PSAC60M-240-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSAC60M-240-R	-	-	View	Buy Now

PSAC60M-240-R Overview

D-Sub Contacts SOCKET CONTACT 24-20 gold over copper

PSAC60M-240-R Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	PHIHONG
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	60 W
Output Voltage-Channel 1	24 V
Output Current-Channel 1	2.5 A
Commercial/Medical	Commercial
DC Output Connector	2.1 mm Barrel Plug
DC Output Cord Length	1.2 m
Efficiency	Level VI
AC Plug included/required	Required
Height	32 mm
Length	130 mm
Load Regulation	Regulated
Mounting Style	Desktop
Packaging	Bulk
Factory Pack Quantity	1
Width	60 mm
Unit Weight	10.758558 oz

Preview

Download Datasheet

View All

WWW.PHIHONG.COM

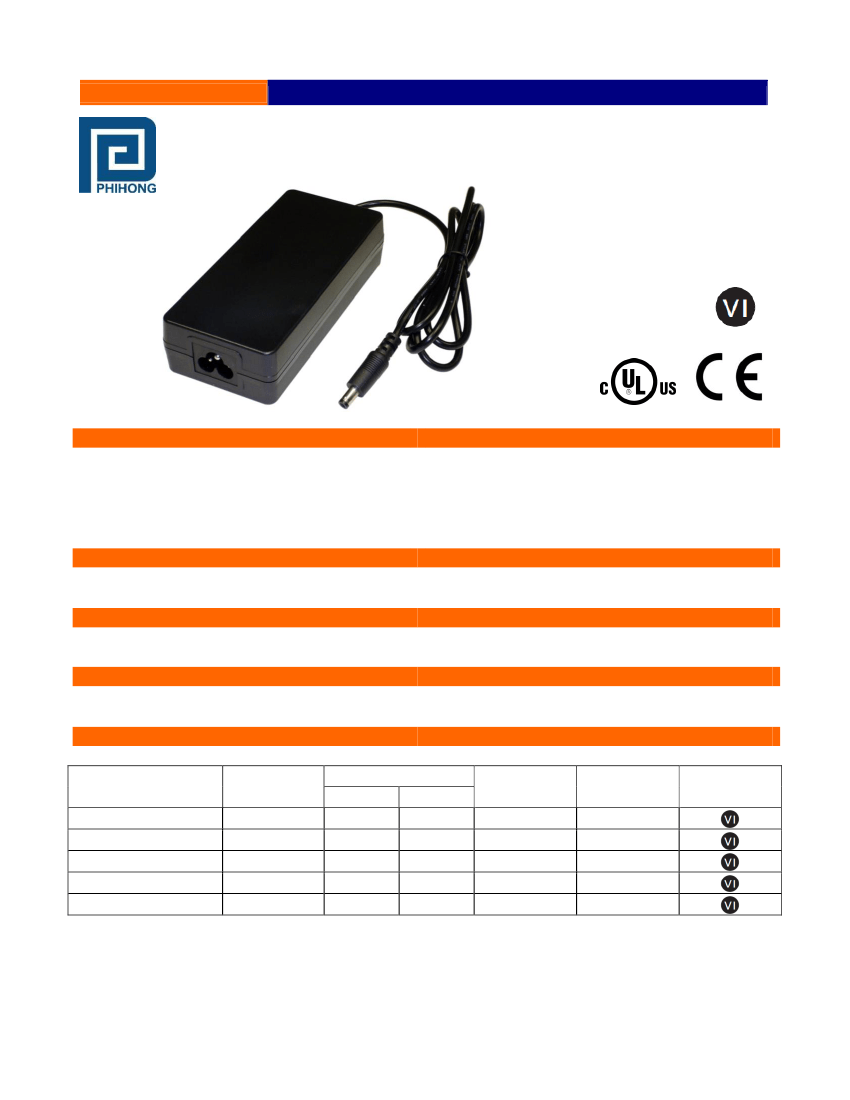

60 Watt Universal 3-Wire Input Adapter

PSAC60M Power Adapter Meets Level VI Efficiency Requirements

Features



Low Cost



Efficiency Level VI Compliance



Class B EMI



Ecodesign ErP Directive 2009/125/EC

Compliant

Applications



Portable Equipment



Peripherals

Safety Approvals



CE

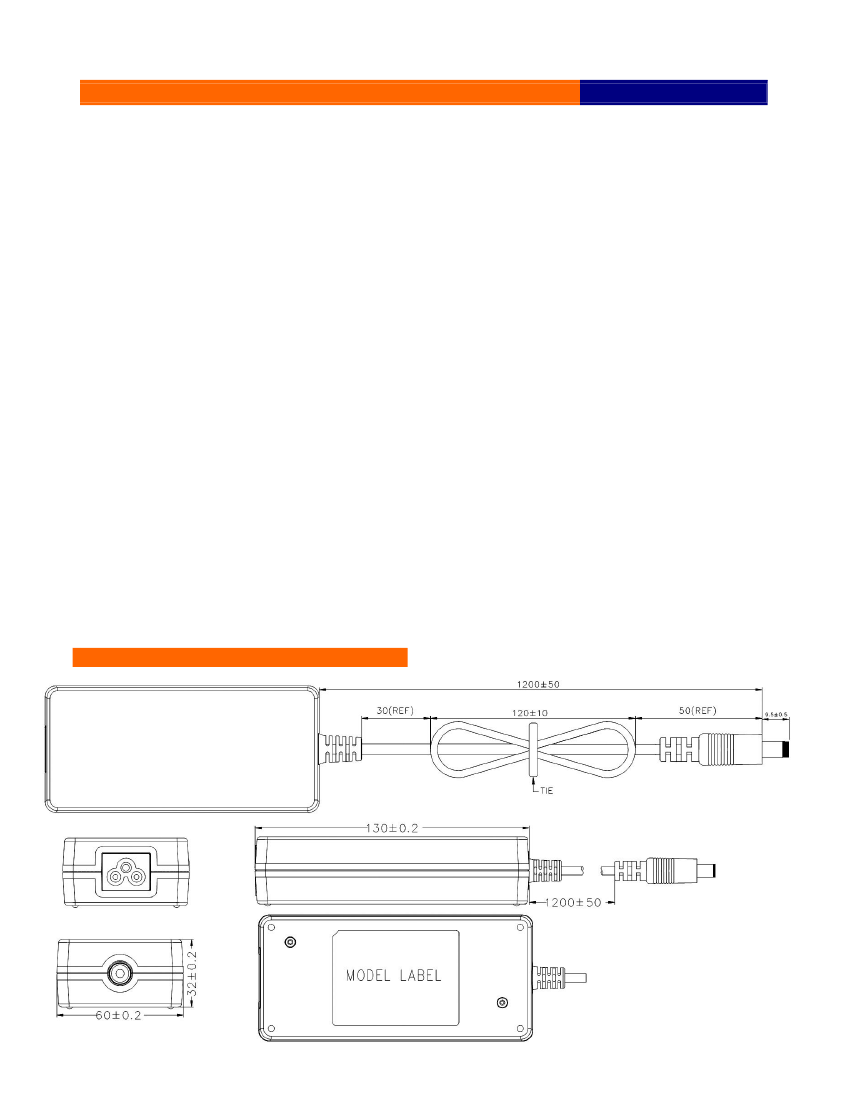

Mechanical Characteristics



Length: 130mm (5.12in)



Width: 60mm (2.36in)

Output Specifications

Model

PSAC60M-120

PSAC60M-180

PSAC60M-240

PSAC60M-480

PSAC60M-560

DC Output

Voltage

+12V

+18V

+24V

+48V

+56V

Load

Min.

0A



Non-vented/Spill Proof Case

No Load Power Consumption < 0.5W

Low Profile Design

EISA Compliant

Networking

Gaming Machines

cUL/UL

Height: 32mm (1.30in)

Weight: 305g (10.76oz)

Ripple

(1)

P-P (max.)

200mV

180mV

350mV

480mV

560mV

Max.

5.0A

3.33A

2.5A

1.25A

1.08A

Regulation

Line & Load

±5%

Efficiency

Level

(1) Measured with a 10uF capacitor and a 0.1uF capacitor at output connector terminal and oscilloscope set at 20MHz.

Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the

most up-to-date specifications and contact information.

Revised 6/18/2015
