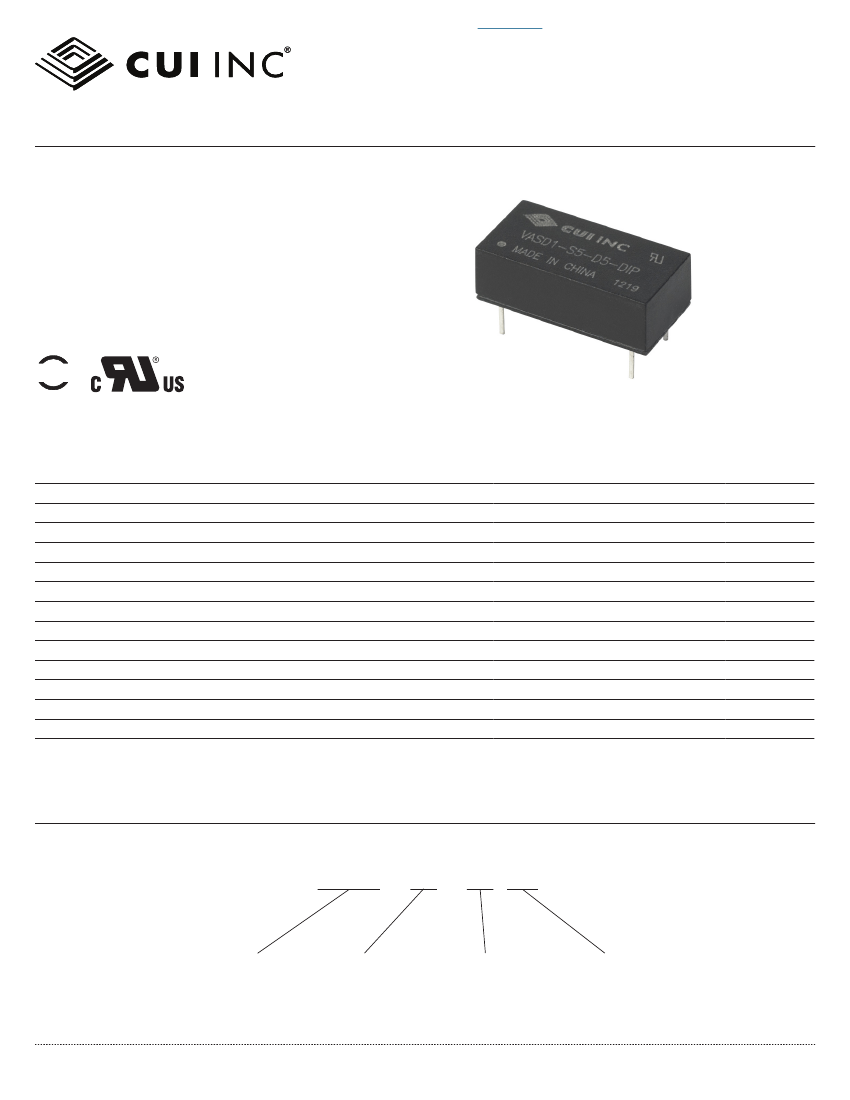

1W, 5/-5V, 100/-100mA, dual unregulated output, isolated DC-DC converter; Output Voltage 2 (Vdc): -5.00000; Output Current 2 (A): 0.10000; Power (W): 1.00000; Input Voltage Range (Vdc): 4.50000, 5.50000; Output Voltage (Vdc): 5.00000; Output Current (A): 0.10000; Number of Outputs: 2; Safety Approvals: UL; Nominal Input Voltage (Vdc): 5
1W, 5/-5V, 100/-100mA, dual unregulated output, isolated DC-DC converter; Output Voltage 2 (Vdc): -5.00000; Output Current 2 (A): 0.10000; Power (W): 1.00000; Input Voltage Range (Vdc): 4.50000, 5.50000; Output Voltage (Vdc): 5.00000; Output Current (A): 0.10000; Number of Outputs: 2; Safety Approvals: UL; Nominal Input Voltage (Vdc): 5
full load at 85°C, 4 hours at no load and 4 hours at full load
ENVIRONMENTAL
parameter
operating temperature
storage temperature
storage humidity
temperature rise
IS
C
lead temperature
D
ED
typ
max
1.2
15
15
15
15
units
%
%
%
%
%
10.5
8.3
6.8
6.3
kHz
%/°C
max
1
units
s
max
units
Vdc
MΩ
hours
max
85
125
95
25
300
units
°C
°C
%
°C
°C
For more information, please visit the
product page.
CUI Inc
│
SERIES:
VASD1-DIP
│
DESCRIPTION:
DC-DC CONVERTER
date
01/13/2014
│
page
3 of 5
DERATING CURVES
1. output power vs. ambient temperature
+10%
2. output voltage vs. output current
Output Voltate (%)
100
80
60
40
20
+5%
Nominal
Voltage
-40
-20
0
20
40
60
85
105 120
N
U
10%
50%
Ambient Temperature (°C)
MECHANICAL
parameter
dimensions
case material
weight
conditions/description
plastic (UL94-V0)
min
20.00 x 7.00 x 10.00 (0.787 x 0.276 x 0.394 inch)
MECHANICAL DRAWING
units: mm [inches]
tolerance: ±0.25 [±0.010]
pin section tolerance: ±0.10 mm [±0.004]
O
N
1
7
9 8
14
11
cui.com
TI
14
1
11
9 8
7
PIN CONNECTIONS
PIN
1
7
8
9
11
14
GND
ND
0V
+Vo
-Vo
Vin
IS
C
D
ED
+2.5%
-2.5%
-7.5%
100%
Load (%)
Output Current (%)
typ
max
units
mm
g
2.1
FUNCTION
For more information, please visit the
product page.
CUI Inc
│
SERIES:
VASD1-DIP
│
DESCRIPTION:
DC-DC CONVERTER
date
01/13/2014
│
page
4 of 5
APPLICATION NOTES
1.
Requirement on Output Load
In order to ensure the product operates efficiently and reliably, make sure the specified range of input voltage is not exceeded and the
minimum output load is not less than 10% load. If the actual load is less than the specified minimum load, the output ripple may
increase sharply while its efficiency and reliability will reduce greatly. If the actual output power is very small, please add an
appropriate resistor as extra loading.
Overload Protection
Under normal operating conditions, the output circuit of these products has no protection against over-current and short-circuits. The
simplest method is to connect a self-recovery fuse in series at the input end or add a circuit breaker to the circuit.
Filtering
In some circuits which are sensitive to noise and ripple, a filtering capacitor may be added to the DC/DC output end and input end to
reduce the noise and ripple. However, the capacitance of the output filter capacitor must be proper. If the capacitance is too big, a
startup problem might arise. For every channel of output, provided the safe and reliable operation is ensured, the greatest
capacitance of its filter capacitor sees the external capacitor table. To get an extremely low ripple, an “LC” filtering network may be
connected to the input and output ends of the DC/DC converter, which may produce a more significant filtering effect. It should also
be noted that the inductance and the frequency of the “LC” filtering network should be staggered with the DC/DC frequency to avoid
mutual interference (Figure 1).
L
L
+Vo
Vin
Cout
Figure 1
0V
Cin
DC DC
L Cout
GND
-Vo
2.
3.
4.
Output Voltage Regulation and Over-voltage Protection Circuit
The simplest device for output voltage regulation, over-voltage and over-current protection is a linear voltage regulator with overheat
protection that is connected to the input or output end in series (Figure 2).
O
N
Figure 2
Vn
i
GND
5.
External Capacitor Table
It is not recommended to connect any external capacitor in the application field with less than 0.5 W output.
Vin
(Vdc)
5
Cin
(µF)
4.7
Vout
(Vdc)
±5
±9
±12
±15
Cout
(µF)
4.7
2.2
1
0.47
IS
C
Note:
Table 1
D
All specifications measured at 25°C, humidity <75%, nominal input voltage, and full load unless otherwise noted.
TI
R EG
REG
DC DC
REG
12
15
24
2.2
2.2
1
cui.com
N
U
+Vout
0V
-Vout
ED
For more information, please visit the
product page.
CUI Inc
│
SERIES:
VASD1-DIP
│
DESCRIPTION:
DC-DC CONVERTER
date
01/13/2014
│
page
5 of 5
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
description
initial release
new template applied
V-Infinity branding removed
updated spec
date
The revision history provided is for informational purposes only and is believed to be accurate.
D
IS
C
O
N
