80-6 datasheet, PDF - EEWORLD Datasheet

80-6: DescriptionPower Transformers Rectifier power Transformer; CategoryPower/power management; File Size277KB，5 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

80-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	80-6	-	-	View	Buy Now

Power Transformers Rectifier power Transformer

Parameter Name	Attribute value
Product Category	Power Transformers
Manufacturer	Bel
RoHS	Details
Product	Power Transformers
Primary Voltage Rating	115 V
Secondary Voltage Rating	80 V CT/40 V CT
Power Rating	480 VA
Secondary Current Rating	6 A/12 A
Mounting Style	Chassis
Primary Winding	Single Primary Winding
Secondary Winding	Dual Secondary Winding
Length	133.4 mm
Width	139.7 mm
Height	111.1 mm
Operating Frequency	50 Hz/60 Hz
Factory Pack Quantity	1
Termination Style	Screw
Type	Conventional Rectifier Power Transformer
Unit Weight	19.004 lbs

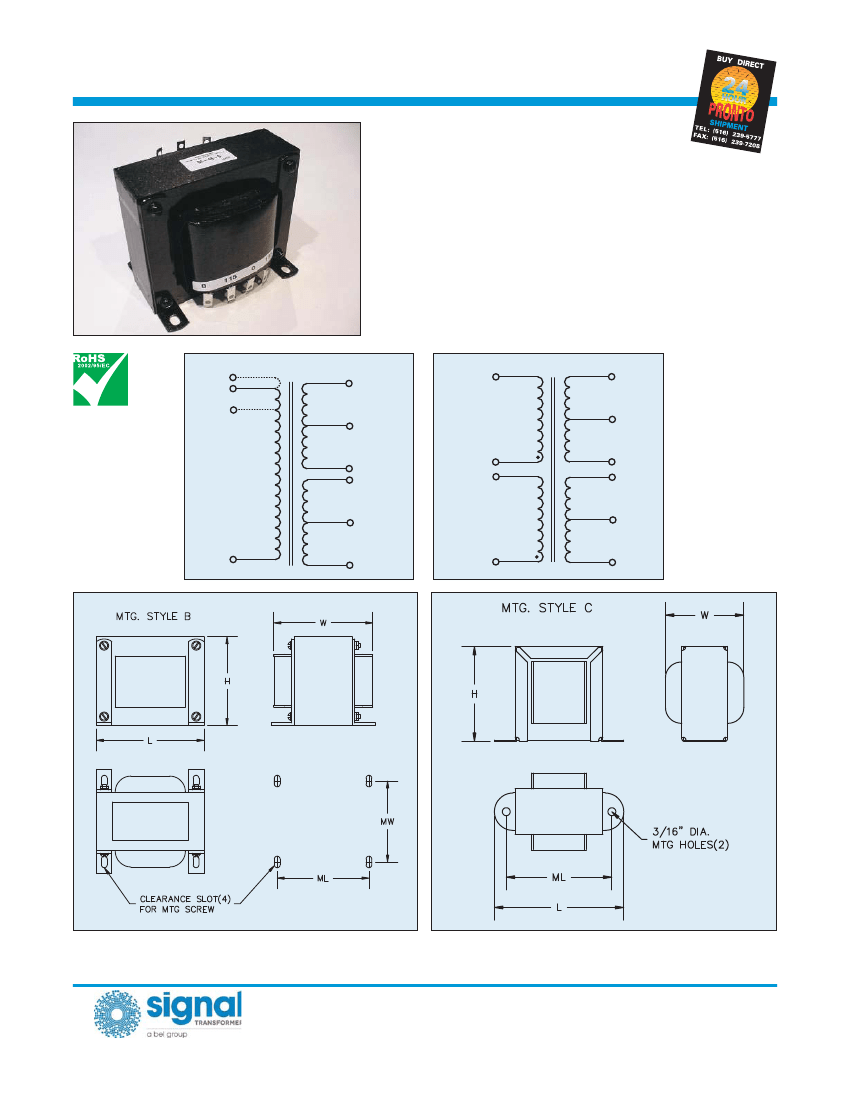

conservatively designed transformers is manufactured using traditional materials and

125

115

SEC 1

105

SEC 2

500 Bayview Avenue, Inwood, NY 11096

Toll Free 866-239-5777

Tel

Fax 516-239-7208

	80-6	128-4	128-12	10-2
Description	Power Transformers Rectifier power Transformer	Power Transformers Rectifier Power Transformer	Analog Switch ICs Dual SPST/SPDT Analog Switch	Power Transformers Rectifier Power Transformer
Product Category	Power Transformers	Power Transformers	Power Transformers	Power Transformers
Manufacturer	Bel	Bel	Bel	Bel
RoHS	Details	Details	Details	Details
Product	Power Transformers	Power Transformers	Power Transformers	Power Transformers
Primary Voltage Rating	115 V	115 V	115 V	115 V
Secondary Voltage Rating	80 V CT/40 V CT	12.8 V CT/6.4 V CT	12.8 V CT/6.4 V CT	10 V CT/5 V CT
Power Rating	480 VA	51.2 VA	153.6 VA	20 VA
Secondary Current Rating	6 A/12 A	4 A/8 A	12 A/24 A	2 A/4 A
Mounting Style	Chassis	Chassis	Chassis	Chassis
Primary Winding	Single Primary Winding	Single Primary Winding	Single Primary Winding	Single Primary Winding
Secondary Winding	Dual Secondary Winding	Dual Secondary Winding	Dual Secondary Winding	Dual Secondary Winding
Length	133.4 mm	76.2 mm	104.8 mm	79.4 mm
Width	139.7 mm	63.5 mm	82.6 mm	53.9 mm
Height	111.1 mm	63.5 mm	87.3 mm	69.9 mm
Operating Frequency	50 Hz/60 Hz	50 Hz/60 Hz	50 Hz/60 Hz	50 Hz/60 Hz
Factory Pack Quantity	1	1	1	1
Termination Style	Screw	Screw	Screw	Screw
Type	Conventional Rectifier Power Transformer	Conventional Rectifier Power Transformer	Conventional Rectifier Power Transformer	Conventional Rectifier Power Transformer
Unit Weight	19.004 lbs	2.800 lbs	2.293 lbs	1.499 lbs
