DTM65PW360C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DTM65PW360C

DTM65PW360C: DescriptionDarlington Transistors TRANSISTOR ARRAYS; CategoryPower/power management; File Size159KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

DTM65PW360C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTM65PW360C	-	-	View	Buy Now

DTM65PW360C Overview

Darlington Transistors TRANSISTOR ARRAYS

DTM65PW360C Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	TDK Corporation
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	65 W
Output Voltage-Channel 1	36 V
Output Current-Channel 1	1.8 A
Commercial/Medical	Commercial, Medical
DC Output Connector	4 Pin DIN
DC Output Cord Length	1.05 m
Efficiency	Level V
AC Plug included/required	Required
Load Regulation	Regulated
Mounting Style	Desktop
Packaging	Bulk
Factory Pack Quantity	1
Unit Weight	1.014 lbs

Preview

Download Datasheet

View All

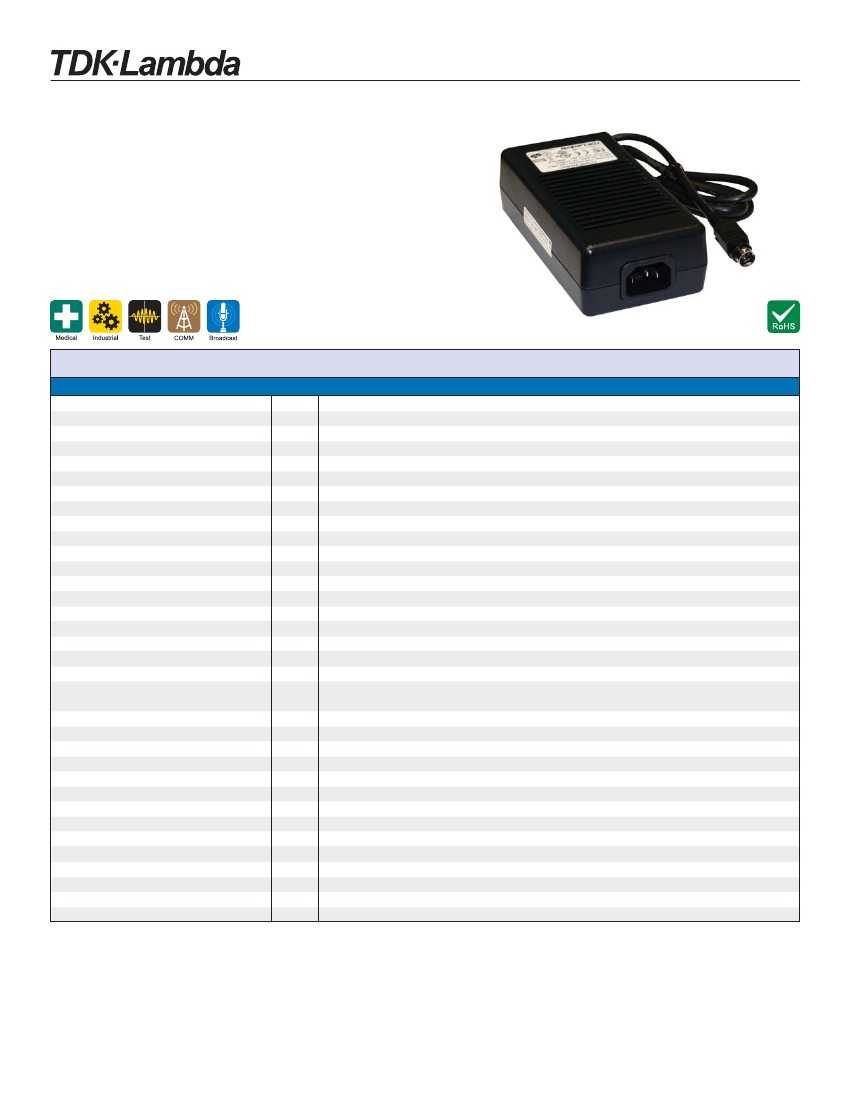

DTM65-C Series

40-65W Medical AC-DC External Power Supplies

Features



CEC, EISA

(1)

& ErP Stage 2 Compliant



Wide Range AC Input



Medical Certiﬁcations



85% Efﬁcient, >87% average (12V models & above)

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

Inrush Current

Input Current

Power Factor

Leakage Current (264VAC 63Hz)

Hold Up Time (Typ)

Temperature Coefﬁcient

Voltage Accuracy

Adjustment Range

Minimum Load

Total Regulation

Ripple & Noise

Short Circuit Protection

Overvoltage Protection

Efﬁciency

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Vibration (non operating)

Shock

Safety Agency Approvals

California Energy Commission (CEC)

EISA

Ofﬂoad Power Consumption

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxLxH)

Cable Length

AC Input Connector

Output Connector

Warranty

VAC

μA

yrs

90 - 264VAC (47 - 63Hz)

<100A at 230VAC input, 25°C ambient cold start

2A at 90VAC, Full Load

Meets EN61000-3-2 Class A

<300uA

16ms at 115VAC input

±0.05%/°C

±1%

None

5V to 15V Models: ±5%, >15V models ±3%

1% or 100mV whichever is the greater

Continuous - hiccup mode

110 - 150% of nominal (Cycle input power to reset)

>87%, average efﬁciency for 12V and greater models, >75% <12V models

0 to +50°C

-10 to +70°C

10 - 90% RH

Convection

Input to Ground 1.5kVAC, Input to Output 4kVAC (Reinforced)

(2 x MOPPS 3rd Edition) (Output is connected to Ground)

23.52m/s

(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)

< 196.1 m/s

(20G)

UL/CSA/IEC/EN 60601-1, ANSI/AAMI ES60601-1, CE Mark

See model selector

< 0.5W

EN55011, EN60601-1-2 Class B

EN55011: 2007 +A2: 2007

460g

2.72 x 5.2 x 1.57

1050mm

IEC 320-C14 (Accepts IEC 320-C13)

Kycon KPPx-4P or equivalent, Pins 1 & 2: -Vout, Pins 3 & 4: +Vout

Two Years

(1) EISA - Energy Independence and Security Act of 2007

1-800-526-2324 • www.us.tdk-lambda.com/lp/

131

Disclaimer: us.tdk-lambda.com/lp/legal.htm
