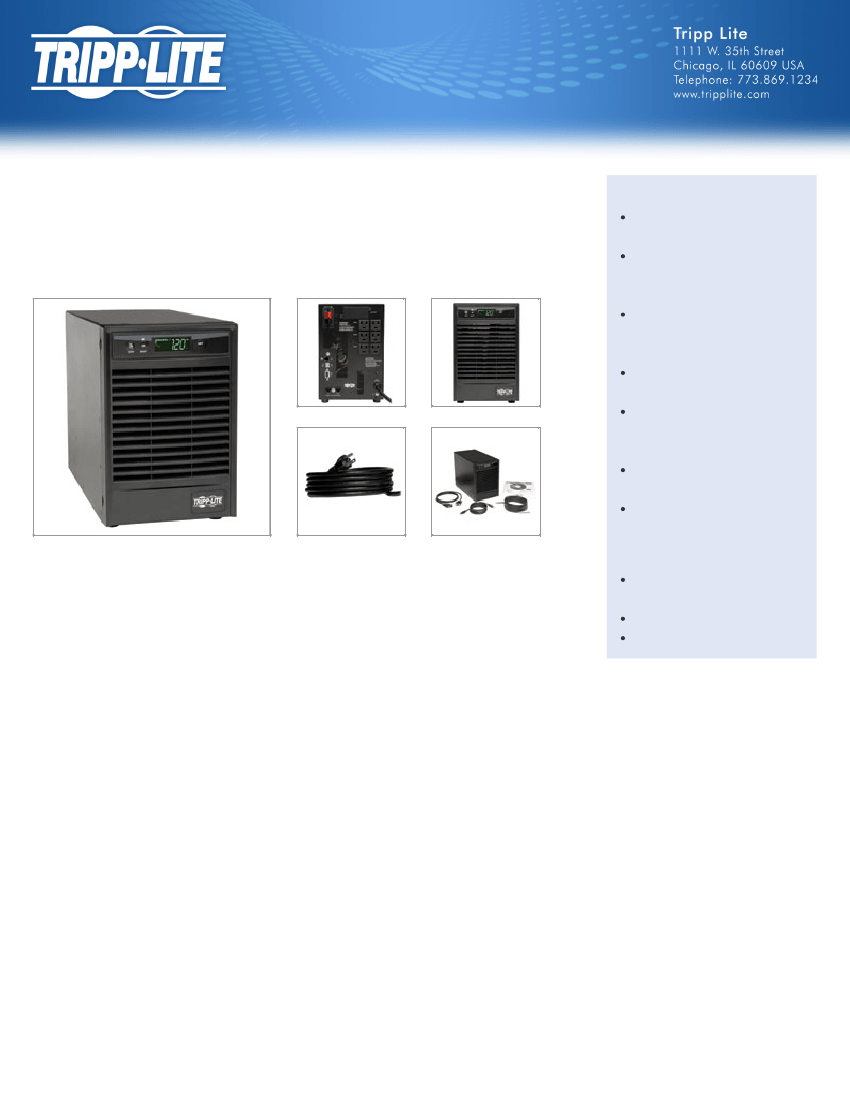

Do you need to protect small- to medium-size servers, networking equipment and telecom systems against data
loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp
Lite’s SU1000XLCD SmartOnline® Tower UPS System is the solution! Featuring a 1000VA/900W capacity and
true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of
Package Includes
SU1000XLCD SmartOnline®
Tower UPS System
USB, DB9 and EPO Cables
Owner’s Manual
power protection for mission-critical equipment. The SU1000XLCD’s large internal battery set supports connected equipment during blackouts, and runtime is
expandable with optional external battery packs (Tripp Lite model
BP24V15RT2U, BP24V28-2U
or
BP24V70-3U),
sold separately. The SU1000XLCD has 6
5-15R outlets, including 2 single-outlet load banks that are individually controllable to reboot select equipment on demand or maximize battery runtime for
mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. PowerAlert
UPS management software is available via free download. It comes backed by$250,000 of Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
Features
Ideal for Protection of Mission-Critical Equipment
The SU1000XLCD provides true on-line operation, reliable battery backup and comprehensive power management capability in a compact tower form factor.
Featuring a 1000VA/900W capacity, 6 5-15R outlets, a 10-ft. cord with standard 5-15P plug, USB/DB9 ports and a slot for an optional network management
accessory card, the SU1000XLCD offers a complete power protection solution for small- to medium-size servers, storage devices, telecom systems and other
mission-critical equipment.
True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
The SU1000XLCD provides the highest level of protection available for mission-critical equipment. It actively converts raw incoming AC power to DC, then
re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems. Zero transfer
time between AC and battery operation maintains continuous output and further protects connected equipment from the disruptive effects of blackouts and
severe low-voltage conditions. Sine wave output guarantees compatibility with all equipment types.
Individually Controllable Outlets
1/6
The SU1000XLCD includes 2 single-outlet load banks that are individually controllable via a software interface for remote reboot of locked-up equipment or
load shedding to maximize battery backup time for mission-critical equipment.
Reliable, Expandable Battery Backup
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system
shutdown in case of a prolonged blackout. The SU1000XLCD features a large internal battery set that provides 12.8 minutes of battery support for a half load
(450 watts) and 3.8 minutes for a full load (900 watts). Intelligent battery management system extends battery life. During normal operation, incoming utility
power keeps the UPS battery fully charged so that backup power will always be available if needed. For mission-critical applications demanding continuous
uptime, the fully scalable SU1000XLCD can provide expandable runtime with optional external battery packs (Tripp Lite model
BP24V15RT2U, BP24V28-2U
or
BP24V70-3U),
sold separately.
High Power Factor and Highly Efficient Operation Reduces BTU Output
The SU1000XLCD features a high 0.9 power factor and an optional, highly efficient economy mode setting that can significantly reduce a facility’s energy
costs. In economy mode, the UPS operates with 96% efficiency, minimizing heat output, reducing cooling requirements and consuming less electricity.
AC Line and Tel/Ethernet Surge Suppression
A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SU1000XLCD features a 570-joule surge
suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/Ethernet (RJ45) jacks provides surge
protection for a standard phone or network connection (cable not included).
EMI/RFI Line Noise Filtering
Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage,
data corruption and audio/video performance problems. The SU1000XLCD incorporates technology that filters out disruptive line noise, preventing it from
affecting your equipment.
LCD Screen and Audible Alarm
The SU1000XLCD features a front-panel LCD screen that enables IT personnel to monitor line power, on-line mode, bypass mode, on-battery, overload,
battery low, replace battery and fault status information. It is supplemented by an audible alarm that signals UPS startup, power failure, low battery, overload,
UPS fault and remote shutdown conditions.
USB/DB9 Ports, Network Management Cards and PowerAlert Software
SU1000XLCD includes HID-compliant USB interface that enables integration with built-in power management and auto shutdown features of Windows and
Mac OS X. USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
www.tripplite.com/poweralert. Compatible with Tripp Lite UPS management card options
TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD
and
RELAYIOCARD.
Emergency Power Off (EPO) Capability
The SU1000XLCD features an EPO interface port that supports emergency shutoff in large facilities (cable included).
Peace of Mind
The SU1000XLCD comes with$250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment.
Specifications
2/6
OUTPUT
Output Volt Amp Capacity (VA)
Output kVA Capacity (kVA)
Output Watt Capacity (Watts)
Output kW Capacity (kW)
1000
1
900
0.9
ON LINE MODE: Maximum output capacity rating is reduced to 810W at 100V nominal; FREQUENCY
REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion
mode (127/120/115/110V 630 watts / 100V 567 watts) OVERLOAD CAPACITY: Supports inverter operation up to
105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds
before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN
(when bypass input voltage or frequency are OUTSIDE bypass limits)
0.9
3:1
100V; 110V; 115V; 120V; 127V
120V default
50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output
matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds
+/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz.
FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency
when input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz.
BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal.
+/- 2%
+/- 10%
+/- 3%
(6) 5-15R
Two switchable single-outlet 5-15R load banks
Pure Sine wave
Pure Sine wave
Output Capacity Details
Power Factor
Crest Factor
Nominal Output Voltage(s)
Supported
Nominal Voltage Details
Frequency Compatibility
Frequency Compatibility Details
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles
Load Management Receptacles
Output AC Waveform (AC Mode)
Output AC Waveform (Battery Mode)
INPUT
Rated input current (Maximum Load)
Nominal Input Voltage(s) Supported
Nominal Input Voltage Description
UPS Input Connection Type
Input Circuit Breakers
UPS Input Cord Length (ft.)
10A
100V AC; 110V AC; 120V AC; 127V AC
120V factory default
5-15P
15A
10
3/6
UPS Input Cord Length (m)
Recommended Electrical Service
Input Phase
3.0
15A 120V
Single-Phase
BATTERY
Full Load Runtime (min.)
Half Load Runtime (min.)
Expandable Battery Runtime
External Battery Pack Compatibility
Expandable Runtime Description
DC System Voltage (VDC)
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Battery Access
Battery Replacement Description
Expandable Runtime
3.8 min. (900w)
12.8 min. (450w)
Extended runtime supported via optional external battery packs
BP24V15RT2U
(limit 1);
BP24V28-2U
(limit 1);
BP24V70-3U
(multi-pack compatible)
External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual
for details
24
Less than 3 hours from 10% to 90% (typical, full load discharge)
RBC24V-LCD
Battery access door
Hot-swappable, user replaceable batteries
Yes
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction
Undervoltage Correction
Online, double-conversion power conditioning
2% output voltage regulation during overvoltages to 150
2% output voltage regulation during undervoltages to 55V (33% load), 70V (70% load), 100V (100% load)
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display
Switches
Alarm Cancel Operation
Audible Alarm
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating
data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
2 switches control off/on power status and alarm-cancel/self-test operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option
