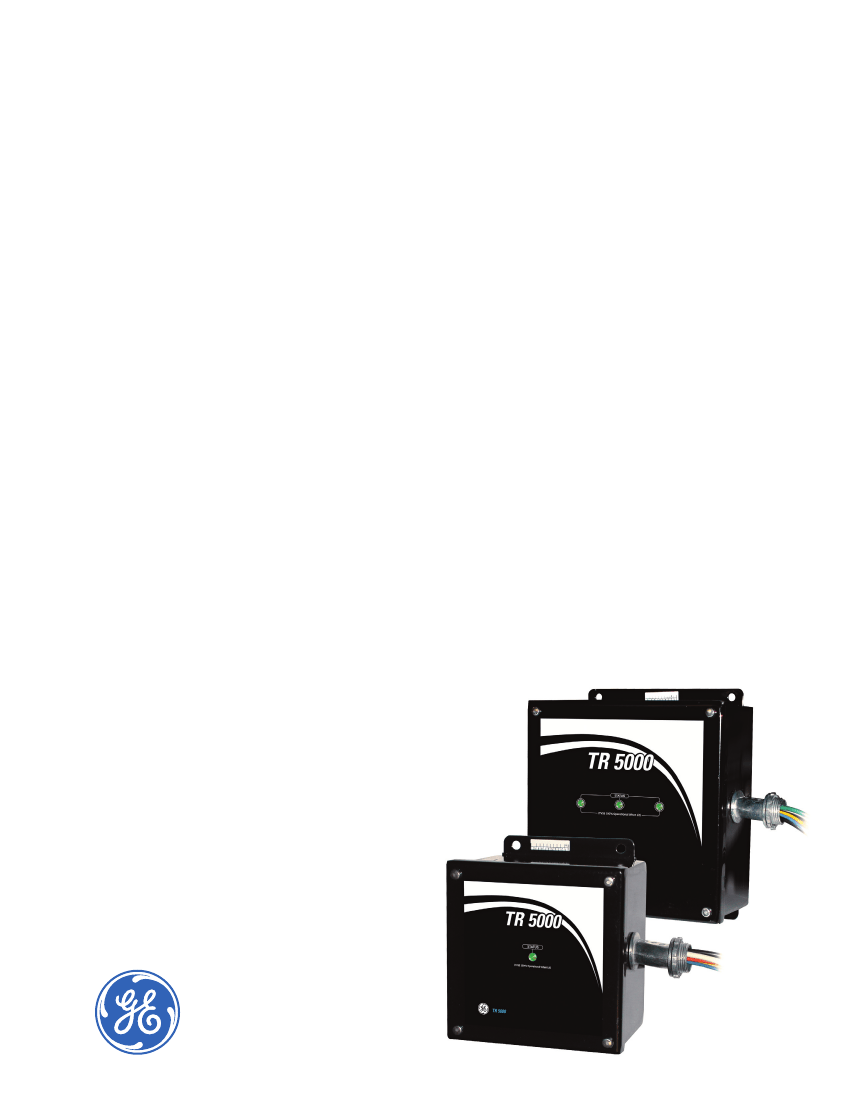

Power Quality
Introduction
Voltage spikes and surges from both external and internal
sources can cause damage to all electronics and
directly affect the performance and life expectancy
of connected equipment. From electronic lighting
ballasts to computer servers, if there is a printed circuit
board inside, it is susceptible to transient voltage
surge damage. As microprocessors and components
that make up this equipment grow smaller and faster
with each new generation, their susceptibility to transient
voltage surge damage becomes ever greater.
The
TR5000
series is ideal for both new and retrofit
commercial and industrial applications where basic
monitoring is required and performance cannot be
compromised. Available in ratings from 25kA - 100kA
per mode, (50kA - 200kA per phase) the
TR5000
series
is the perfect surge suppression product for protecting
your critical sensitive electronic equipment throughout
your facility.
Recommended installation locations are primary and
secondary distribution and point of use levels. Designed
for distribution and point of use locations but rated for
service entrance, the
TR5000
series has been third-
party tested to
ANSI/IEEE C3
(10kA 8 x 20μs) impulses.
The entire
TR5000
line-up has been engineered to the
highest standards and is designed for rigorous duty
and long life as evidenced in our outstanding minimum
repetitive surge current capacity test results.
Features and Benefits
> The
TR5000
provides maximum surge protection
with outstanding clamping characteristics for
medium and low exposure locations through the
use of industrial grade
MOV
architecture.
>
UL
1449 3
rd
Edition, Type 2
> Third-party tested per
IEEE C62.62
and
NEMA LS-1
for the rated 8x20μs surge current, per mode with
fusing included.
> Maximum installation
flexibility
is achieved in the
TR5000
through its high surge suppression ratings to
small footprint size ratio.
> Fast rise-times, high frequency transients and
electrical line noise are reduced with standard
EMI
/
RFI
filtering
technology on 65, 80 and 100kA
per mode products (Not applicable for 25 and 50kA)
> 10 modes of protection (L-N,
L-G, N-G, L-L)
> Green phase protection status
LEDs
>
NO/NC
Form C Dry Contacts for remote monitoring
> Patented thermal fuse technology
> Standard heavy gauge painted steel

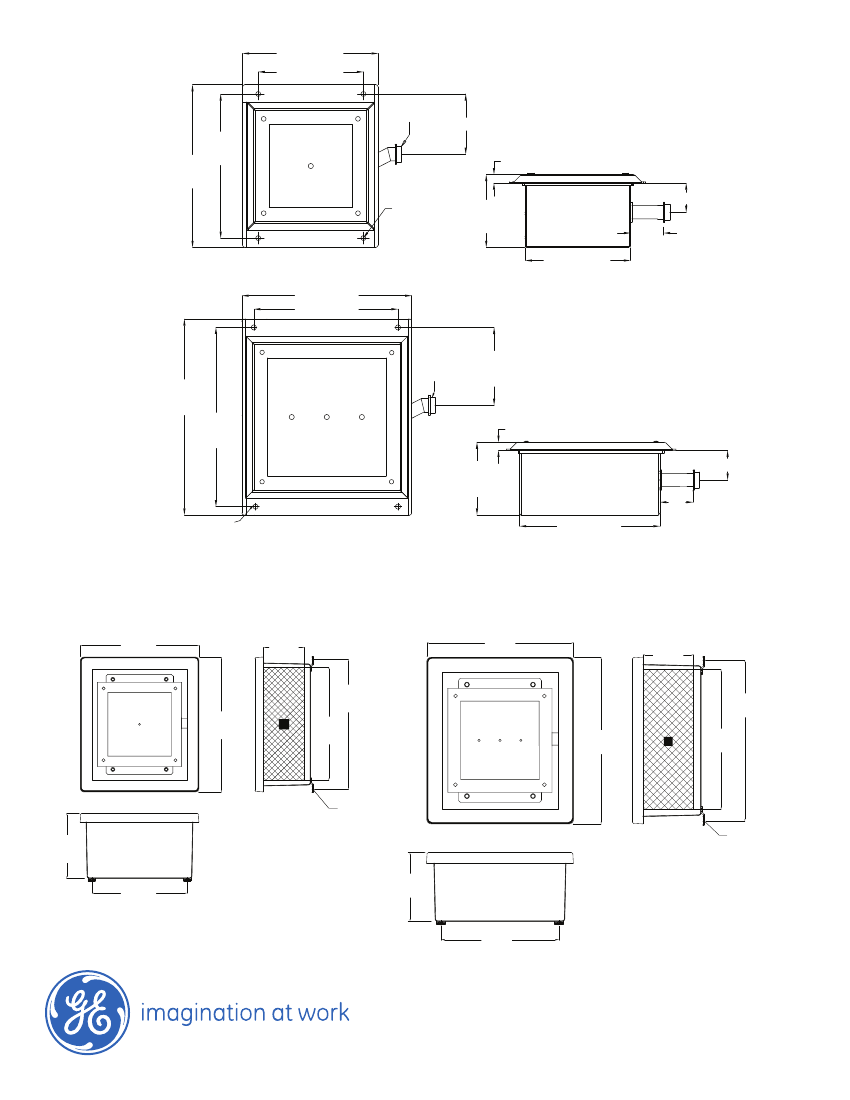

NEMA
12
construction, available in surface or flushmount
> Durable fiberglass construction for
NEMA
4X
> 5 year limited warranty (standard),
10 year limited warranty (optional)
Wallmount
TR5000
Series
Surge Protective Device (SPD)
Standards
> UL 1449 3
rd
Edition, Type 2
> UL 1283,
EMI/RFI
noise
filter
(only 65, 80, 100kA)
> UL 96A, Lightning Protection System
(only 65kA - 100kA models can be used in UL 96A
Lightning Protection Systems)
> ANSI/IEEE C62.41 - ANSI/IEEE C62.45
> IEEE C62.62
> cUL, CSA C22.2
> NEMA LS-1 - 1992 (R2000)
> MIL-STD-220B
> ANSI/NFPA 70 (Article 285)
Applications
> Distribution Equipment
> Branch Panel
> Point of Use
> New Construction and Retrofits
> System Expansions
Technical Specifications
Nominal Discharge Current (In)
25kA - 50kA rated units: 10kA
65kA - 100kA rated units: 20kA
Short Circuit Current Rating (SCCR)
65kA (30A breaker required)
Operating Frequency
50/60 Hz
Connection
10
AWG
Pre-wired Conductors, Parallel Connected
Operating Temperature
-40°
F
to 149°
F
(-40°
C
to +65°
C)
Operating Humidity
NEMA
12
NEMA 4X
Minimum Repetitive Surge Current Capacity
(Per
ANSI/IEEE
C62.62)
The TR5000 Series is capable of surviving the following
impulses, at one-minute intervals, without failure and
with less than 10% change in protective characteristics.
>
5,000
Category C3 impulses 20kV/10kA,
8x20μs for 65-100kA rated devices
>
3,500
Category C3 impulses 20kV/10kA,
8x20μs for 25-50kA rated devices
>
5,000
500V/2kA, 10x1000μs long wave impulses
for 65-100kA rated devices
0% to 95%
Non-Condensing 0% to 100%
Weight
25-50kA
11.7 lbs. (5.31 kg)
65-100kA
19.7 lbs. (8.94 kg)
NEMA
12 Surfacemount Dimensions –
WM Suffix
25, 50kA per mode
7.50
[190.5]
6.25
[158.75]
4.00
[101.6]
4.37
[111.0]
[19.05]
3/4" N.P.T.
2.85
1.55
[72.39]
[39.37]
6.00
[152.4]
6.75
[171.45]
6.25
[158.75]
6.00
[152.4]
65, 80, 100kA per mode
8.75
[222.25]
8.25
[209.55]
[19.05]
3/4" N.P.T.
9.55
[242.57]
4.37
[111.0]
1.55
[39.37]
8.00
[203.2]
NOTE:
All dimensions are for reference only
and are shown in Inches [millimeters]
2.85
[72.39]
8.25
[209.55]
DEA-367
•
Page 2
Catalog #
T R
_ _ _ _ _ _ _ _
WM
_
__
5
__
MCOV
%
Nominal
Voltage
(Volts
RMS)
120S
120Y
220Y
240Y
277Y
240D
480D
240H
120/240
120Y/208
220/380
240/415
277Y/480
240 Delta
480 Delta
120/240 Delta
HL
System
Voltage
Configuration
1 Ph, 3 W + G
3 Ph, 4 W + G
3 Ph, 4 W + G
3 Ph, 4 W + G
3 Ph, 4 W + G
3 Ph, 3 W
3 Ph, 3 W
3 Ph, 4 W + G
Max.
Continuous
Operating
Voltage
Source
Config-
uration
Maximum Surge
Current Capacity
Per Mode Per Phase
025
050
065
080
100
25kA
50kA
65kA
80kA
100kA
50kA
100kA
130kA
160kA
200kA
F
4
Suffix
*
Enclosure
Description
NEMA
Mounting
150V
150V
320V
320V
320V
270V
550V
see
Note
A
B
B
B
B
C
D
E
Painted Steel
Painted Steel
Fiberglass
12
12
4X
Surface
Flush
Surface
* All suffix features are mutually exclusive
Phase Rating = (L-N + L-G)
Note:
150V (L-N/G) Phase A&C; 270V (L-N-G) Phase B
Catalog # example: TR5277Y100WM
— 277Y/480 V, 3 Ph, 4W + G
— 100kA per mode
—
NEMA
12, surface mount
Source Configuration Diagrams
L1
L1
N
L2
L1
L1
L1
N
N
L2
L3
L2
L3
L2
L3
L2
L3
A
B
C
D
E
025, 050kA Protection Ratings
Voltage Code
Protection Mode
UL 1449, 3
rd
Edition
Voltage Protection Ratings (VPR)
(assigned UL rating)
UL 1449, 2
nd
Edition
Suppression Voltage Ratings (SVR)
(assigned UL rating)
*
L-N
600
120S / 120Y
L-G
600
N-G
600
L-L
1000
240D
L-G
900
L-L
1800
L-N
600
HL-N
1200
L-G
600
240H
HL-G
1000
N-G
600
L-L
1000
HL-L
1800
220Y / 240Y / 277Y
L-N
1200
L-G
1000
N-G
1200
L-L
1800
480D
L-G
1800
L-L
4000
500
500
500
—
800
—
500
800
500
800
500
—
—
800
800
800
—
1500
—
065, 080 & 100kA Protection Ratings
Voltage Code
Protection Mode
UL 1449, 3
rd
Edition
Voltage Protection Ratings (VPR)
(assigned UL rating)
UL 1449, 2
nd
Edition
Suppression Voltage Ratings (SVR)
(assigned UL rating)
*
L-N
900
120S / 120Y
L-G
1000
N-G
900
L-L
1500
240D
L-G
1500
L-L
2000
L-N
900
HL-N
1500
L-G
1000
240H
HL-G
1500
N-G
900
L-L
1500
HL-L
2500
220Y / 240Y / 277Y
L-N
1500
L-G
1500
N-G
1500
L-L
2500
480D
L-G
1800
L-L
4000
400
400
400
—
700
—
400
700
400
700
400
—
—
900
800
1500
—
1500
—
*
NOTE
:
SVR Ratings
are no longer assigned by
UL
and are included in the table above for reference purposes only.
Page 3
•
DEA-367
NEMA
12
Flushmount
Dimensions –
WMF Suffix
25, 50kA
per mode
8.22
[208.79]
9.28
[235.72]
7.73 [196.27]
6.00 [152.40]
[19.05]
3/4" N.P.T
3.44 [87.38]
0.49 [12.44]
Ø.281[ 7.14]
HOLES
4 PLCS
4.15
[105.40]
1.55
[39.37]
6.00 [152.40]
1.68 [42.67]
65, 80, 100kA
per mode
9.68 [245.82]
8.22 [208.88]
3/4" N.P.T
[19.05]
11.16
[283.46]
10.22
[259.61]
4.44
[112.81]
.49 [12.44]
4.15
[105.39]
1.55
[39.37]
Ø.281 [ 7.11] HOLES
4 PLCS
8.00 [203.20]
1.68 [42.67]
NEMA
4X Dimensions –
WM4 Suffix
25, 50kA per mode
11.85
[300.99]
4.00
[101.6]
65, 80, 100kA per mode
13.85
[351.79]
4.00
[101.6]
13.19
[335.02]
13.77
[349.75]
15.19
[385.82]
15.73
[399.54]
13.30
[337.8]
A
11.30
[287]
A
Ø 0.4332
[11.00]
6.50
[165.1]
Ø 0.4332
HOLES
[11.00]
4 PLCS
6.50
[165.1]
9.01
[228.85]
NOTE:
All dimensions are for reference only
and are shown in Inches [millimeters]
“A” = Recommended conduit entry areas
Refer to instruction manual for details
11.01
[279.65]
GE
Digital Energy – Power Quality
830
W
40th
Street, Chicago, IL
60609
USA
800 637 1738
www.gepowerquality.com
DEA-367
(12/09)
Information subject to change without notice. Please verify all details with
GE.
©
2009
General Electric Company All Rights Reserved
