SERIES:

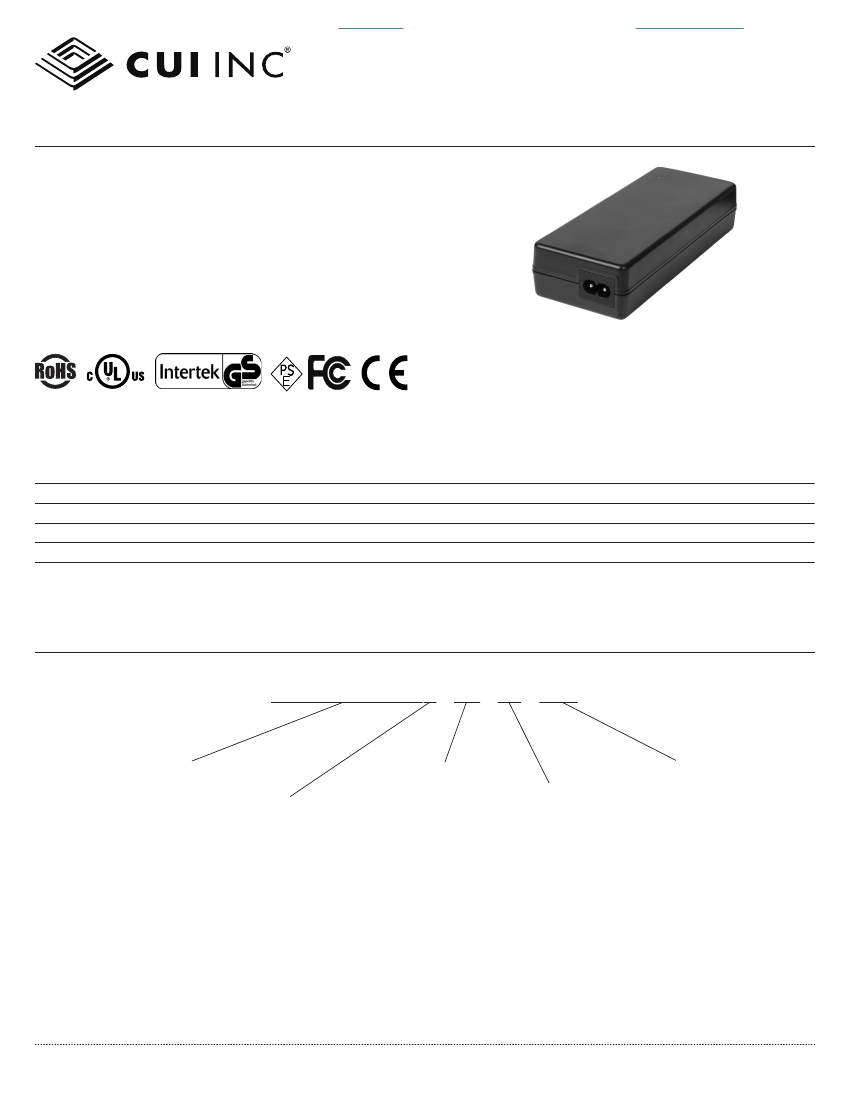

ETSA 90W UD

│

DESCRIPTION:

AC-DC POWER SUPPLY

• 90 W power

• universal input (90~264 Vac)

• single regulated outputs

• over voltage and short circuit protections

• UL/cUL safety approvals

• level V efficiency

• power factor correction

• custom designs available

MODEL

ETSA120750UD

ETSA190474UD

ETSA240375UD

ETSA4801875UD

Notes:

output

voltage

(Vdc)

output

current

max

(A)

output

power

max

(W)

7.5

4.74

3.75

1.875

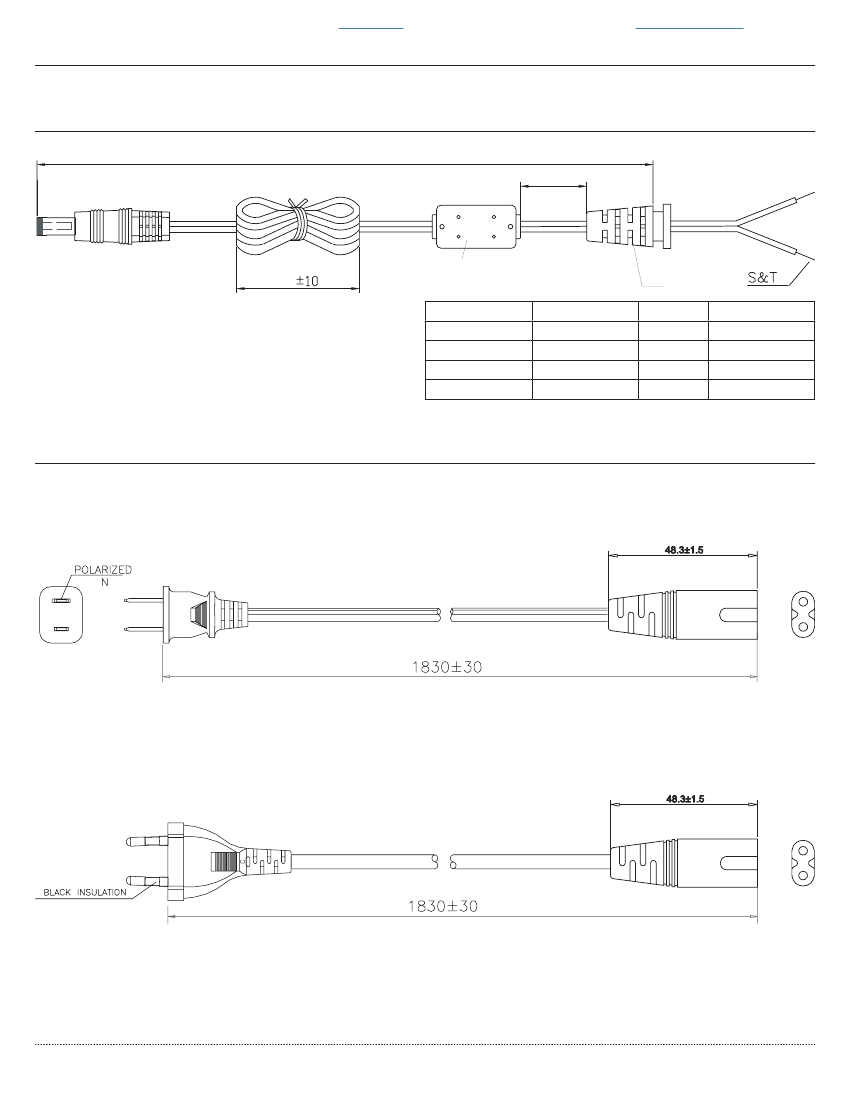

DC Plug Type:

see output plug

options on page 7

cui.com

PART NUMBER KEY

example of 12 Vdc, 7.50 A

Base Number

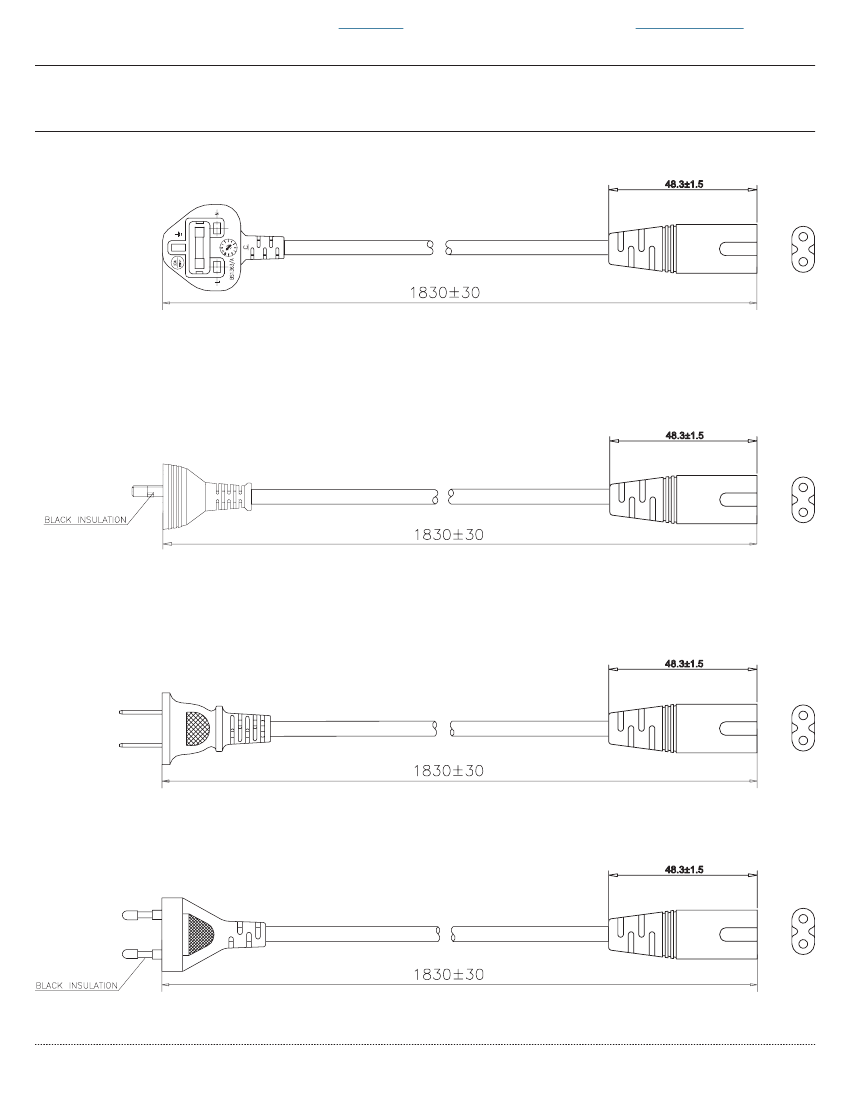

Input Cable:

“Blank” = No Cable

C = North American input cable

2 = European input cable

3 = United Kingdom input cable

4 = Australian input cable

5 = China input cable

6 = South Korea input cable

7 = Brazil input cable

8 = South Africa input cable

9 = Japan input cable

1. Ripple and noise measured with 20 MHz bandwidth oscilloscope, each output terminated with 10 µF aluminum electrolytic and 0.1 µF ceramic capacitors.

ETSA120750UDX

CXX

Reserved for Custom

Configurations

Factory

Designation

ripple

and noise

max

(mVp-p)

FEATURES

efficiency

level

300
