TRH21A090-02E03-Level-VI datasheet, PDF

Datasheet> All Categories > Power/power management> TRH21A090-02E03-Level-VI

TRH21A090-02E03-Level-VI: DescriptionDesktop AC Adapters Desktop/20W/VI 9VDC 2.5mm RA 1800mm; CategoryPower/power management; File Size14MB，2 Pages; ManufacturerCincon

Download Datasheet Parametric Compare View All

TRH21A090-02E03-Level-VI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TRH21A090-02E03-Level-VI	-	-	View	Buy Now

TRH21A090-02E03-Level-VI Overview

Desktop AC Adapters Desktop/20W/VI 9VDC 2.5mm RA 1800mm

TRH21A090-02E03-Level-VI Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	Cincon
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	20.7 W
Output Voltage-Channel 1	9 V
Output Current-Channel 1	2.3 A
Commercial/Medical	Commercial
DC Output Connector	2.5 mm Barrel Plug
DC Output Cord Length	1.8 m
Efficiency	Level VI
AC Plug included/required	Included
Load Regulation	Regulated
Mounting Style	Desktop
Factory Pack Quantity	1

Preview

Download Datasheet

View All

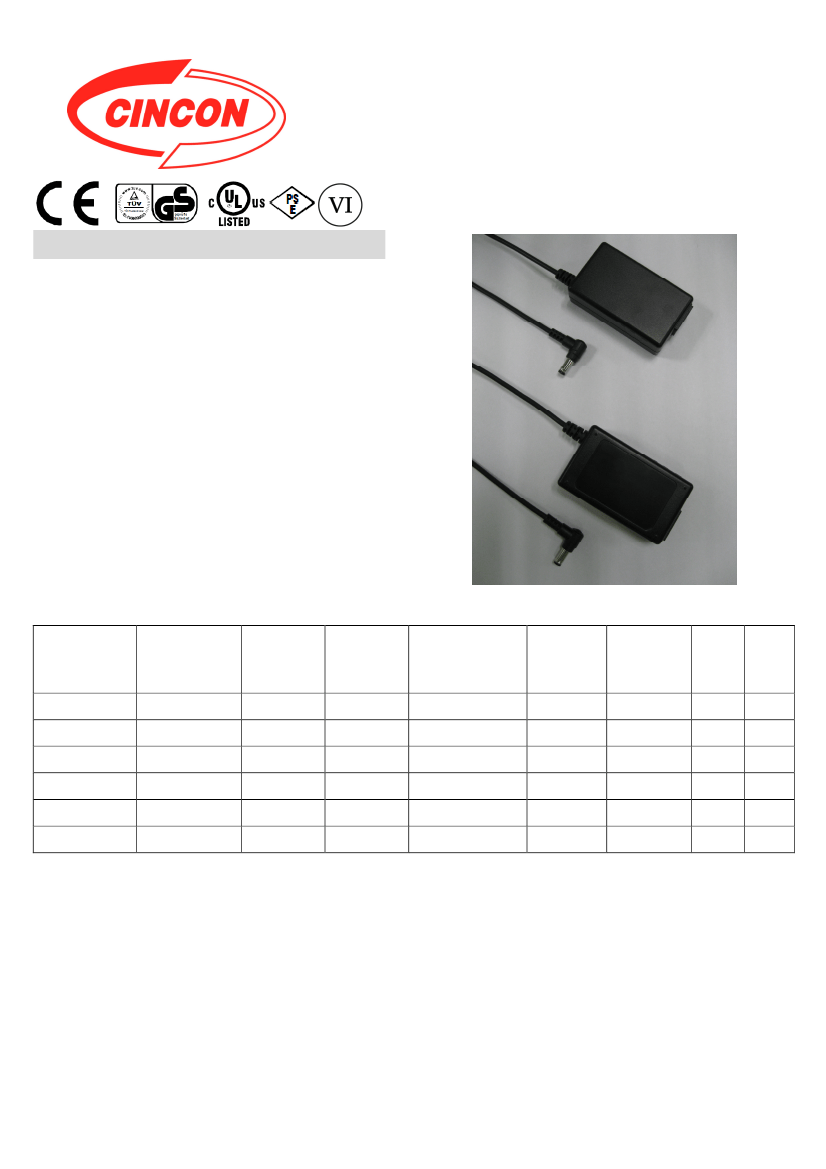

December 1, 2015 V10

︳

Features

* Universal Input Range 90~264VAC

* Efficiency to 87%

* Continuous Short Circuit Protection

* Over Voltage Protection

* No Load Input Power < 0.075W

* Leakage Current < 0.25mA

* IEC60950-1/EN60950-1 ITE Approved

* AC Inlet IEC320/C8

* Meets 2MOOP

Meet DOE Level VI

(Output Cable Length

≦

1800mm 18AWG)

(TRH21A050: Length

≦

1200mm 18AWG)

TRH21A SERIES

20W SWITCHING ADAPTER

Safety pending

MODEL

INPUT

VOLTAGE

OUTPUT

VOLTAGE

OUTPUT

CURRENT

OUTPUT

RATED POWER

RIPPLE &

NOISE

VOLTAGE

ACCURACY

LOAD

REG.

±5%

±4%

±3%

±2%

Eff.

TRH21A050

TRH21A090

TRH21A120

TRH21A150

TRH21A180

TRH21A240

90~264 VAC

5.0 V

9.0 V

12 V

15 V

18 V

24 V

3.0 A

2.3 A

1.8 A

1.4 A

1.2 A

0.9 A

15.0 W

20.7 W

21.6 W

21.0 W

21.6 W

50 mV

90 mV

100 mV

±2%

80%

85%

86%

87%

Specifications are subject to change without notice.
