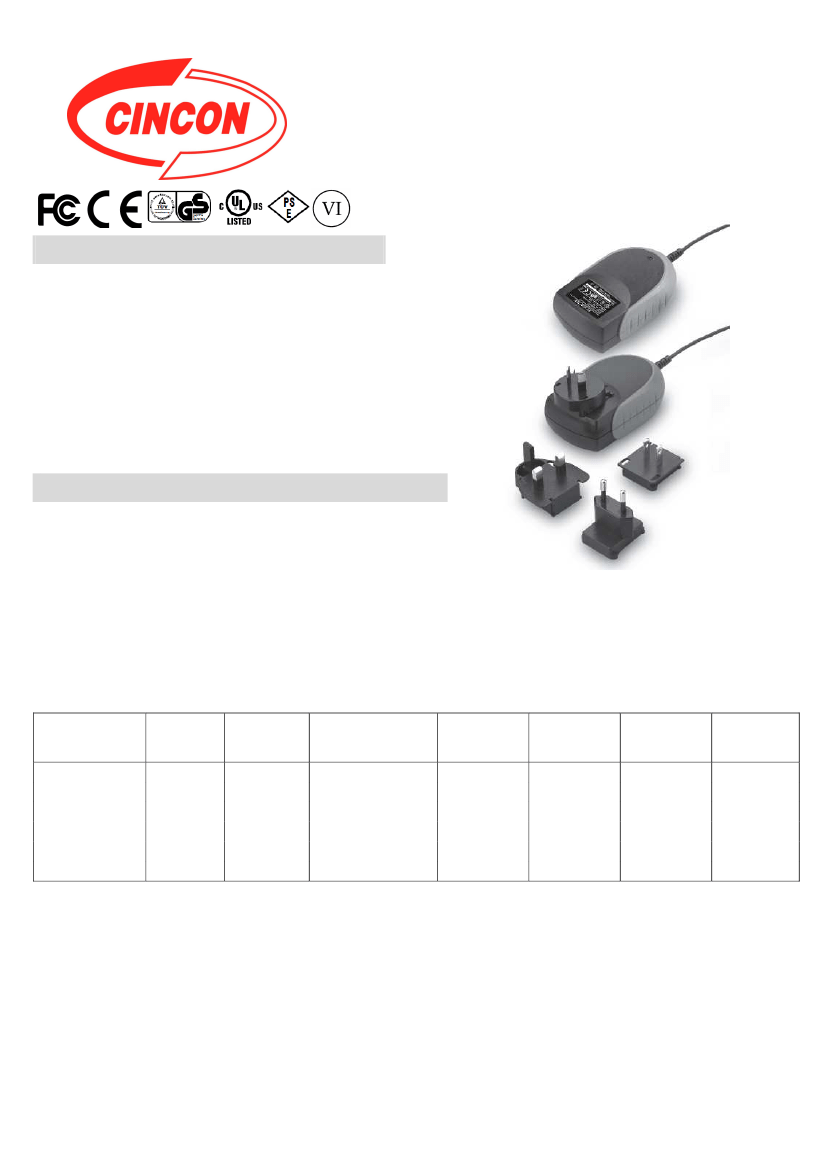

V14
︳
Features
TRG30RA V SERIES
30W SWITCHING
ADAPTER
* Universal Input Range 90~264VAC
* Interchangeable AC Plugs
* Meets EN61204-3 Class B and CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet CoC Tier 2 & DoE Level VI
(Output Cable Length
≦
1800mm)
* No Load Power Consumption<75mW
Ordering information
TRG30RAXXXV
-
XX
DC Plug Type
E
XX
-
XX
-BK
Model No.
DC Cable Length and Type Color of Overmold Case
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185
* 16AWG / UL1185 for Vo: 5V, 9V
BE: Blue
GY: Gray
RD: Red
PE: Purple
OE: Orange
MODEL
TRG30RA050V
TRG30RA090V
TRG30RA120V
TRG30RA150V
TRG30RA180V
TRG30RA240V
OUTPUT
VOLTAGE
5V
9V
12 V
15 V
18 V
24 V
OUTPUT
CURRENT
4.0 A
3.0 A
2.5 A
2.0 A
1.67 A
1.25 A
RIPPLE & NOISE
NOTE 1
50mVp-p
90mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
VOLTAGE
ACCURACY
NOTE 2
±2%
±2%
±2%
±2%
±2%
±2%
LINE
LOAD
REGULATION REGULATION
NOTE 3
NOET 4
±1%
±6%
±1%
±3%
±1%
±2%
±1%
±2%
±1%
±2%
±1%
±2%
% EFF. (Typ.)
NOTE 5
83.69%
87.30%
87.70%
87.70%
87.70%
87.70%
Specifications are subject to change without notice.
1
V14

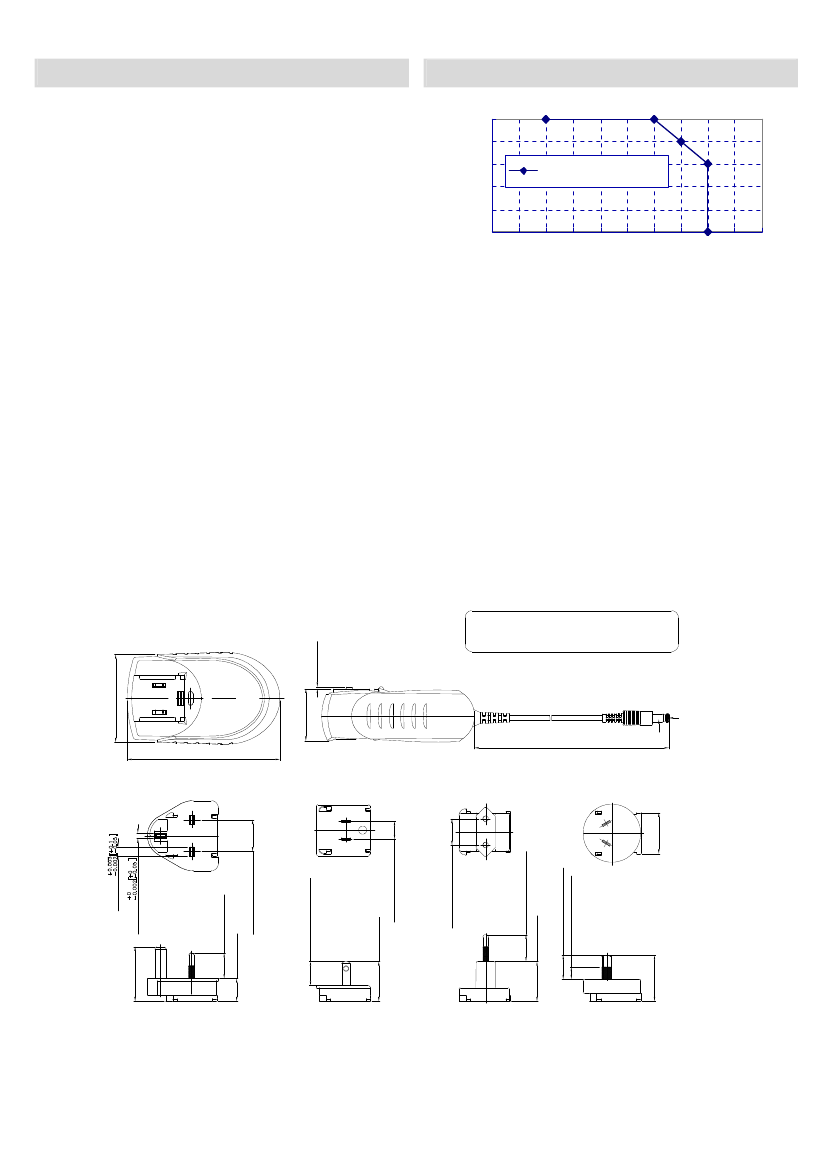

Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…........................................... 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Input Current ………….................................................... 0.8A max.
Inrush Current ……….… Cold start@25℃ ……...... 100A max. @240Vac
Leakage Current …………………………………………….…… 0.25mA max
TRG30RA-V Series Derating Curve
100%
Rated Load(%)
80%
60%
40%
20%
0%
-20 -10
0
10 20 30 40 50 60
Ambient Temperature(
o
C)
70
80
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Hold-up Time …………………………………………… 10ms typ. @115Vac
Short Circuit Protection ………… Hiccup Mode Continuous(Auto Recovery)
Over Voltage Protection ………………............................................... Latch
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
2. Voltage setpoint at 60% full load.
3. Line regulation is measured from 100Vac to 240Vac full load.
4. Load regulation is measured from 60% to full load and from 60% to
20% load (60% +/- 40% load).
5. Average Efficiency measured at 25%,50%,75%,100% load and inpu.
voltage is 115Vac / 230Vac.
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output (4,242VDC)
Operating Temperature ................................ -20 ~ 60℃(see drating curve)
Storage Temperature ……………………………...….......……........ -20~85℃
Humidity …………………...…….......…......... 93% RH max. Non condensing
Cooling ……………………………………….…………….. Natural Convection
Switching Frequency …………………………………………… 70KHz Typical
MTBF …………..… MIL-HDBK-217F, GB, 25℃/115VAC …… 200Khrs min.
Altitude …………………………………………………………………… 5000m
Dimensions …….….. 4.278x2.440x1.445 inches (108.67x61.98x36.70mm)
Weight ………………………………………………….…… 300g(0.66 Pounds)
SAFETY AND EMC:
Emission and Immunity ……….. EN61204-3, EN 61000-3-2, EN 61000-3-3
FCC CFR Title 47 Part 15 Subpart B
Safety ……………………… Class II, IEC60950-1, UL60950-1, EN60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
0.055[1.40]
DC Plug type: V+ ─●)─ V-
DC Plug :Straight(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
2.440[61.98]
1.445[36.70]
+
-
70.866[1800.00]±1.969[50.00]
4.278[108.67]
TR30RAM/TR15RA-A
0.492[12.50]±0.002[0.05]
0.727[18.47]±0.002[0.05]
0.874[22.20]±0.005[0.13]
0.748[19.00]±0.019[0.50]
0.669[17.00]±0.027[0.70]
1.515[38.50]
0.639[16.00]
1.102[28.00]
1.102[28.00]
0.665[16.90]±0.0118[0.30]
0.343[8.70]±0.019[0.50]
0.248[6.30]
0.712[18.10]Max
0.157[4.00]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
1.275[32.40]
1.137[28.90]
