VAWQ3-Q48-D5H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> VAWQ3-Q48-D5H

VAWQ3-Q48-D5H: DescriptionIsolated DC/DC Converters dc-dc isolated, 3W, 18 72Vdc input, 5Vdc, 300mA, dual output, DIP, 3kVdcisolation; Categorysemiconductor Power management; File Size262KB，4 Pages; ManufacturerCUI; Websitehttp://www.cui.com

Download Datasheet Parametric Compare View All

VAWQ3-Q48-D5H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VAWQ3-Q48-D5H	-	-	View	Buy Now

VAWQ3-Q48-D5H Overview

Isolated DC/DC Converters dc-dc isolated, 3W, 18 72Vdc input, 5Vdc, 300mA, dual output, DIP, 3kVdcisolation

VAWQ3-Q48-D5H Parametric

Parameter Name	Attribute value
Product Category	Isolated DC/DC Converters
Manufacturer	CUI
Number of Outputs	2 Output
Output Power	3 W
Mounting Style	Through Hole
Length	31.8 mm
Width	20.3 mm
Height	10.2 mm
Commercial/Medical	Commercial
Factory Pack Quantity	10
Unit Weight	0.440925 oz

Preview

Download Datasheet

View All

For more information, please visit the

product page.

date

page

03/12/2013

1 of 4

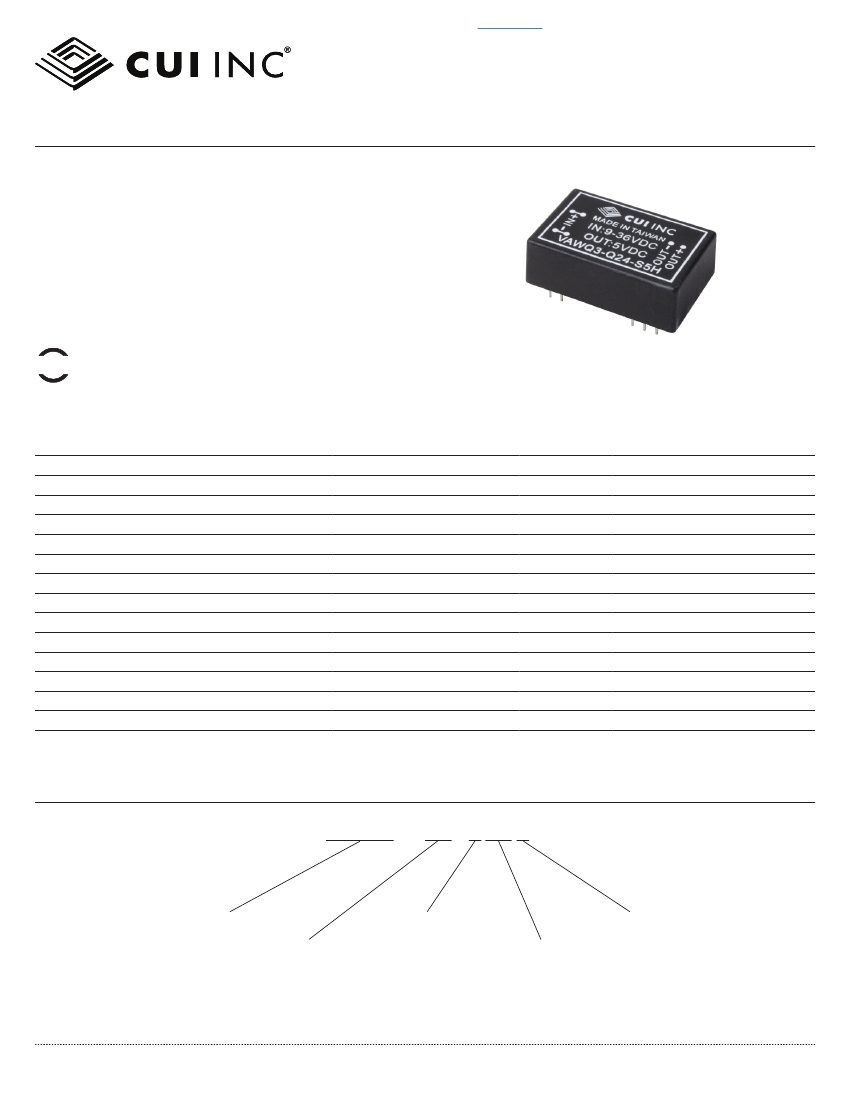

SERIES:

VAWQ3

│

DESCRIPTION:

DC-DC CONVERTER

FEATURES

• up to 3 W isolated output

• wide input (4:1)

• industry standard 24 pin DIP package style

• single and dual regulated outputs

• 3,000 V isolation (H version)

• short circuit protection

• wide temperature (-25~71°C)

• efficiency up to 77%

RoHS

MODEL

VAWQ3-Q24-S3R3

VAWQ3-Q24-S5

VAWQ3-Q24-S12

VAWQ3-Q24-S15

VAWQ3-Q24-D5

VAWQ3-Q24-D12

VAWQ3-Q24-D15

VAWQ3-Q48-S3R3

VAWQ3-Q48-S5

VAWQ3-Q48-S12

VAWQ3-Q48-S15

VAWQ3-Q48-D5

VAWQ3-Q48-D12

VAWQ3-Q48-D15

input

voltage

range

(Vdc)

output

voltage

(Vdc)

output

current

max

(mA)

output

power

max

(W)

ripple

and noise

max

(mVp-p)

efficiency

typ

(%)

9~36

18~72

3.3

±5

±12

±15

3.3

±5

±12

±15

600

250

200

±300

±125

±100

600

250

200

±300

±125

±100

100

120

150

100

120

150

PART NUMBER KEY

VAWQ3 - QXX -

X XX

Base Number

Input Voltage

Output:

S = single

D = dual

Output Voltage

Isolation Voltage:

H = 3,000 Vdc

cui.com
