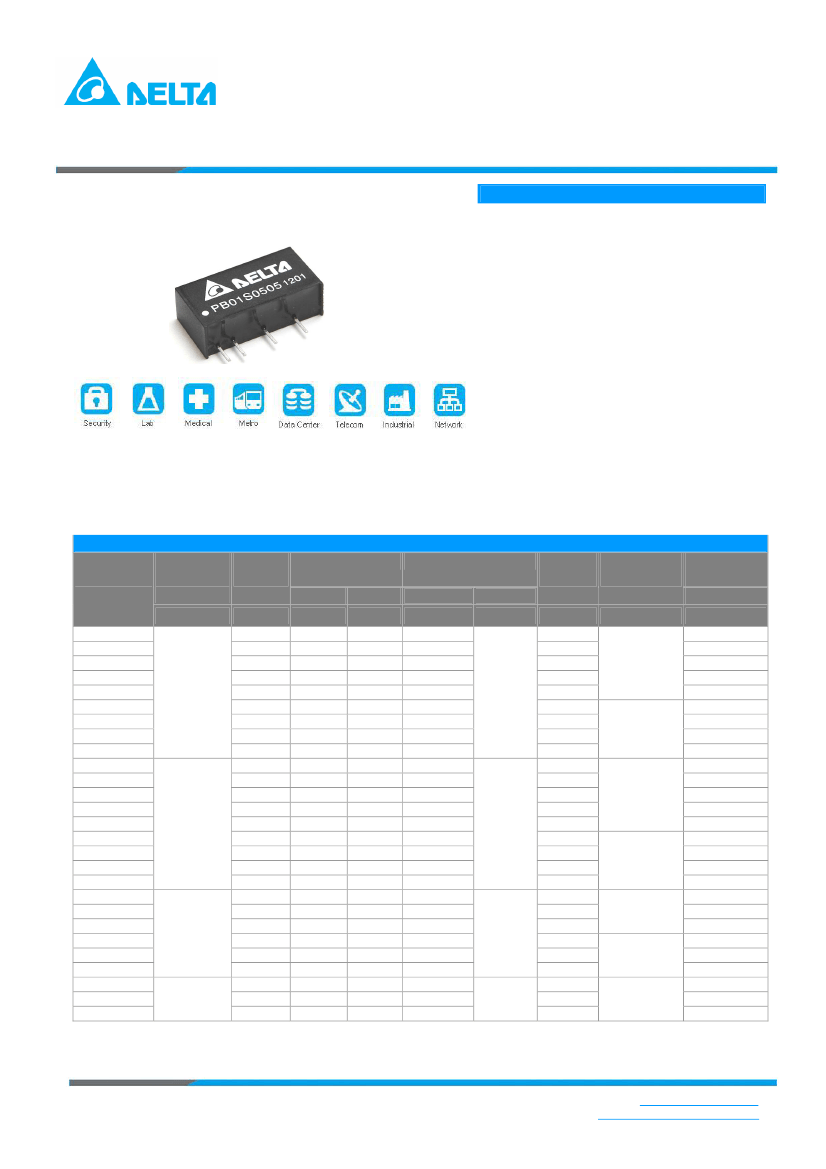

PB01S/D series
1W DC/DC CONVERTER, SIP-Package
FEATURES
Efficiency up to 81%
SIP Package with Industry Standard Pinout
Package Dimension:
5V&12V Models:
19.5 x 10.2 x 6.1 mm (0.77”x 0.4”x 0.24”)
15V&24V Models
19.5 x 10.2 x 7.1 mm (0.77”x 0.4”x 0.28”)
Isolation Voltage 1000 VDC
OperatingTemp. Range -40°C to +85°C
Lead free , RoSH Compliant
Single and Dual Outputs
>2 MHours MTBF
3 Years Product Warranty
The PB01S/D seriesare miniature, SIP Package, isolated 1W DC/DC converters with 1,000VDC isolation. It offers single and dual
output models, short circuit protection ,and allows a wide operating temperature range of –40°C to +85°C. These isolated DC/DC
converters are the latest offering from a world leader in power systems technology and manufacturing
―
Delta Electronics, Inc
Model List
Model
Number
Input
Voltage
(Range)
VDC
PB01S0503A
PB01S0505A
PB01S0509A
PB01S0512A
PB01S0515A
PB01D0505A
PB01D0509A
PB01D0512A
PB01D0515A
PB01S1203A
PB01S1205A
PB01S1209A
PB01S1212A
PB01S1215A
PB01D1205A
PB01D1209A
PB01D1212A
PB01D1215A
PB01S1505A
PB01S1512A
PB01S1515A
PB01D1505A
PB01D1512A
PB01D1515A
PB01S2403A
PB01S2405A
PB01S2409A
Output
Voltage
VDC
3.3
5
9
12
15
±5
±9
±12
±15
3.3
5
9
12
15
±5
±9
±12
±15
5
12
15
±5
±12
±15
3.3
5
9
Output Current
Max.
mA
260
200
110
84
67
±100
±56
±42
±34
260
200
110
84
67
±100
±56
±42
±34
200
84
67
±100
±42
±34
260
200
110
Min.
mA
5
4
2
1.5
1
±2
±1
±0.8
±0.7
5
4
2
1.5
1
±2
±1
±0.8
±0.7
4
1.5
1
±2
±0.8
±0.7
5
4
2
Input Current
@Max. Load @No Load
mA(typ.)
235
281
260
258
258
278
262
258
258
96
114
106
105
104
113
106
104
105
93
85
85
93
85
85
49
59
54
mA(typ.)
% (max.)
10
10
8
7
7
10
8
7
7
8
8
5
5
5
8
5
5
5
8
5
5
8
5
5
8
8
5
uF
Load
Maxcapacitive
Regulation
Load
Efficiency
(typ.)
@Max. Load
%
73
71
76
78
78
72
77
78
79
74
73
78
80
80
74
79
81
81
72
79
79
72
80
80
73
71
76
5
(4.5 ~ 5.5)
220
30
100*
220
12
(10.8 ~ 13.2)
12
100*
220
15
(13.5 ~ 16.5)
11
100*
24
(21.6 ~ 26.4)
7
220
DS_PB01S/D_08232012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P1
Model List
Model
Number
Input
Voltage
(Range)
VDC
PB01S2412A
PB01S2415A
PB01D2405A
PB01D2409A
PB01D2412A
PB01D2415A
Output
Voltage
VDC
12
15
±5
±9
±12
±15
Output Current
Max.
mA
84
67
±100
±56
±42
±34
Min.
mA
1.5
1
±2
±1
±0.8
±0.7
Input Current
@Max. Load @No Load
mA(typ.)
54
53
58
55
53
53
mA(typ.)
% (max.)
5
5
8
5
5
5
uF
Load
Maxcapacitive
Regulation
Load
Efficiency
(typ.)
@Max. Load
%
78
79
72
76
79
80
* For each output
24
(21.6 ~ 26.4)
7
100*
DS_PB01S/D_08232012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P2
Input Characteristics
Parameter
Model
5V Input Models
12V Input Models
15V Input Models
24V Input Models
5V Input Models
12V Input Models
15V Input Models
24V Input Models
All Models
---
Min.
4.5
10.8
13.5
21.6
-0.7
-0.7
-0.7
-0.7
---
Typ.
Max.
5
5.5
12
13.2
15
16.5
24
26.4
---
9
---
18
---
18
---
30
---
0.3
Internal Capacitor
---
450
Unit
Input Voltage Range
VDC
Input Surge Voltage (1 sec. max.)
Reverse Polarity Input Current
Input Filter
Internal Power Dissipation
A
mW
Output Characteristics
Parameter
Output Voltage Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Temperature Coefficient
Short Circuit Protection
Conditions
Dual Output, Balanced Loads
For Vin Change of 1%
Io=20% to 100%
Over Line, Load & Temp.
Min.
---
---
---
---
---
---
---
Typ.
Max.
±1.0
±3.0
±0.1
±1.0
±1.2
±1.5
See Model Selection Guide
50
75
---
150
---
15
±0.01
±0.02
0.5 Second Max.
Unit
%
%
%
mV
P-P
mV
P-P
mV rms
%/℃
General Characteristics
Parameter
I/O Isolation Voltage (rated)
I/O Isolation Resistance
I/O Isolation Capacitance
Switching Frequency
MTBF (calculated)
MIL-HDBK-217F@25℃, Ground Benign
Conditions
60 Seconds
500 VDC
100KHz, 1V
Min.
1000
1000
---
70
2,000,000
Typ.
---
---
60
100
---
Max.
---
---
100
120
---
Unit
VDC
MΩ
pF
KHz
Hours
Recommended Input Fuse
5V Input Models
500mA Slow-Blow Type
12V Input Models
200mA Slow-Blow Type
15V Input Models
150mA Slow-Blow Type
24V Input Models
100mA Slow-Blow Type
Environmental Specifications
Parameter
Operating Temperature Range (with Derating)
Case Temperature
Storage Temperature Range
Humidity (non condensing)
Cooling
Lead Temperature (1.5mm from case for 10Sec.)
Conditions
Ambient
Min.
-40
---
-50
---
Free-Air convection
---
260
℃
Max.
+85
+90
+125
95
Unit
℃
℃
℃
% rel. H
DS_PB01S/D_08232012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P3

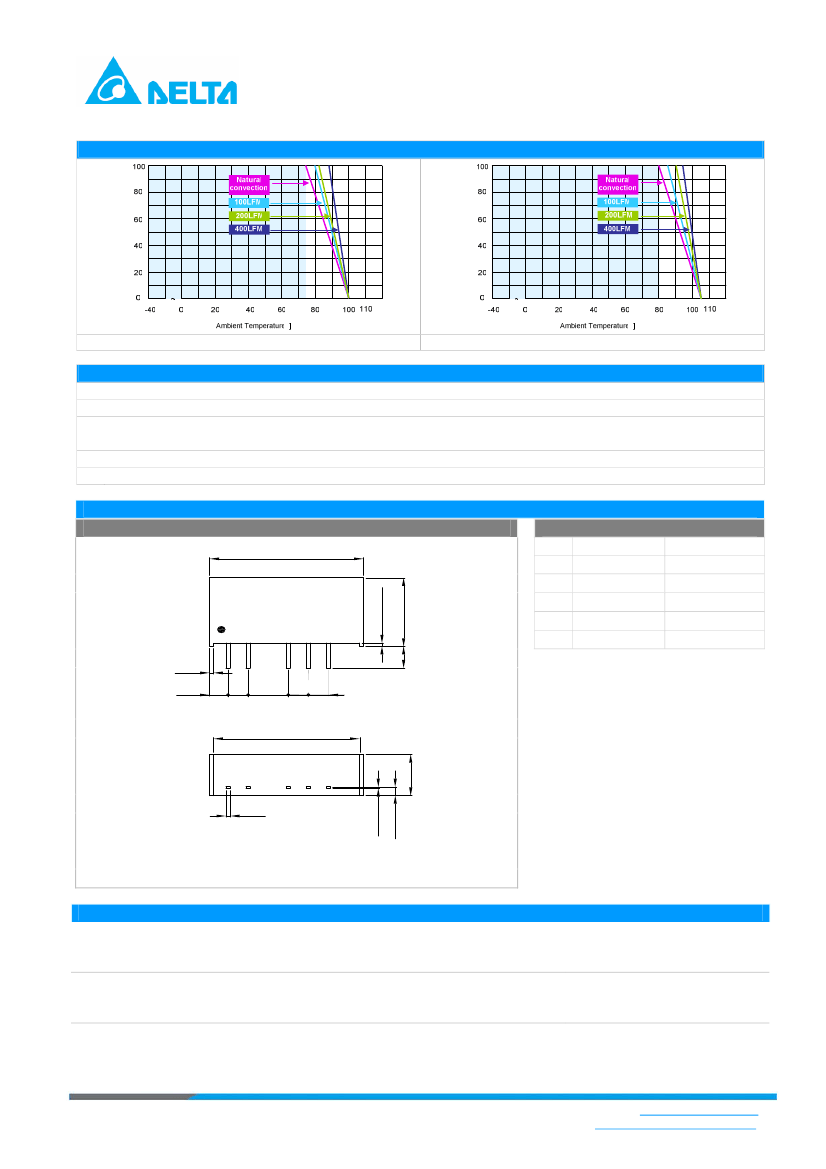

Power Derating Curve
Output Power (%)
(3.3V, 5V & ±5V}
Output Power (%)
(all other output)
Notes
1
2
3
4
5
Specifications typical at Ta=+25℃, resistive load, nominal input voltage and rated output current unless otherwise noted.
Ripple & Noise measurement bandwidth is 0-20MHz.
These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will
not damage these modules; however they may not meet all specifications listed.
All DC/DC converters should be externally fused at the front end for protection.
Specifications subject to change without notice.
Mechanical Drawing
Mechanical Dimensions
19.5 [0.77]
Pin Connections
Pin
1
0.5 [0.02]
Single Output
+Vin
-Vin
-Vout
No Pin
+Vout
Dual Output
+Vin
-Vin
-Vout
Common
+Vout
2
10.2 [0.40]
4
5
6
[0.13]
0.5
[0.02 ]
2 .35
[0 .09]
3.2
2.5 4
5.08
2X 2.54
[2X 0.10]
[0.10] [0.20]
5V&12V Input:
T: 6.1mm(0.24 inch)
15V&24V Input:
T: 7.1mm(0.28 inch) for Models
►All
dimensions in mm (inches)
►Tolerance:
X.X±0.25 (X.XX±0.01)
0.25 [0.01]
1.3 [0.05]
18.5 [0.73]
B o tto m View
1
2
4
5
6
T
0.50
[0.02]
X.XX±0.13 ( X.XXX±0.005)
►Pins
±0.05 (±0.002)
Physical Outline
Case Size (5V&12V Input)
Case Size
(15V&24V Input)
Case Material
:
Weight (5V&12V Input)
Weight (15V&24V Input)
:
:
2.2g
2.6g
:
:
19.5x6.1x10.2mm (0.77x0.24x0.40 Inches)
19.5x7.1x10.2mm (0.77x0.28x0.40 Inches)
Non-Conductive Black Plastic
(flammability to UL 94V-0 rated)
DS_PB01S/D_08232012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P4
Part Numbering System
P
Form factor
D-DIP
P-SIP
S-SMD
B
Family series
A~Z
01
Watt
01:1W
02:2W
03:3W
04:4W
06:6W
S
Number of
Outputs
S - Single
D- Dual
05
Input Voltage
03:3.3V
05: 5V
12:12V
24: 24V
48:48V
05
Output Voltage
03:3.3V
05: 5V
12:12V
15: 15V
24: 24V
A
Option Code
A - Std. Functions
WARRANTY
Delta offers a three(3) years limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
