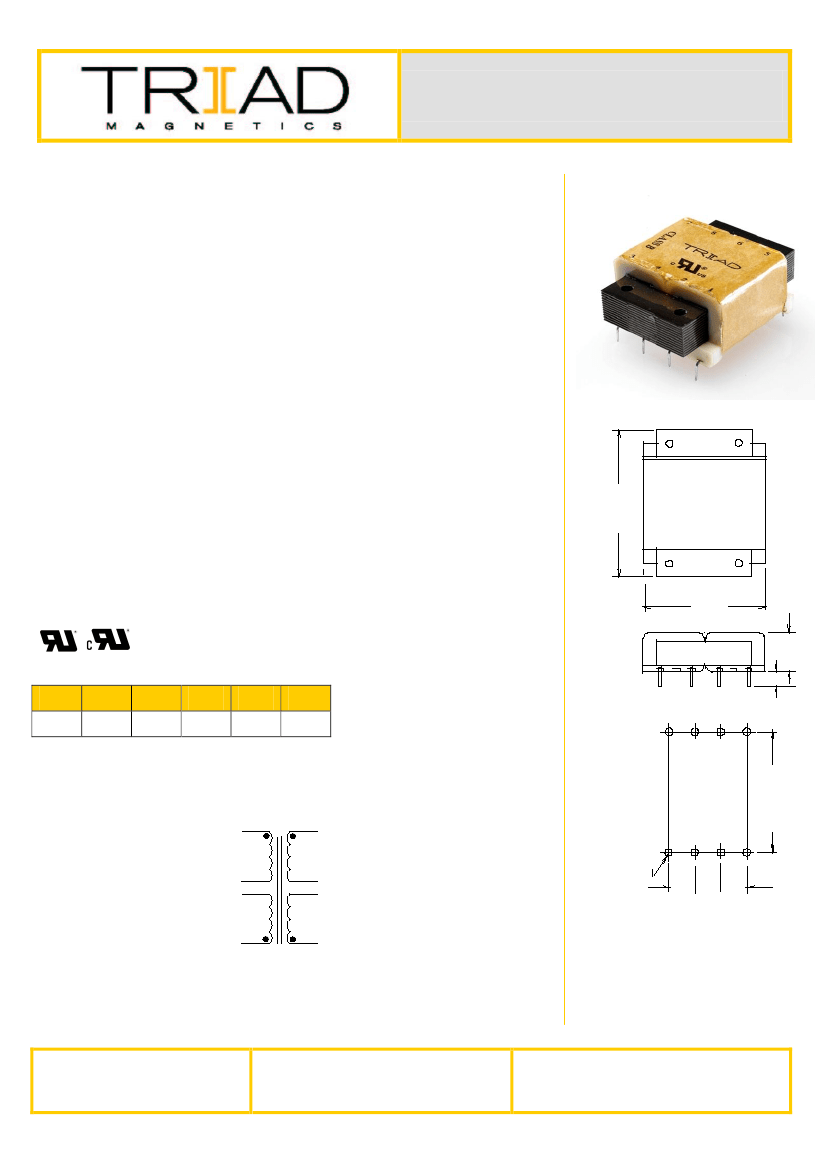

Power Transformer
PC Mount: Flat Pack
™
FP16-150
Electrical Specifications (@25C)
1. Maximum Power: 2.5 VA
2. Primary Voltage:
Series: 230V@50/60 Hz
Parallel: 115V@50/60Hz
3. Secondary:
Series:
16.0VCT @ 0.15 Amps
Parallel: 8.0V @ 0.3 Amps
Description:
The FP16-150 is part of a series which has a long history of reliable service in the
field, made from a proven design and constructed with UL recognized materials.
Construction:
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B
(130º C) rated.
7
8
6
5
Safety:
These products are 100% hipot tested with an insulation of 2000V between
primary and secondary windings and 1500V between the primary / secondary
windings and the core.
A
3
4
2
1
Agency File:
UL: File E53148, UL 506, Class B General Purpose Transformer,
cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
B
C
Dimensions:
A
1.875
B
1.562
C
0.650
D
0.267
E
0.375
F
1.600
D
Units: In inches
Weight: 5.0 oz
Pin Dimension: .020 x .041 in
F
1
5
Schematic:
115V 50/60Hz
2
4
8Vrms @ 0.15Arms
.060 DIA HOLES
6
8
E
E
E
115V 50/60Hz
3
8Vrms @ 0.15Arms
7
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet
the requirements of 2011/65/EU, known as the RoHS initiative.
*Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics
website for the most current version.
For soldering and washing information please see
http://www.triadmagnetics.com/faq.html
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: June 6, 2016
