3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMCC SOL

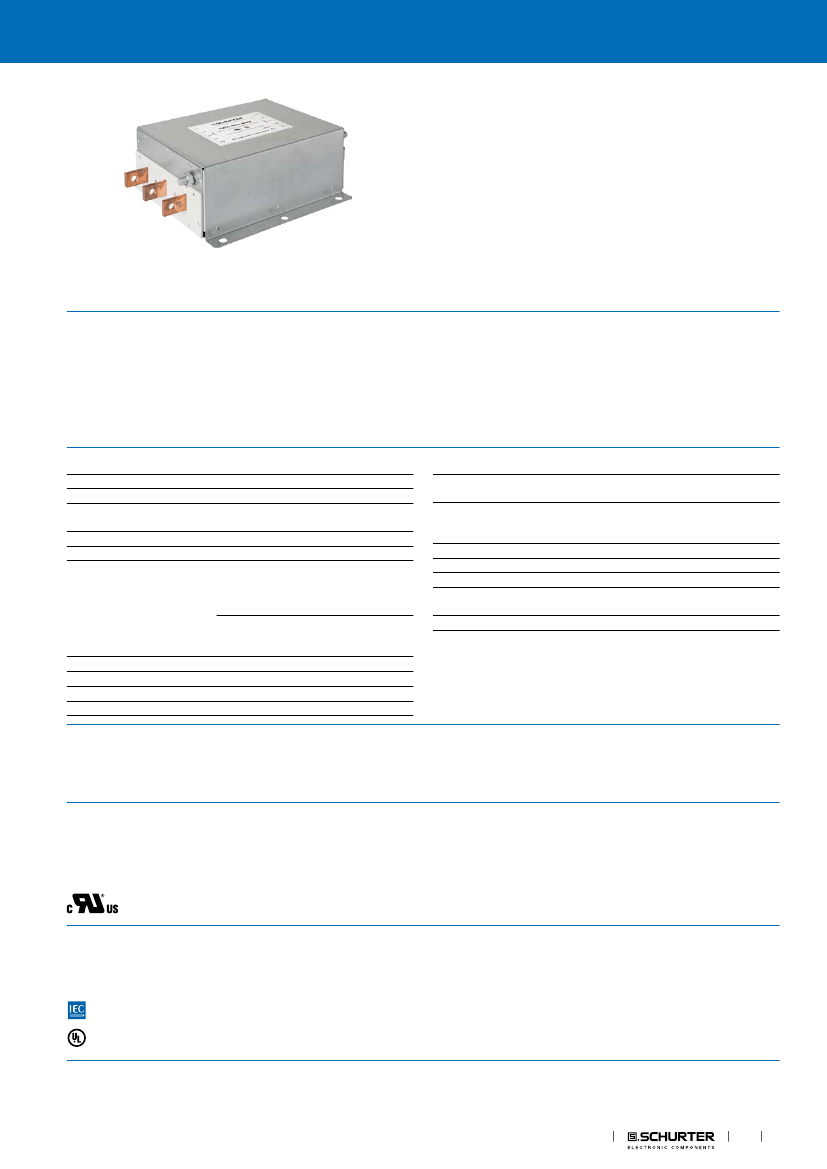

3-phase high current filter
Approvals and Compliances
Description
- High power filter for rated currents up to 2500 A
Applications
- High voltage rating 760 VAC for IT mains supply
- Especially designed for high power applications such as: Frequency
Converters, UPS-Systems, Inverters for Photovoltaic Systems and
Wind Energy
- Suitable for use in equipment according to IEC/UL 60950
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Current
Rated voltage
Approval for
Overload Current
Leakage Current
Dielectric Strength
150 - 2500 A @ Ta 50 °C
520/760 VAC, 50/60 Hz
150 - 2500 A @ Ta 50 °C /
520/760/520/760 VAC; 50/60 Hz
1.5 x Ir
< 15 mA (440 V / 50 Hz)
520 VAC:
2.15 kVDC between L-L
2.7 kVDC between L-PE
Test voltage 2 sec
760 VAC:
3 kVDC between L-L
3.1 kVDC between L-PE
3-stage
12 - 89 kg
Metal / Aluminium
UL 94V-0
Mounting
Terminal
Screw-on mounting on chassis, from
top
Bolt and nut M10 for types up to 250
A and copper bars for types upwards
of 320 A
-40 °C to 100 °C
40/100/21 acc. to IEC 60068-1
IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
> 200'000 h acc. to MIL-HB-217 F
Operating Temperature
Climatic Category
Degree of Protection
Protection Class
MTBF
␣
Number of Filter Stages
Weight
Material: Housing
Sealing Compound
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMCC SOL
Approval Logo
Certificates
UL Approvals
Certification Body
UL
Description
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
IEC 60939
UL 1283
Description
Passive filters for suppressing electromagnetic interference
Electromagnetic interference filters
EMC Products
1
FMCC SOL
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

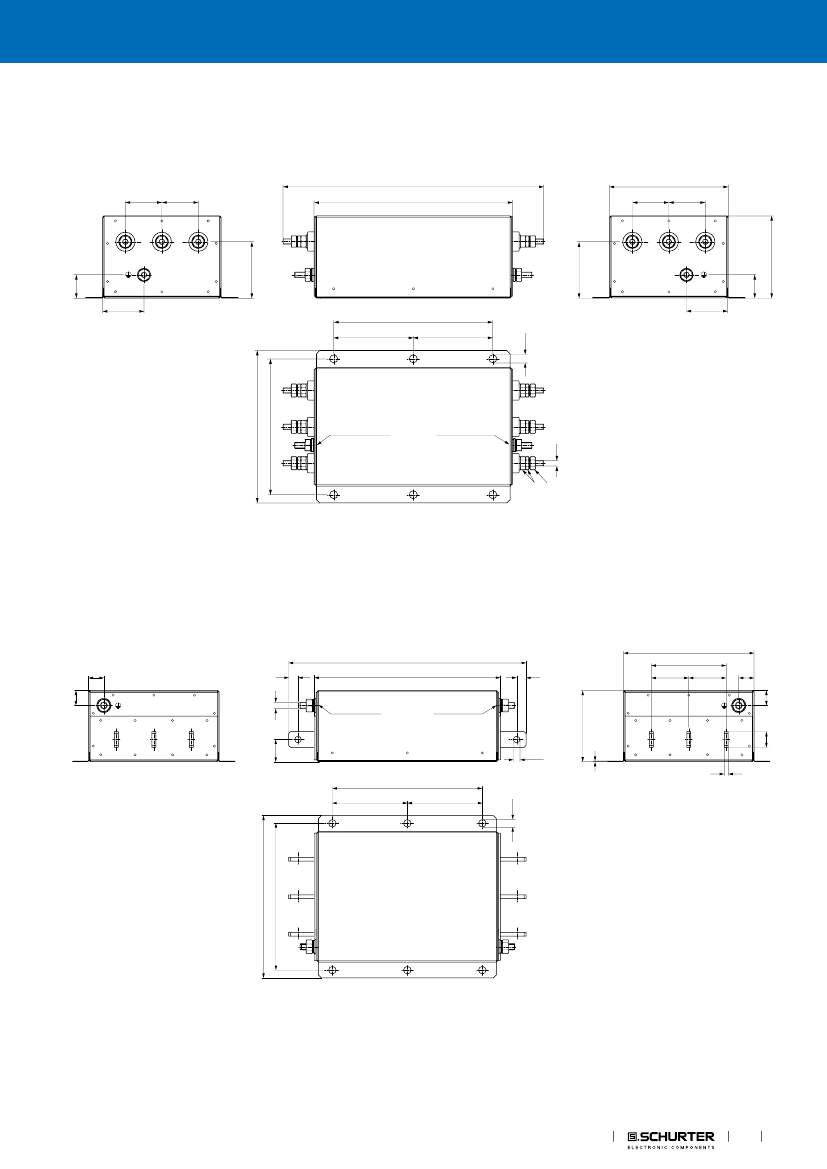

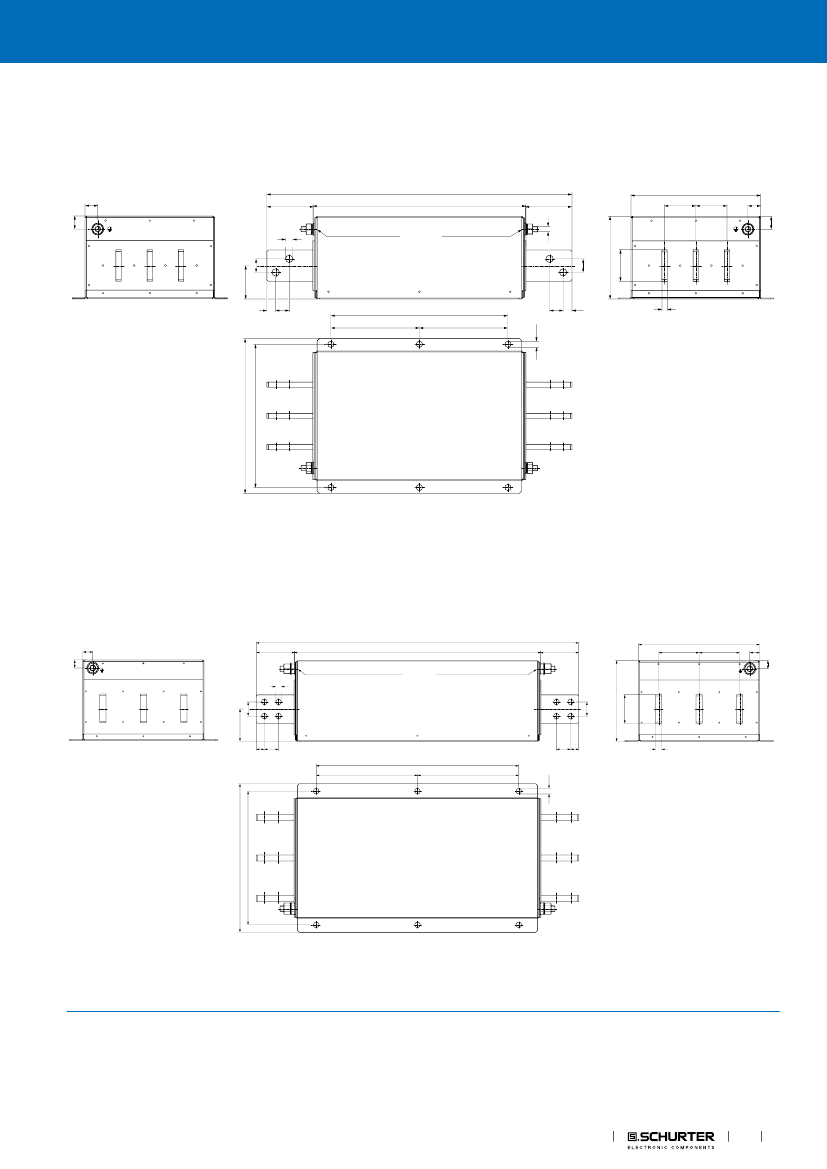

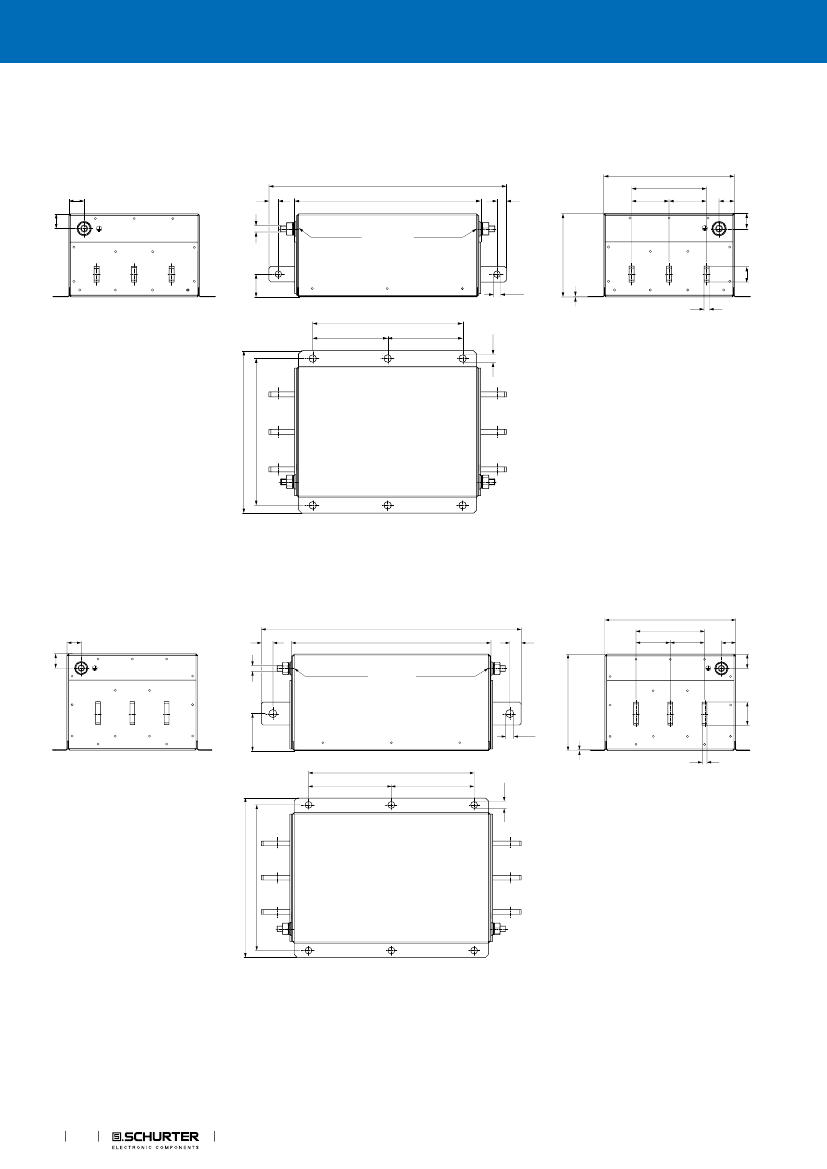

Dimension [mm]
Case 3A
max. 395
50
50
(300)
50
max. 160
50
80
30
80
55
240
±0.3
ø 12
±0.3
(6x)
120
120
55
max. 210
185
±0.3
1)
M10; 10-17 Nm
2)
M10
(6x)
3)
4)
1) Line
2) Load
3) Lock-nut do not unscrew
4) Nut torque 10...17 Nm, keep lock-nut fastened
2
EMC Products
30
max. 120
