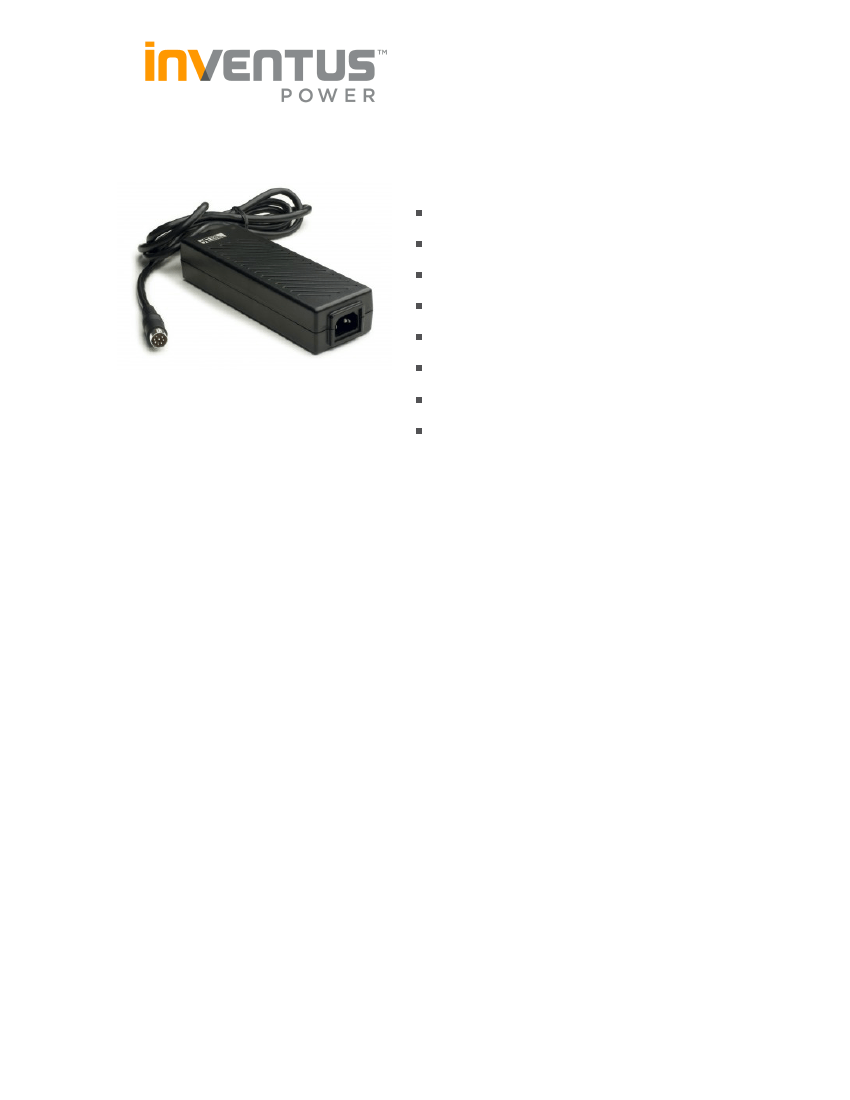

FWA150 Series
High Efficiency: Level V
150 Watt ITE Desktop Power Supply
High Power Density 5.4W/in3
Lifetime Expectation >5 years
Holdup Time >25ms at full load
Power Factor Correction
EISA, CEC Compliant
Safety Approval EN60501
Class I
Overview
Over the later part of 2015, we will be changing the way we sell ITE power supplies thru
distribution to no longer include AC cords with the units. During this time of transition you find both
versions available for sale. They can be distinguished by the part number, parts ending in 11B or
12B will include a cord in the box, parts ending in 11A or 12A will not include a cord. If you
distributor has not already made a recommendation on a cord, please do not hesitate to ask us for
assistance.
Elpac Part
Number
FWA150012A12A
FWA150012A12B
FWA150015A12B
FWA150015A12A
FWA150018A12B
FWA150018A12A
FWA150024A12A
FWA150024A12B
FWA150048A11B
FWA150048A11A
Notes
Output
Voltage
12.0V
12.0V
15.0V
15.0V
18.0V
18.0V
24.0V
24.0V
48.0V
48.0V
Output
Current
12.5A
12.5A
10.0A
10.0A
8.3A
8.3A
6.3A
6.3A
3.2A
3.2A
Peak
Current
1
15.0A
15.0A
12.0A
12.0A
10.0A
10.0A
7.5A
7.5A
3.75A
3.75A
Total
Regulation
2
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Typical
Efficiency
3
89%
89%
90%
90%
90%
90%
91%
91%
92%
92%
1 Maximum peak load (180W) lasting 500ms with a maximum 10% duty cycle.
2 Includes initial setting, line regulation, load regulation, and thermal drift.
3 Typical at 115VAC (including output cable).
Input
Input Voltage
Input Frequency
Input Current
Inrush Current
Power Factor
Zero Load Power Consumption
Touch Leakage Current
85 264VAC; 100 240VAC Nominal
47 63Hz
<2A rms
<37A at 230VAC cold start
>0.97
<0.5W
<150µA @ 132VAC @ 60Hz
<250µA @ 264VAC @ 60Hz
Output
Output Voltage
Total Regulation
Minimum Load
StartUp Delay
HoldUp Time
Ripple & Noise
Over Voltage Protection
Over Temperature Protection
Over Current Protetion
Short Circuit Protection
Notes
* Ripple and noise measured with 20MHz bandwidth; 10μF tantalum capacitor in parallel with a 0.1μF ceramic capacitor.
See Table
+/5%
No minimum load required
<1.5s
>25ms at any input voltage
<1% pkpk *
110135%
Active Recoverable; plus Passive Non Recoverable
120 180%
shutdown, autorestart (hiccup mode)
General
Efficiency
MTBF
Size
Weight
Power Density
Avg Efficiency 90.8% @ 115VAC; 92.8% @ 230VAC
min. 200,000 hours demonstrated
7.56" (192mm) x 2.45" (62.2mm) x 1.52" (38.7mm)
1.55 lbs (0.70 kg)
5.4W/in3
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
Cooling
Vibration
0 – 60°C (Full load to 40°C, derate linearly to 50% load at 60°C)
40°C to +85°C
595%, noncondensing
Natural Convection
All units production tested to 19.6m/s2
EMC & Safety
Emissions
Immunity
Certified by TUV to the following:
FCC class B, CISPR22 class B Conducted and Radiated
EN6100032, 3; EN6100042, 3, 4, 5, 6, 8, 11
cTUVus
UL 609501
CAN/CSA22.2 No.609501
CB per IEC609501
CE marked to LVD & EMC Directive
Input Configuration
Standard Input Cable
Connection on Power Supply Body
Not Provided
IEC 320 C14 Receptacle
Output Configuration (12V, 15V)
Standard Output Cable
Cord Size
Connector (PSU side)
Mating Connector
4 ft.
4x16awg
Switchcraft DIN8,P/N 15BL8M (male pins)
Switchcraft 62GB8FX (8 pin) or equivalent
Output Configuration (18V)
Standard Output Cable
Cord Size
Connector (PSU side)
6 ft.
4x16awg
Switchcraft DIN8,
P/N 15BL8M (male pins)
Switchcraft 62GB8FX (8 pin) or equivalent
Mating Connector
Output Configuration (24V)
Standard Output Cable
Cord Size
Connector (PSU side)
6 ft.
4x18awg with EMI bead
Switchcraft DIN8,
P/N 15BL8M (male pins)
Switchcraft 62GB8FX (8 pin) or equivalent
Mating Connector
Output Configuration (30V, 48V)
Standard Output Cable
Cord Size
Connector (PSU side)
6 ft.
4x18awg
Switchcraft DIN5,
P/N 05GM5M (male pins)
Switchcraft 57GB5FX (5 pin) or equivalent
Mating Connector
Output Pin Assignments
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Return
Return
+V1
Return
+V1
