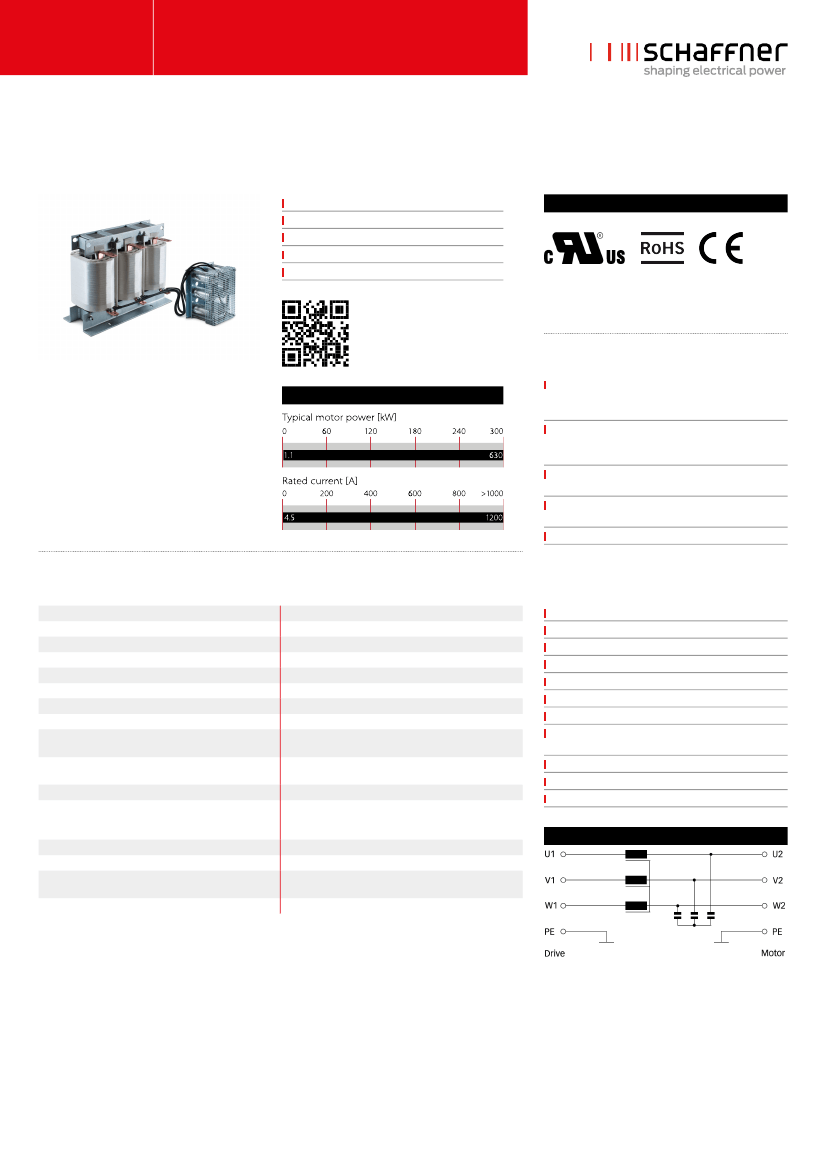

DATASHEET

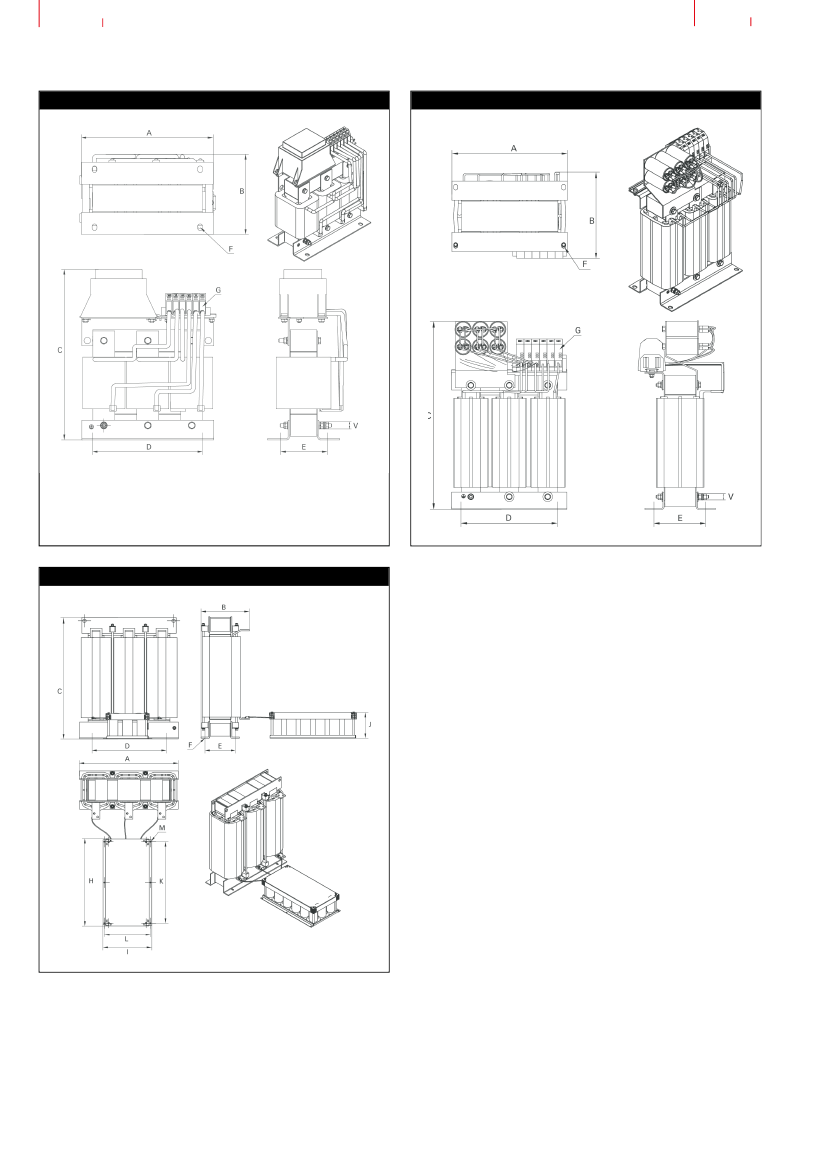

Sine wave filters FN 5040/FN 5045
LC Sine Wave Filter for Motor Drives
Smooth sine wave without voltage peaks
Perfect motor protection
Reduce bearing currents
Motor frequency up to 200 Hz
Extended motor cable length capability
Approvals
UL 61800-5-1 up to 750 A for FN 5040, 480 A for
FN 5045. For use with AC or DC drives (power
conversion equipment) only
Features and benefits
Performance indicators
Converts the rectangular PWM output voltage of
motor drives into a smooth sine wave with low
residual ripple
Elimination of premature motor damage caused by
high dv/dt, overvoltages, cable ringing, motor
overheating, and eddy current losses
Improves bearing life time because of bearing
currents caused by circulating currents
Complies with IEC 60034-17* and NEMA-MG1
requirements for general purpose motors
Optional with NEMA 1 protective cover
Technical specifications
Nominal operating voltage
Rated operating voltage
Motor frequency
Switching frequency
Rated currents
Motor cable length
Impedance (uk)
Residual ripple voltage
High potential test voltage
Protection category
Overload capability
Ambient temperature range
3x480 VAC
3x525 VAC

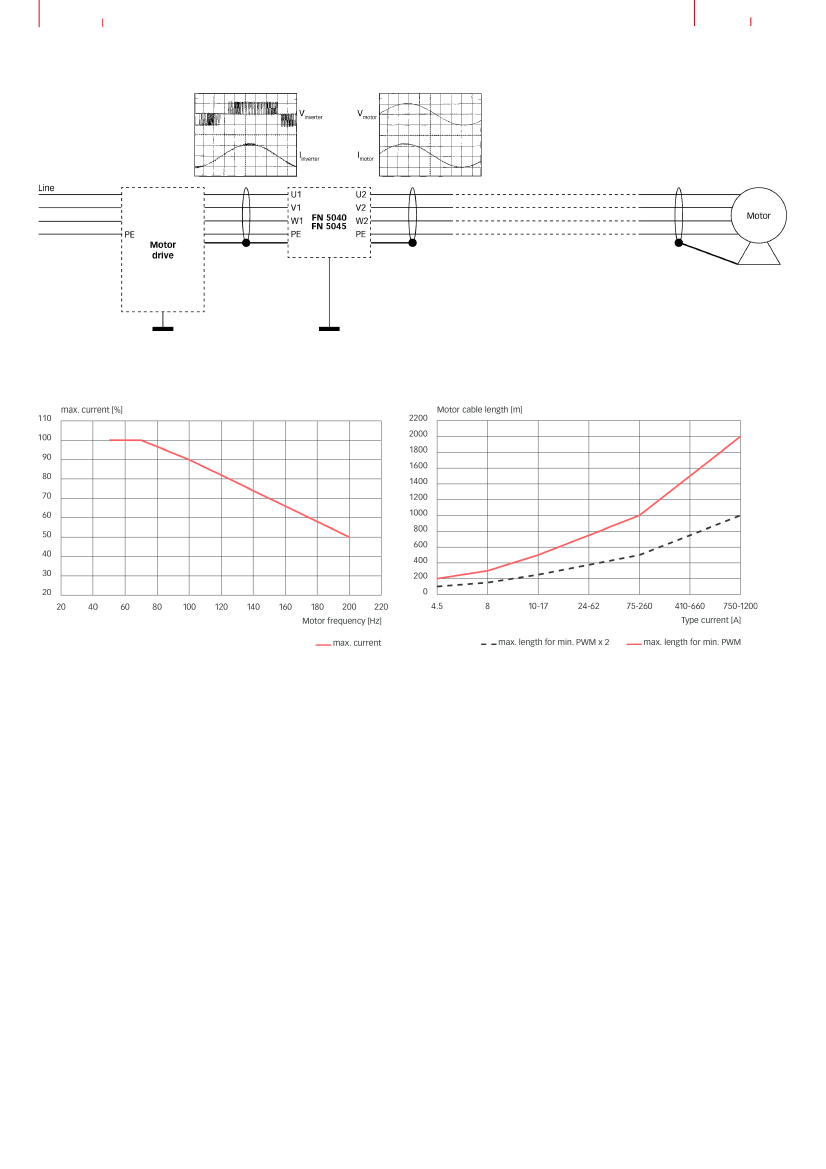

0...70 Hz (up to 200Hz with derating (see graph))
See filter selection table
4.5 to 1200 A @ 45°C
Up to 2,000 m (see graph)
8 to 10% @ 400 V, 50 Hz and rated current
<5%
P –> E 3000 VAC, 1 minute
P –> P 2500 VAC, 1 minute
IP 00 (FN 5040)
IP 20 (FN 5045)
1.5× rated current for 1 minute, once per hour
-25°C to +45°C fully operation
+45°C to 70°C derated operation*
-25°C to +85°C transport and storage
EIS 200
UL 94 V-2
Chokes: EN 61558-2-20 or EN 60076-6
Filter: UL 61800-5-1, EN 61800-5-1
>100,000 hours
Typical applications
HVAC applications
Pumps
Ventilators
Conveyors
Compressors
Elevators
Cranes
Medium voltage applications, deployed in front of
the step-up transformer
Retrofit installations with motor drives
Motor drive with long motor cable
Motor drive with multiple motors in parallel
Insulation class
Flammability corresponding to
Design corresponding to
MTBF
Typical electrical schematic
* I
derated
= I
nominal
*√((T
max-
T
amb
)/(T
max-
T
nominal
)) = I
nom
*√((70°C-T
amb
)/25°C)
