96PS-A400W2U: DescriptionSwitching Power Supplies 400W ATX PFC SPS for ACP-2000MB/2010MB/2320MB (Old PN:1757000105G); CategoryPower/power management; File Size319KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Parametric View All

96PS-A400W2U Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	96PS-A400W2U	-	-	View	Buy Now

96PS-A400W2U Overview

Switching Power Supplies 400W ATX PFC SPS for ACP-2000MB/2010MB/2320MB (Old PN:1757000105G)

96PS-A400W2U Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	Advantech
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	3.3 V
Output Voltage-Channel 2	5 V
Number of Outputs	6 Output
Output Power	400 W
Open Frame/Enclosed	Enclosed
Input Voltage	100 VAC to 240 VAC
Output Current-Channel 1	20 A
Output Current-Channel 2	25 A
Commercial/Medical	Commercial
Mounting Style	Chassis
Length	215 mm
Width	100 mm
Height	70 mm
Approvals	IEC60950-1, UL60950-1
Input Frequency	50 Hz to 60 Hz
Output Current-Channel 3	28 A
Output Current-Channel 4	500 mA
Output Voltage-Channel 3	12 V
Factory Pack Quantity	1

Preview

Download Datasheet

View All

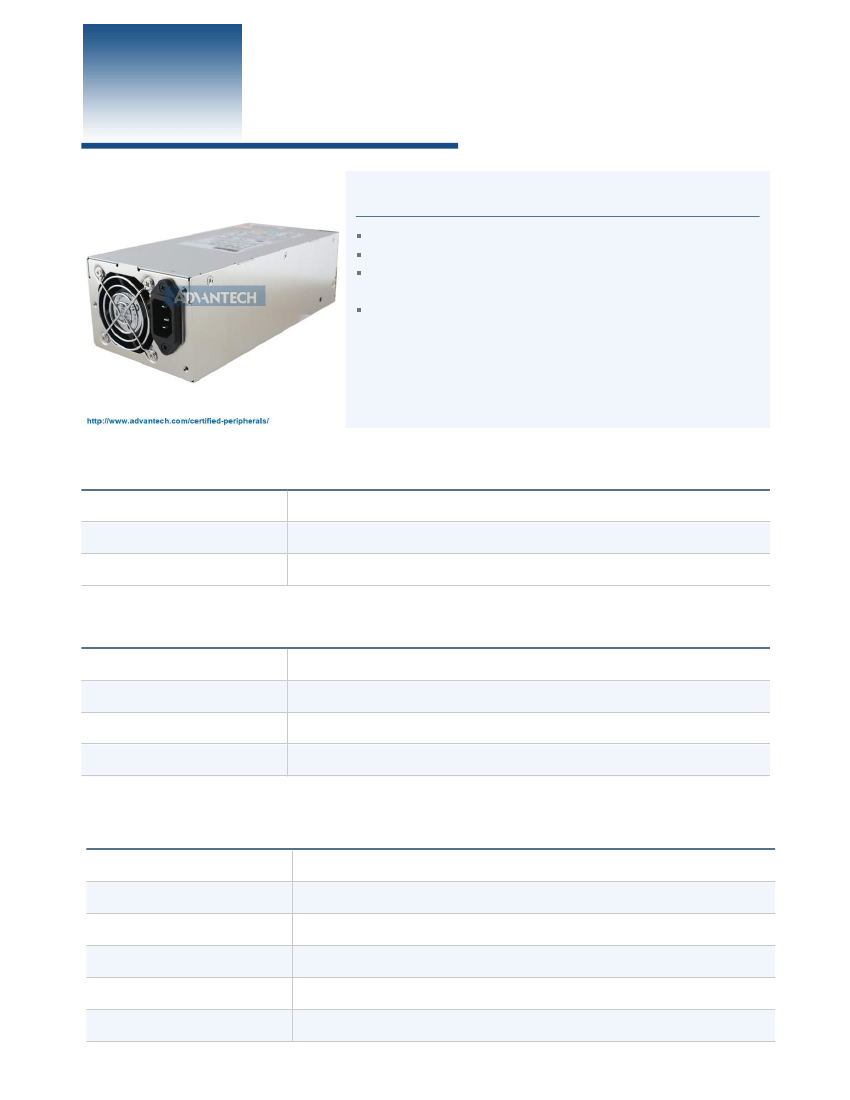

96PS-A400W2U

Features

2U Power Supply

Widely input range from 100 to 240 VAC

MTBF:180K hours at 50℃

Designed to meet CUL (UL 60950-1 2nd) / CB (IEC 60950-

1 2nd) / CCC / CE / FCC / KC / GOST R

Compact Size: 215 mm x 100 mm x 70 mm

General

Advantech Part Num ber

Des cription

Manufacturer

96PS-A400W2U

ZIPPY AC 100-240V 400W W/PFC 2U ATX

Zippy Technology

Output Specifications

Output Power

Output Voltage & Current

Efficiency (%)

Main Connector

400W

+3.3V @ 20A;+5V @ 25A;+12V @ 28A;-12V @ 0.5A;-5V @ 0.5A;+5Vs b(DC) @ 2A;

65%

ATX (20 + 4pin)

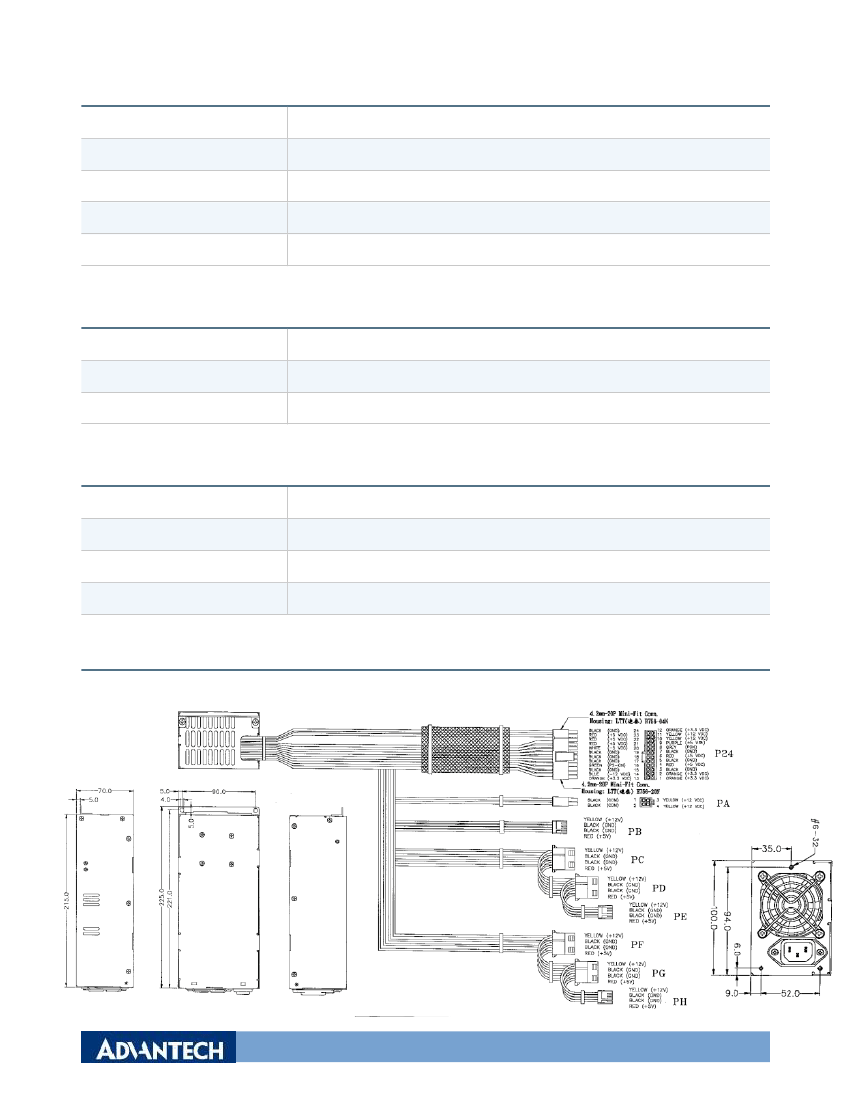

Mechanical

Form Factor

Dim ens ion (L x W x H)

Vibration

MTBF

Fan Function

Power Switch Function

2U

215×100×70

N/A

180.75K

YES

NO
