3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80

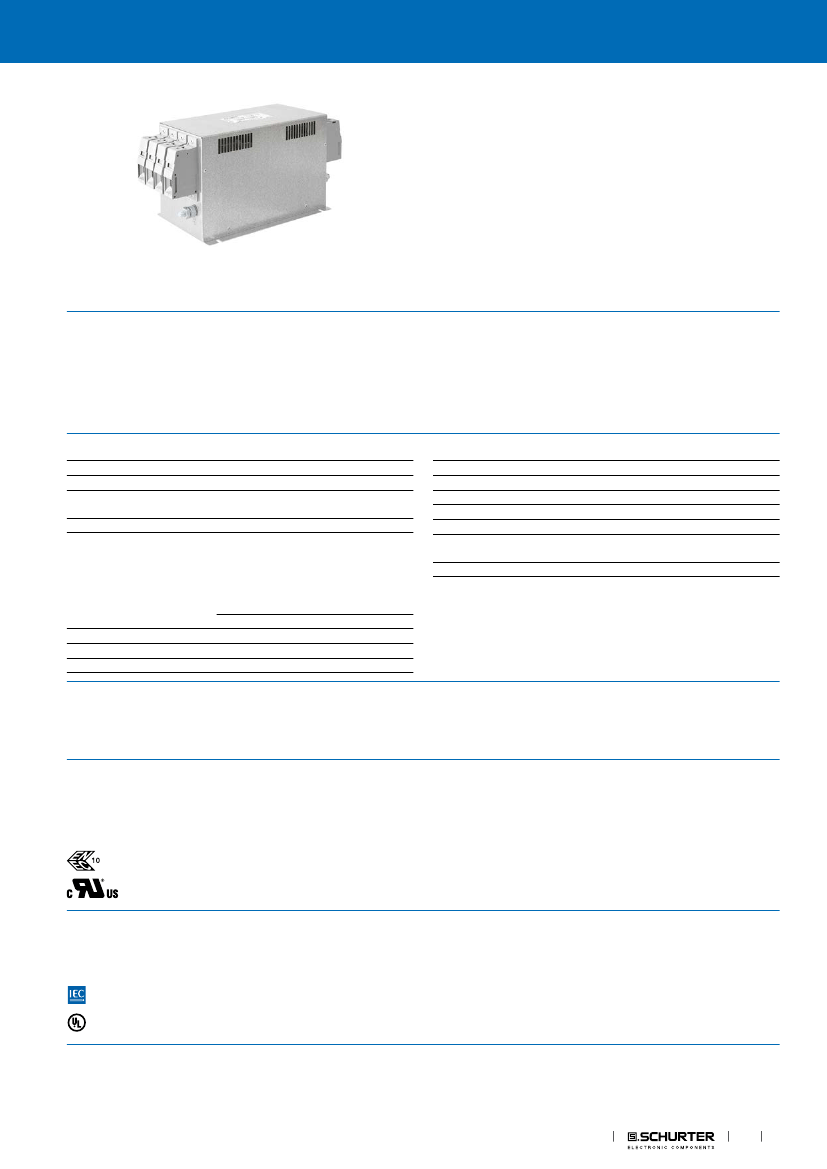

FMBD NEO
2-stage filter for 3-phase systems with neutral conductor
Approvals and Compliances
Description
- Terminals for three phases, neutral conductor and ground
Applications
- Voltage rating 520 VAC for world wide acceptance
- Protection against interference voltage from the mains
- Especially designed for industrial applications such as: Frequency Con-
verters, Stepper Motor Drives, UPS-Systems, Inverters
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Current
Rated voltage
Approval for
Overload Current
Dielectric Strength
8 - 200 A
300/520 VAC, 50/60 Hz
8 - 200 A @ 50 (75) °C / 300/520 VAC;
50/60 Hz
1.5 x Ir
300/520 VAC:
2.25 kVDC between L-L
1.7 kVDC between L-N
2.75 kVDC between L-PE
2.75 kVDC between N-PE
Test voltage 2 sec
2-stage
1.1 - 8.6 kg
Metal
UL 94V-0
Mounting
Terminal
Operating Temperature
Climatic Category
Degree of Protection
Protection Class
MTBF
Screw-on mounting on chassis
Screw clamps
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
> 200'000 h acc. to MIL-HB-217 F
Number of Filter Stages
Weight
Material: Housing
Sealing Compound
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMBD NEO
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40031052
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
IEC 60939
UL 1283
Description
Passive filters for suppressing electromagnetic interference
Electromagnetic interference filters
EMC Products
1
FMBD NEO
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

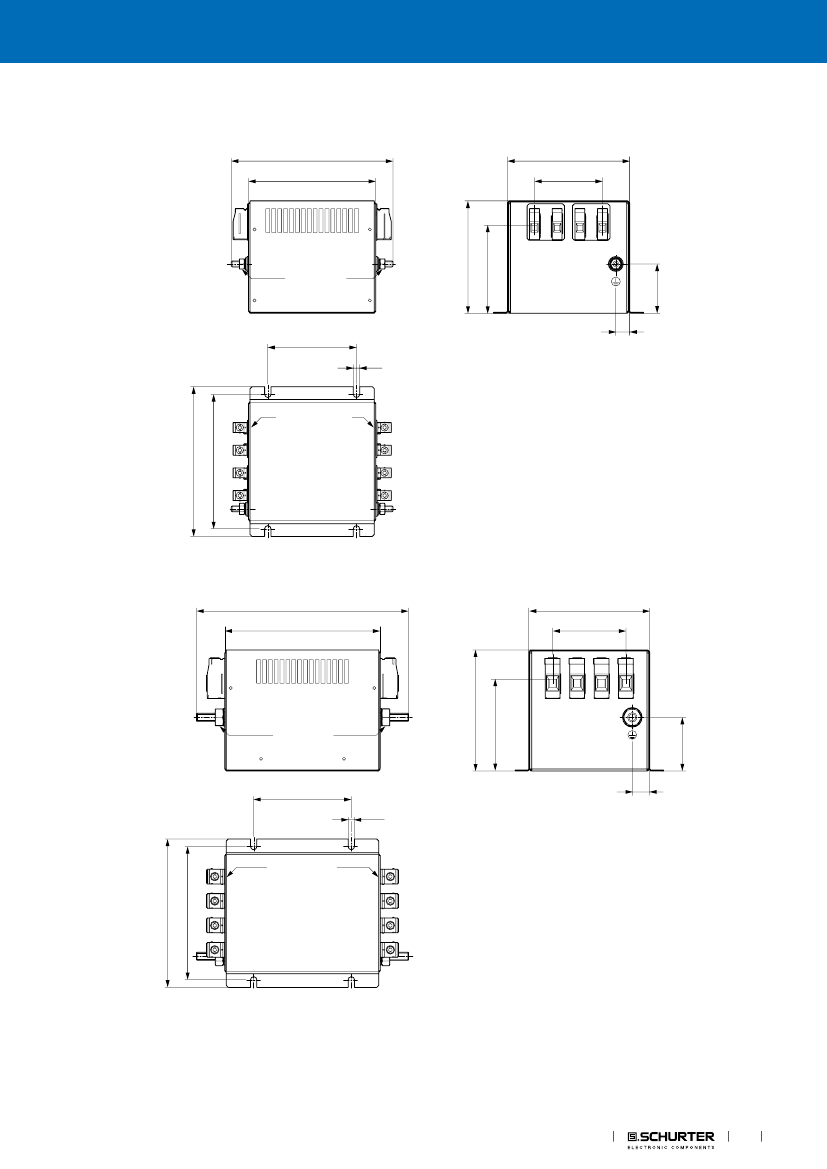

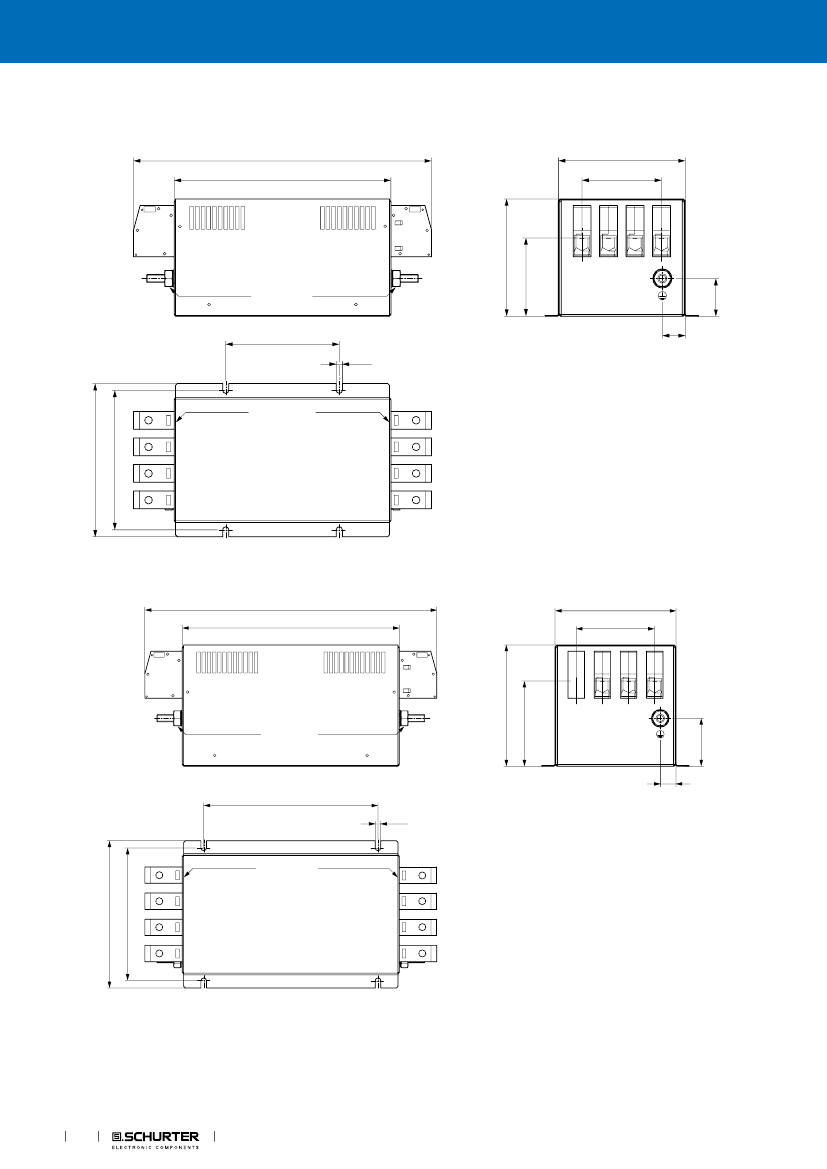

Dimension [mm]
Case 2A
max. 155
(120)
max. 115
3x11.5=(34.5)
max. 80
M6x14; 3-4 Nm
54.5
14
80
±0.3
6.5
±0.3
(4x)
4mm
2
; 0.5-0.6 Nm
max. 145
127.5
–2
0
1)
2)
1) Line
2) Load
2
EMC Products
35
