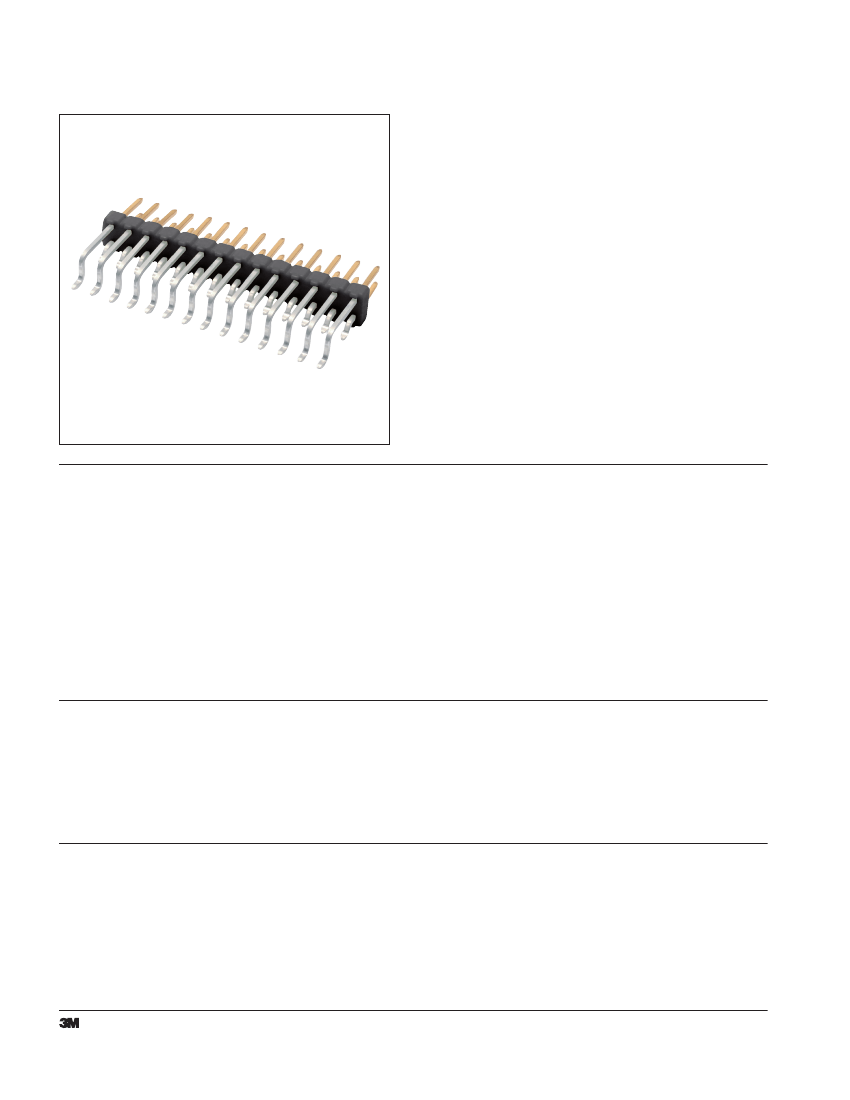

2.54 mm and 2.54 mm x 2.54 mm, Right Angle, Surface Mount
961 Series
•
High temperature dielectric
•
“No lead” reflow solder compatible
•
End stackable feature
•
Single- and dual row version
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the RoHS compliance section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
1/
Date Modified: November 26, 2012
17
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
Copper Alloy
Electrical
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Interconnect Solutions
www.3Mconnectors.com
D
Current Rating:
2 A
Insulation Resistance:
> 5 x 10
8
Ohm at 100 V
DC
Withstanding Voltage:
1000 V
DC
IS
C
O
1.25–2.5 µm [50–100 µ"] Nickel
Flash Gold
1–3 µm [40–118 µ"] Matte Tin
N
T
IN
High Temperature Thermoplastic
UL 94V-0
Black
U
E
D
TS-2184-C
Sheet 1 of 2
3M
™
Pin Strip Header
2.54 mm and 2.54 mm x 2.54 mm, Right Angle, Surface Mount
961 Series

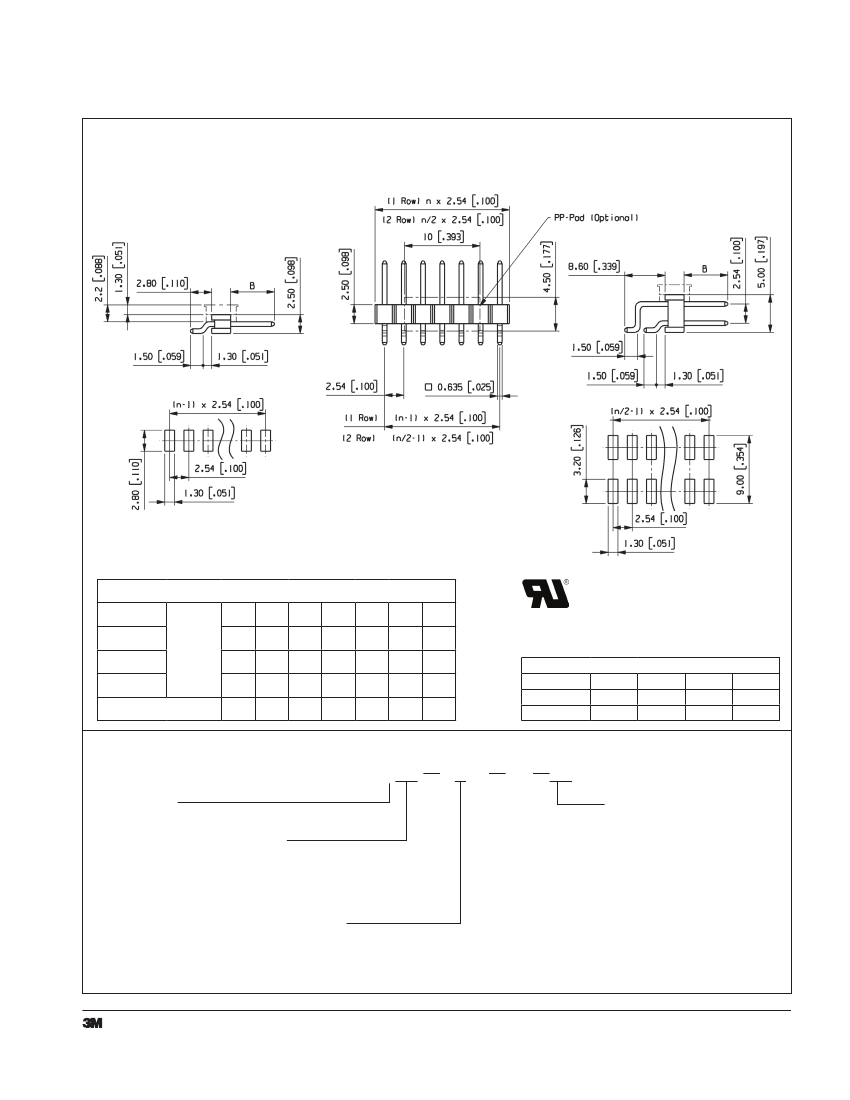

PCB Layout
IN
U
E
PCB Layout
Ordering Information
IS
C
9611xx-5500
(1 Row)
9611xx-5900
(1 Row)
Contact
9612xx-5500
Quantity
(2 Row)
9612xx-5900
(2 Row)
Tape Width
[mm]
5
5–6
10
6–7
7–8
8–12 13–16 17–22 23–28 29–30
9–13 14–17 18–22 23–28 29–30
60
n = No. of Contacts
O
12–16 18–24 26–34 36–44 46–58
N
T
Tape & Reel Option
D
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
1/
10-14 16-22 24-32 34-42 44-54 56-60
32
44
56
72
88
104
24
30–120
+/- 0.3
+/- 1
961XXX
5X00
AR
XX
D
Rows:
1 = 1 Row
2 = 2 Row
Contact Quantity:
03–30 Pins / 1 Row
04–60 Pins / 2 Row
Mating Pin Length:
Dim ‘B’
5 = 5.8 mm [.23]
9 = 7.1 mm [.28]
17
(RIA E1 & C1 Apply)
Packaging:
TP = Tube without Pad
PT = Tube with Pad
PR = Tape & Reel with Pad
Note: Pad options
1 Row – 5 to 30 pos.
2 Row – 10 to 60 pos.
TS-2184-C
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Important Notice
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of ninety (90) days from the time of purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by
law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
