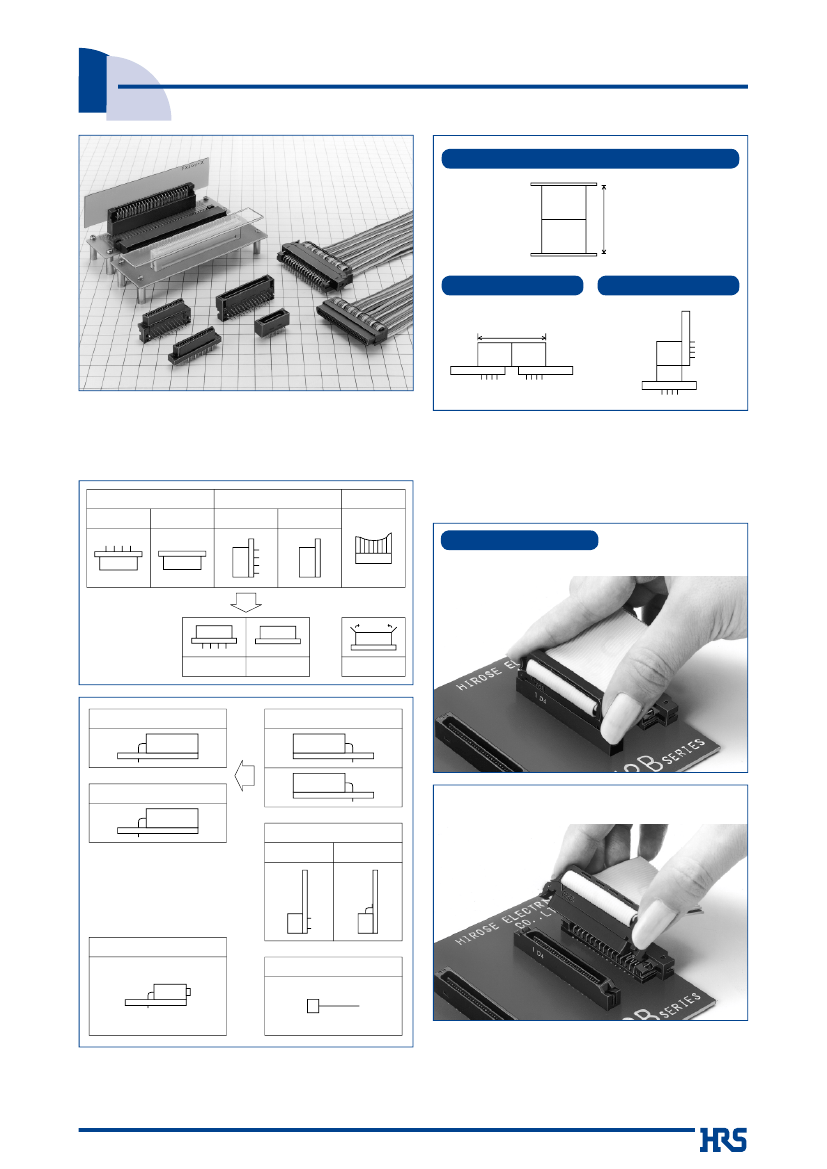

1.27mm Pitch Multi-function Two Piece Connectors
FX2 Series
Stacking connection (Stack height : 12~16mm)
12mm~16mm
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
Horizontal Connection
Vertical Connection
25mm
Fig.1
■Features
1. Various connection with various product line
Stacking connection
Vertical type
Cable connection
2. Easy One-Touch Operation
The ribbon cable connection type allows easy one-touch
operation with either single hand.
Insersion and Extraction
(1) Pick internal locks with thumb and the index finger.
Through hole type SMT type Through hole type SMT type
Through hole type SMT type
Cable only
Through hole type
Horizontal type
Fig.2
SMT type
Vertical type
Through hole type
SMT type
(2) With unique and preferable click feeling, the cable
and connector can be inserted or withdrawed.
Cable only
Cable connection
Fig.3
(For insertion, the operation proceeds from procedure (2) to
(1).)
2015.4w
1
FX2 Series●1.27mm Pitch Multi-function Two Piece Connectors
3. Board to board type
q
Prevents flux penetration
The straight through hole type takes the complete flux
tight action from the board back side at solder dipping.
The type is prepared, corresponding to whether or not
cleaning is required.
4. Board to cable type
q
Positive lock with easy operation
Employing the inner lock system, positive lock and eject
actions can be performed with easy operation.
w
Applicable cable
The applicable cable is the <UL2651>28 AWG flat cable
(7/0.127mm), and the jacket size is 0.9±0.1mm.
w
Stack height 12mm to 16mm
The board stack height can be set to every 1 mm step
up to 12 to 16mm.
e
Mis-insertion preventive mechanism
The mating area is designed in a mechanism so as to
prevent mis-insertion, and complete countermeasures
have been taken against wrenching.
5. SMT type
Robust design with metal hold-down
The right angle type is equipped with metal hold-down
to secure soldering strength, and constructed so as to
fix by screws. The straight type can choose whether or
not metal hold-down are required.
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
■Product
Specifications
Rating
Current rating 0.5A
Voltage rating 125V AC
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration
5. Humidity
(Steady state)
6. Temperature Cycle
7. Durability
(Mating/un-mating)
8. Resistance to
soldering heat
1000Mø min
No flashover or insulation breakdown.
45mø max.
No electrical discontinuity of 1µs or more
Contact resistance: 55mø max.
Insulation resistance: 100Mø min.
Contact resistance: 55mø max.
Insulation resistance: 100Mø min.
No damage, cracks, or parts looseness.
Contact resistance: 55mø max.
Operating Temperature Range -55ç to +85ç (Note 1)
Operating Humidity Range 40 to 80%
Specification
250V DC
300V AC/1 min
100mA
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes➝15 to 35ç: 2 to 3 minutes➝
85ç: 30 minutes➝15 to 35ç: 2 to 3 minutes) 5 cycles
500 cycles
SMT Type
DIP Type
Reflow: At the recommended temperature
profile Manual soldering: 360ç for 5 seconds
Solder bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Storage Temperature Range -10ç to +60ç(Note 2)
Storage Humidity Range 40 to 70%(Note 2)
Condition
No deformation of components affecting
performance.
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
■Material
Parts
Through hole type
Insulator
Socket
SMT type
Receptacle
Socket
Header
Material
Polyamid
PBT/Polyamid
PPS
Phosphor bronze
Phosphor bronze or brass
Unit : mm
Receptacle
Header
FX2C-*P-1.27DSA(L)
Through FX2CA-*P-1.27DSA(L)
hole type FX2CA1-*P-1.27DSA(L)
FX2CA2-*P-1.27DSA(L)
SMT type FX2-*P-1.27SV(L)
Through hole type
FX2C-*S-1.27DSA(L)
FX2C2-*S-1.27DSA(L)
FX2CA-*S-1.27DSA(L) FX2CA2-*S-1.27DSA(L)
12.0
13.0
14.0
12.1
14.0
15.0
16.0
14.1
12.2
13.2
14.2
12.3
SMT type
FX2-*S-1.27SV(L)
Finish
Black
Light brown
Selective gold plated
----------------
Remark
UL94V-0
Contact
■
Stacking Variation
2
FX2 Series●1.27mm Pitch Multi-function Two Piece Connectors
Product Number Structure
Board to Board Receptacle
FX2 CA 2 -
*
S - 1.27 DSA L
❶
❷
❸
❹
❺
❻
❼
½
q
Series Name : FX2
wBlank
: Right angle type
C
: Straight non-cleaning type
CA
: Straight cleaning type
eProduct
height variation (DSA only)
Blank : Standard product
2
: +2mm
r
No. of contacts : 20, 32, 40, 52, 60, 68, 80, 100, 120
tConnector
type : S : Receptacle
yContact
pitch : 1.27mm
u
Contact type :
DS : Right angle type
DSA : Straight type
iL
: Board prefixed pin
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
Board to Board Header
FX2 CA 1 -
*
P - 1.27 DSA L
❶
❷
❸
❹
❺
❻
❼
½
qSeries
Name : FX2
wBlank
: Right angle type
C
: Straight non-cleaning type
CA : Straight cleaning type
eProduct
height variation (DSA only)
Blank : Standard product
1
: +1mm
2
: +2mm
r
No. of contacts : 20, 32, 40, 52, 60, 68, 80, 100, 120
tConnector
type : P : header
yContact
pitch : 1.27mm
u
Contact type :
DS : Right angle type
DSA : Straight type
iL
: Board prefixed pin
Note 1 : C and CA take complete countermeasures against flux.
Note 2 : Cleaning type: the liquid escape hole is added at dip cleaning.
Note 3 : No-cleaning type: no liquid escape hole is added at dip cleaning.
Board to Cable Socket
FX2 BA -
*
S A - 1.27 R
❶
❷
❸
❹
❺
❻
❼
r
S : Socket
tA
: Contact material: phosphor bronze
yContact
pitch : 1.27mm
u
R : Insulation displacement
qSeries
Name : FX2
wB
BA
: Lock cable type
: No lock cable type
eNo.
of contacts : 20, 32, 40, 52, 60, 68, 80, 100
Board to Cable Header
FX2 BA -
*
P A - 1.27 DSA L
❶
❷
❸
❹
❺
❻
❼
½
qSeries
Name : FX2
wB
BA
: Lock straight no cleaning type
: Lock right angle type
: Lock straight cleaning type
tNone
: Contact material: phosphor bronze
A
: Contact material: brass
yContact
pitch : 1.27mm
u
Contact type :
DS : Right angle type
DSA : Straight type
iL
: Board prefixed pin
eNo.
of contacts : 20, 32, 40, 52, 60, 68, 80, 100
r
Connector type : P: header
Note 1 : Cleaning type: The liquid escape hole is added at dip cleaning.
Note 2 : No cleaning type: No liquid escape hole is added at dip cleaning.
Note 3 : Straight 20 and 32 contact types use phosphor bronze for contact material.
3
FX2 Series●1.27mm Pitch Multi-function Two Piece Connectors
Straight SMT Type
FX2 -
*
P - 1.27 SV L
❶
❷
❸
❹
❺
❻
r
Contact pitch : 1.27mm
tContact
type :
SV : Straight SMT type
yL
: Board prefixed pin
q
Series Name : FX2
wNo.
of contacts : 20, 32, 40, 52, 60, 68, 80, 100, 120
eConnector
type : P : Header
S : Receptacle
Header Right Angle SMT Type
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
FX2 A -
*
P - 0.635
❶
❷
❸
❹
❺
q
Series Name : FX2
wBlank
: With boss
A
: Without boss
eNo.
of contacts : 20, 40, 52, 60, 80
SH
❻
r
Connector type : P : Header
tMounting
area pitch : 0.635mm
yContact
type :
SH : Right angle SMT type
B
FX2 Functional Flow Chart
Board to Board Cable Type
Header Side
FX2B-*PA-1.27DS (L)
Right angle type with lock
Receptacle and Socket Side
FX2B-*PA-1.27DSA(L)
Straight type with lock
No cleaning type, flux tight
FX2BA-*SA-1.27R
Cable type with lock
FX2BA-*PA-1.27DSA(L)
Straight type with lock
Cleaning type, flux tight
4
FX2 Series●1.27mm Pitch Multi-function Two Piece Connectors
B
FX2 Functional Flow Chart
Board to Board Cable Type
Header Side
FX2-*P-1.27DS (L)
Right angle type
Receptacle and Socket Side
FX2-*S-1.27DS (L)
Right angle type
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
FX2(A)-*P-0.635SH
Right angle type
SMT type
FX2C-*S-1.27DS (L)
Straight type
No cleaning type, flux tight
FX2C-*P-1.27DSA (L)
Straight type
No cleaning type, flux tight
FX2C-*S-1.27DS (L)
Straight type
Cleaning type, flux tight
FX2CA-*P-1.27DSA (L)
Straight type
Cleaning type, flux tight
FX2CA-*S-1.27DSV (L)
Straight type
SMT type
FX2-*P-1.27DSA (L)
Straight type
SMT type
FX2BA-*SA-1.27R
Cable type without lock
5
