0.5mm Pitch, 5.8mm above the board, vertical connectors for FPC
FH40 Series
●Strong
actuator construction
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Fig.1

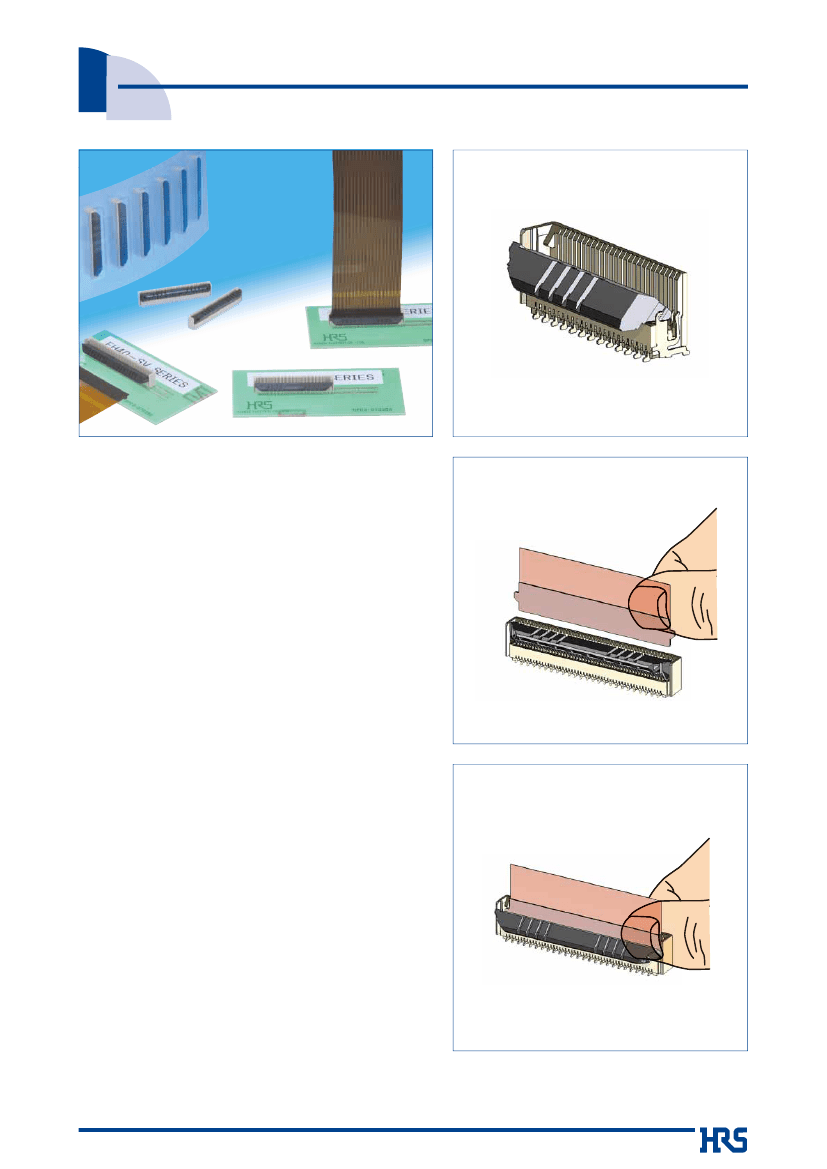

■Features
1. Reduction in connection man-hours (30%
reduction compared to our conventional
item)
Our unique actuator form enables the completion of
both FPC insertion ~ joint in the same motion.
●Simple
FPC insertion
2. Prevention of half and diagonal joints
The side catcher for FPC positioning ensures accurate
FPC insertion.
3. Durable structure and no lost actuator
The unique terminal form means the actuator is
retained, even under rough operation conditions.
4. One-finger operation of the actuator
Proven (in several other Hirose's connectors!) Flip-
Lock rotating actuator assures reliable mechanical and
electrical connection with FPC, confirming it with a
definite tactile feel.
●Lock
Fig.2
5. Accepts standard FPC thickness
0.3mm thick standard Flexible Printed Circuit (FPC)
can be used.
6. Board placement with automatic equipment
Flat upper surface and tape and reel packaging
facilitate vacuum pick-up and placement.
Standard reel packaging contains 1,000 connectors.
7. Halogen-free
*
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
Fig.3
2016.3③
1
FH40 Series●0.5mm Pitch, 5.8mm above the board, vertical connectors for FPC
■Product
Specifications
Ratings
Current rating : 0.5A DC(Note 1) Operating Temperature Range : −40 to +105ç (Note 2) Storage Temperature Range : −10 to +50ç (Note 2)
Voltage rating : 50Vrms AC Operating Humidity Range : Relative humidity 90% max. Storage Humidity Range : Relative humidity 90% max.
(No condensation)
(No condensation)
Recommended FPC Thickness 0.3±0.05mm, Gold plated contact pads
Item
1. Insulation resistance 500Mø min.
2. Withstanding voltage No flashover or insulation breakdown
3. Contact resistance
50mø max.
Including FPC and FFC conductor resistance
Contact resistance : 50mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
Contact resistance: 50mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
No damage, cracks, or parts dislocation
Contact resistance : 50mø max.
Specification
100V DC
150Vrms AC / 1 minute
1mA, (DC or 1000Hz)
20 cycles
Frequency : 10 to 55Hz, single amplitude of 0.75mm,
10 cycles in each of the 3 axis.
Acceleration of 981m/s
2
, 6ms duaration, sine
half-wave wavefrom 3 cycles in each of the 3
axis
96 hours at 40ç and humidity of 90 to 95%
Temperature : −40ç
→
+15ç to +35ç
→
+105ç
→
+15ç to +35ç
Time : 30
→
2 to 3
→
30
→
2 to 3(minutes)
5 cycles
Reflow : At the recommended temperature profile
Manual soldering : 350ç±5ç for 5 seconds
Conditions
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4. Durability
5. Vibration
6. Shock
Contact resistance : 50mø max.
7. Humidity(Steady state) Insulation resistance : 50Mø min.
No damage, cracks, or parts dislocation
8. Temperature Cycle
Contact resistance : 50mø max.
Insulation resistance : 50Mø min.
No damage, cracks, or parts dislocation
No deformation of
components affecting performance
9. Resistance to Soldering heat
Note 1 : When passing the current through all of the contacts, use 70% of the rated current.
Note 2 : Includes temperature rise caused by current flow.
Note 3 : The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage,
shipment or during transportation after board mounting.
■Materials
/ Finish
Part
Insulator
Contact
Material
LCP
Phosphor bronze
Finish
Color : Beige
Color : Black
Gold plated
Remarks
UL94V-0
–––––––
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
FH 40 - 50S - 0.5 SV
(99)
q
w
e
: FH
: 40
r
t
y
q
Series Name
w
Series No.
r
Contact pitch
t
SV
e
Number of positions : 10 to 80
: 0.5mm
: SMT vertical mounting type
y
Specifications
standard...Partial gold plating 1,000pcs/reel
(99)...Partial gold plating 500pcs/reel
2
FH40 Series●0.5mm Pitch, 5.8mm above the board, vertical connectors for FPC
■Connector
Dimensions
A (FPC insertion slot dimension)
1
(0.12)
Pin No.1
1
(0.12)
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
B
Number of contacts indicator
(5.65)
4.65
5.8
(2.3)
0.5
C
3.55
Note 1
Note 2
Note 3
Note 4
: The coplanarity of each terminal lead within specified dimension is 0.1mm Max.
: Packaged on tape and reel only. Check packaging specification.
: Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
: After reflow, the terminal plating may change color, however this does not represent a quality issue.
Unit : mm
Part No.
FH40-10S-0.5SV
FH40-20S-0.5SV
FH40-24S-0.5SV
FH40-30S-0.5SV
FH40-40S-0.5SV
FH40-45S-0.5SV
FH40-50S-0.5SV
FH40-60S-0.5SV
FH40-64S-0.5SV
FH40-80S-0.5SV
HRS No.
580-2104-6
580-2105-9
580-2106-1
580-2108-7
580-2107-4
580-2101-8
580-2100-5
580-2109-0
580-2102-0
580-2103-3
No. of Contacts
10
20
24
30
40
45
50
60
64
80
A
5.57
10.57
12.57
15.57
20.57
23.07
25.57
30.57
32.57
40.57
B
8.2
13.2
15.2
18.2
23.2
25.7
28.2
33.2
35.2
43.2
C
4.5
9.5
11.5
14.5
19.5
22
24.5
29.5
31.5
39.5
Note 1 : Tape and reel packaging (1,000 pcs/reel, 500 pcs/reel).
Order by number of reels.
(1.45)
(4.35)
5.8
1
3
FH40 Series●0.5mm Pitch, 5.8mm above the board, vertical connectors for FPC
BRecommended
PCB mounting pattern and metal mask dimensions
1.2±0.1 (Land pattern)
1±0.05 (Metal mask)
1.2±0.1
Pin No.1
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.5±0.05
1±0.05
C±0.05
0.35±0.1 (Land pattern)
0.25±0.05 (Metal mask)
Recommended metal mask thickness : t=0.15
BRecommended
FPC Dimensions
It is not recommended to mate FPC without tabs to this connector.
4.25±0.1
1.4±0.1
.2M
AX
2.8±0.1
R0
(X)
3.5MIN
A
.2M
R0
R
X
0.5±0.1
0.
0.5±0.05
C±0.05
D±0.07
E±0.1
0.35±0.03
2
C0
.5M
A
X
0.3±0.05
0.5±0.1
Note 1 : Stiffener dimension should be 3.5mm min., and X dimension should be 0.5mm for improved
flexibility of FPC.
Unit : mm
Part No.
FH40-10S-0.5SV
FH40-20S-0.5SV
FH40-24S-0.5SV
FH40-30S-0.5SV
FH40-40S-0.5SV
FH40-45S-0.5SV
FH40-50S-0.5SV
FH40-60S-0.5SV
FH40-64S-0.5SV
FH40-80S-0.5SV
HRS No.
580-2104-6
580-2105-9
580-2106-1
580-2108-7
580-2107-4
580-2101-8
580-2100-5
580-2109-0
580-2102-0
580-2103-3
No. of Contacts
10
20
24
30
40
45
50
60
64
80
C
4.5
9.5
11.5
14.5
19.5
22
24.5
29.5
31.5
39.5
D
5.5
10.5
12.5
15.5
20.5
23
25.5
30.5
32.5
40.5
E
7.1
12.1
14.1
17.1
22.1
24.6
27.1
32.1
34.1
42.1
4
4.5MIN
(stiffener)
R0
X
MA
.2
FH40 Series●0.5mm Pitch, 5.8mm above the board, vertical connectors for FPC
BRecommended

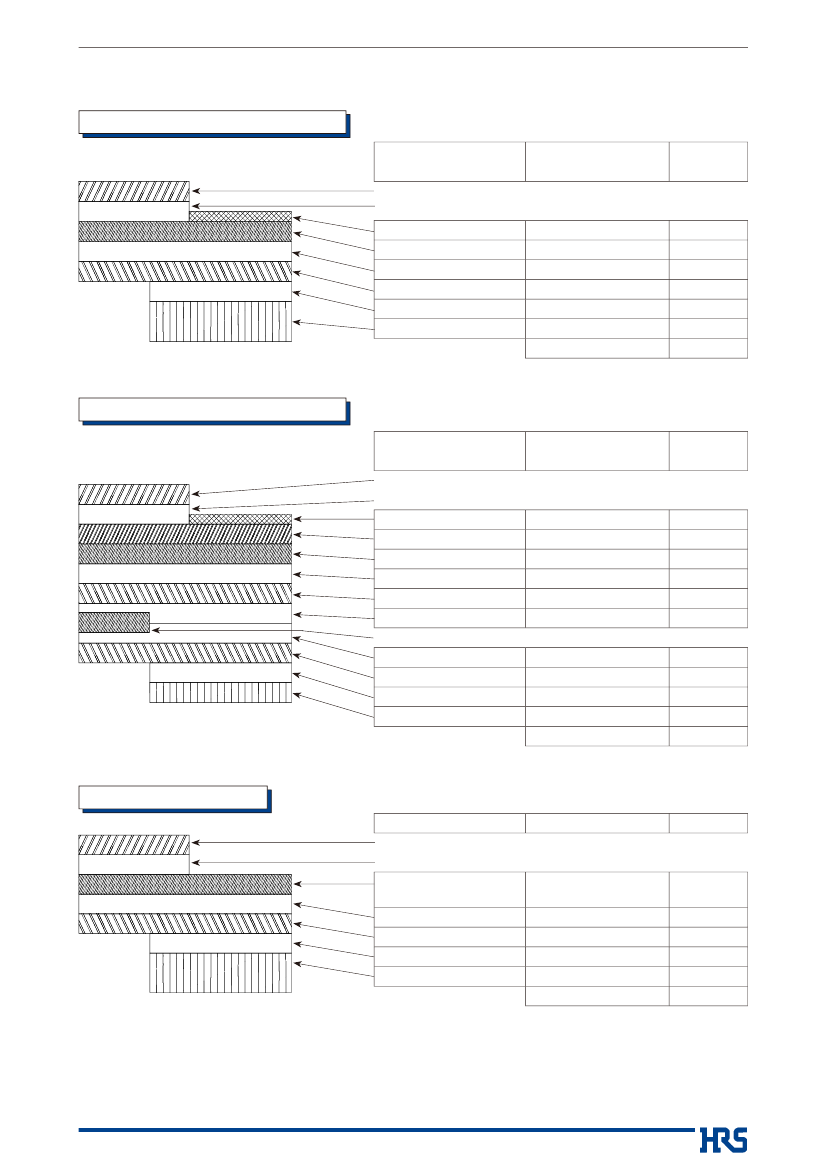

FPC construction
1. Using Single-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Stiffene
Material
Polyimide 1 mil thick.
0.2µm thick gold plated over 1 to
5µm nickel underplating
Material Thickness
(µm)
(25)
(25)
3
35
25
25
40
175
303
Cu 1oz
Thermosetting adhesive
Polyimide 1 mil thick
Polyimide 7 mil thick
Total
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Reinforcement material adhesive Thermosetting adhesive
2. Using Double-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Stiffener
0.2µm thick gold plated over 1 to
5µm nickel underplating
Material
Polyimide 1 mil thick.
Material Thickness
(µm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
50
100
297
Cu
Cu 1/2oz
Thermosetting adhesive
Polyimide 1 mil thick
Thermosetting adhesive
Cu 1/2oz
Thermosetting adhesive
Polyimide 1 mil thick.
Polyimide 4 mil thick
Total
Reinforcement material adhesive Thermosetting adhesive
* To prevent release of the FPC due to its bending, use of the double sided FPC
with copper foil on the back side is NOT RECOMMENDED.
3. Using FFC
FFC : Flexible Flat Cable
Material Name
Polyester film
Adhesive
Annealed copper foil
(Gold plating over nickel under plating)
Adhesive
Polyester
Adhesive
Stiffener
Polyester
Polyester
Total
* Actual tolerance of the thickness is approximately ±20µm.
Polyester
Polyester thermoplastic type
Material
Thickness (µm)
12
30
35
30
12
30
188
295
1. This specification is a recommendation for the material configuration of the FPC/FFC (t=0.3 ±0.05mm) for the FH40 series
connectors.
2. Please contact the FPC/FFC manufacturer for the material configurations of their FPC/FFC.
5
