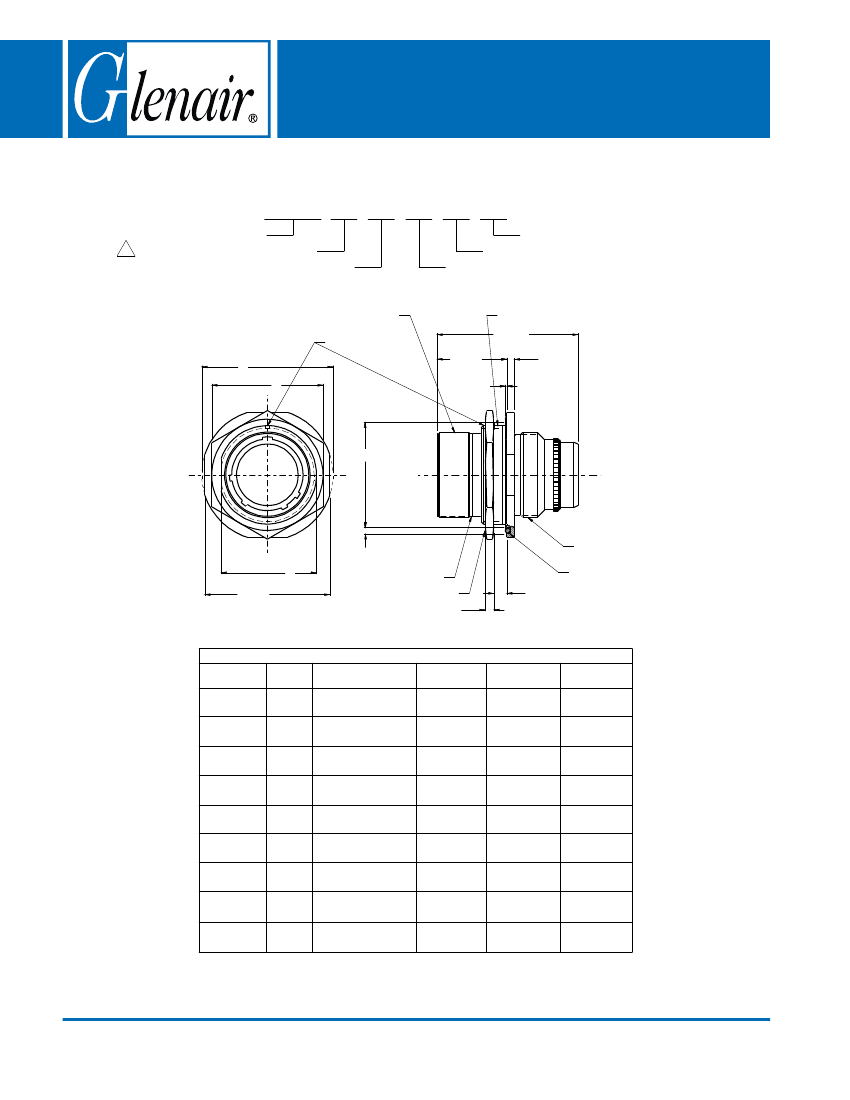

RECEPTACLE,

MIL-C-28840/14

JAM-NUT MOUNTING

MIL-C-28840

HOW TO ORDER

GLENAIR P/N: 900-014

MILITARY P/N: M28840/14

BASIC PART NUMBER

3 CLASS CODE (SEE MIL-C-28840)

SHELL SIZE (TABLE I)

NF

A

25 -

G

1

P

1

900-014

900-014 Mount

Receptacle, Jam-Nut

MIL-C-28840

K

T

L

G

TYP.

MILITARY SHELL

SHELL SIZE SIZE

A

B

C

D

E

F

G

H

J

11

13

15

17

19

23

25

29

33

www.glenair.com

KEY POSITION (SEE MIL-C-28840)

CONTACT STYLE (SEE MIL-C-28840)

INSERT ARRANGEMENT (SEE MIL-C-28840)

A THREAD

RED COLOR STRIPE

1.033

1.013

.026

.010

M THREAD

2.062

MAX.

.130

.100

BB

.096

.089

RED COLOR BAND

HEX NUT

S

V THREAD

O-RING

.188 MAX.

PANEL THICKNESS

TABLE I: CONNECTOR DIMENSIONS

A THREAD

CLASS 2A

G

±0.01 (0.3)

.750-.1P-.2L-D.S.

.875-.1P-.2L-D.S.

K DIA.

±0.01 (0.3)

1.264 (32.1) 1.358 (34.5)

1.389 (35.3)

1.498 (38.0)

1.671 (42.4)

1.733 (44.0)

1.921 (48.8)

2.108 (53.5)

2.233 (56.7)

2.425 (61.6)

2.608 (66.2)

L ACROSS

FLAT

.841 (21.4)

.832 (21.1)

.966 (24.5)

.957 (24.3)

1.153 (29.3)

1.144 (29.1)

1.216 (30.9)

1.207 (30.7)

1.403 (35.6)

1.394 (35.4)

1.591 (40.4)

1.582 (40.2)

1.716 (43.6)

1.701 (43.2)

1.903 (48.3)

1.894 (48.1)

2.091 (53.1)

2.082 (52.9)

1.062-.1P-.2L-D.S. 1.577 (40.1)

1.125-.1P-.2L-D.S.

1.312-.1P-.2L-D.S.

1.500-.1P-.2L-D.S.

1.625-.1P-.2L-D.S.

1.639 (41.6)

1.827 (46.4)

2.014 (51.2)

2.139 (54.3)

1.812-.1P-.2L-D.S. 2.327 (59.1)

2.000-.1P-.2L-D.S. 2.514 (63.9)

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

D-6
