4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
2000
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
2000
BY -
OPTIONAL BIGGER CHAMFERS ALLOWED
SC 0.4 # 0.15
G3
A-A
31.8
+0.08
-0.30
B-B
6.15
-0.2
G3
23.4
WARPAGE PERMITTED
Einfall zulaessig
+0.1
-0.5
G2
SEE PCN E-14-018294
ECR-15-002126
08DEC2014
09FEB2015
MK
GP
KR
KR
G3
CODING B
1:1
7
MEASURING AREA
Messebene
7
MEASURING AREA
Messebene
32.9
0.3
2.05
3
0.1
D
9.5
0.1
1.5MM MALE TERMINAL SEALED
SUITABLE TERMINALS: FORD CAT2 (SUPPLIER YAZAKI)
2.8MM MALE TERMINAL SEALED
SUITABLE TERMINALS: FORD CAT3 (SUPPLIER YAZAKI OR TE)
D
2
45.9
0.3
0.3
11.9
0.1
1:1
CODING C
8
11.9
0.1
4
1:1
C
CODING A
8.3
5.7
9.5
0.1
C
9.9
6.7
PINOUT CONFIGURATION
Pinoutkonfiguration
1
3-1452303-1
X X X X
X
1-1452303-1
X X X X
X
0-1452303-1
0.1
NOTES:
1
Bemerkungen:
CODING A
DELIVERY CONDITION: SPACER IN PRE LOCK POSITION
Anlieferungszustand: Spacer in Vorraststellung
5.75
X X X X X
X X X X X
2
MATED WITH TE PART NO
Significantes Merkmal
1:1
passend zu TE Teile Nr. 1452299 und 1452734
1452299 AND 1452734
SC
SIGNIFICANT CHARACTERISTIC
1 2 3 4 5 6 7 8 9 101112
WITH "X" MARKED INDICATE CLOSED LOCATIONS
Markierte Felder mit "X" kennzeichnen geschlossene Kammern
BLANKED CAVITIES INDICATE OPEN LOCATIONS FOR TERMINALS
Leere Felder kennzeichnen offene Kammern fuer Kontakte
B
5.75
2.05
6.7
9.9
5.7
8.3
4-1452303-1
X X X X
X
2-1452303-1
X X X X
X
0-1452303-2
CODING B
1x
1x
1x
1x
1x
1x
PBT-GF20
PBT-GF20
PBT-GF20
PBT-GF20
1x
1x
PBT-GF15
PBT-GF20
MATERIAL
MALE HSG.
CODING B
CODING A
CODING C
CODING B
-
green
black
-
-
B
MALE HSG.
MALE HSG.
MALE HSG.
SPACER
-
-
3
2
1
NO
X X
X X
1x
1x
1x
1x
nature 4
-
green
red
black
-
-
-
CLOSED CAVITIES / Geschlossene Kammern
1x
1x
1 2 3 4 5 6 7 8 9 101112
A
18.3
A
18.3
D
18.3
F
18.3
-
-
C
18.3
CODING A
MALE HSG.
DESCRIPTION
WITH "X" MARKED INDICATE CLOSED LOCATIONS
Markierte Felder mit "X" kennzeichnen geschlossene Kammern
BLANKED CAVITIES INDICATE OPEN LOCATIONS FOR TERMINALS
Leere Felder kennzeichnen offene Kammern fuer Kontakte
COLOUR
ITEM
REVISION OF EACH ASSY NO (WHEN BLANK, USE DWG REVISION)
E
18.3
WEIGTH OF EACH ASSY NO [g]
TE ASSY PN
4-1452303-1
3-1452303-1
2-1452303-1
1-1452303-1
0-1452303-3
0-1452303-2
0-1452303-1
0-1452303-3
CLOSED 1.5mm CAVITIES
Geschlossene 1,5mm Kammern
A
CODING C
B
A
B
A
C
B
A
CODING
MATING COMPONENT TE ASSY PN
PARTS LIST
2-1452299-1
1-1452299-1
2-1452299-1
1-1452299-1
0-1452299-3
0-1452299-2
0-1452299-1
DWN
CHK
DIMENSIONS:
1 2 3 4 5 6 7 8 9 101112
THIS DRAWING IS A CONTROLLED DOCUMENT.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
WITH "X" MARKED INDICATE CLOSED LOCATIONS
Markierte Felder mit "X" kennzeichnen geschlossene Kammern
BLANKED CAVITIES INDICATE OPEN LOCATIONS FOR TERMINALS
Leere Felder kennzeichnen offene Kammern fuer Kontakte
G.PUCKEL
S.DENTER
16OCT2001
16OCT2001
16OCT2001
NAME
TE Connectivity
mm
APVD
A
CLOSED 2.8mm CAVITIES
Geschlossene 2,8mm Kammern
-1
AS SHOWN
wie gezeichnet
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
PRODUCT SPEC
G.MUMPER
APPLICATION SPEC
-
5
-
-
1471-9 (3/13)
-
-
114-18487
WEIGHT
-
CUSTOMER DRAWING
A2
00779
SIZE
CAGE CODE DRAWING NO

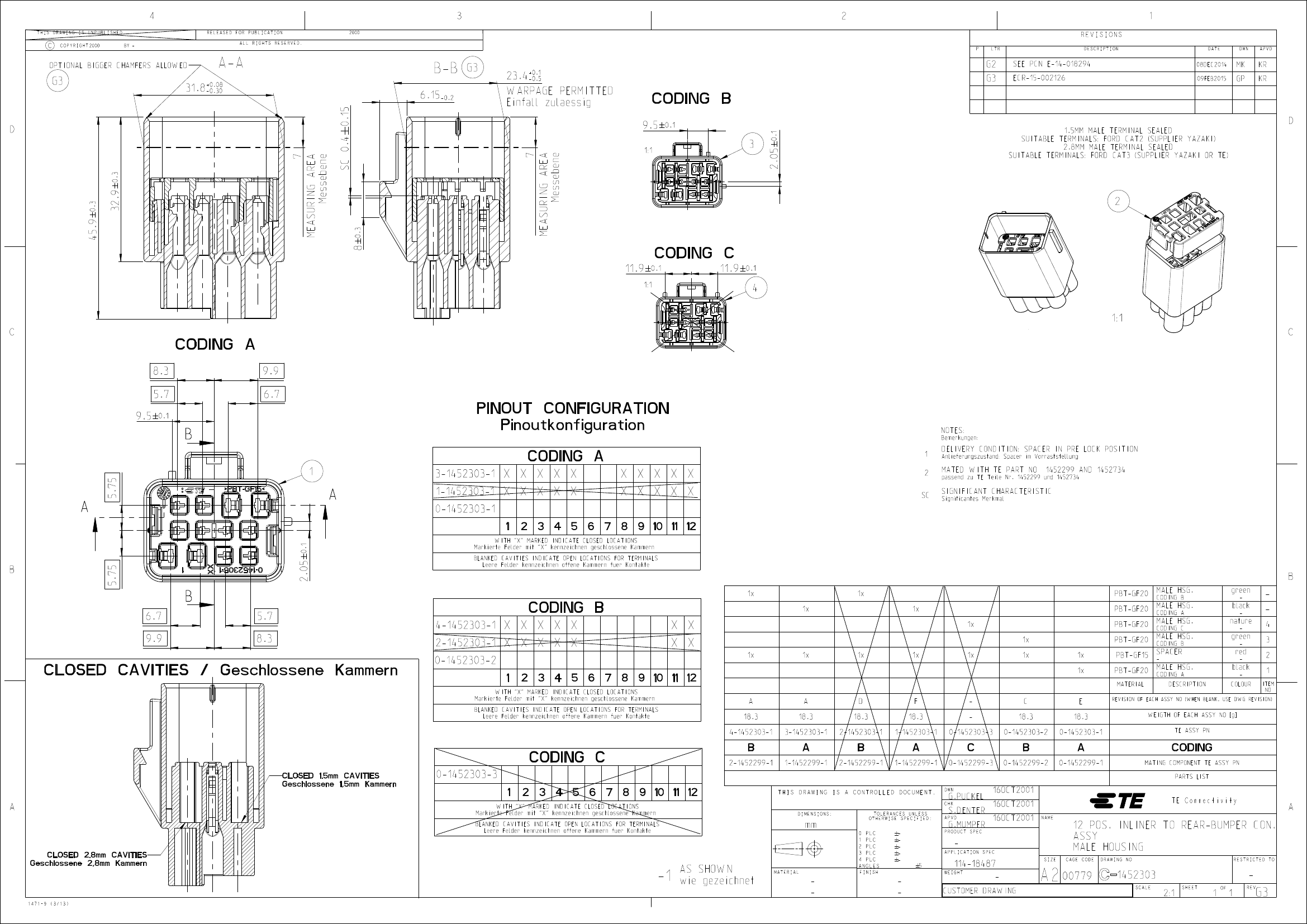

12 POS. INLINER TO REAR-BUMPER CON.
ASSY
MALE HOUSING
RESTRICTED TO
1452303
SCALE
2:1
SHEET
1
OF
1
REV
-
G3
