3200027 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 3200027

Preview

3200027: DescriptionHeaders u0026 Wire Housings SOCKET 24-18AWG BULK; CategoryThe connector Connector bracket; File Size86KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

3200027 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3200027	-	-	View	Buy Now

3200027 Overview

Headers u0026 Wire Housings SOCKET 24-18AWG BULK

3200027 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compliant
Certification	CSA
Assembly name	FERRULE
Connector bracket type	TERMINAL BLOCK ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3200027
Material	COPPER ALLOY
Minimum operating temperature	105 °C
Base Number Matches	1

Preview

Download Datasheet

View All

Extract from the online

catalog

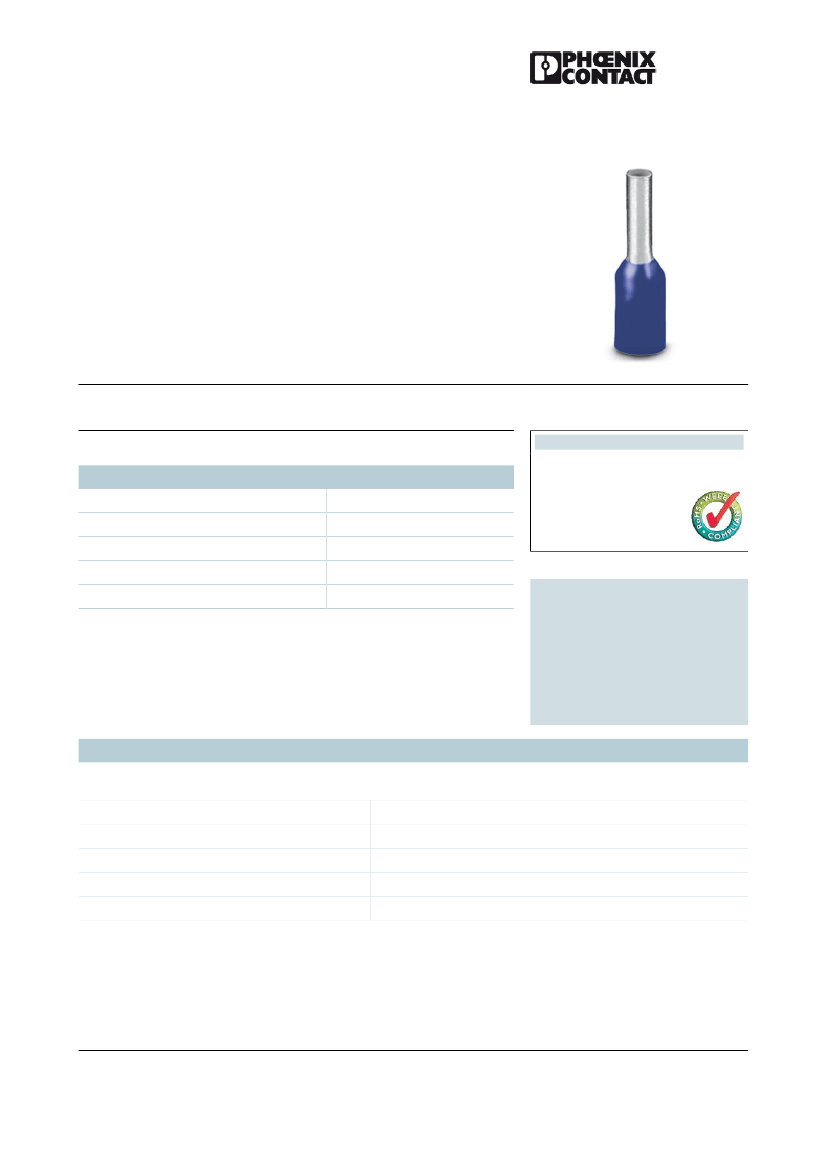

AI 0,75- 8 BU

Order No.: 3200027

http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3200027

Ferrule, Length: 14 mm, Color: blue

Product notes

Commercial data

EAN

Pack

Customs tariff

Weight/Piece

Catalog page information

4017918093679

100 pcs.

85369010

0.00009 KG

Page 664 (CL-2009)

http://

www.download.phoenixcontact.com

Please note that the data given

here has been taken from the

online catalog. For comprehensive

information and data, please refer

to the user documentation. The

General Terms and Conditions of

Use apply to Internet downloads.

WEEE/RoHS-compliant since:

11/22/2005

Technical data

General

Length (b)

Color

Material

Sleeve length

Inner dimension of the insulating collar (d)

14 mm

blue

E-CU

8 mm

2.8 mm

PHOENIX CONTACT Inc., USA

http://www.phoenixcon.com

Page 1 / 3

Mar 25, 2010
