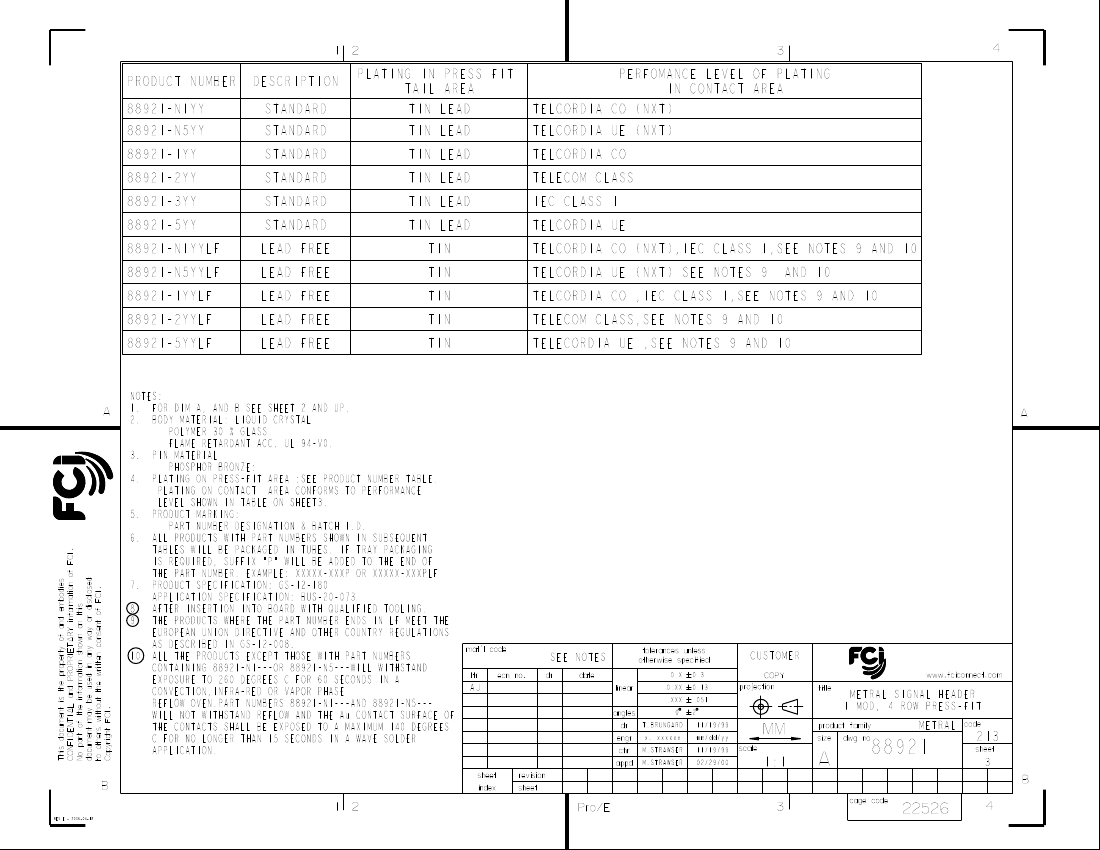

PRODUCT NUMBER
88921-N1YY
88921-N5YY
88921-1YY
88921-2YY
88921-3YY
88921-5YY
88921-N1YYLF
88921-N5YYLF
88921-1YYLF
88921-2YYLF
88921-5YYLF
DESCRIPTION
STANDARD
STANDARD
STANDARD
STANDARD
STANDARD
STANDARD
LEAD FREE
LEAD FREE
LEAD FREE
LEAD FREE
LEAD FREE
PLATING IN PRESS FIT
TAIL AREA
TIN LEAD
TIN LEAD
TIN LEAD
TIN LEAD
TIN LEAD
TIN LEAD
TIN
TIN
TIN
TIN
TIN
PERFOMANCE LEVEL OF PLATING
IN CONTACT AREA
TELCORDIA CO (NXT)
TELCORDIA UE (NXT)
TELCORDIA CO
TELECOM CLASS
IEC CLASS I
TELCORDIA UE
TELCORDIA CO (NXT),IEC CLASS I,SEE NOTES 9 AND 10
TELCORDIA UE (NXT) SEE NOTES 9
AND 10
TELCORDIA CO ,IEC CLASS I,SEE NOTES 9 AND 10
TELECOM CLASS,SEE NOTES 9 AND 10
TELECORDIA UE ,SEE NOTES 9 AND 10
A
CONFIDENTIAL and PROPRIETARY information of FCI.
This document is the property of and embodies
to others without the written consent of FCI.
document may be used in any way or disclosed
No part of the information shown on this
Copyright FCI.
NOTES:
1. FOR DIM A, AND B SEE SHEET 2 AND UP.
2. BODY MATERIAL: LIQUID CRYSTAL
POLYMER 30 % GLASS.
FLAME RETARDANT ACC. UL 94-V0.
3. PIN MATERIAL
PHOSPHOR BRONZE:
4. PLATING ON PRESS-FIT AREA :SEE PRODUCT NUMBER TABLE.
PLATING ON CONTACT AREA CONFORMS TO PERFORMANCE
LEVEL SHOWN IN TABLE ON SHEET3.
5. PRODUCT MARKING:
PART NUMBER DESIGNATIONBATCH I.D.
&
6. ALL PRODUCTS WITH PART NUMBERS SHOWN IN SUBSEQUENT
TABLES WILL BE PACKAGED IN TUBES. IF TRAY PACKAGING
IS REQUIRED, SUFFIX "P" WILL BE ADDED TO THE END OF
THE PART NUMBER. EXAMPLE: XXXXX-XXXP OR XXXXX-XXXPLF
7. PRODUCT SPECIFICATION: GS-12-180
APPLICATION SPECIFICATION: BUS-20-073
8. AFTER INSERTION INTO BOARD WITH QUALIFIED TOOLING.
9. THE PRODUCTS WHERE THE PART NUMBER ENDS IN LF MEET THE
EUROPEAN UNION DIRECTIVE AND OTHER COUNTRY REGULATIONS
AS DESCRIBED IN GS-12-008.
mat'l code
10. ALL THE PRODUCTS EXCEPT THOSE WITH PART NUMBERS
CONTAINING 88921-N1---OR 88921-N5---WILL WITHSTAND
ltr
ecn no.
EXPOSURE TO 260 DEGREES C FOR 60 SECONDS IN A
AJ
CONVECTION,INFRA-RED OR VAPOR PHASE
REFLOW OVEN.PART NUMBERS 88921-N1---AND 88921-N5---
WILL NOT WITHSTAND REFLOW AND THE Au CONTACT SURFACE OF
THE CONTACTS SHALL BE EXPOSED TO A MAXIMUM 140 DEGREES
C FOR NO LONGER THAN 15 SECONDS IN A WAVE SOLDER
APPLICATION.
sheet
revision
sheet
A
SEE NOTES
dr
date
linear
tolerances unless
otherwise specified
CUSTOMER
COPY
projection
title
www.fciconnect.com
0.X
0.XX
.XXX
angles
dr
engr
chr
appd
0.3
0.13
.051
2
0

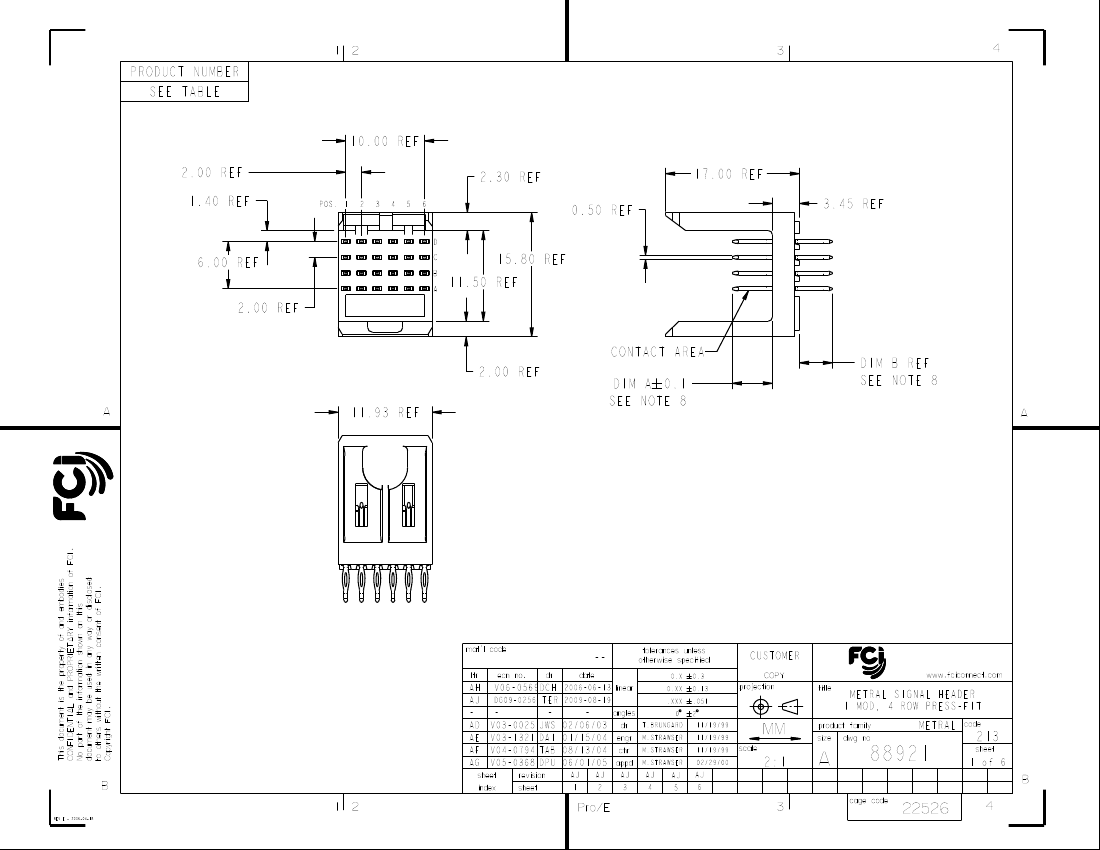

METRAL SIGNAL HEADER
1 MOD, 4 ROW PRESS-FIT
METRAL
code
dwg no
T.BRUNGARD
x. xxxxxx
M.STRAWSER
M.STRAWSER
11/19/99
mm/dd/yy
11/19/99
02/29/00
scale
MM
product family
size
1:1
A
88921
22526
213
sheet
3
B
B
1
REV E - 2006-04-18
