8-2232265-4

Description
PTL 1X4 PLUG HSG GLW WIRE KEY D ORA
CategoryThe connector
File Size481KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

8-2232265-4 Online Shopping

Suppliers Part Number Price MOQ In stock
8-2232265-4 - - View Buy Now

8-2232265-4 Overview

PTL 1X4 PLUG HSG GLW WIRE KEY D ORA

8-2232265-4 Parametric

Parameter NameAttribute value
Housing typeplug
Connector Systemline to line
Sealableno
Connectors and terminals terminate toWires and cables
Terminal typefemale end
Number of Positions4
Number of power supply locations4
Rows1
keyingD
Operating voltage (VAC)600
Operating voltage (VDC)600
Terminal retentionWithout
Terminal layoutDirect plug-in
Cable termination methodcrimp
Panel mount featuresWithout
Connector mounting typeCable installation
Centerline (Pitch)6 mm [ .236 in ]
UL fire ratingUL 94V-0
Shell colororange color
Shell materialNylonGF
Outgoing angleStraight
Height (mm)16.3
Working group temperature range-55 – 140 °C [ -67 – 284 °F ]
Circuit ApplicationPower
Circuit identification characteristicswith
Glow Wire RatingsGWT 750°C (without flame) according to IEC 60335-1 Edition 06/2001
Agencies/StandardsUL
Organization/Standard NumberE28476
UL ratingRecognized
Encapsulation methodcarton
Applicable toCPA, receptacle housing, receptacle (socket) terminal, terminal locking tab
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
-
-
C
REVISED PER ECR-16-001024
03JUN2016
BW
GJ
2.00
11.60
D
POS.
1*5
1*4
1*3
1*2
DIM.A
33.70
27.70
21.70
15.70
DIM.B
28.00
22.00
16.00
10.00
D
11.30
10.30
15.70
C
C
15.30
3.00
6.00
B
NOTE
1.MATERIAL:
LEVEL A:PA6 ,COMPLY WITH GLOW WIRE REQUIREMENTS FOR PARTS OF
NON-METALLIC MATERIAL SUPPORTING A CURRENT-CARRYING CONNECTION
DETAILED IN IEC 60335-1, SECTION 30 (GWT),UL 94V-0
LEVEL B:PBT,HOT WIRE IGNITION (HWI) VERSION ARE MOLDED IN
A RESIN THAT COMPLIES WITH TE HOT WIRE IGNITION TEST 109-32026
AND ARE RECOMMENDED FOR USE WITH HWI HOUSINGS THAT ALSO COMPLY,
UL 94V-0
2
1.00
(2X)
9.25
B
MATERIAL MARK:
LEVEL A:GWT,LEVEL B:HWT
2
3. APPLICABLE CONTACT P/N
REC CONTACT:1971237/1971779/81/83/85/87-*
4. MATING CONN, P/N
CAP HSG:*-2232358/263-*
TPA:*-1971777-*
A
DIM.B
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DIM.A
4805 (3/11)
GWT
A
TOMMY WU
HAPYE WU
YUHONG MAO
108-106118
114-106118
SIZE
26MAR2013
26MAR2013
26MAR2013
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.35
0.25
-
-
PRODUCT SPEC
APPLICATION SPEC
-
SEE TABLE
-
-
-
WEIGHT
-
Customer Drawing
A1
00779
CAGE CODE

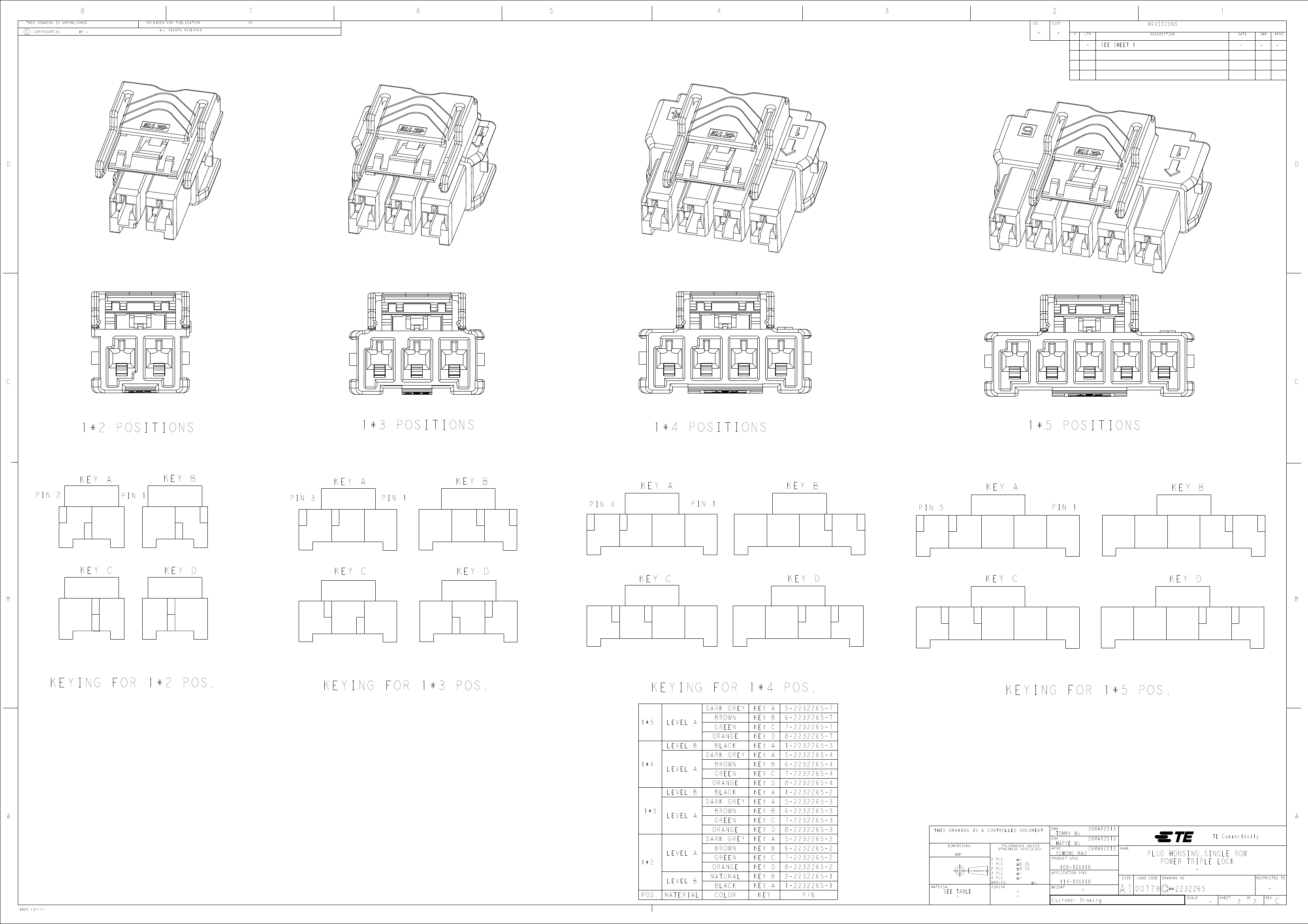

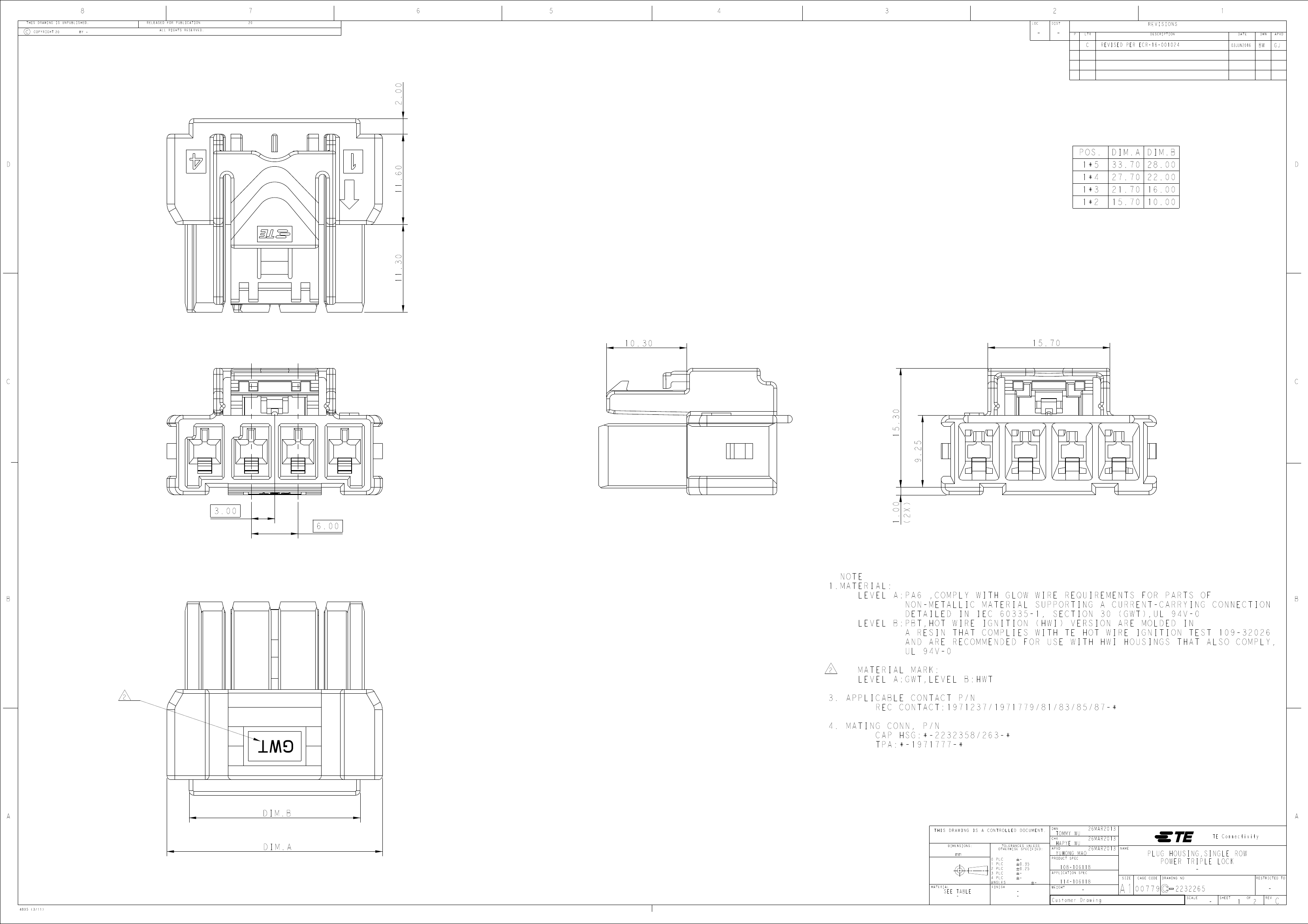

PLUG HOUSING,SINGLE ROW
POWER TRIPLE LOCK
-
DRAWING NO
RESTRICTED TO
2232265
SCALE
-
SHEET
1
OF
2
REV
-
C
