74697-9002

CategoryThe connector    The connector
File Size26KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

74697-9002 Online Shopping

Suppliers Part Number Price MOQ In stock
74697-9002 - - View Buy Now

74697-9002 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT, TUBE PACKAGING
body width0.571 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
DIN complianceNO
Filter functionNO
IEC complianceNO
maximum insertion force.3892 N
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number5
Number of rows loaded5
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.098 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts40
UL Flammability Code94V-0
This document was generated on 07/11/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0746979002
Active
HSD 5 ROW SHIELD END BP Pb FREE
Documents:
Drawing (PDF)
Packaging Specification PK-74696-003 (PDF)
Agency Certification
CSA
General
Product Family
Series
UPC
Physical
Flammability
Net Weight
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Packaging Specification
Sales Drawing
RoHS Certificate of Compliance (PDF)
LR19980
Backplane Connectors
74697
822350251259
94V-0
6.074/g
N/A

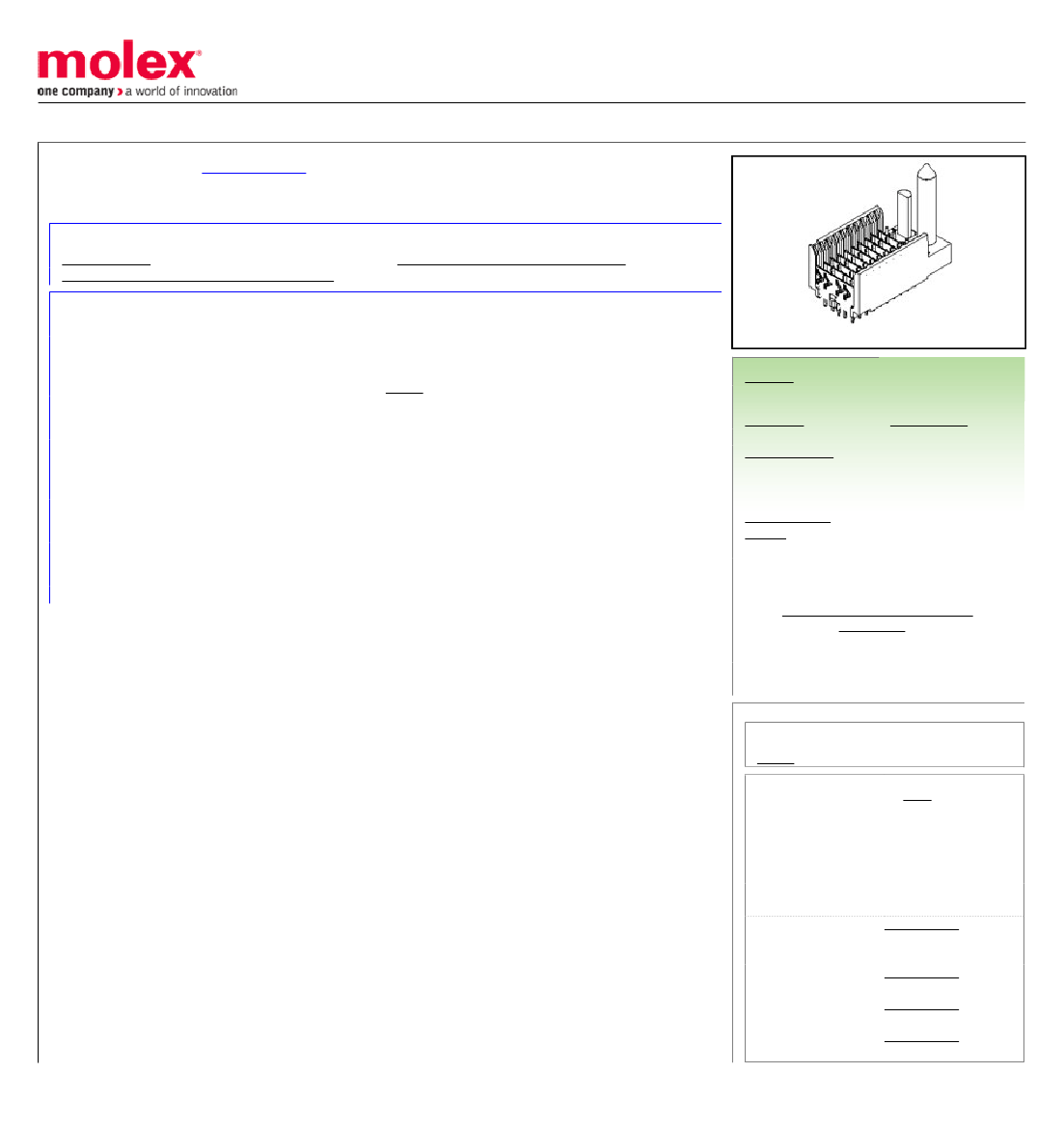

Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/21/2016 (20 June
2016)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
Green Image
Not Relevant
PK-74696-003
SD-74697-002
Search Parts in this Series
74697 Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Signal Header, 5-
0622020201
Row by 10-Wide,
20.00mm
Signal Pin Inserter 0622015700
Repair Tool
5-Row Pin and
0622015810
Shield Repair Tool
5-Row Shield
0622016010
Extraction Tool
