22-12-2036 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-12-2036

22-12-2036: DescriptionHeaders u0026 Wire Housings KK 100 HDR FRLK RTAN 03 CKT GOLD; CategoryThe connector The connector; File Size733KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

22-12-2036 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-12-2036	-	-	View	Buy Now

22-12-2036 Overview

Headers u0026 Wire Housings KK 100 HDR FRLK RTAN 03 CKT GOLD

22-12-2036 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

NOTES:

1. MATERIAL: NYLON, UL94V-0, COLOR: WHITE

2. FINISH:

(154) = OVERALL TIN: (0.00254)/.000100 MIN., OVERALL NICKEL UNDERPLATE: (0.00127)/.000050 MIN.

(197) = OVERALL REFLOWED MATTE TIN: 0.00152/.000060 MIN OVER 0.00127/.000050 MIN NICKEL.

(222) = OVERALL MATTE TIN: (0.00254)/.000100 MIN., OVERALL NICKEL UNDERPLATE: (0.00127)/.000050 MIN.

(208) = SELECT GOLD: 0.00038/.000015 MIN, SELECT MATTE TIN: 0.00254/.000100, BOTH OVER 0.00127/.000050 MIN NICKEL.

(228) = SELECT GOLD: 0.00076/.000030 MIN, SELECT MATTE TIN: 0.00254/.000100, BOTH OVER 0.00127/.000050 MIN NICKEL.

(241) = SELECT GOLD: 0.00051/.000020 MIN, SELECT MATTE TIN: 0.00254/.000100, BOTH OVER 0.00127/.000050 MIN NICKEL.

3. PARTS CONFORM TO PRODUCT SPECIFICATION PS-10-07.

4. PACKAGING INFORMATION: SEE LEGEND.

5. PARTS ARE STACKABLE END TO END ON (2.54)/.100 CENTERS.

6. PIN PUSH OUT FORCE: 2 LBS. MIN.

7. CIRCUIT ONE DESIGNATION IS USED TO DEFINE VOID LOCATION.

CIRCUIT ONE MAY OR MAY NOT LINE UP WITH CIRCUIT ONE ON THE MATING HOUSING.

8. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002.

GROOVE MAY OR MAY NOT BE

PRESENT (BOTH SIDES). GEOMETRY

IS TOOL DEPENDENT AND MAY

BE SLIGHTLY DIFFERENT THAN

SHOWN

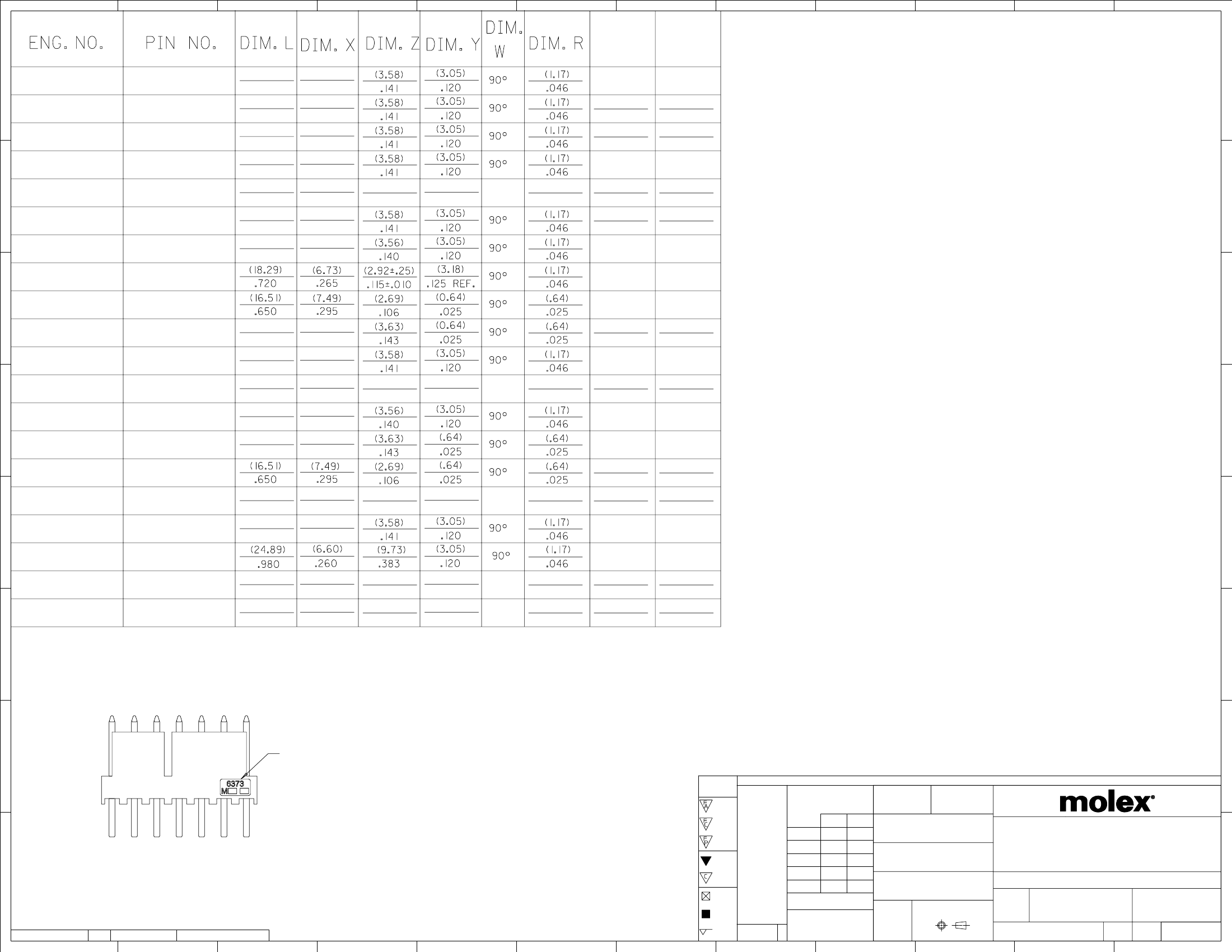

CIRCUITS

DIM. G

GOLD

(0.20)/

RECESSED GATE MAY BE

PRESENT ON 2-25 CKT

PARTS. LOCATION VARIES.

DIM. T

TIN

(0.13)/

BULK PK-7478-001

SEE NOTE 2

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

2016/03/16

2017/04/11

2017/04/28

ADD ALT ENGRAVING VIEW

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

4:1

1987/07/30

DATE

INCH

.010

.015

4 PLACES

3 PLACES

2 PLACES

0.25

0.38

GUZIC

CHK'D BY

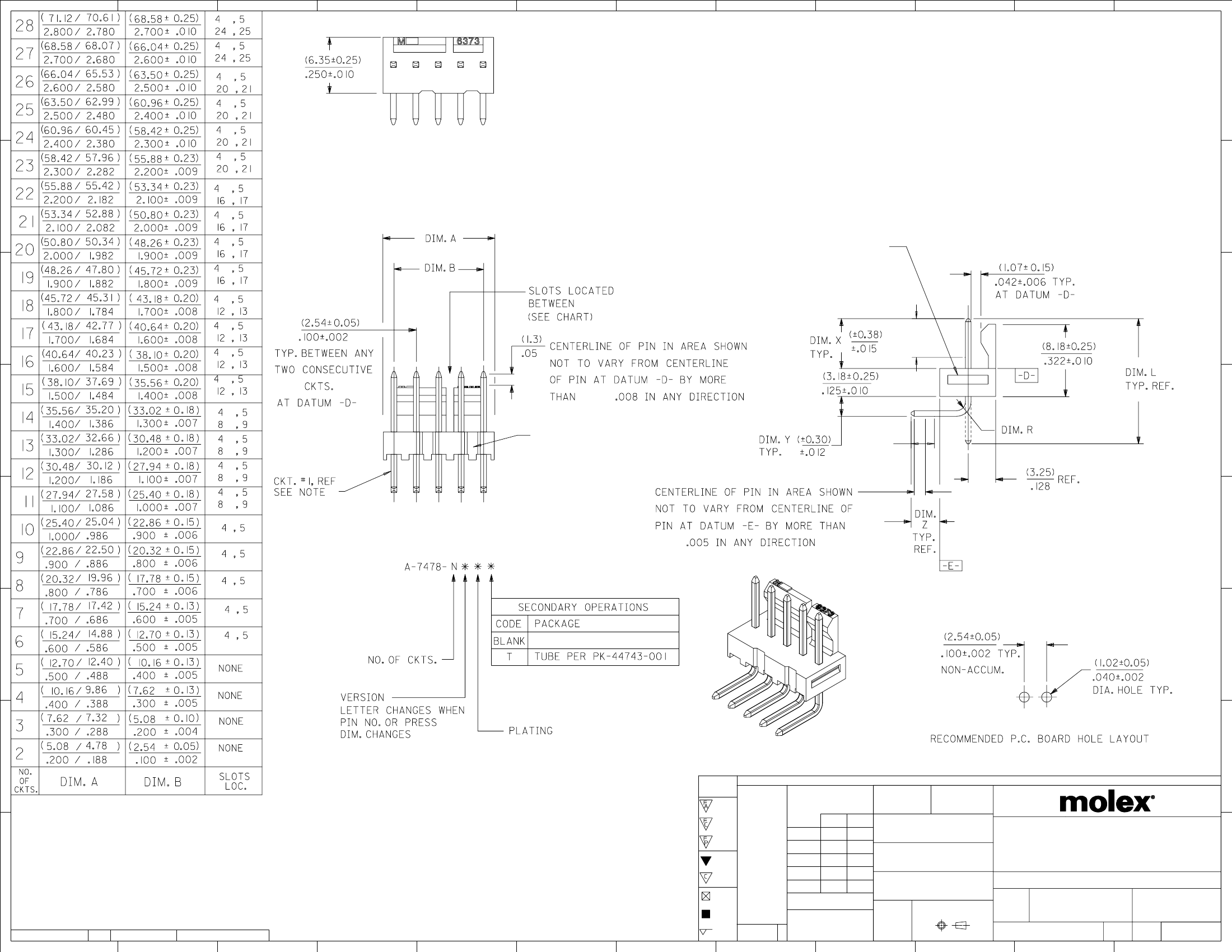

FRICTION LOCK HEADER ASY

.100 CL BENT SQ. PINS 7478 SERIES

111298

MKIPPER

FSMITH

PATEL

APPR BY

DATE

1987/07/30

1 PLACES

0 PLACES

PRODUCT CUSTOMER DRAWING

2014/05/16

SERIES

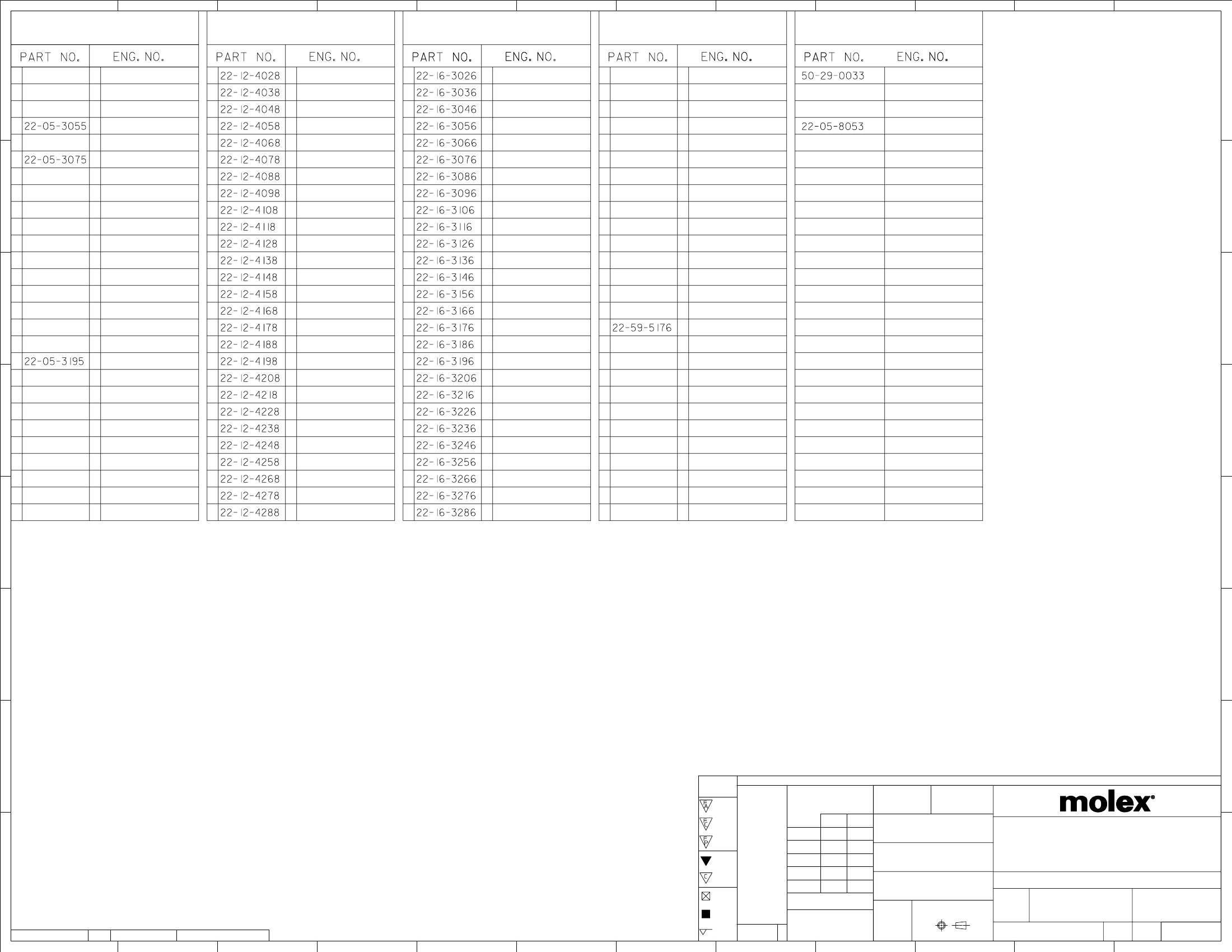

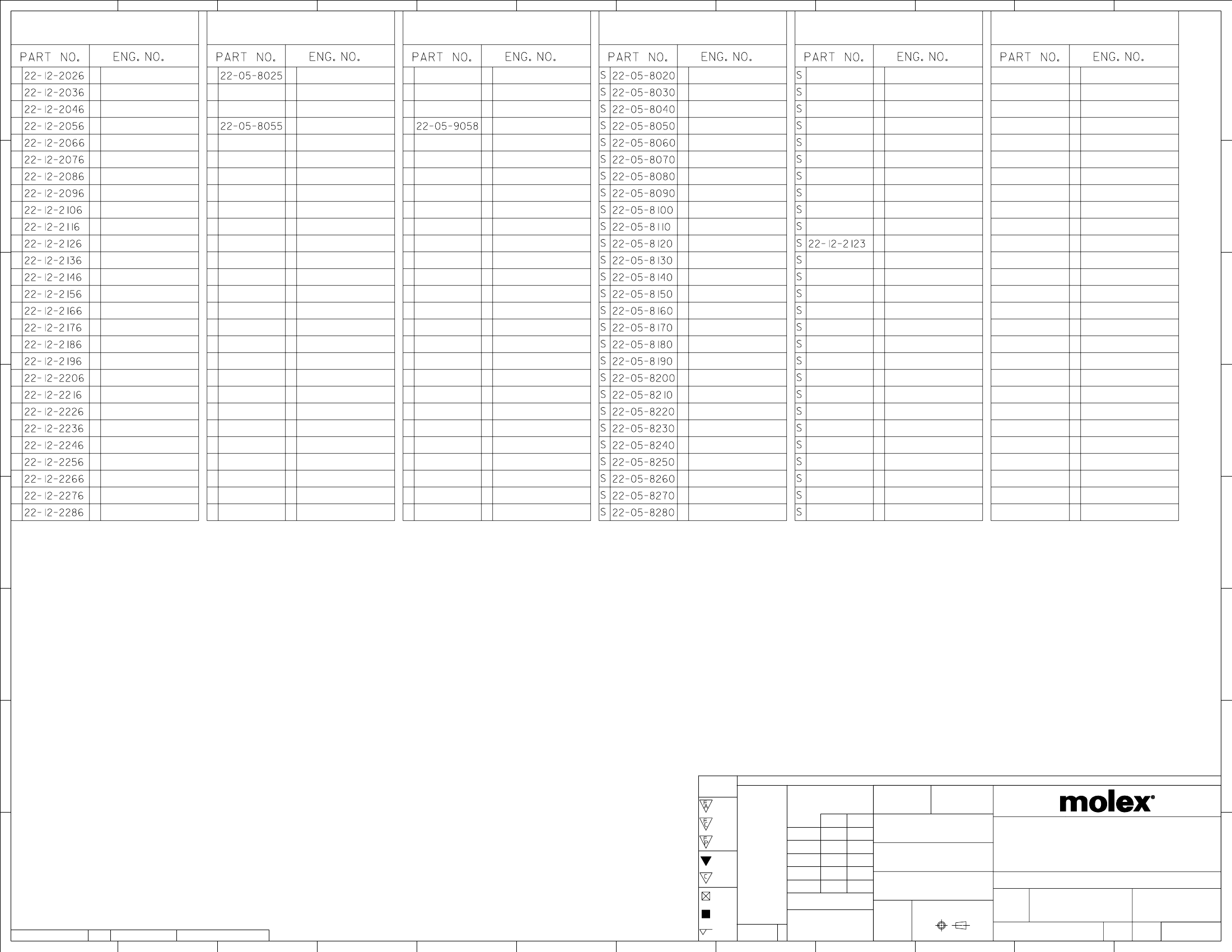

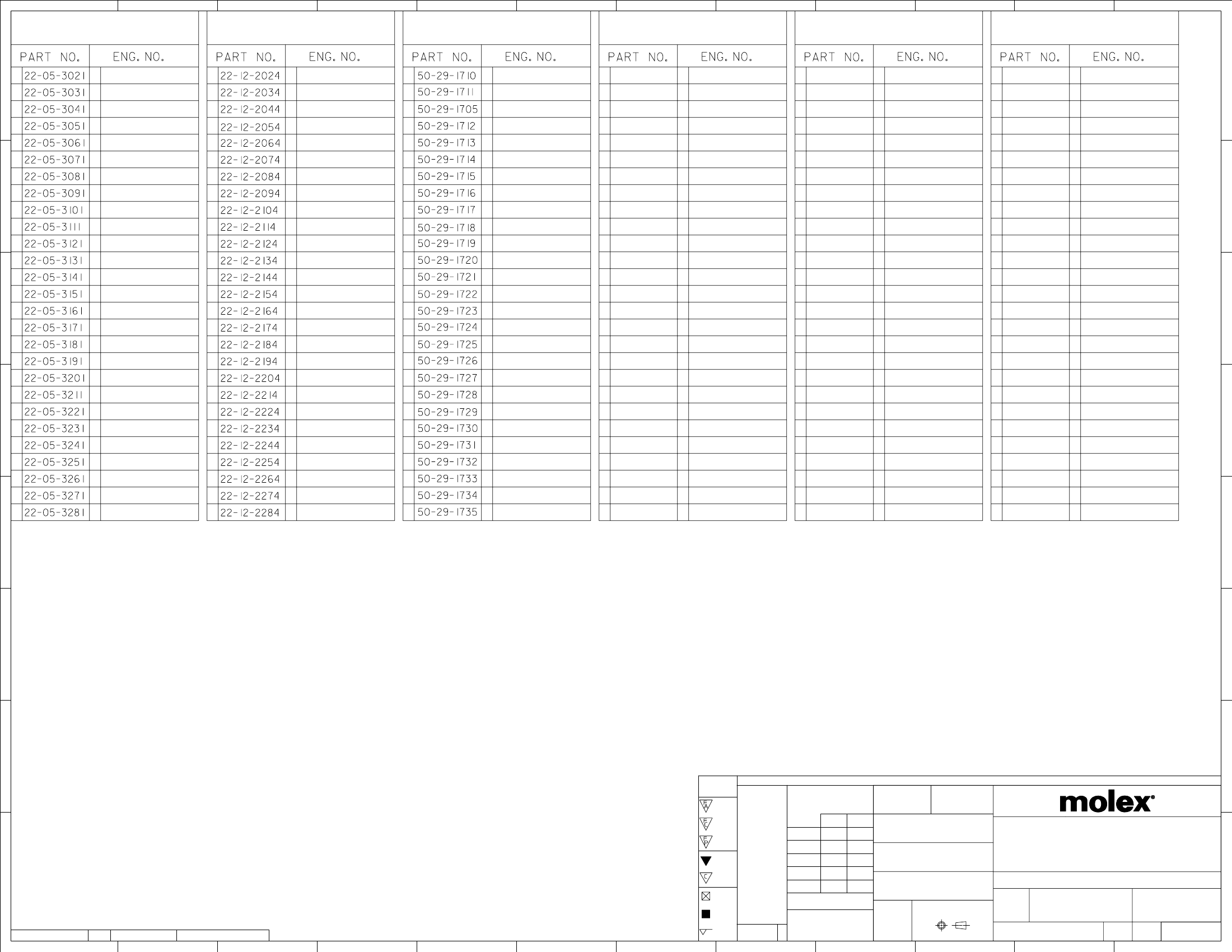

MATERIAL NUMBER

CUSTOMER

FSMITH

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

1/2

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

THIRD ANGLE PROJECTION

7478

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE

DOC PART

SHEET NUMBER

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-C

REVISION: B

DATE: 2015/11/19

RELEASE DATE

AA2

REV

SDA-7478

PSD

000

1 OF 5
