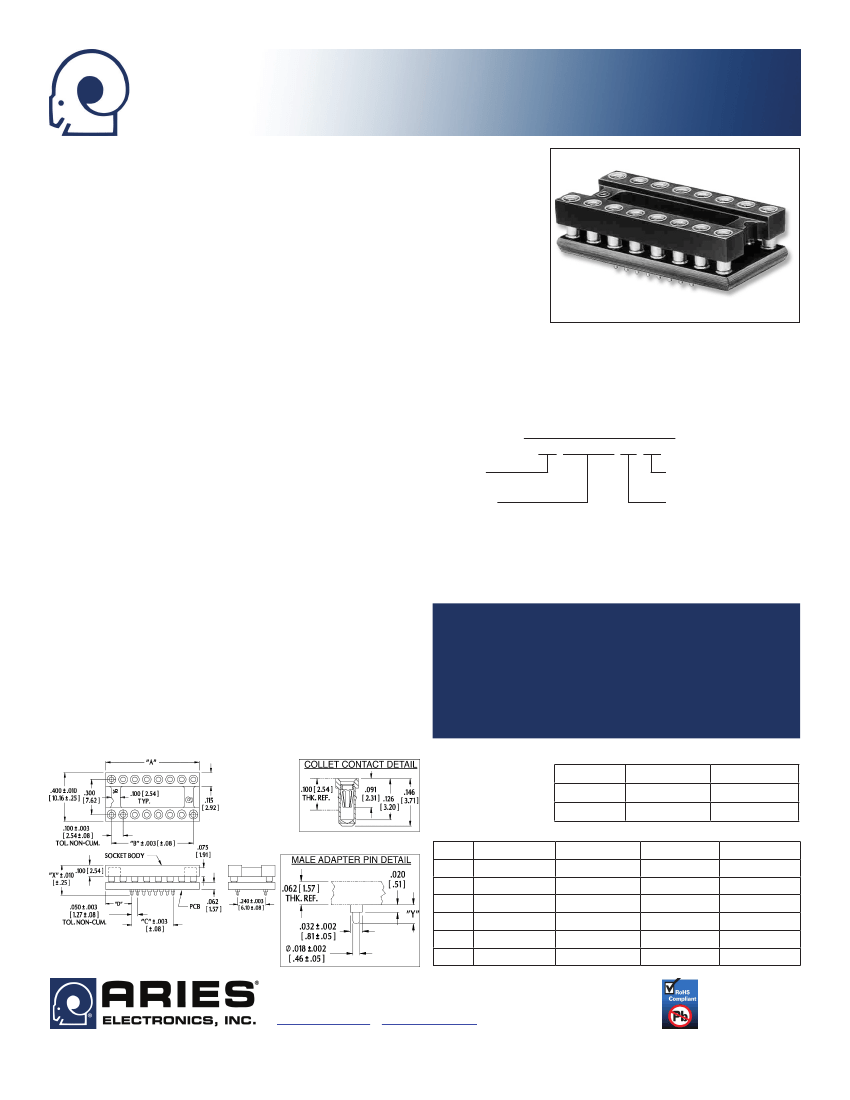

Series 354000 RoHS/WEEE-Compliant
DIP-to-SOIC Adapter
FEATURES
• Convenient, cost-effective means of converting DIP-to-SOIC PC board layouts
GENERAL SPECIFICATIONS
• SOCKET BODY: black, UL 94V-0 glass-filled 4/6 Nylon 170°C continuous use
temperature
• PCB: 0.062 [1.58] thick FR-4 or IS410 per IPC4101A/26 with 1-oz. Cu traces,
both sides finished with ENIG (Immersion Au over Electroless Ni)
• MALE ADAPTOR PIN: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
• MALE PIN PLATING: 10µ [0.254µ] min. Au per MIL-G-45204 over 100µ [2.54µ]
min. Ni per SAE-AMS-QQ-N-290
• FEMALE CONTACT PIN: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
CUSTOMIZATION:
In addition to the standard products shown
• FEMALE PIN PLATING: 10µ [0.254µ] min. Au per MIL-G-45204 over 100µ
on this page, Aries specializes in custom design and production.
[2.54µ] min. Ni per SAE-AMS-QQ-N-290
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• 4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-01
• FEMALE CONTACT PLATING: 10µ [0.254µ] min. Au per MIL-G-45204 over 50µ
right to change product general specifications without notice.
[1.27µ] min. Ni per SAE-AMS-QQ-N-290
• CONTACT CURRENT RATING: 3 amps
ORDERING INFORMATION
• OPERATING TEMPERATURE: 221°F [105°C]
XX-354000-X1-RC
• INSERTION FORCE: 180g/pin; based on a 0.018 [0.46] dia. test
Pins
Plating
lead
8,14, 16, 20, 24, 28
Au Pin RoHs-compliant
• WITHDRAWAL FORCE: 90g/pin; based on a 0.018 [0.46] dia.
Series
Adapter Pin Options
test lead
(see P/N Suffix Table)
• NORMAL FORCE: 140g/pin; based on a 0.018 [0.46] dia. test
1 = Short Adaptor Pin
lead
2 = Long Adaptor Pin
• SOCKET ACCEPTS: leads 0.015-0.025 [0.38-0.64] in dia.,
0.0100-0.125 [2.54-3.18] long
MOUNTING CONSIDERATIONS
• SUGGESTED PCB SOLDER PAD SIZE: 0.028 [0.71] min.
width
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” = NO. OF PINS PER ROW x 0.100 [2.54]
“B” = (NO. OF PINS PER ROW -1) x 0.100 [2.54]
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
P/N Suffix
-11
-21
Pins
8
14
16
20
24
28
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
Dim. “X”
0.265 [6.73]
0.325 [8.26]
Dim. “Y”
0.050 [1.27]
0.110 [2.79]
Dim. “A”
0.400 [10.16]
0.700 [17.78]
0.800 [20.32]
1.000 [25.40]
1.200 [30.48]
1.400 [35.56]
Dim.“B”
Dim.“C”
Dim.“D”
0.400 [10.16] 0.100 [2.54] 0.125 [3.18]
0.600 [15.24] 0.300 [7.62] 0.225 [5.72]
0.700 [17.78] 0.350 [8.89] 0.225 [5.72]
0.900 [22.86] 0.450 [11.43] 0.275 [6.99]
1.100 [27.94] 0.550 [13.97] 0.325 [8.26]
1.300 [33.02] 0.650 [16.51] 0.375 [9.53]
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18009RC
Rev. AA
