32-5996UL

Description
Modular Connectors / Ethernet Connectors 8P8C TOP ENTRY
CategoryThe connector
File Size33KB,1 Pages
ManufacturerCINCH
Download Datasheet Parametric View All

32-5996UL Online Shopping

Suppliers Part Number Price MOQ In stock
32-5996UL - - View Buy Now

32-5996UL Overview

Modular Connectors / Ethernet Connectors 8P8C TOP ENTRY

32-5996UL Parametric

Parameter NameAttribute value
Product CategoryModular Connectors / Ethernet Connectors
ManufacturerCINCH
RoHSDetails
ProductModular Plugs
USOC CodesRJ12
Number of Positions6 Position
Number of Ports1 Port
Performance CategoryCat 5e
Mounting StyleCable
Termination StyleIDC
ShieldingUnshielded
PackagingTray
Contact MaterialPhosphor Bronze
Contact PlatingGold
Flammability RatingUL 94 V-0
GenderMale
Housing MaterialPolycarbonate (PC)
Mounting AngleStraight
Factory Pack Quantity100
Unit Weight0.016014 oz
DESCRIPTION:
MODEL NUMBER:
APPLICATION:
CRIMP TOOL:
IMPEDANCE:
FREQUENCY RANGE:
MATERIAL:
RoHS COMPLIANCE:
TECHINCAL DETAIL:
PLUG BODY
CAT5E, RJ12 (6P6C) MODULAR PLUG, UNSHIELDED,
SOLID/STRANDED, ROUND CABLE
32-5996UL
MODULAR PLUG
N/A
N/A
N/A
HOUSING
CLEAR POLYCARBONATE UL94-V0
CONTACT
PHOSPHOR BRONZE
SELECTIVE GOLD PLATING
YES
N/A
.040 [1.02]
.040 [1.02]
.525 [13.34] REF
.380 [9.65]
( .133 [3.39] )
.128 [3.25]
.240 [6.10]
( .284 [7.21] )
CONTACTS (6)
( .294 [7.47] )
.045 [1.14]
.260 [6.60]
.109 [2.77]
.234 [5.95]
3RD ANGLE PROJECTION
AIM-Cambridge
Title:
RoHS2
This PROPRIETARY Document
is property of Cinch Connectivity
Solutions. It is confidential in
nature, non-transferable, and
issued with the clear
understanding that it is not
traced or copied without
permission and is returnable
upon demand.
2011/65/EU
UNLESS OTHERWISE SPECIFIED
UNITS: INCH

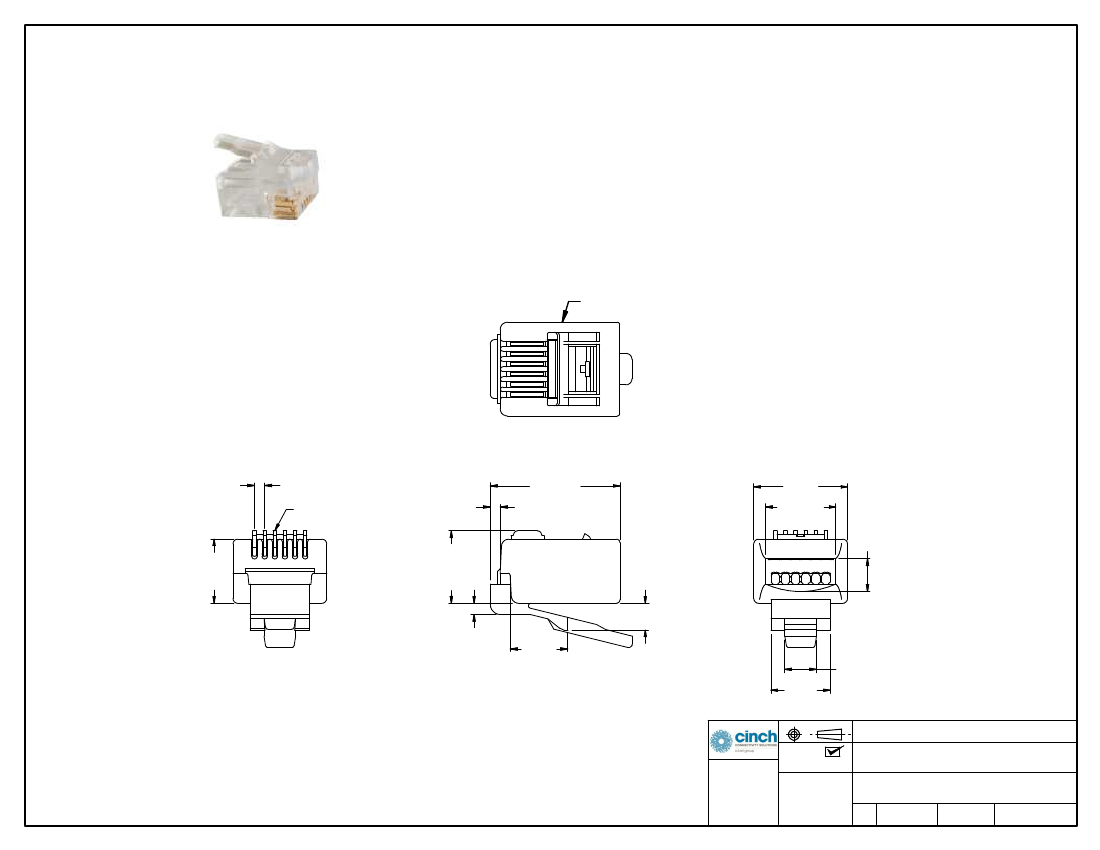

CAT5E, RJ12 (6P6C) Modular Plug,
Unshielded, Solid/Stranded, Round Cable
Model No.
INTERPRET DRAWING IN
ACCORDANCE W ITH ASME
Y14.5-2009.
.XX
u
.02
.XXX
u
.005
ANGLES
u
2
v
32-5996UL
Size
A
DO NOT SCALE
Date:
2015/12/9
DRAWING
Sheet 1 of 1
