39-29-9083 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-29-9083

39-29-9083: DescriptionHeaders u0026 Wire Housings 8 CKT RCPT HOUSING; CategoryThe connector The connector; File Size38KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-29-9083 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-29-9083	-	-	View	Buy Now

39-29-9083 Overview

Headers u0026 Wire Housings 8 CKT RCPT HOUSING

39-29-9083 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks
Other features	MINI-FIT JR.
Board mount options	PEG
body width	0.38 inch
subject depth	0.504 inch
body length	0.984 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN COPPER
Contact completed and terminated	Tin/Copper (Sn/Cu)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e2
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	HOUSING SIDE
Rated current (signal)	7 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.14 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-2
Evacuation force-minimum value	3.1136 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 10/27/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

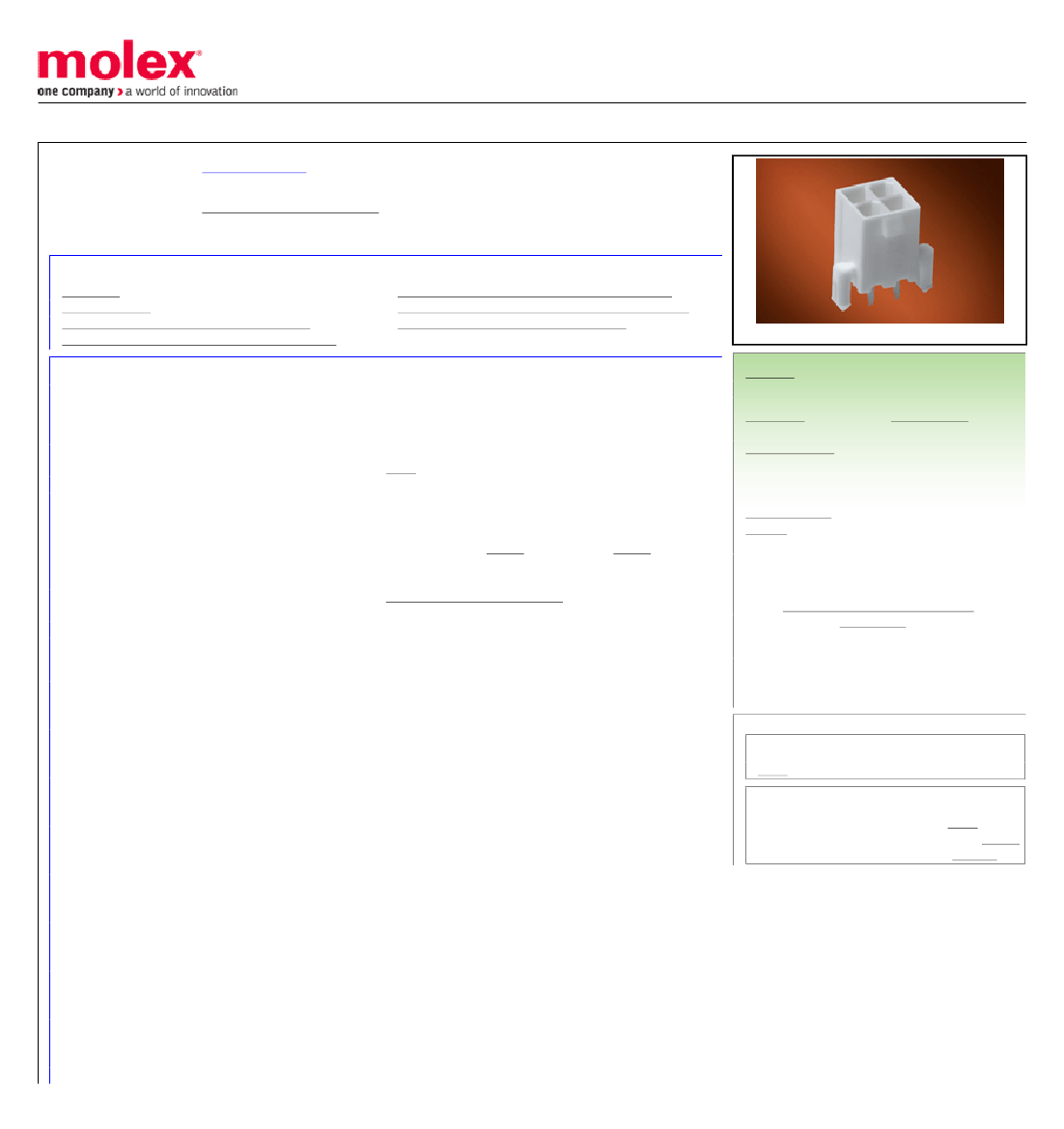

0039299083

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic

Peg PCB Lock, Tin, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

Product Specification TS-5556-002-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5566-002-001 (PDF)

Packaging Specification PK-5566-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

5566

Power, Wire-to-Board

The 5566 header should be used with standard Mini-Fit

female terminals. If increased amperage of up to 13A

per circuit is needed, please consider using the Mini-Fit

Plus HCS family 45750 terminals with 46015 headers; .

See Molex Product specification PS-5666-001 for

current de-rating information.

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800753579989

Natural

94V-2

None

Yes

Brass

Tin

Nylon

1.747/g

Vertical

3.50mm

Yes

1.60mm

Tray

4.20mm

0.889µm

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Search Parts in this Series

5566 Series

Mates With

Mini-Fit Jr. Receptacle Housing 5557

<br>Mini-Fit Jr. TPA Cable Assembly 45135

<br>Mini-Fit Jr. Cable Assembly 245135

Recommended Resources

Capacitive AC contactor DC operation circuit a

Circuit with double T filter and voltage differential correction

Yiyou brand BCD-212H refrigerator circuit

Chaoli brand RC, RS, RF-9728A, RC, RS, RF-9790A

Single-ended forward converter circuit with RC and diode clamp circuit

Quartz crystal oscillator with external capacitor
