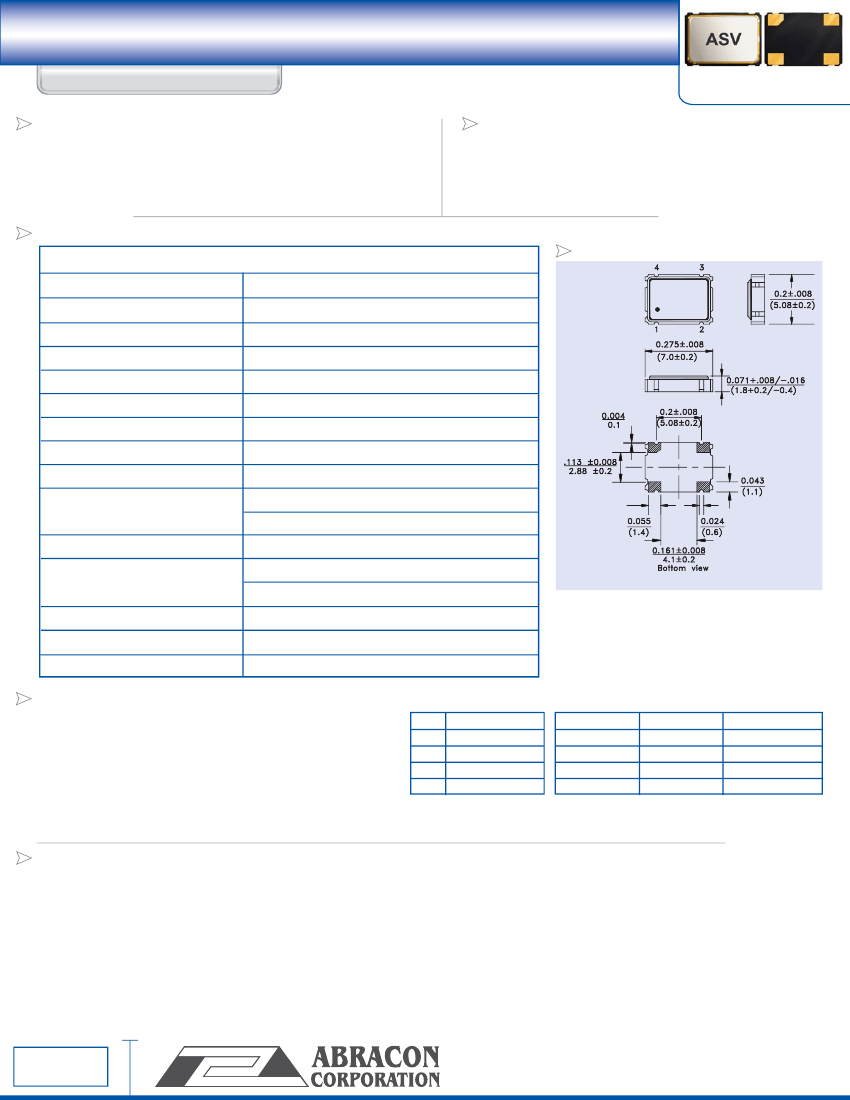

HCMOS/TTL COMPATIBLE VOLTAGE
CONTROL CRYSTAL OSCILLATOR
ASV/ASV1 SERIES
*RoHS COMPLIANT
7.0 x 5.08 x 1.8mm
| | | | | | | | | | | | | | |
FEATURES:
• Leadless chip carrier (LCC), Low profile.
• HCMOS/TTL Compatible, 3.3Vdc, 2.5Vdc, & 1.8Vdc operation.
• Seam welding, Reflow capable.
• Seam welding, 1.4 max. height (ASV1)
APPLICATIONS:
• Provide clock signals for microprocessors,
PC mainboards, Graphic cards.
• High output drive capability applications.
STANDARD SPECIFICATIONS:
PARAMETERS
Frequency Range:
Operating Temperature:
Storage Temperature:
Overall Frequency Stability:
Supply Voltage (Vdd):
Input Current:
Symmetry:
Rise And Fall Time (Tr/tf):
Output Load:
Output Voltage:
Start-up Time:
Tristate Function :
Aging At 25°c/year :
Period Jitter One Sigma :
Disable Current:
1.000 MHz to 150 MHz
-10° C to + 70° C (see options)
- 55° C to + 125° C
± 100 ppm max. (see options)
3.3 Vdc ± 10% (see options)
See Table 1
40/60 % max.@ 1/2Vdd (see options)
See Table 1
15 pF (5TTL)
VOH = 0.9 * Vdd min.
VOL = 0.4 Vdc max.
10ms max.
"1" (VIH >= 2.2 Vdc) or open: Oscillation
"0" (VIL < 0.8 Vdc) : Hi Z
± 5ppm max.
± 25ps max.
15µA max.
NOTE:
XX.X First 3 digits of freq.
ex: 66.6 or 100
R Freq. Stability option (*)
S Duty cycle option (*)
L Temperature option (*)
Z month A to L
Y year 6 for 2006
W traceability code (A to Z)
OUTLINE DRAWING:
Dimensions: inch (mm)
MARKING:
- XX.X RS (see note)
- ASV ZYW (see note)
Alternate Marking:
Marking scheme subject to
change without notice.
Contact factory for Alternate
Marking Specifications.
Table 1
PIN
1
2
3
4
FUNCTION
Tri-state
GND/Case
Output
Vdd
Freq. (MHz)
1.0 ~ 34.99
35.0 ~ 60.0
60.01~99.99
100 ~ 150
Idd max. (mA)
16
25
40
50
Tr/Tf max. (nSec)
10ns
5ns
5ns
2.5ns
OPTIONS AND PART IDENTIFICATION (Left blank if standard):
ASV - Voltage - Frequency - Temp. - Overall Frequency Stability - Duty cycle - Packaging
Freq Stability options:
Y
for ± 10 ppm max.
J
for ± 20 ppm max.
R
for ± 25 ppm max.
K
for ± 30 ppm max.
H
for ± 35 ppm max.
C
for ± 50 ppm max.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev2.1-5/06
Temperature options:
I
for 0°C to +50°C
D
for -10°C to +60°C
E
for -20°C to +70°C
F
for -30°C to +70°C
N
for -30°C to +85°C
L
for -40°C to +85°C
Voltage options:
25
for 2.5V
18
for 1.8V
Symmetry option:
S
for 45/55% at 1/2Vdd
S1
for 45/55% at 1.4Vdc
Packaging option:
T
for Tape and Reel (1,000pcs/reel)
T5
for Tape and Reel (500pcs/reel)
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
